A/C Compressor Control Module Connector End View C2

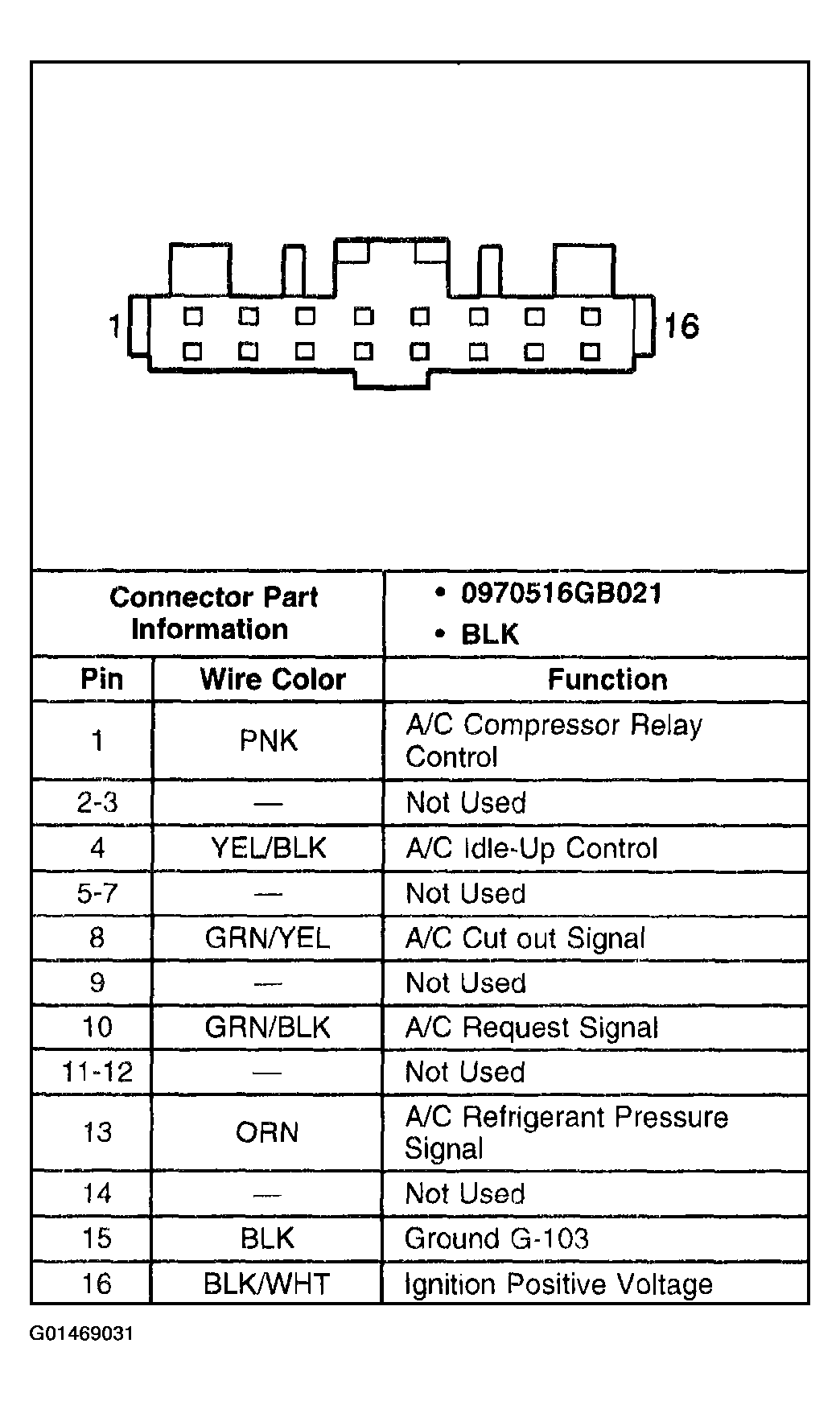

Fig 1: A/C Compressor Control Module C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
