Accelerometer Connector End View

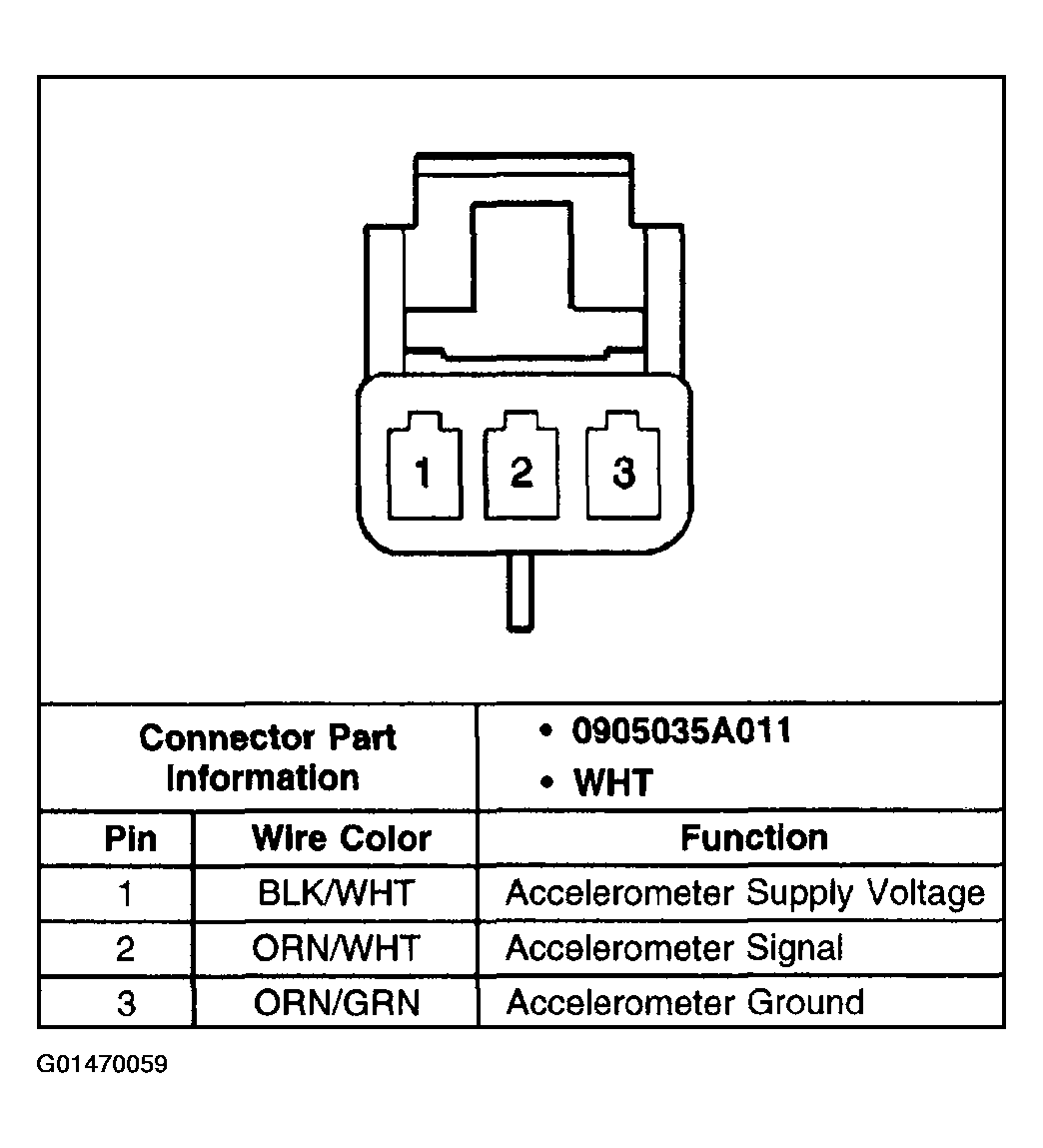

Fig 1: Accelerometer
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
