Input Shaft Speed Sensor Connector End View

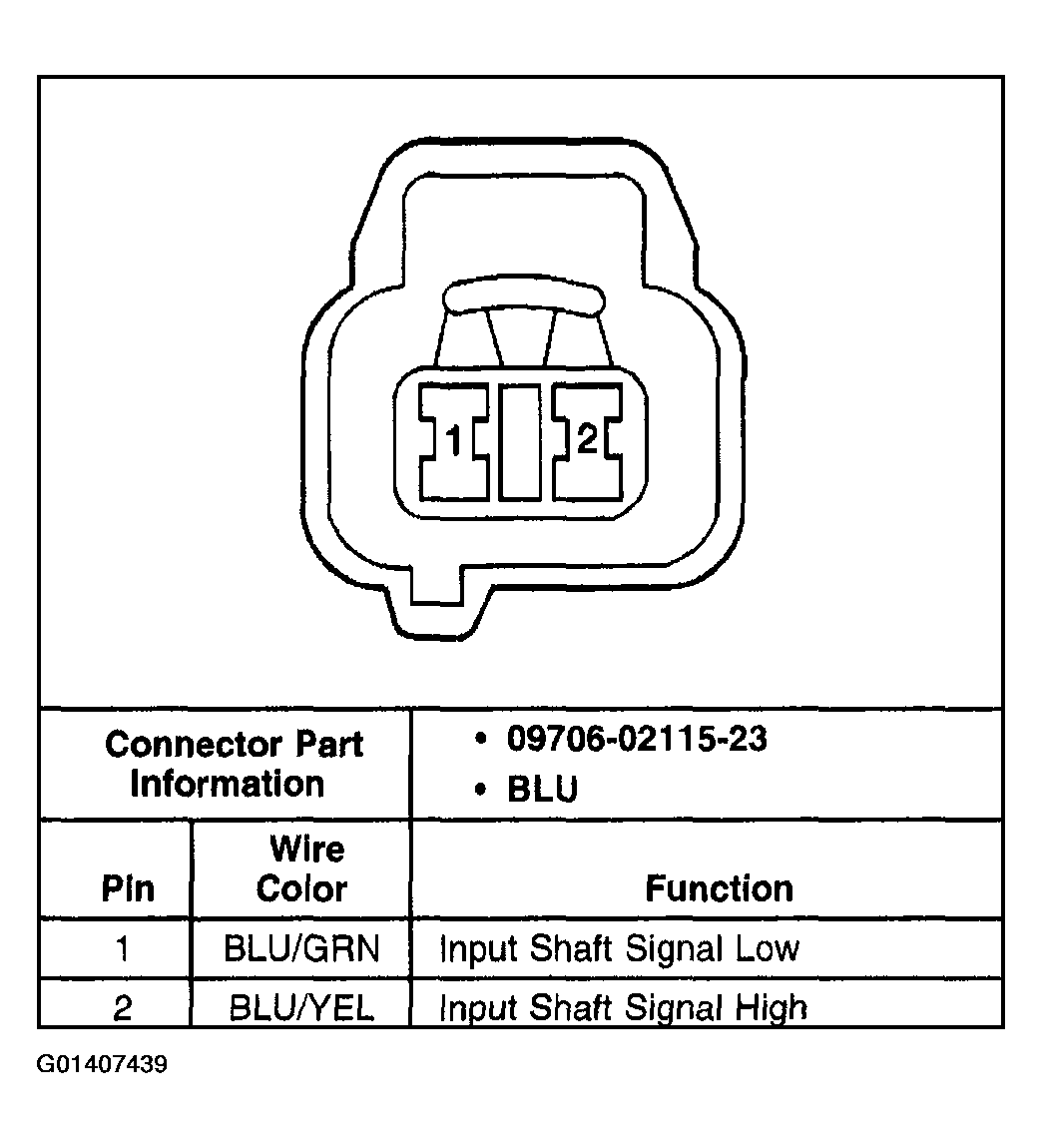

Fig 1: Input Shaft Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
