Back View of the PCM Connector C1

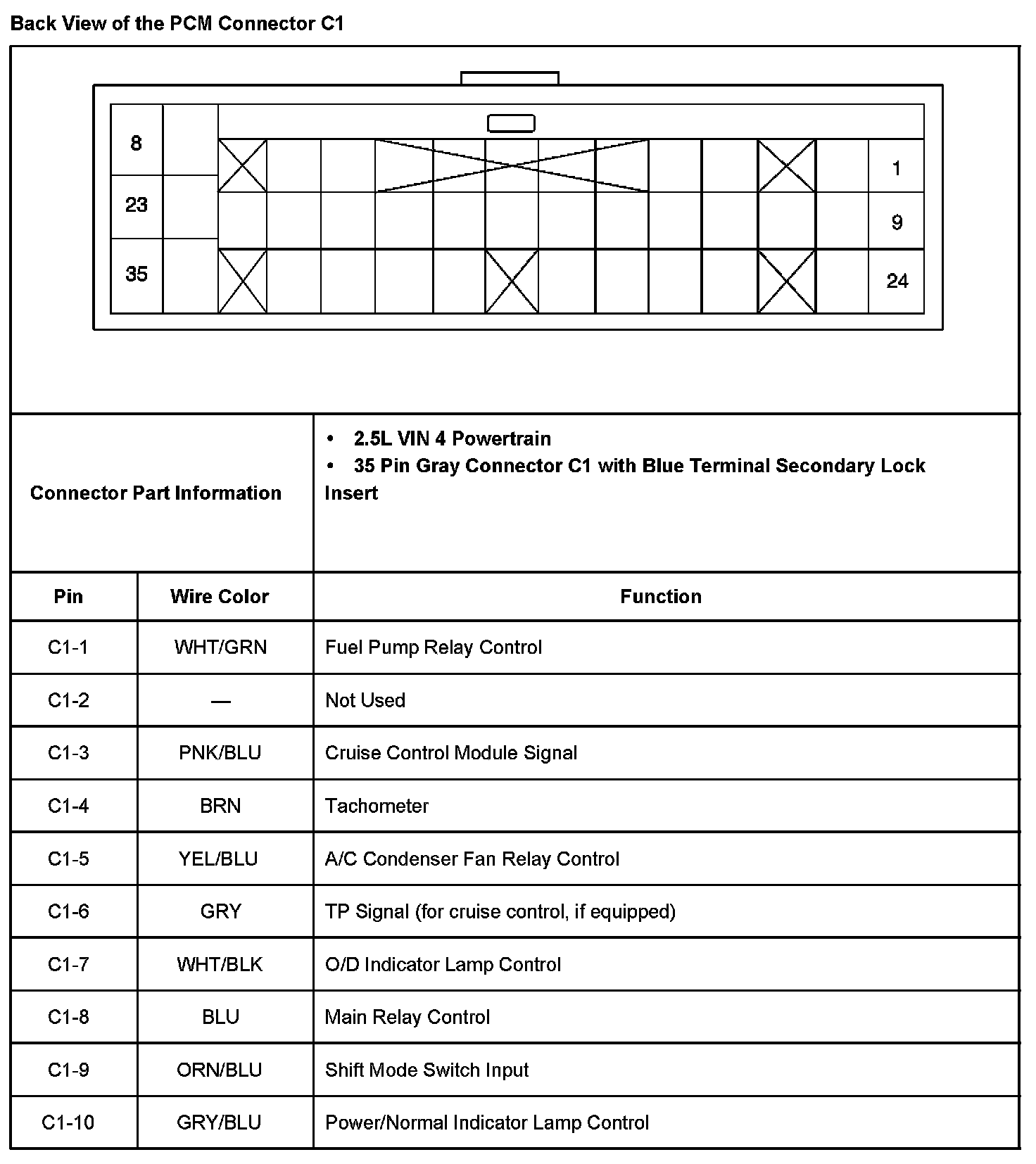

Back View Of The PCM Connector C1 Part 1:

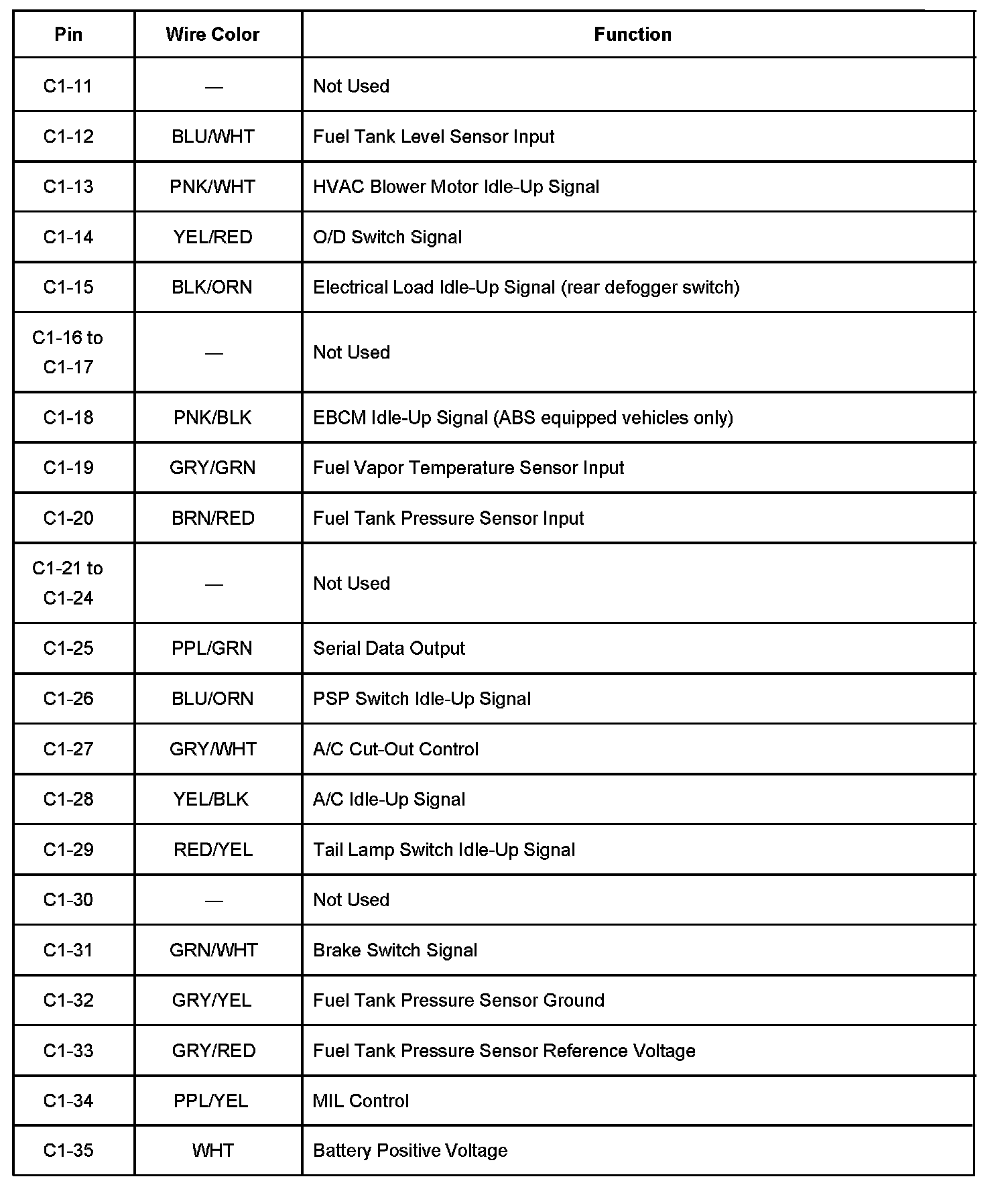

Back View Of The PCM Connector C1 Part 2:
