Scan Tool Output Controls - Auxiliary HVAC Control Module

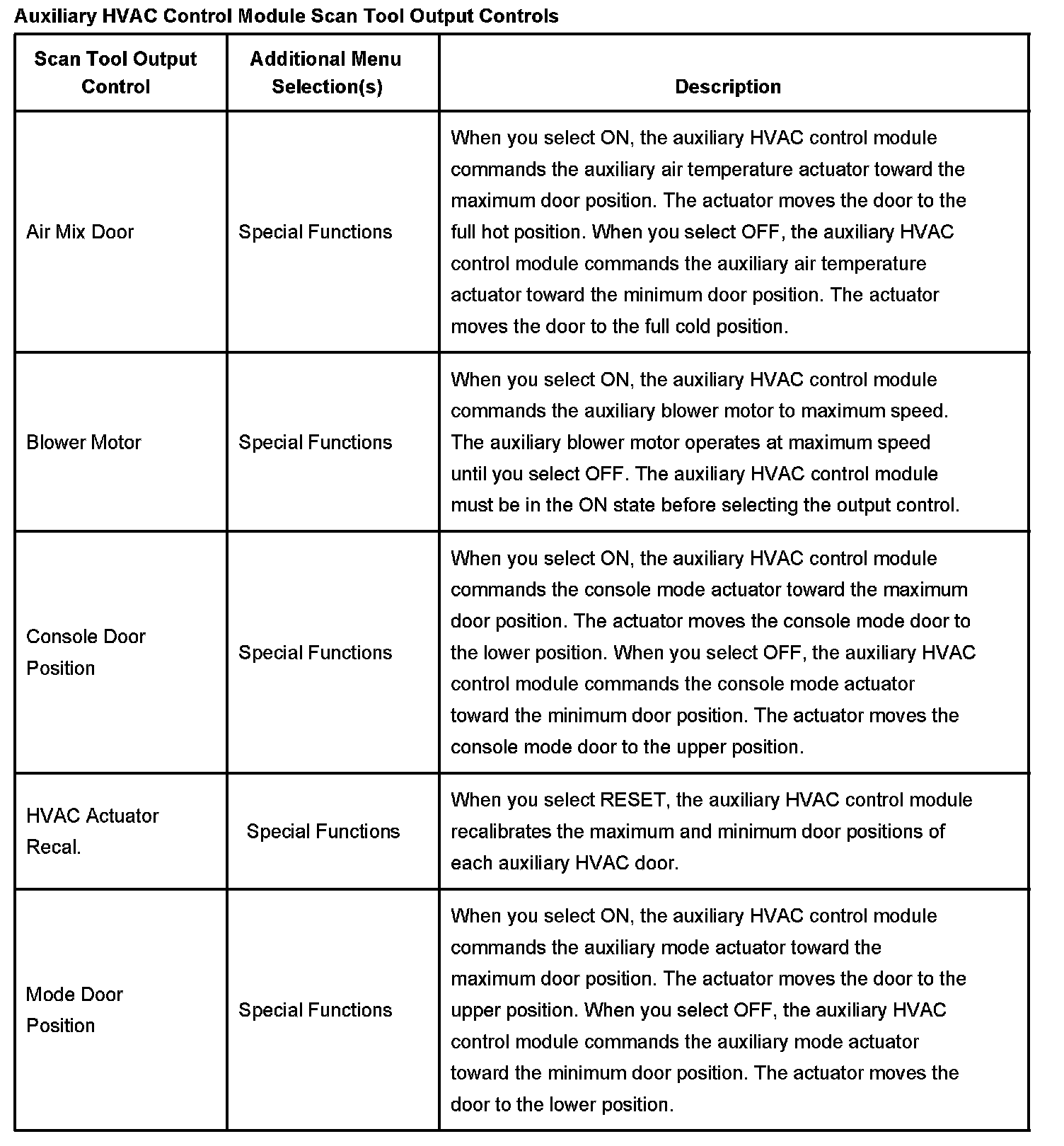

Auxiliary HVAC Control Module Scan Tool Output Controls Part 1:



Auxiliary HVAC Control Module Scan Tool Output Controls Part 2:
