Engine Block - Bottom View

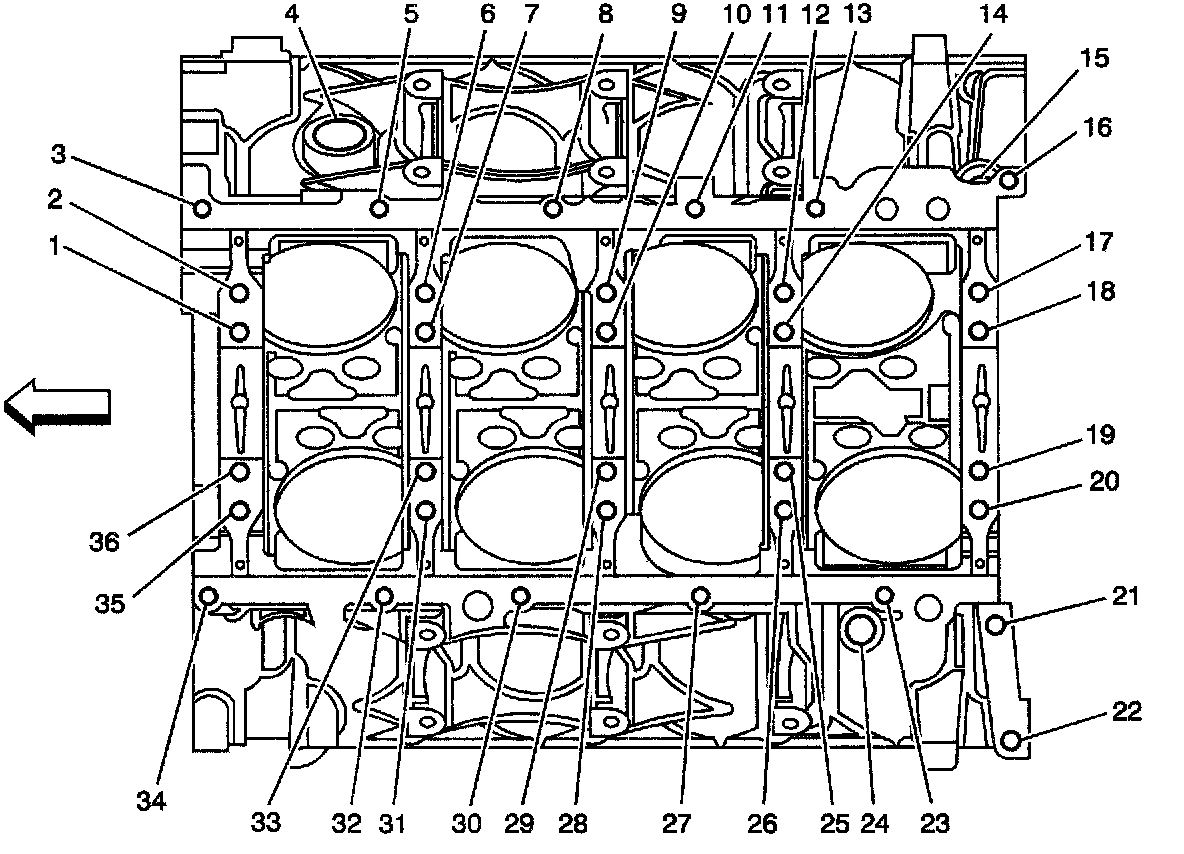

Engine Block - Bottom View (Part 1 Of 3):

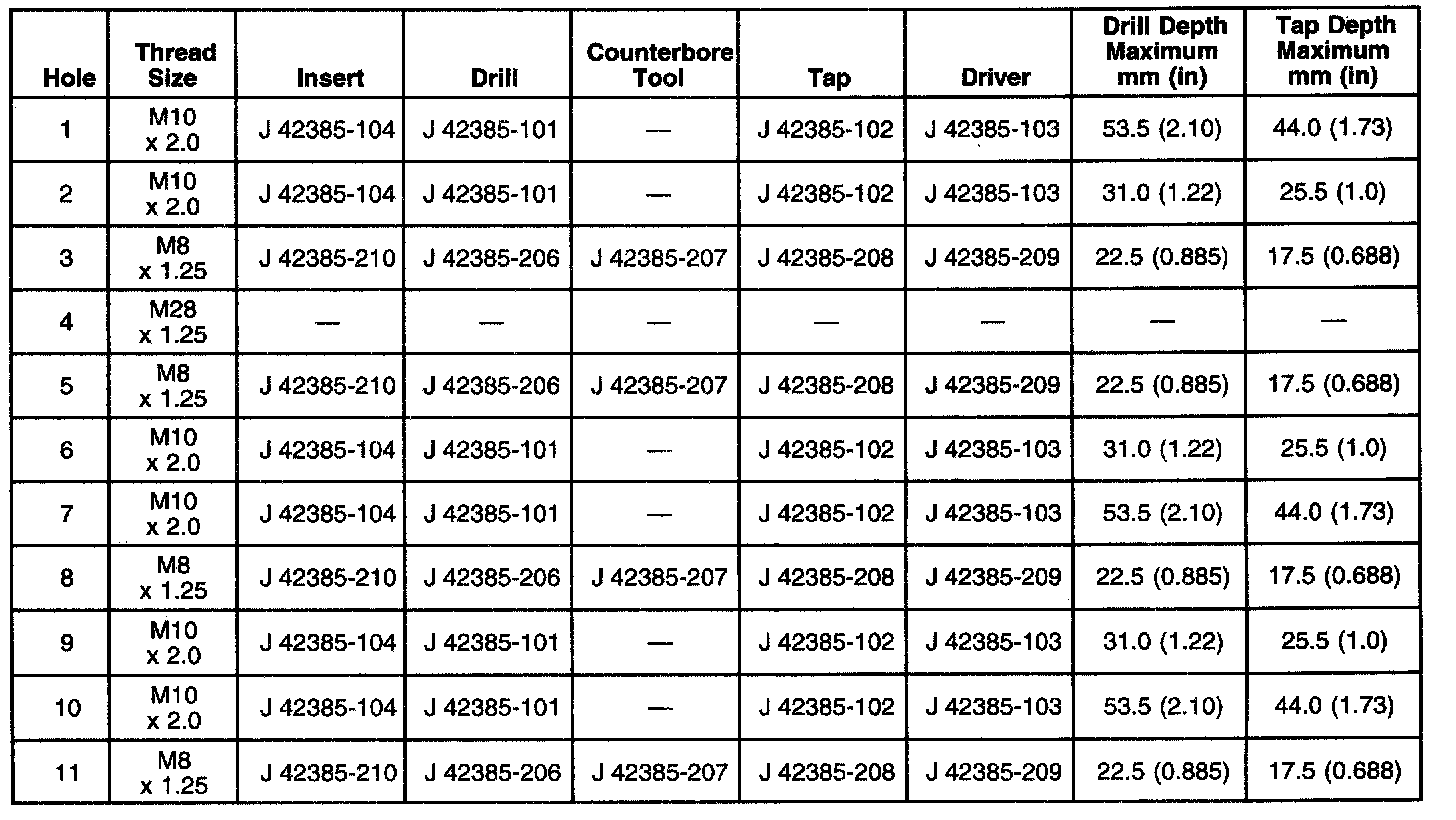

Engine Block - Bottom View (Part 2 Of 3):

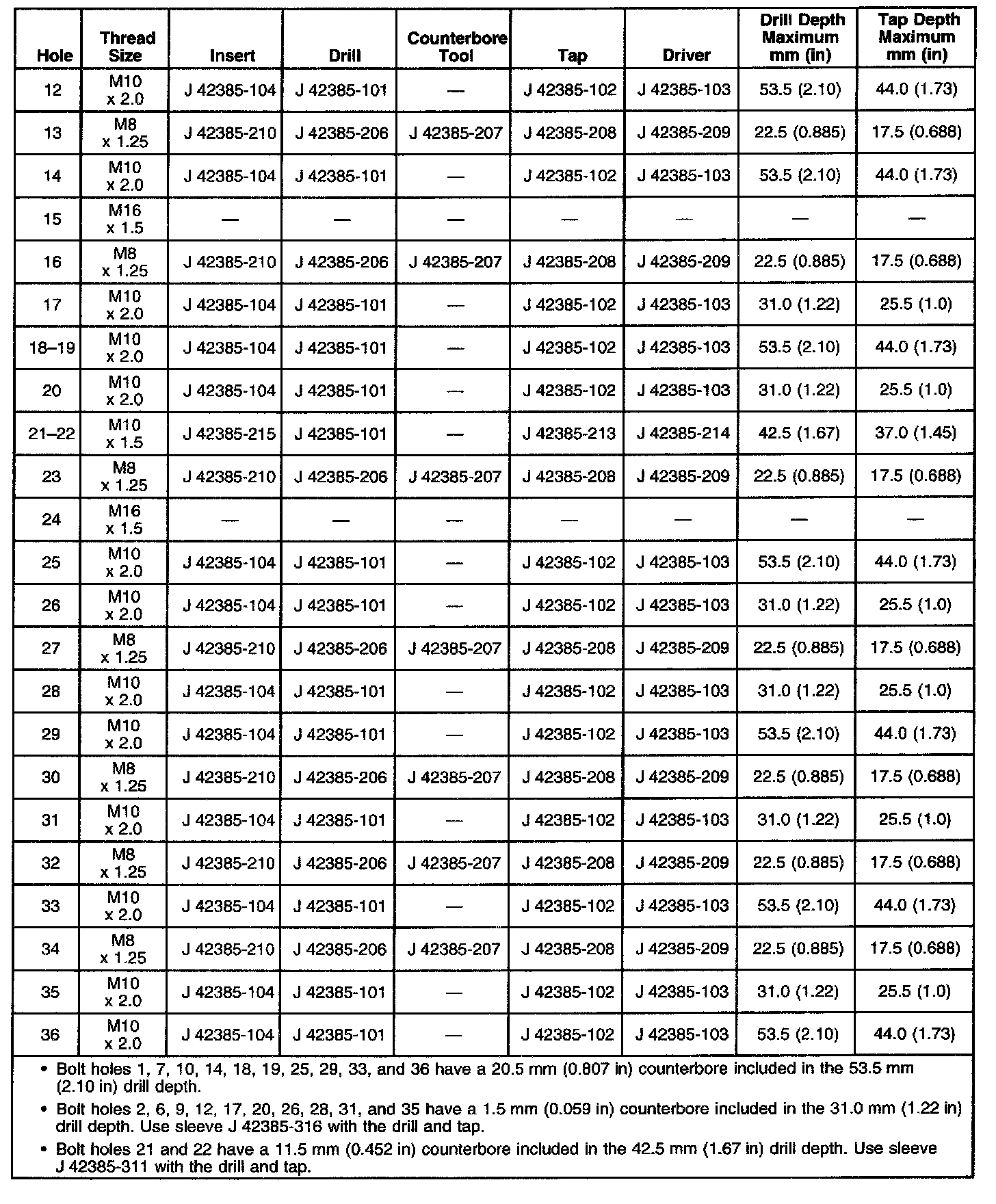

Engine Block - Bottom View (Part 3 Of 3):
