Connector Views
AT Inline 20-Way Connector, Engine Side:

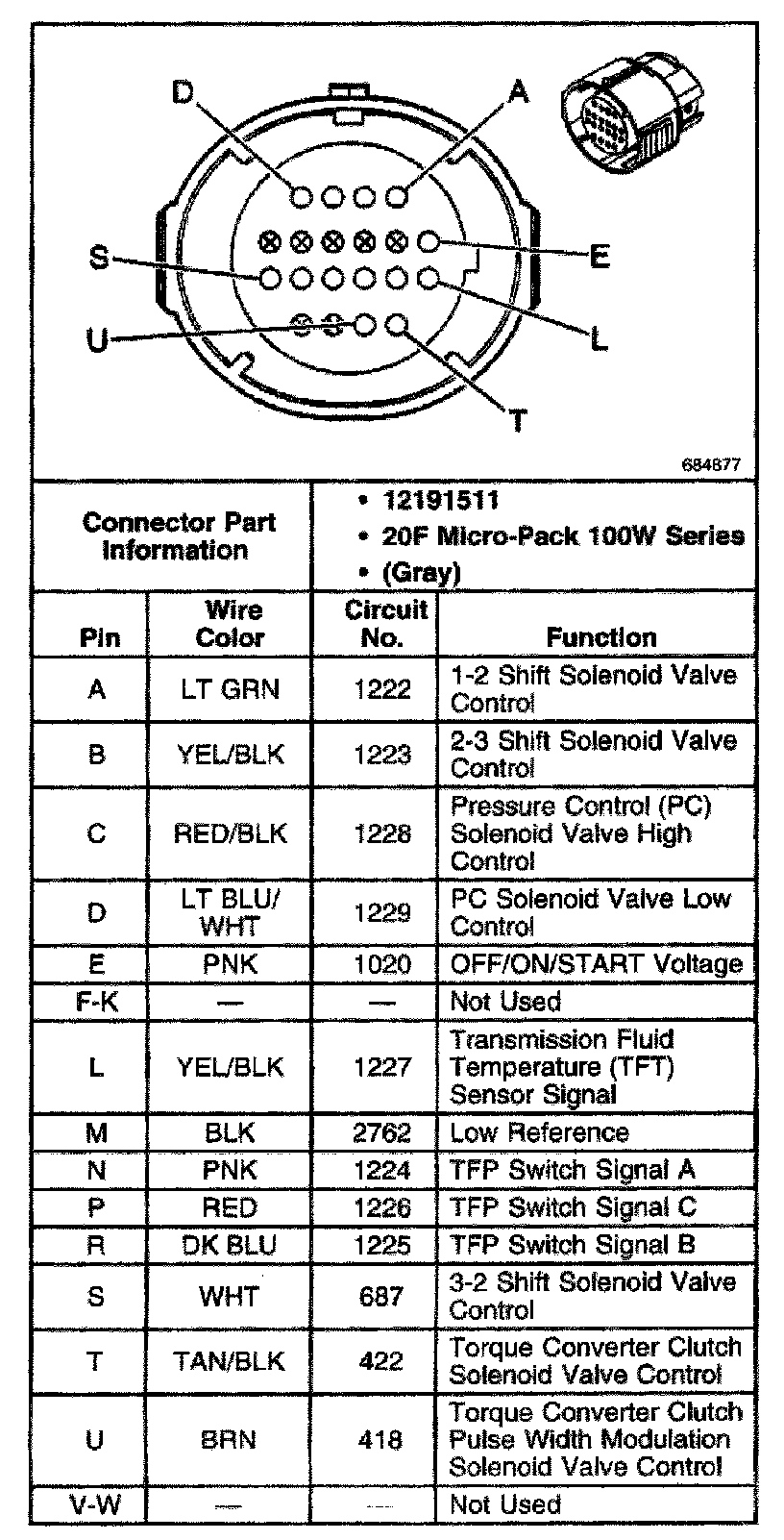

AT Inline 20-Way Connector, Transmission Side:
