Control Module: Diagrams

Transfer Case Shift Control Module C1:

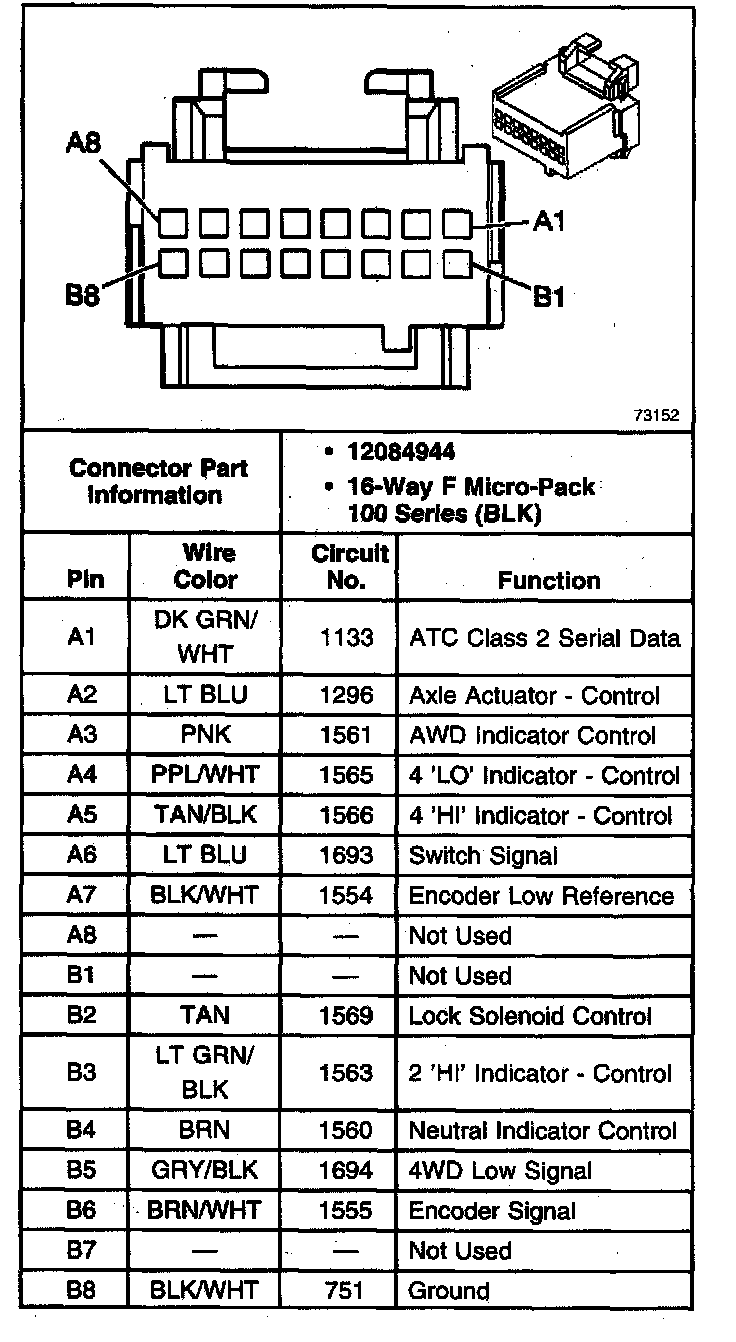

Transfer Case Shift Control Module C2:



Transfer Case Shift Control Module C3:
