Retained Accessory Power (RAP) Component Views

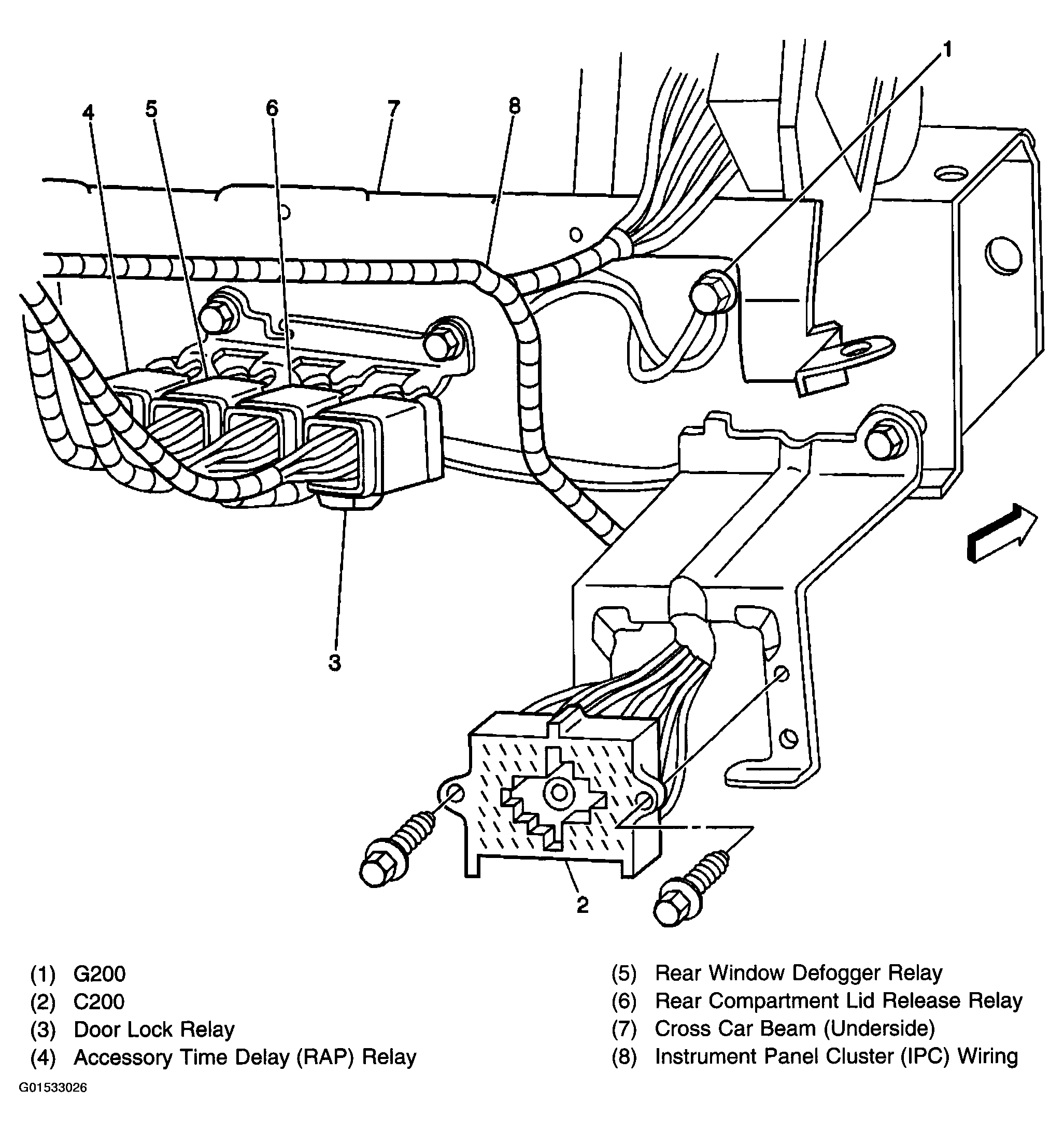

Fig 1: Behind RH Side Of Instrument Panel Component View
G01533026Courtesy of GENERAL MOTORS CORP.
