Installation Procedure

  1. Connect the electrical connector to the door lock receiver.
  2. Engage the retaining tabs in order to install the door lock receiver to the IP upper trim.
  3. Install the IP upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.
  4. Program transmitter to the new receiver. Refer to TRANSMITTER PROGRAMMING   .

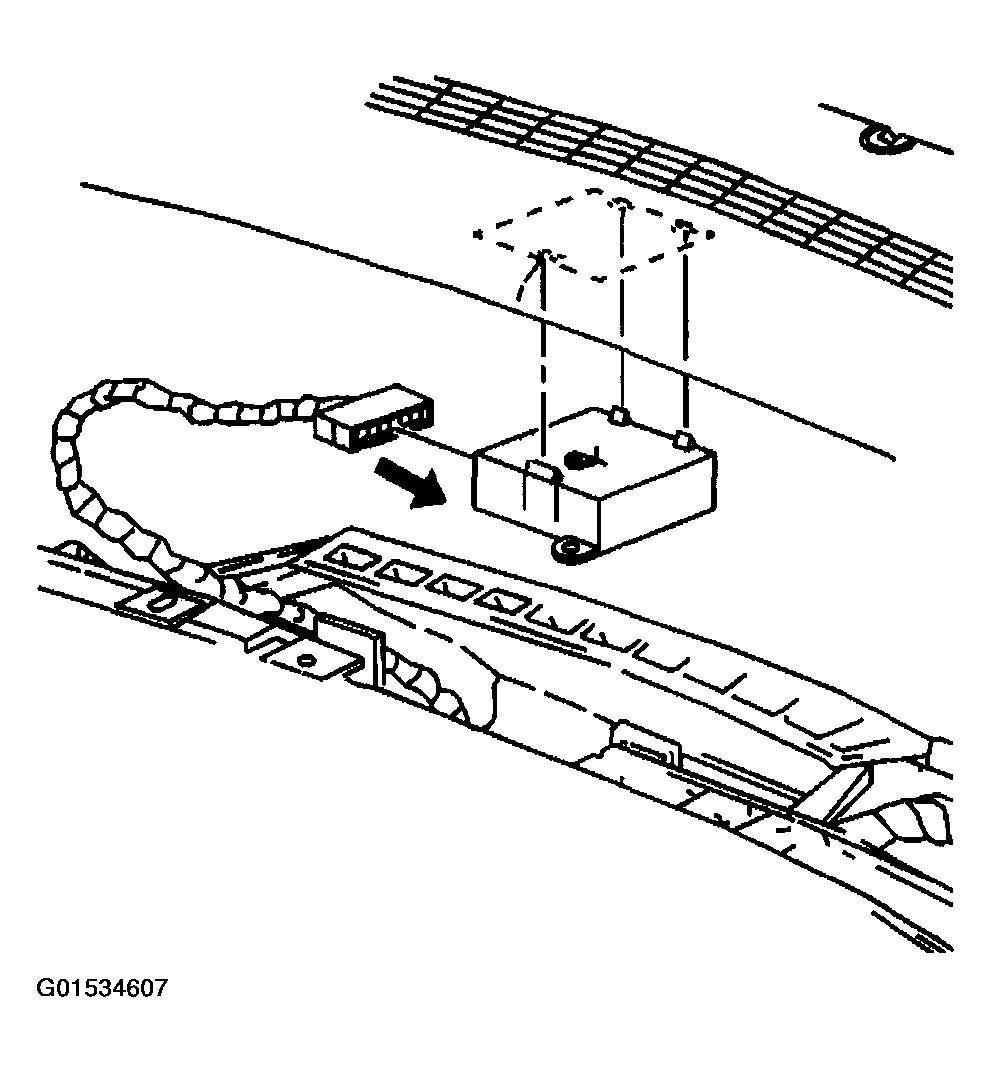

    Fig 1: Connecting Electrical Connector To Door Lock Receiver
    G01534607Courtesy of GENERAL MOTORS CORP.
