Theft Deterrent System Component Views

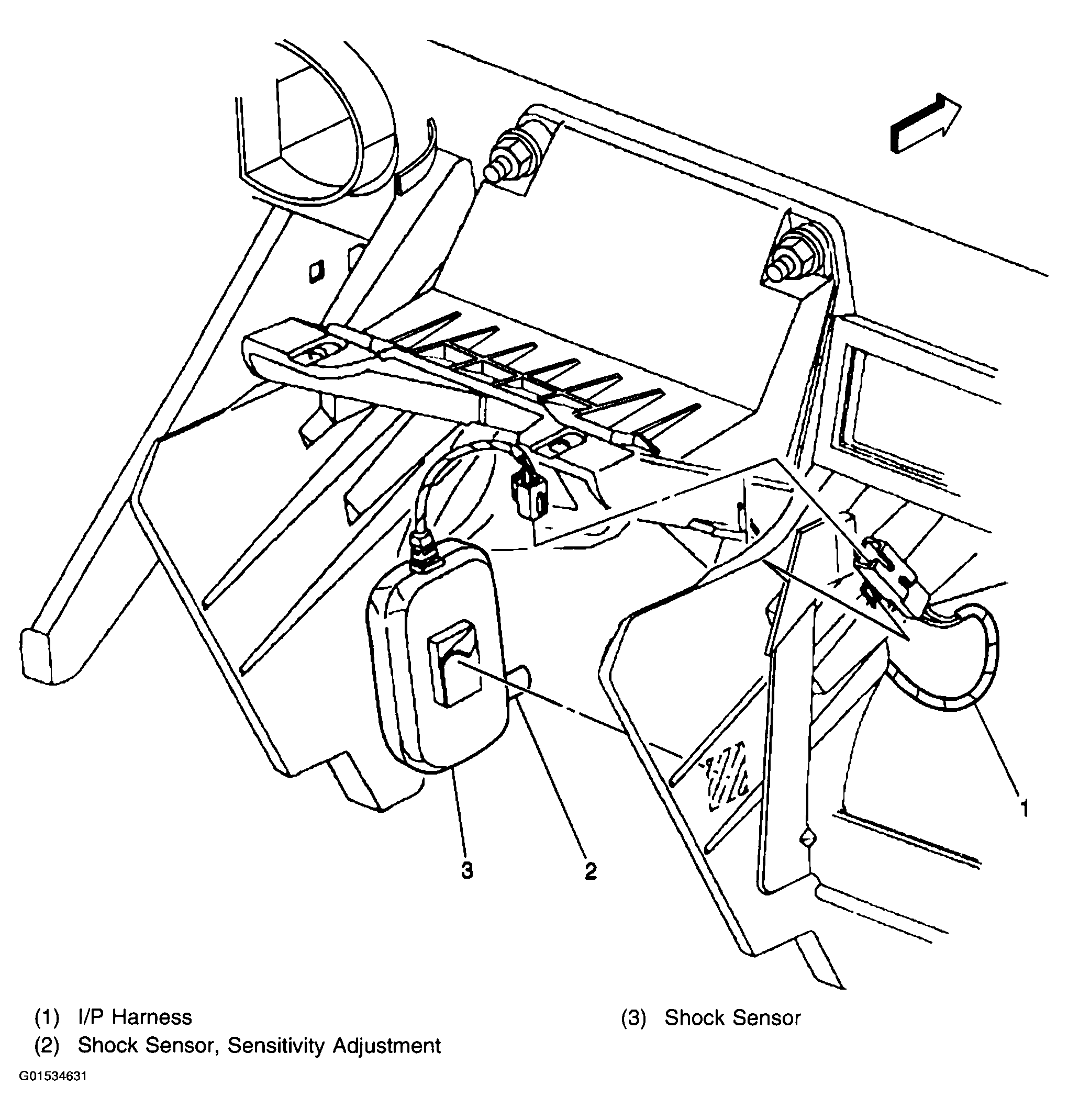

Fig 1: RH Side Of Steering Column Component View
G01534631Courtesy of GENERAL MOTORS CORP.

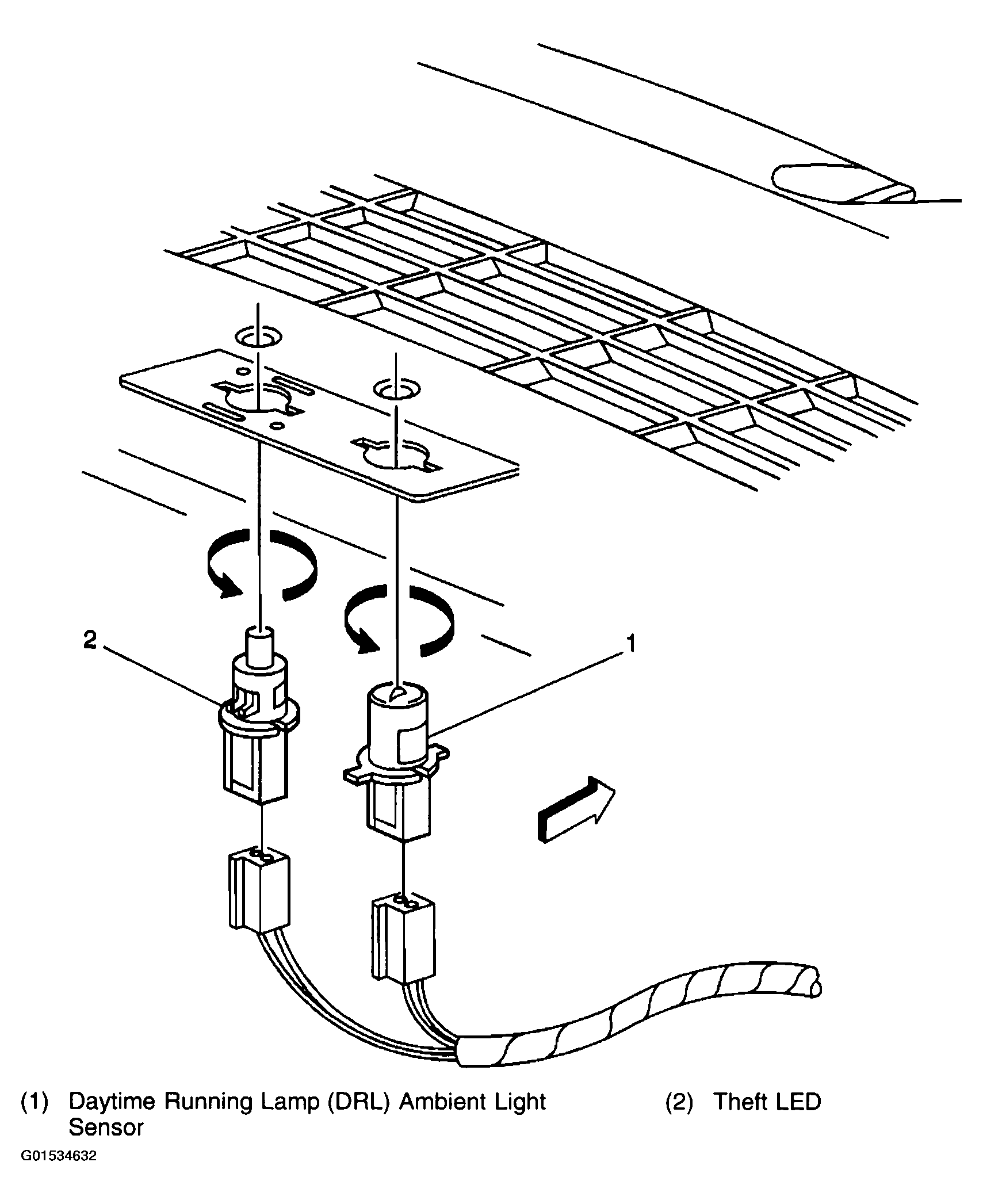

Fig 2: Security Indicator Lamp Component View
G01534632Courtesy of GENERAL MOTORS CORP.
