Power Seat Systems Component Views

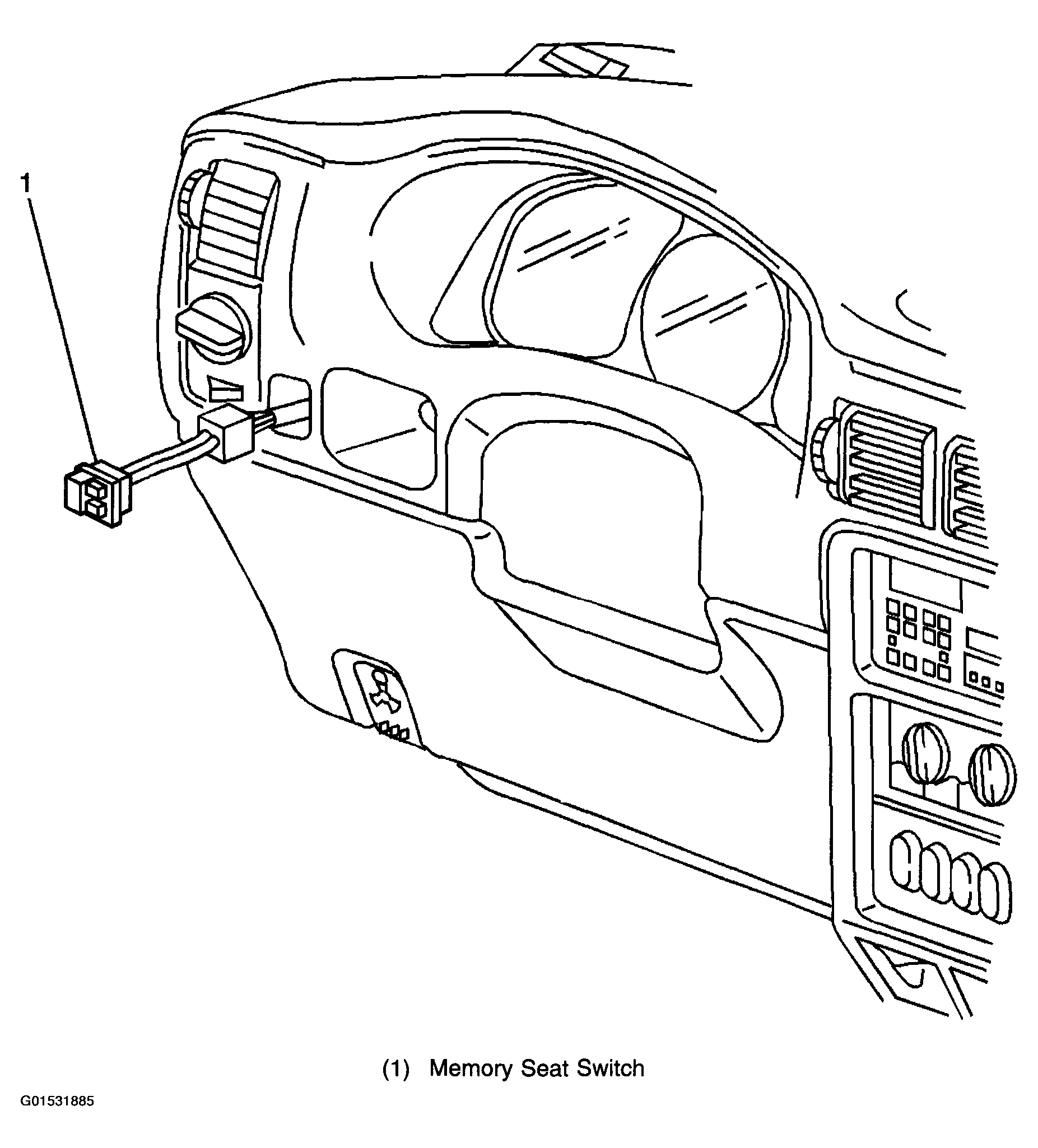

Fig 1: Memory Seat Switch Component View
G01531885Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Seat Switch Component View
G01531886Courtesy of GENERAL MOTORS CORP.
