Power Seat Systems Connector End Views

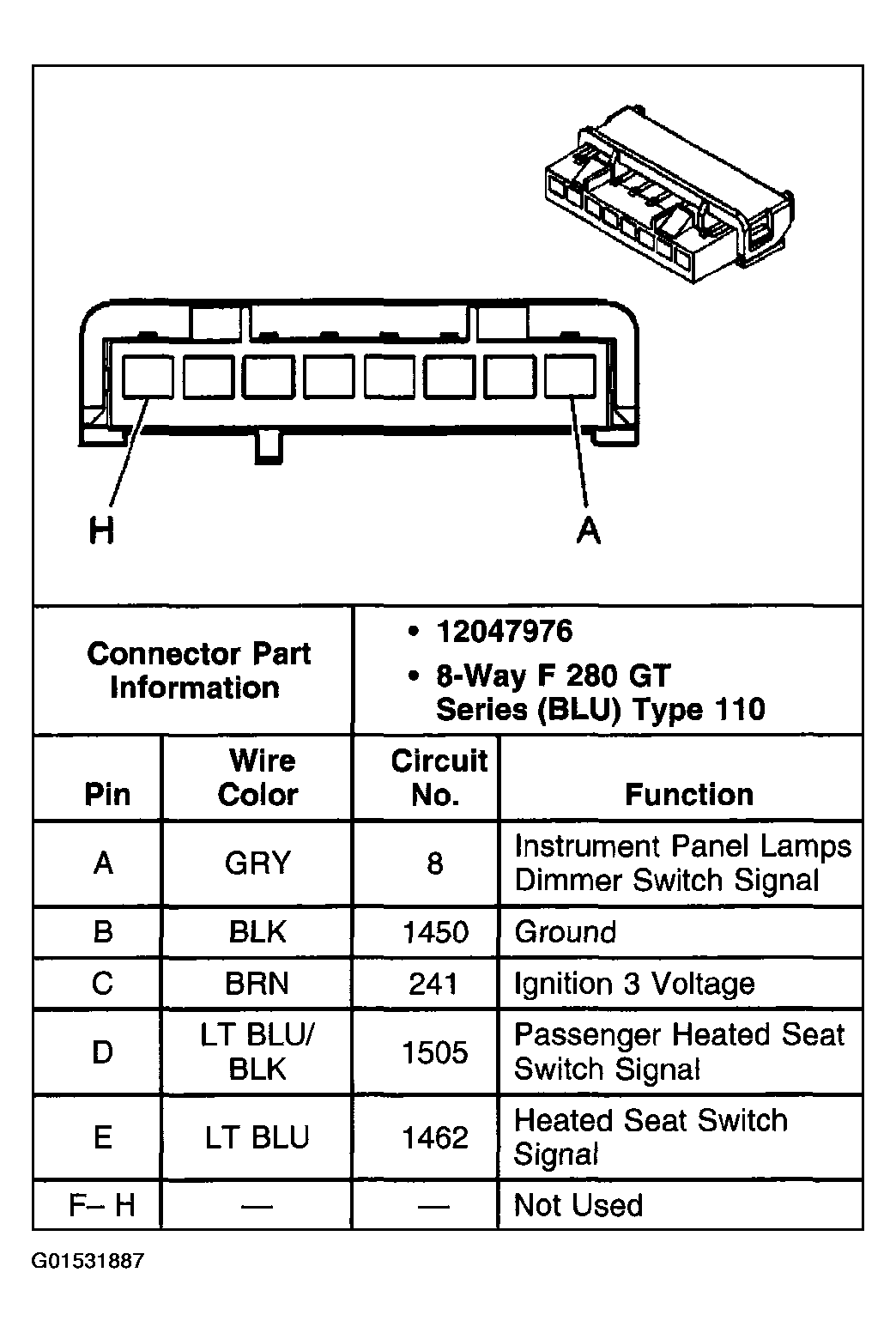

Fig 1: Heated Seat Switch Connector End View
G01531887Courtesy of GENERAL MOTORS CORP.
Fig 2: Memory Seat Switch Connector End View
G01531888Courtesy of GENERAL MOTORS CORP.
Fig 3: Memory Seat Module Connector C1 End View
G01531889Courtesy of GENERAL MOTORS CORP.
Fig 4: Memory Seat Module Connector C2 End View
G01531890Courtesy of GENERAL MOTORS CORP.
Fig 5: Memory Seat Module Connector C3 End View
G01531891Courtesy of GENERAL MOTORS CORP.
Fig 6: Memory Seat Module Connector C4 End View
G01531892Courtesy of GENERAL MOTORS CORP.

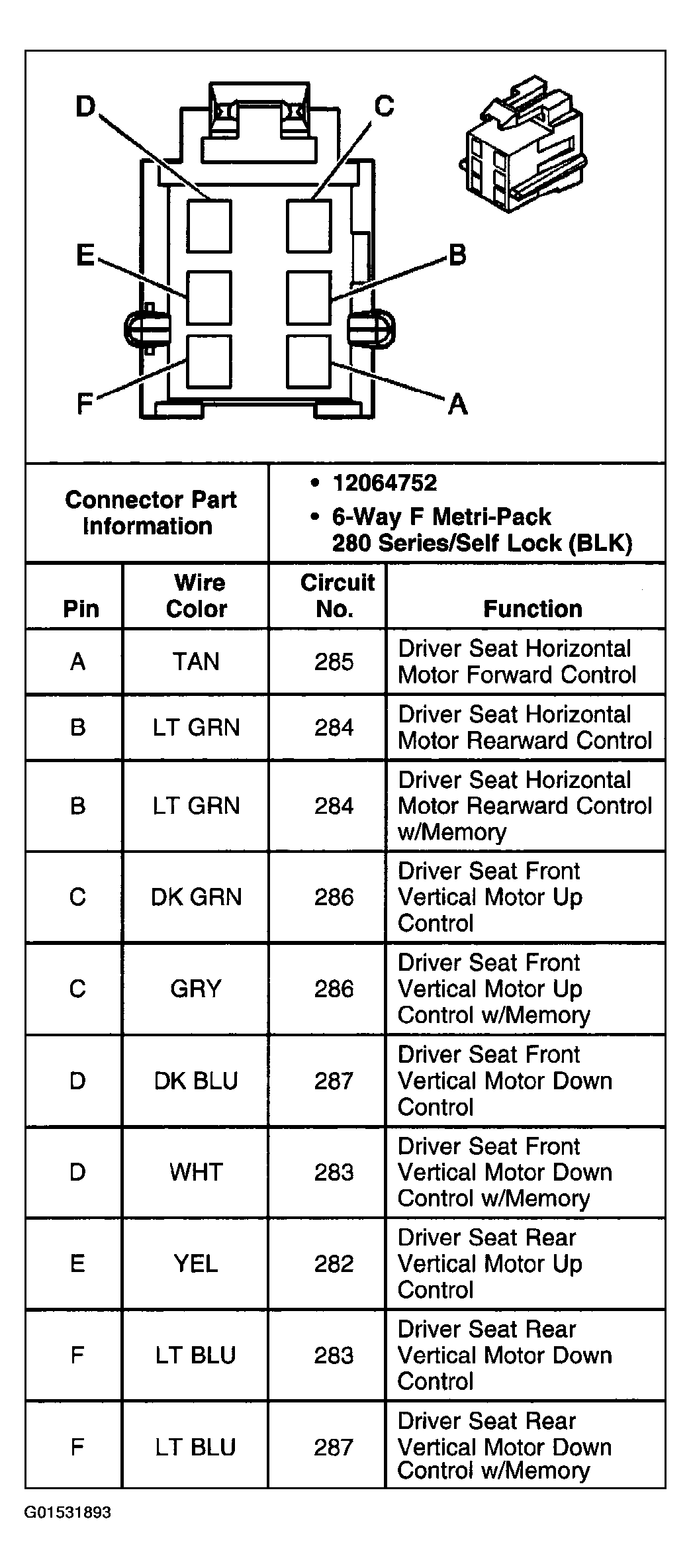

Fig 7: Seat Adjuster Motor Assembly (Driver) Connector End View
G01531893Courtesy of GENERAL MOTORS CORP.

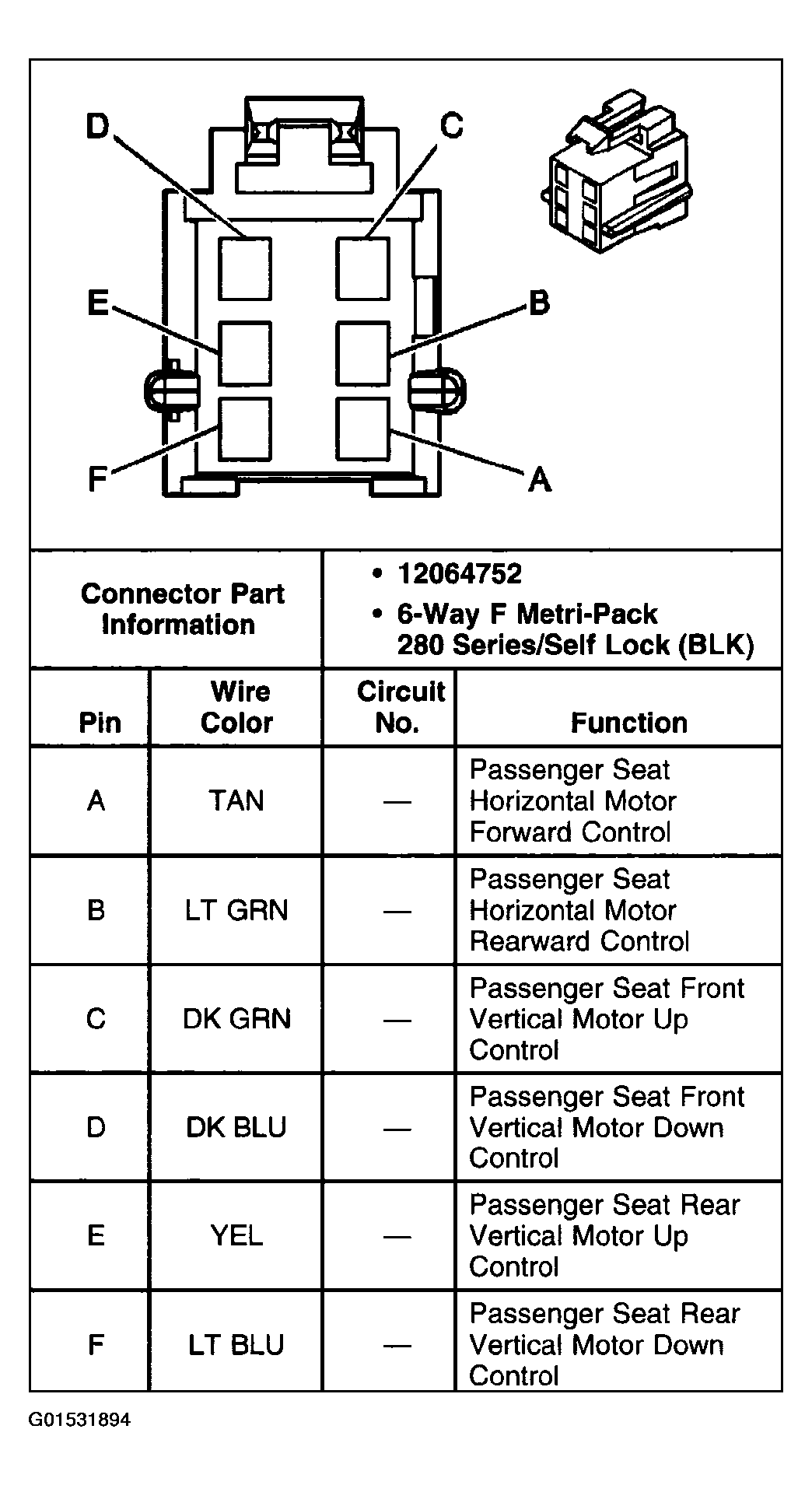

Fig 8: Seat Adjuster Motor Assembly (Front Passenger) Connector End View
G01531894Courtesy of GENERAL MOTORS CORP.

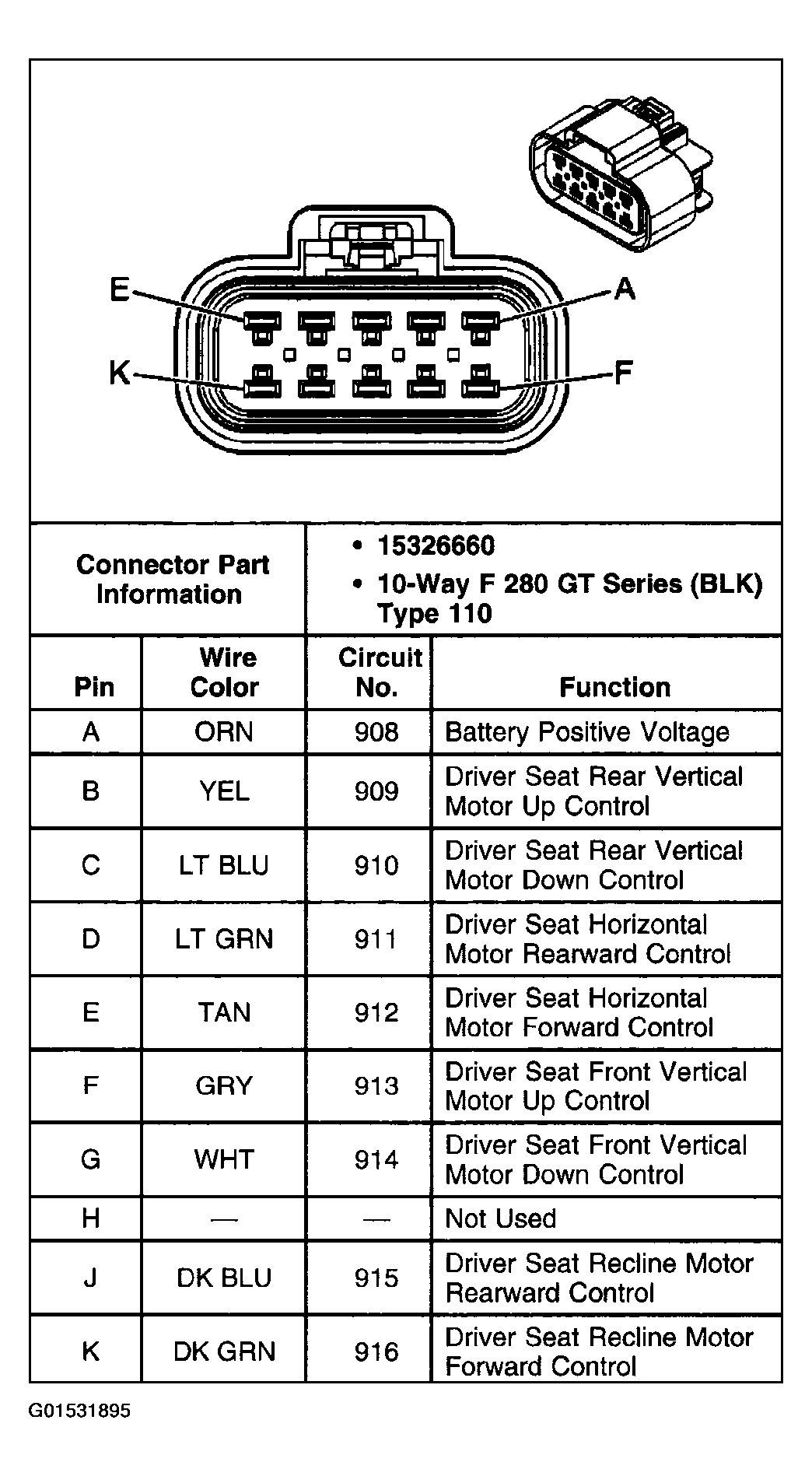

Fig 9: Seat Adjuster Switch - Driver (Memory W/Heated Seats) Connector End View
G01531895Courtesy of GENERAL MOTORS CORP.
Fig 10: Seat Adjuster Switch Drivers (W/Heated Seats - 8 Way Power) Connector End View
G01531896Courtesy of GENERAL MOTORS CORP.

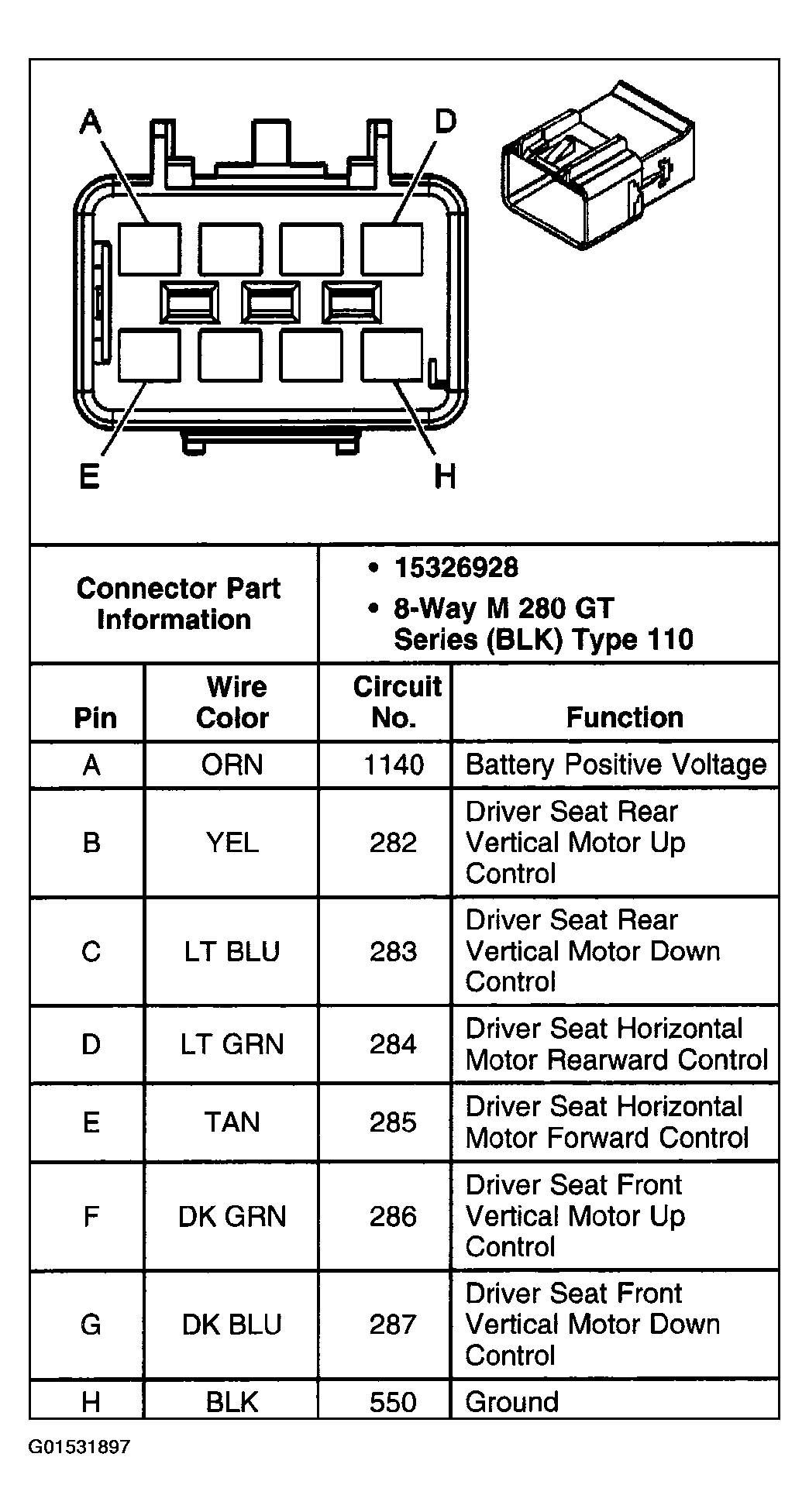

Fig 11: Seat Adjuster Switch Drivers (W/O Memory And Heated Seats - 6 Way Power) Connector End View
G01531897Courtesy of GENERAL MOTORS CORP.

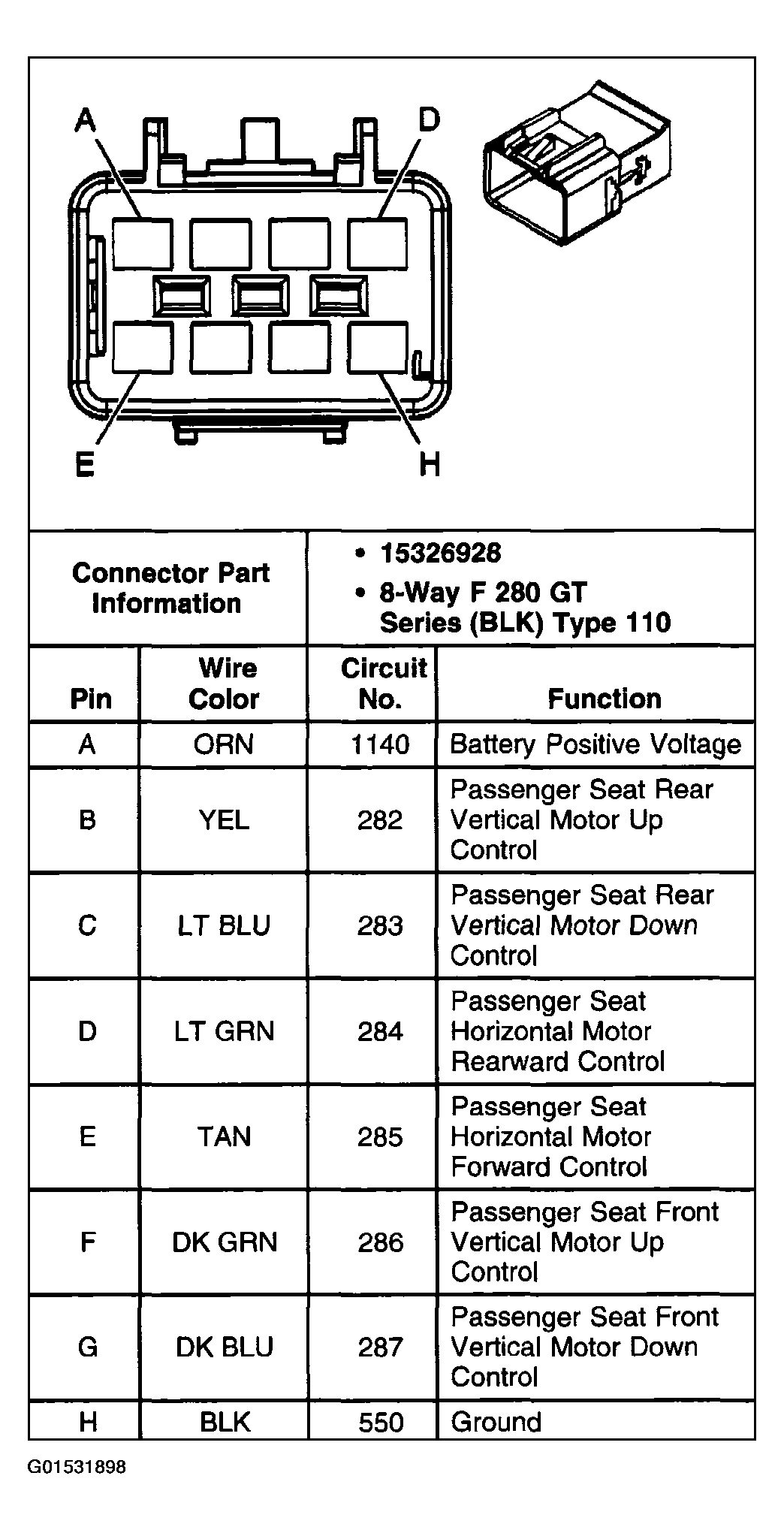

Fig 12: Seat Adjuster Switch (Front Passenger - 6 Way Power) Connector End View
G01531898Courtesy of GENERAL MOTORS CORP.

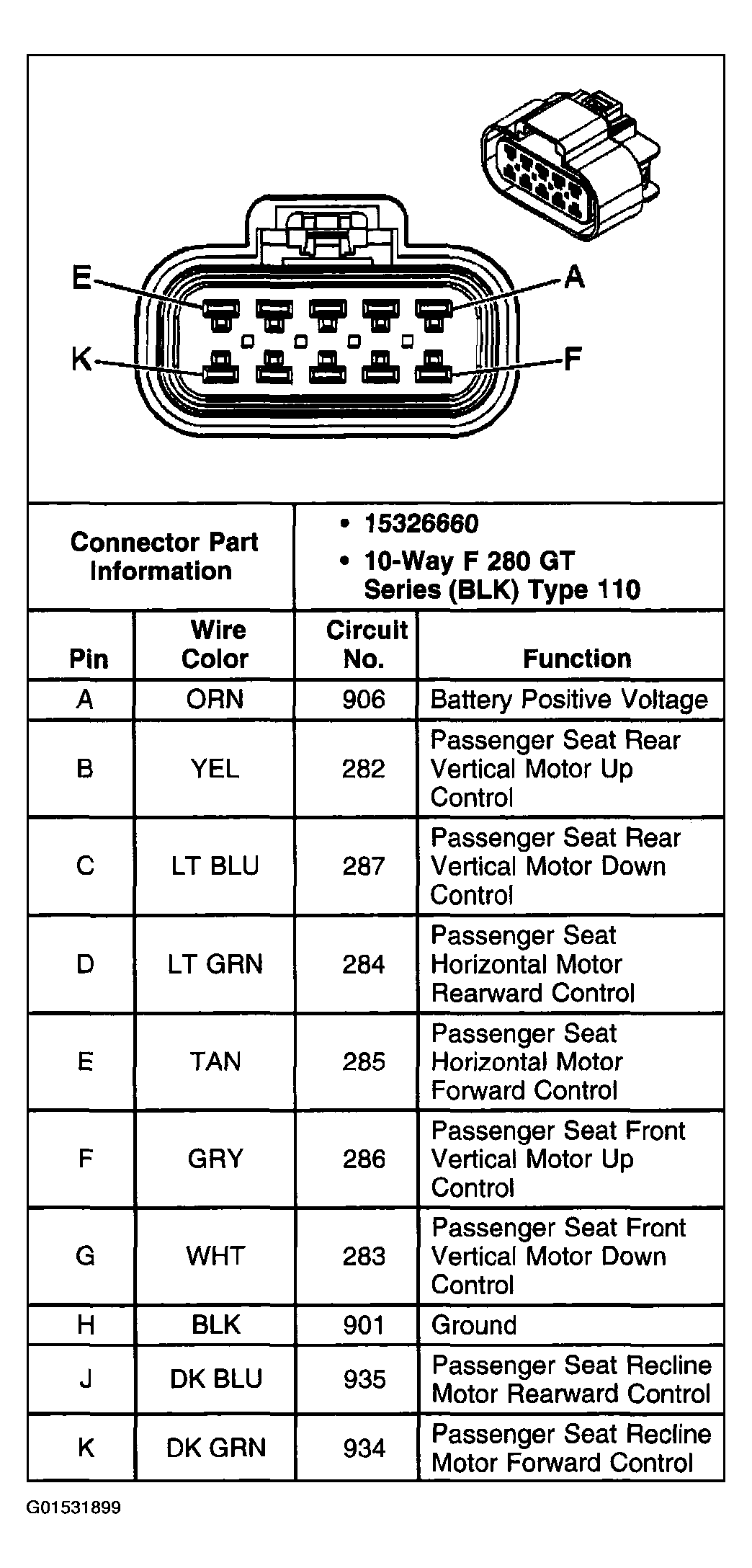

Fig 13: Seat Adjuster Switch (Front Passenger - W/ 8 Way Power) Connector End View
G01531899Courtesy of GENERAL MOTORS CORP.
