Power Door Systems Component Views

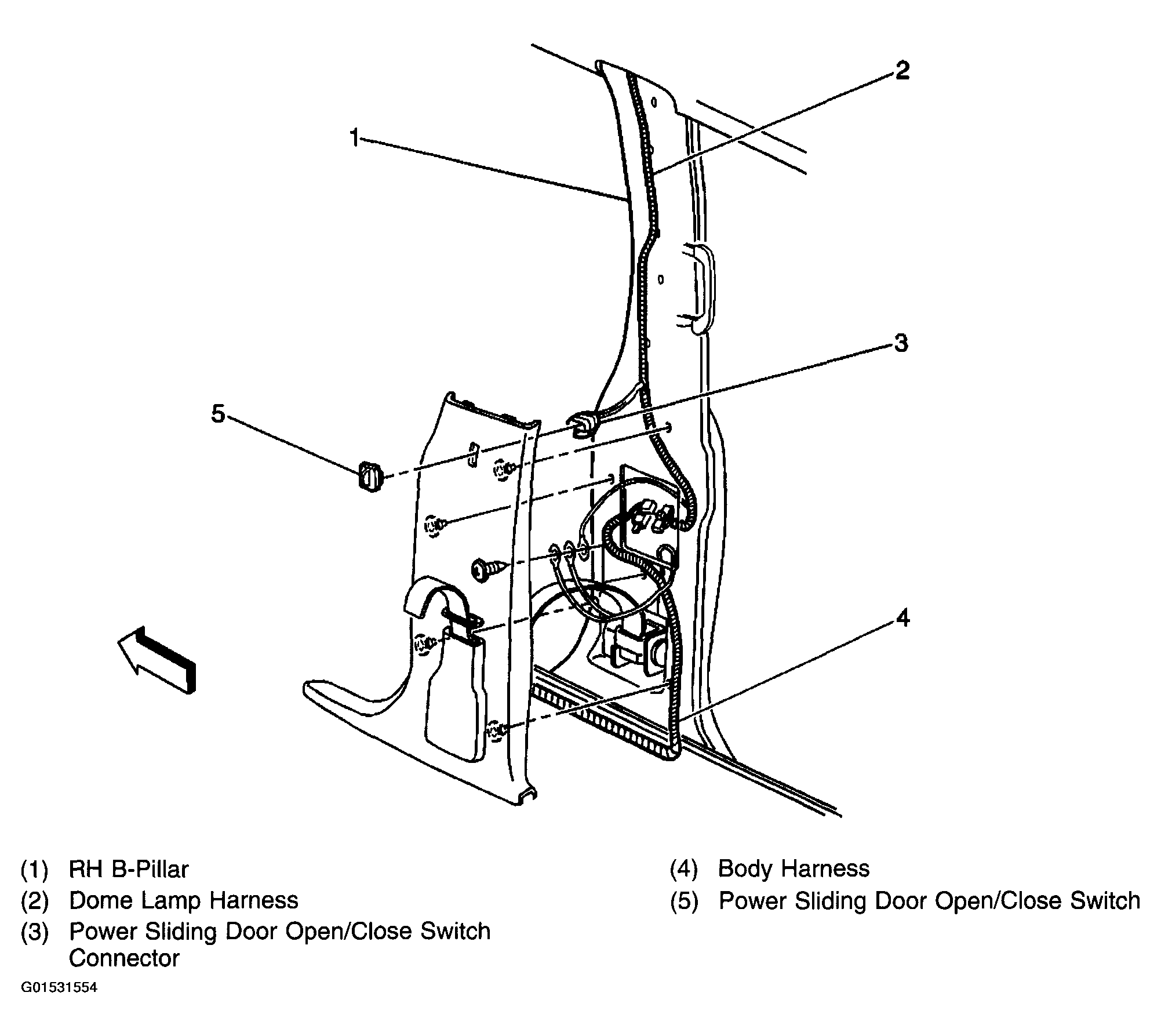

Fig 1: RH B-Pillar Component View
G01531554Courtesy of GENERAL MOTORS CORP.

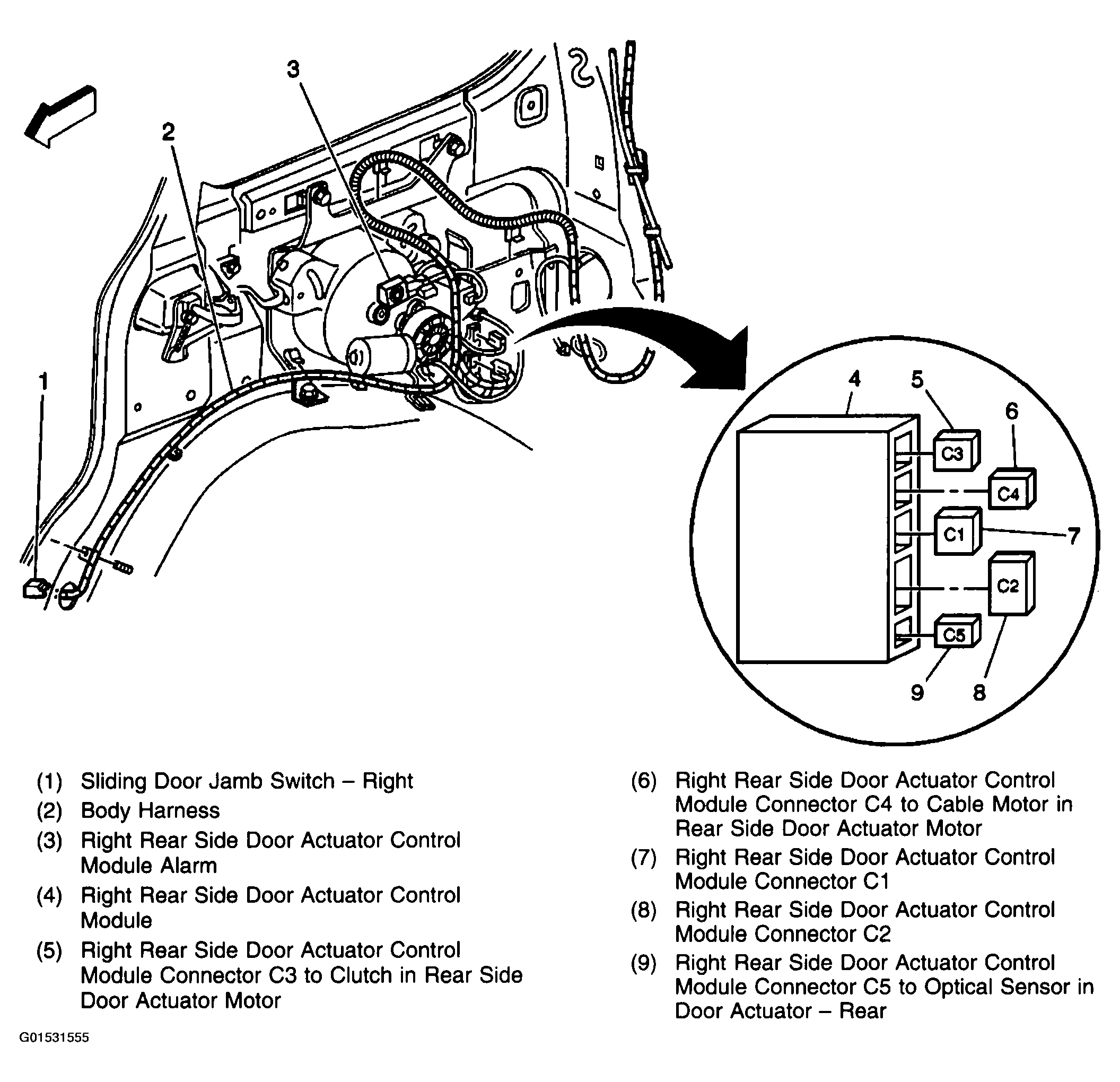

Fig 2: Quarter Panel Component View
G01531555Courtesy of GENERAL MOTORS CORP.

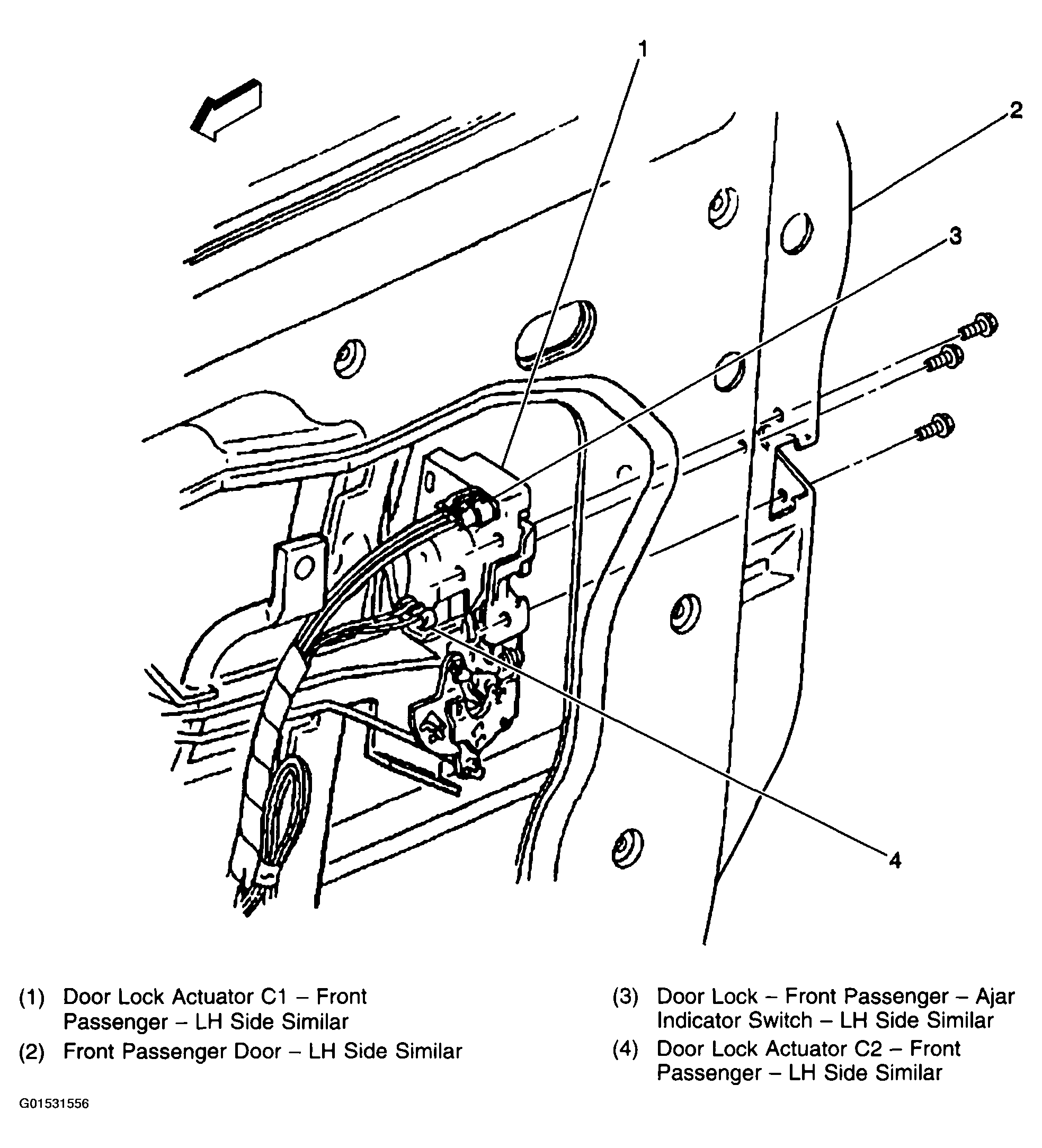

Fig 3: RF Door Component View
G01531556Courtesy of GENERAL MOTORS CORP.

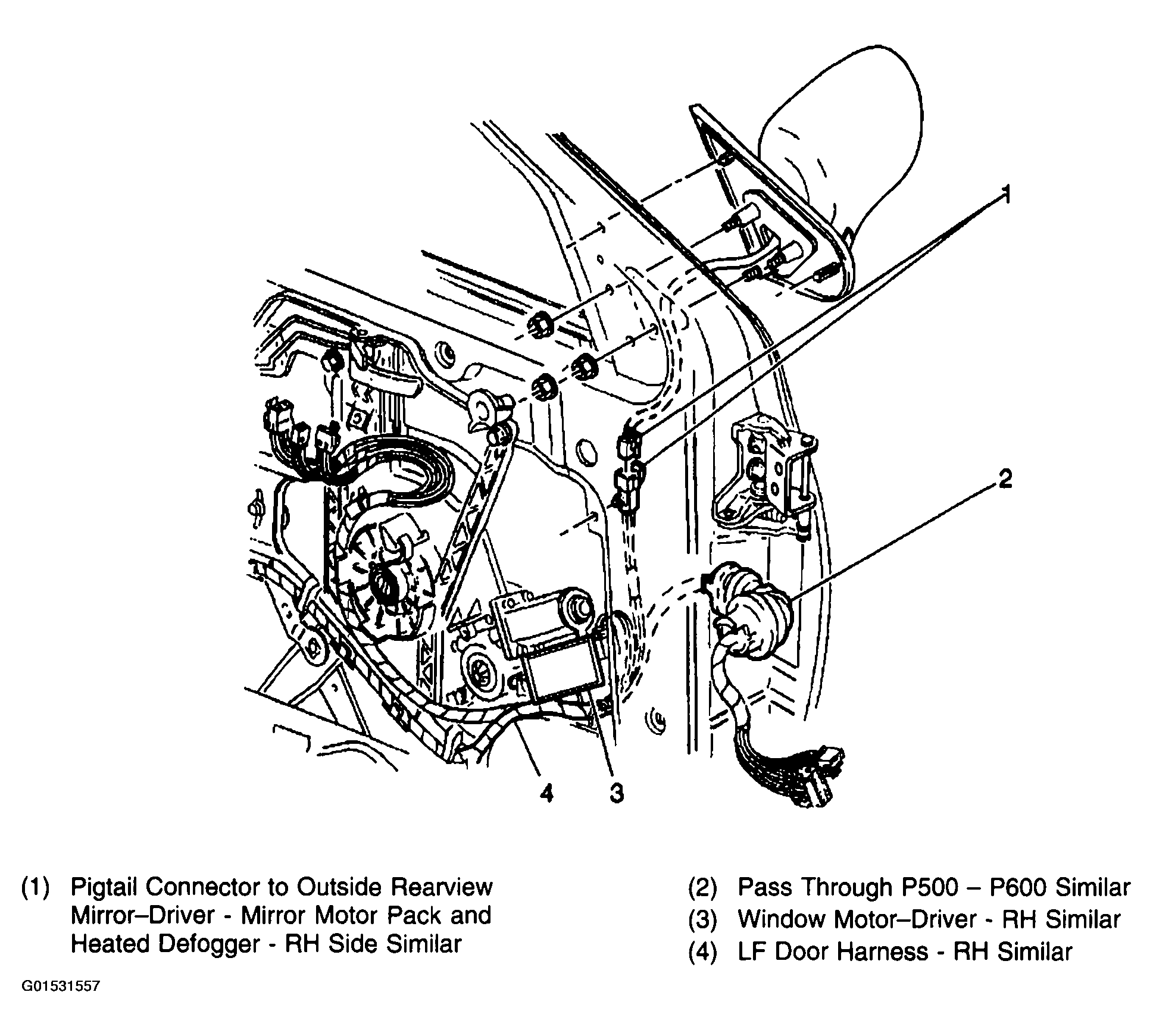

Fig 4: LF Door Component View
G01531557Courtesy of GENERAL MOTORS CORP.

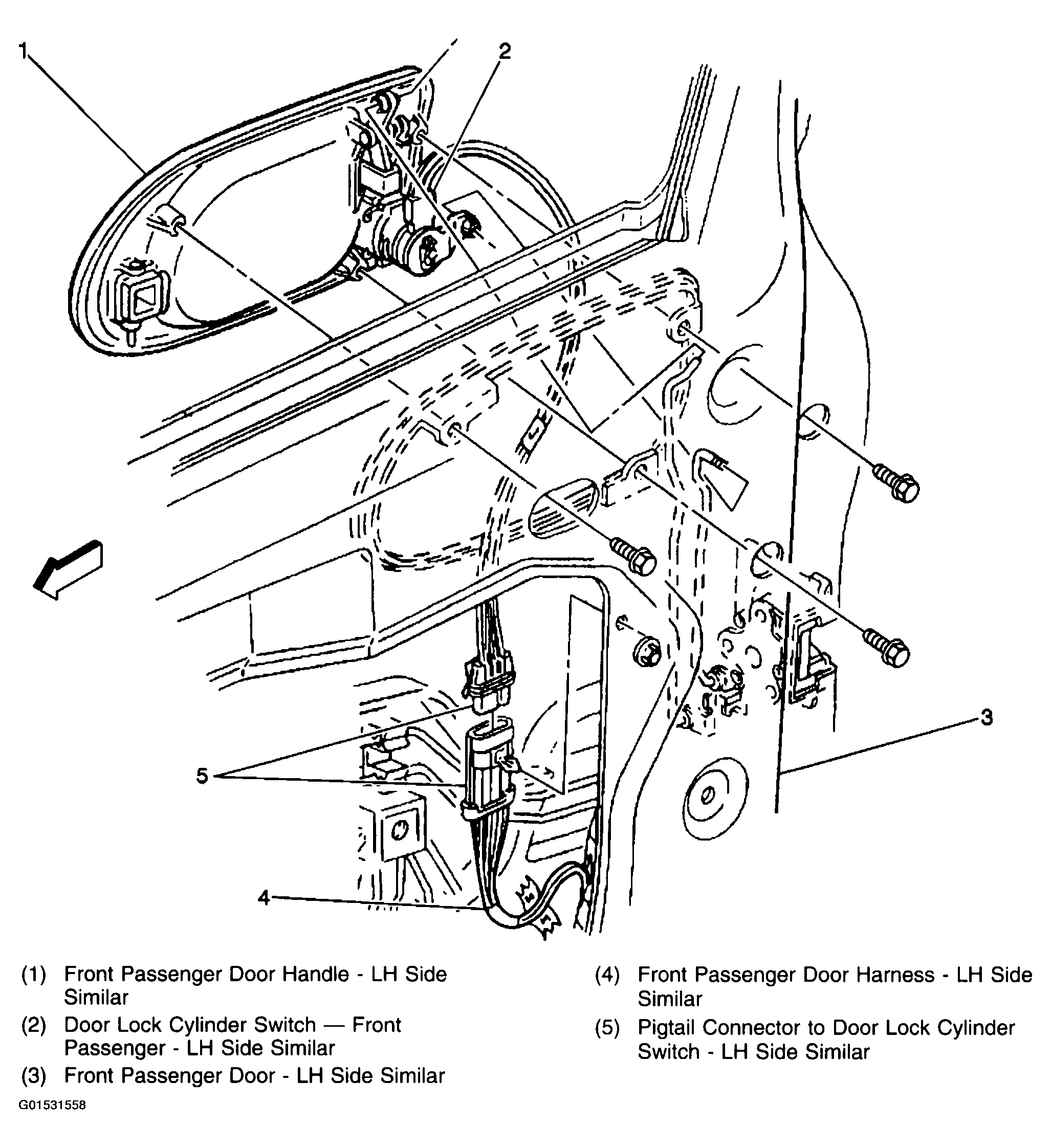

Fig 5: RF Door Component View
G01531558Courtesy of GENERAL MOTORS CORP.

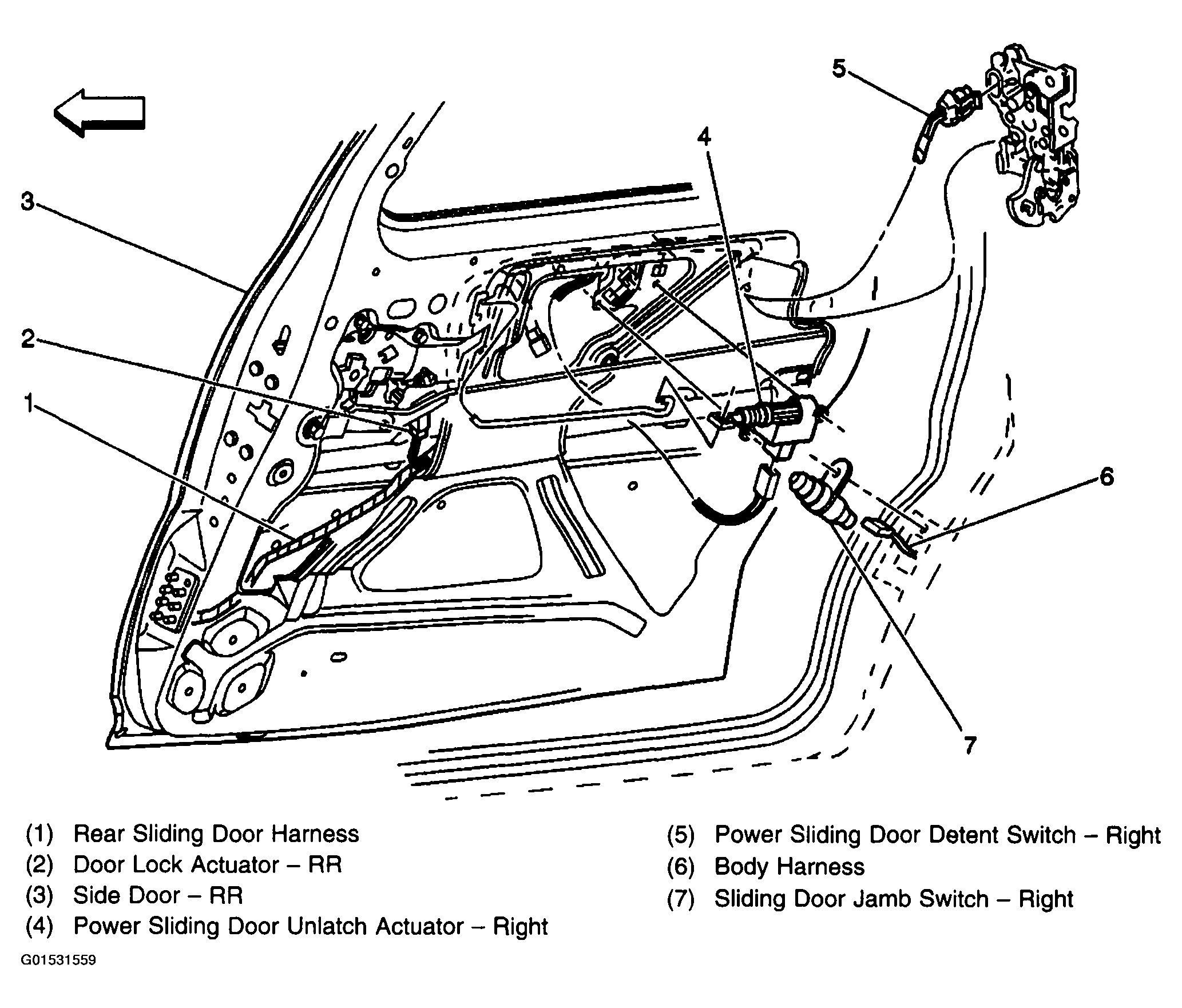

Fig 6: RH Siding Door Component View
G01531559Courtesy of GENERAL MOTORS CORP.

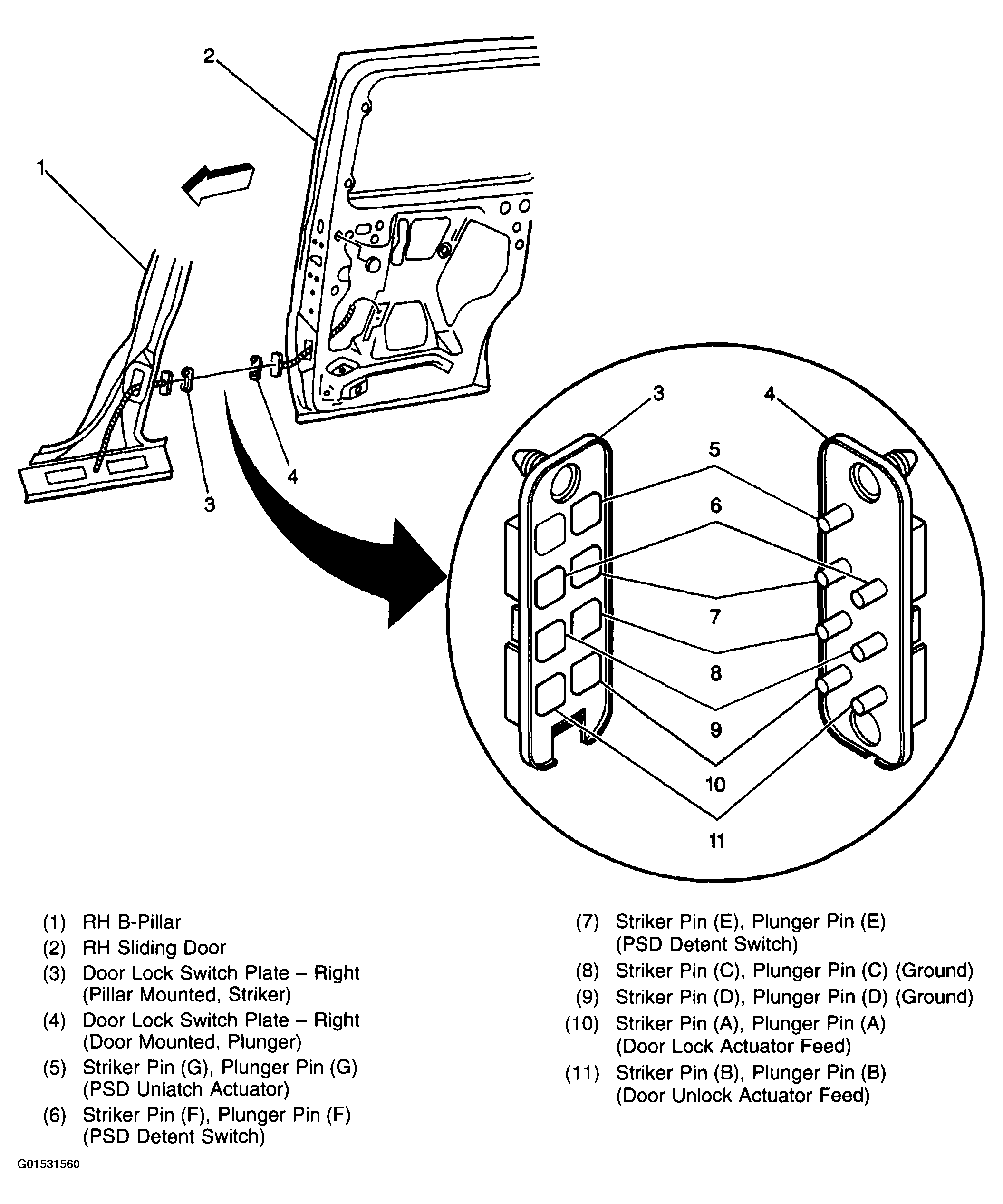

Fig 7: RH Sliding Door Component View
G01531560Courtesy of GENERAL MOTORS CORP.

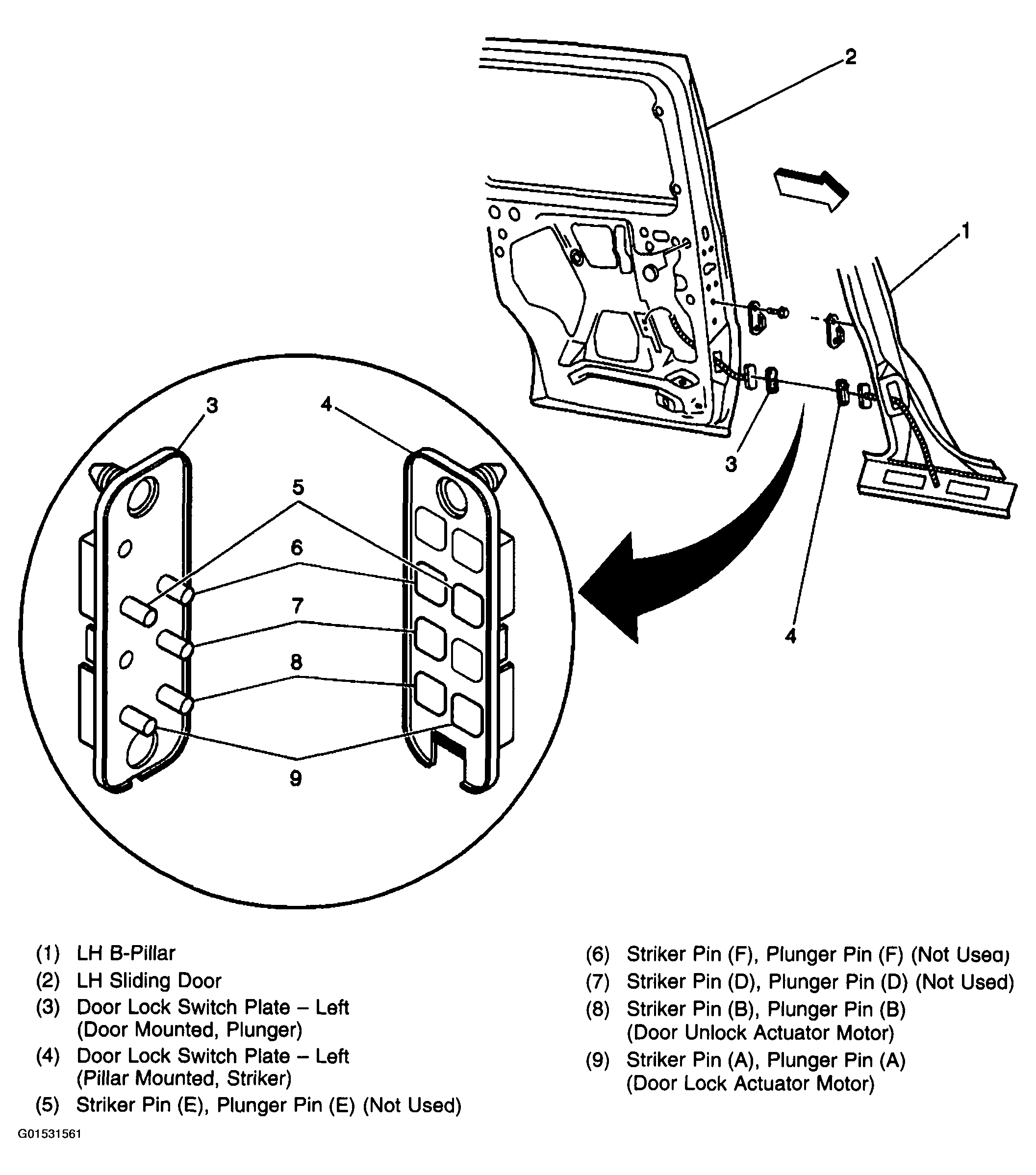

Fig 8: LH Sliding Door Component View
G01531561Courtesy of GENERAL MOTORS CORP.

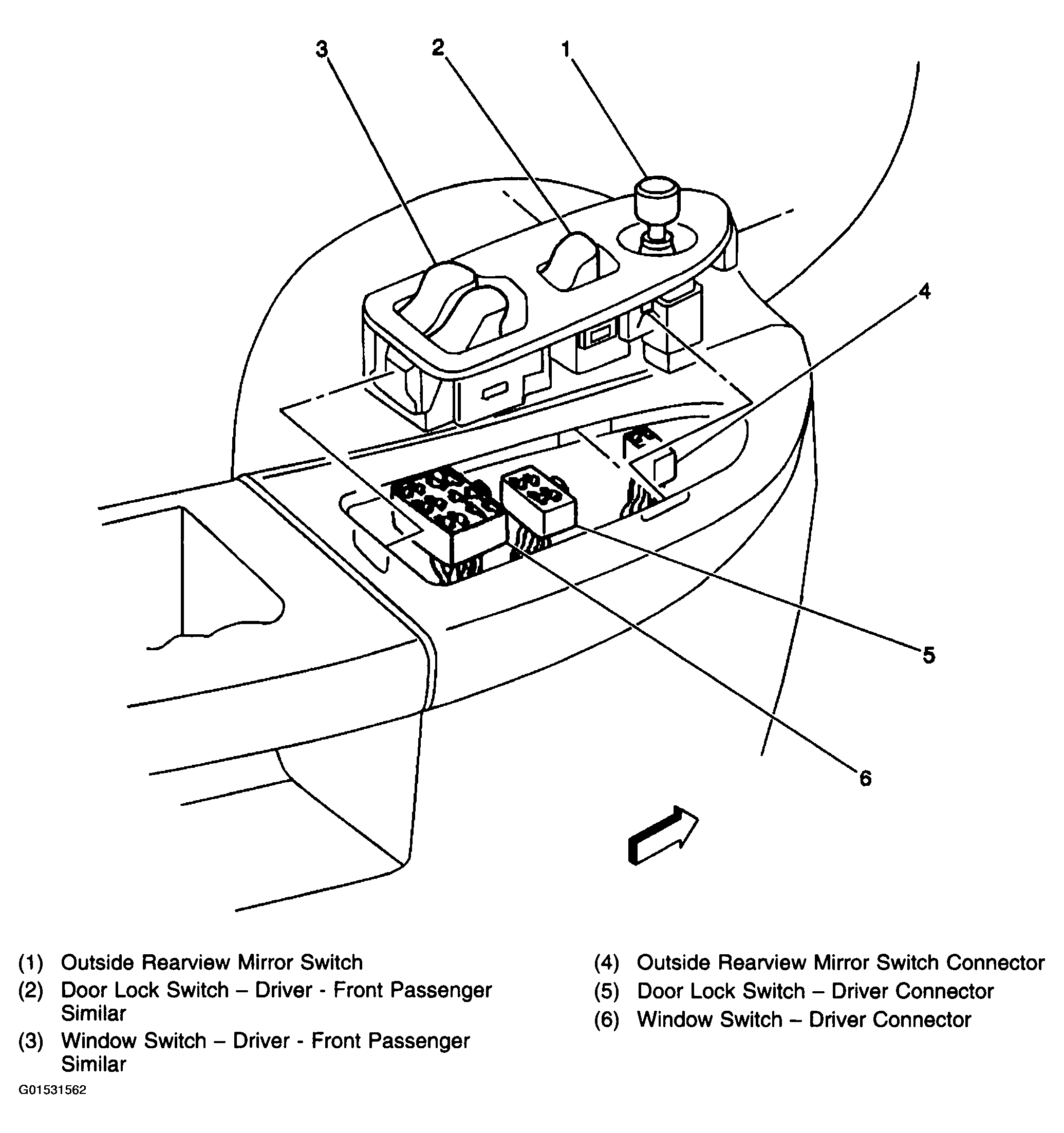

Fig 9: LF Door Trim Panel Component View
G01531562Courtesy of GENERAL MOTORS CORP.

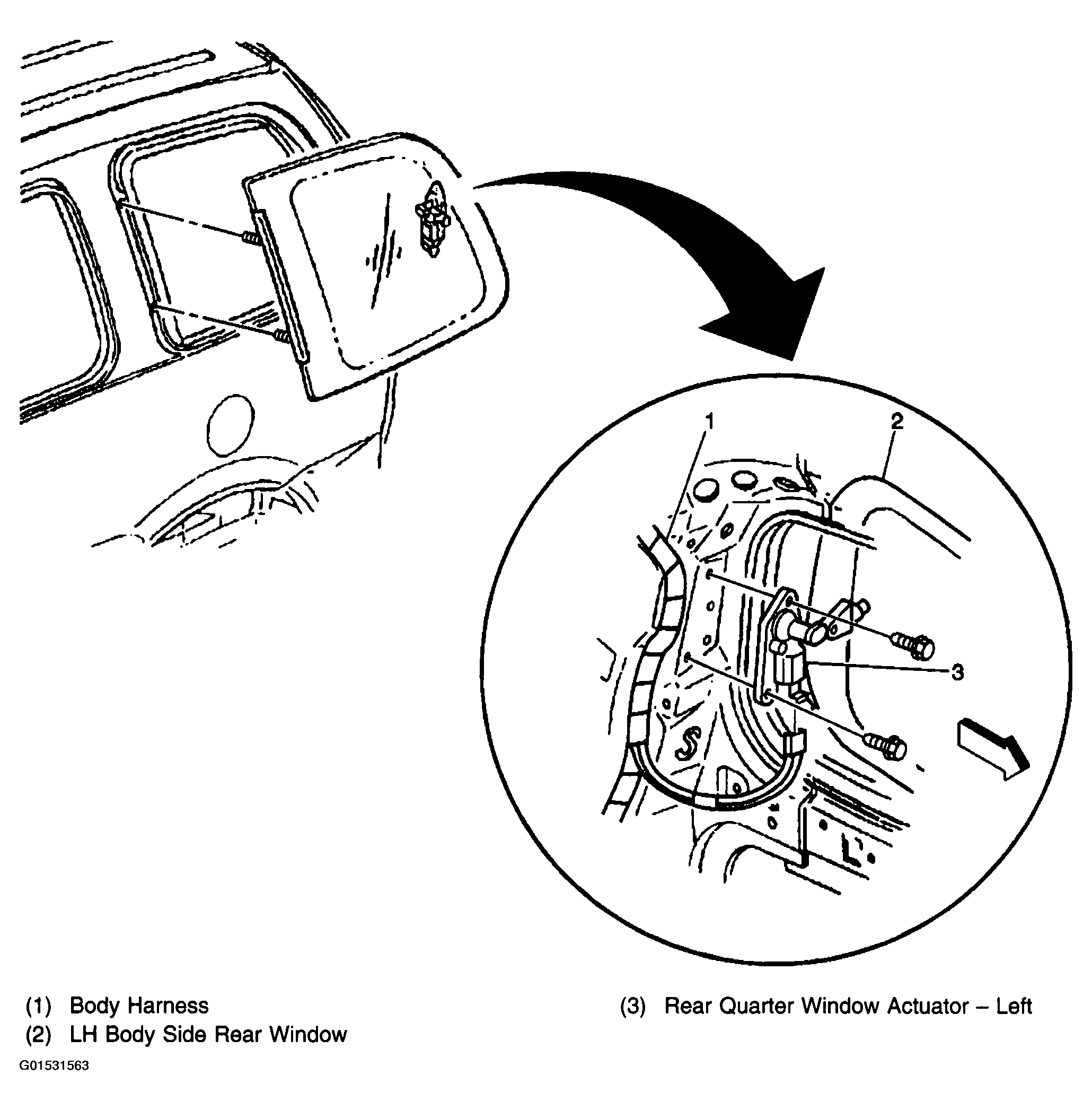

Fig 10: LH Body Side Rear Window Component View
G01531563Courtesy of GENERAL MOTORS CORP.
