Power Door Systems Connector End Views

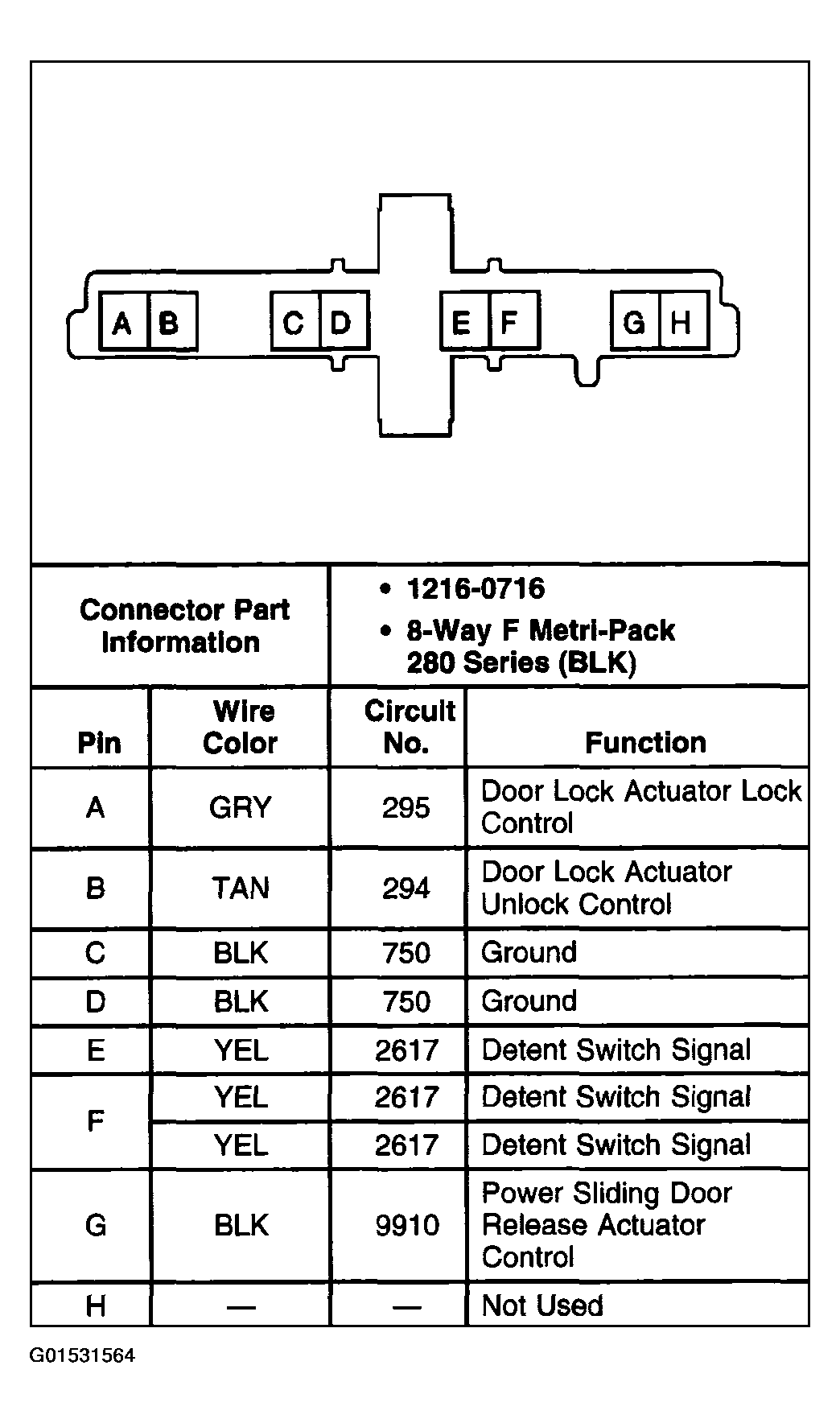

Fig 1: Door Lock Switch Plate - Left Connector End View
G01531564Courtesy of GENERAL MOTORS CORP.

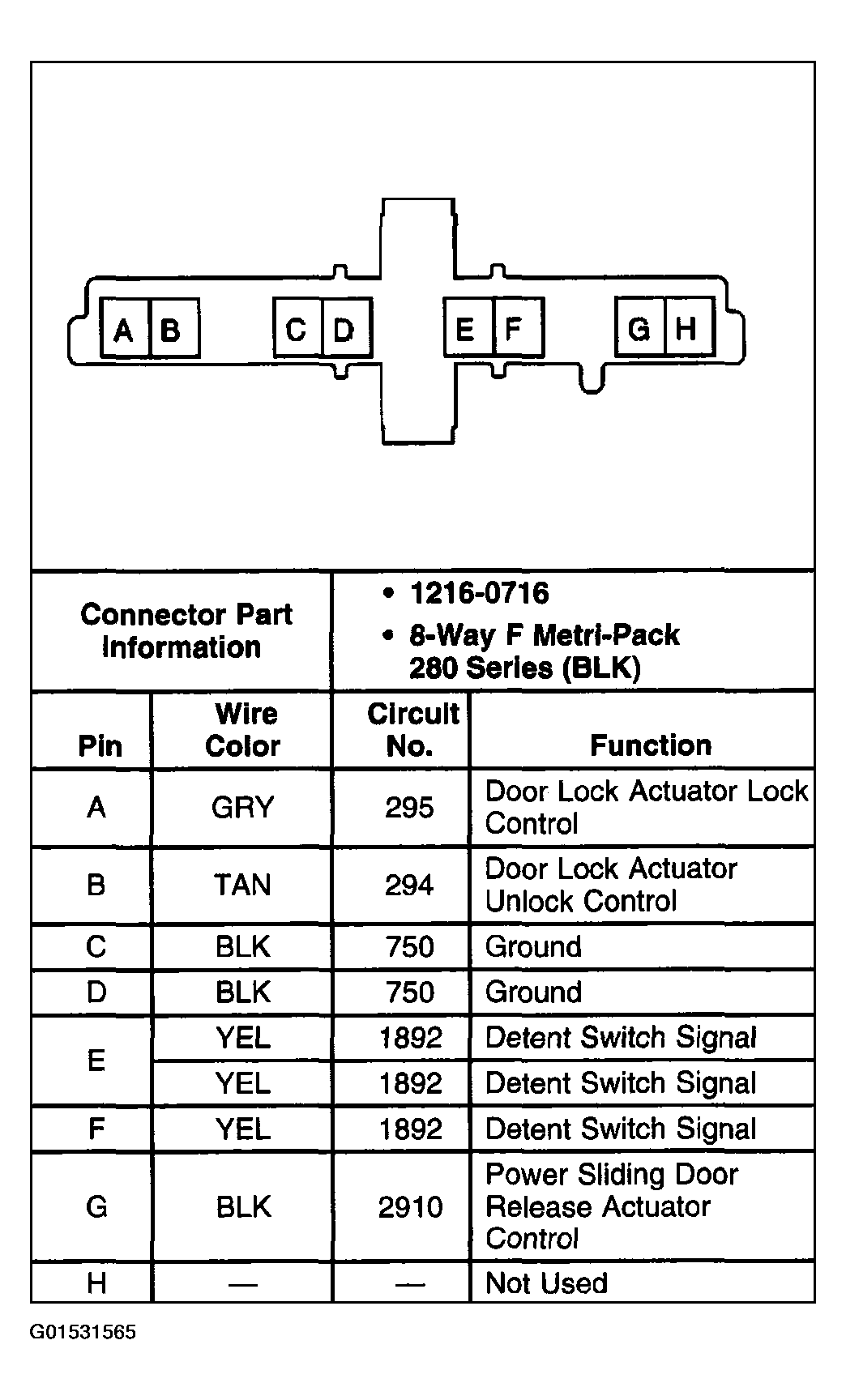

Fig 2: Door Lock Switch Plate - Right Connector End View
G01531565Courtesy of GENERAL MOTORS CORP.

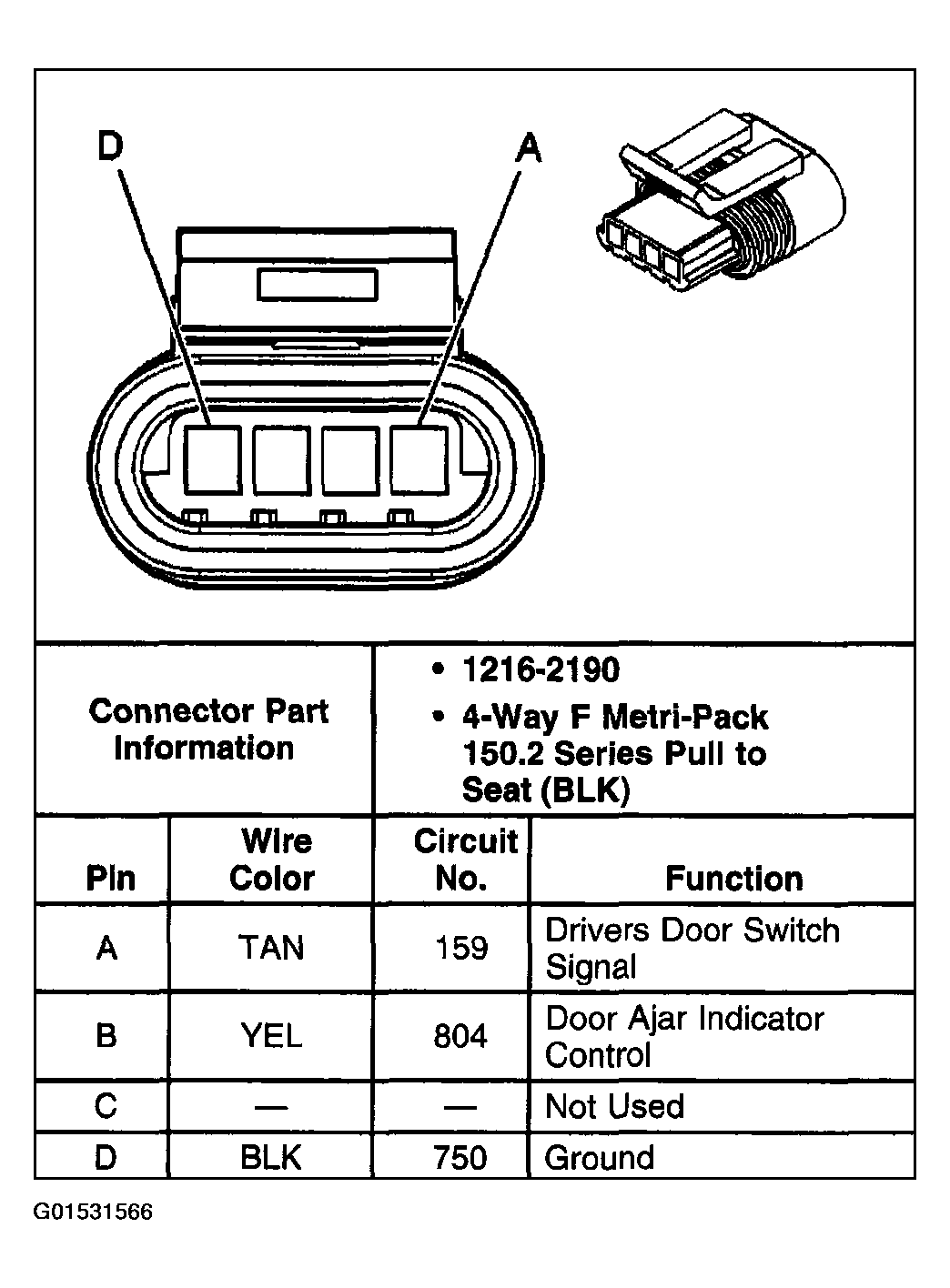

Fig 3: Door Lock Actuator C1 - Driver Connector End View
G01531566Courtesy of GENERAL MOTORS CORP.

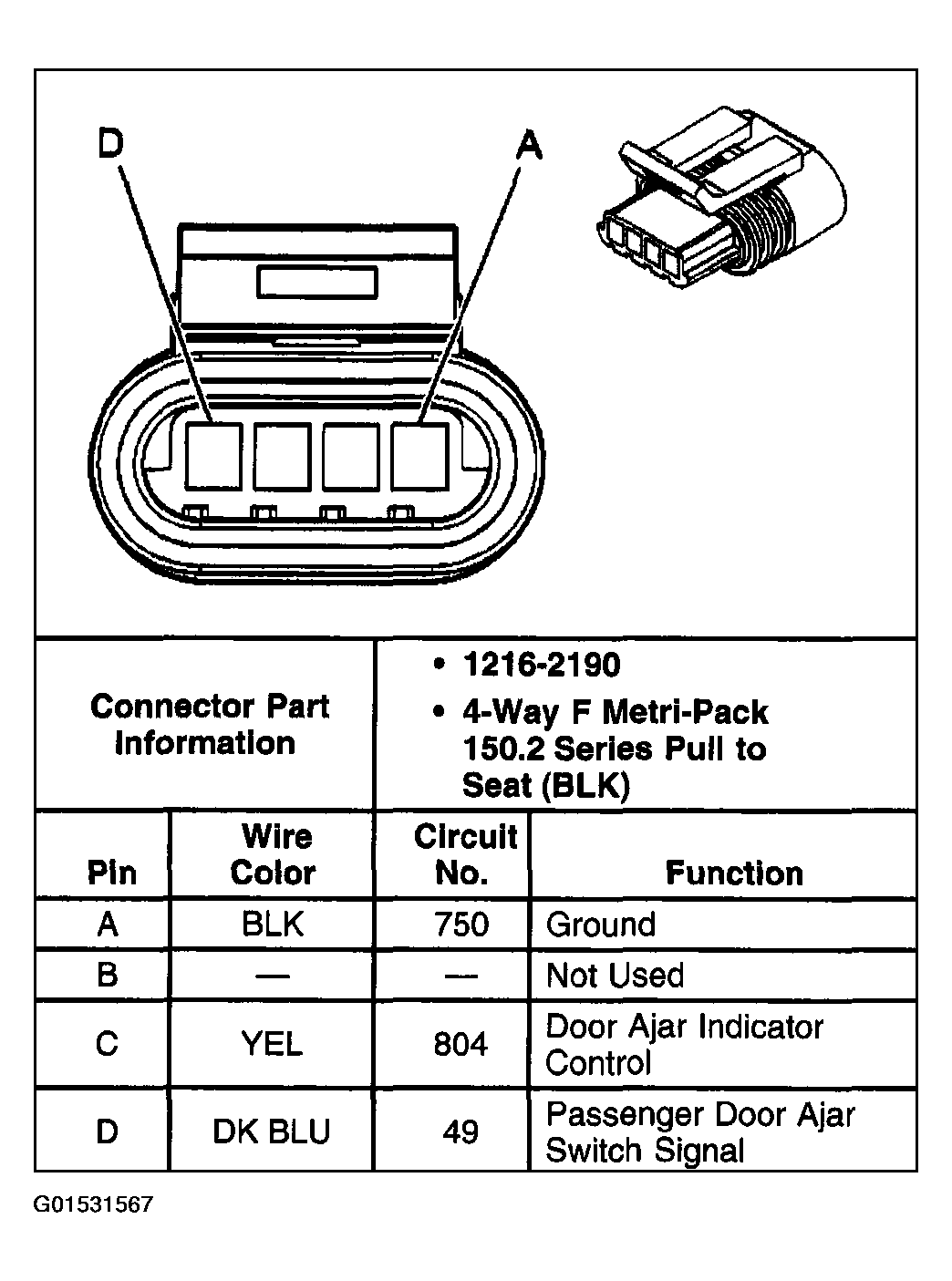

Fig 4: Door Lock Actuator C1 - Front Passenger Connector End View
G01531567Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Lock Actuator C2 - Driver Connector End View
G01531568Courtesy of GENERAL MOTORS CORP.
Fig 6: Door Lock Actuator C2 - Front Passenger Connector End View
G01531569Courtesy of GENERAL MOTORS CORP.

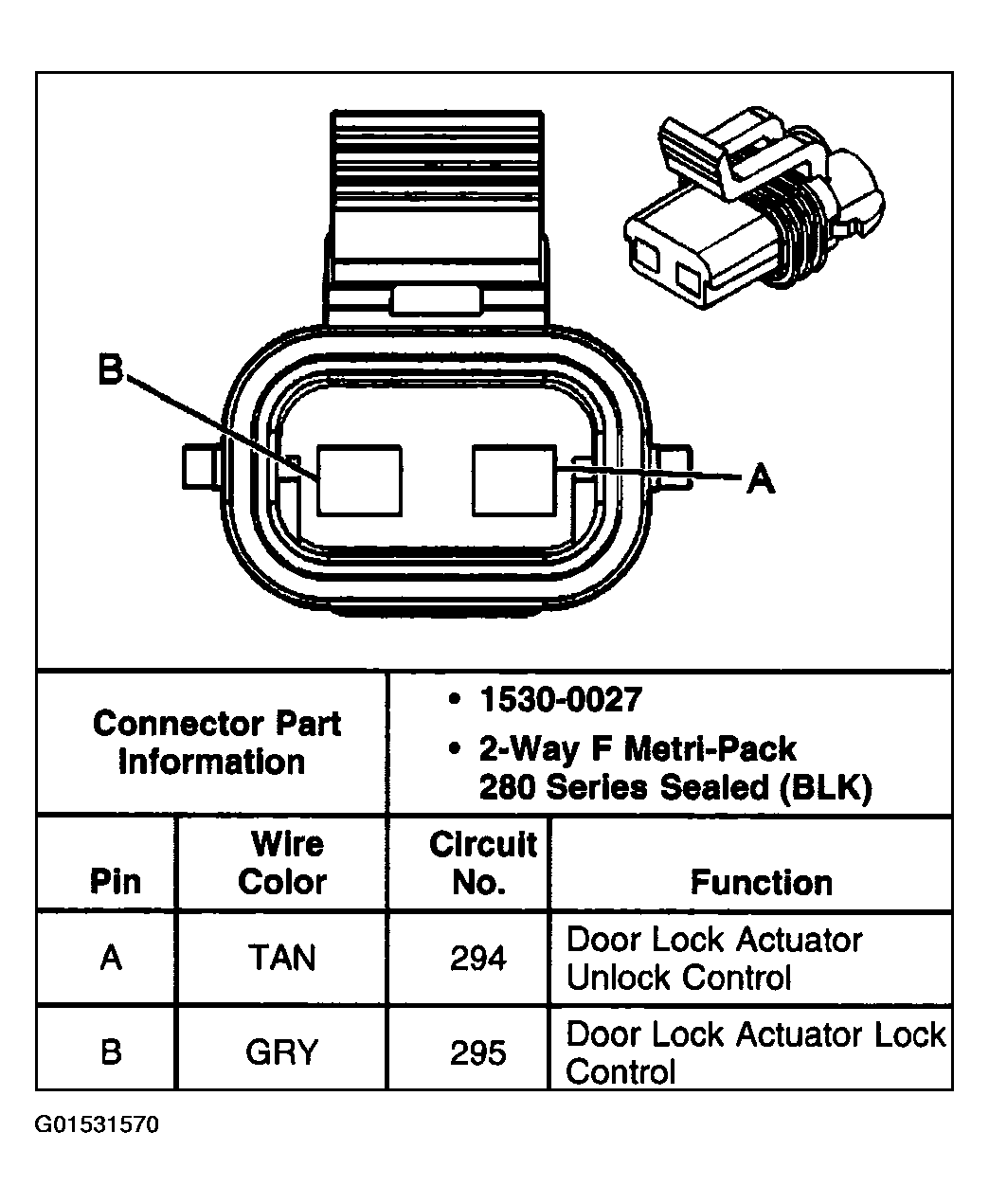

Fig 7: Door Lock Actuator - LR Connector End View
G01531570Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Lock Actuator - RR Connector End View
G01531571Courtesy of GENERAL MOTORS CORP.
Fig 9: Door Lock Actuator - Liftgate Connector End View
G01531572Courtesy of GENERAL MOTORS CORP.

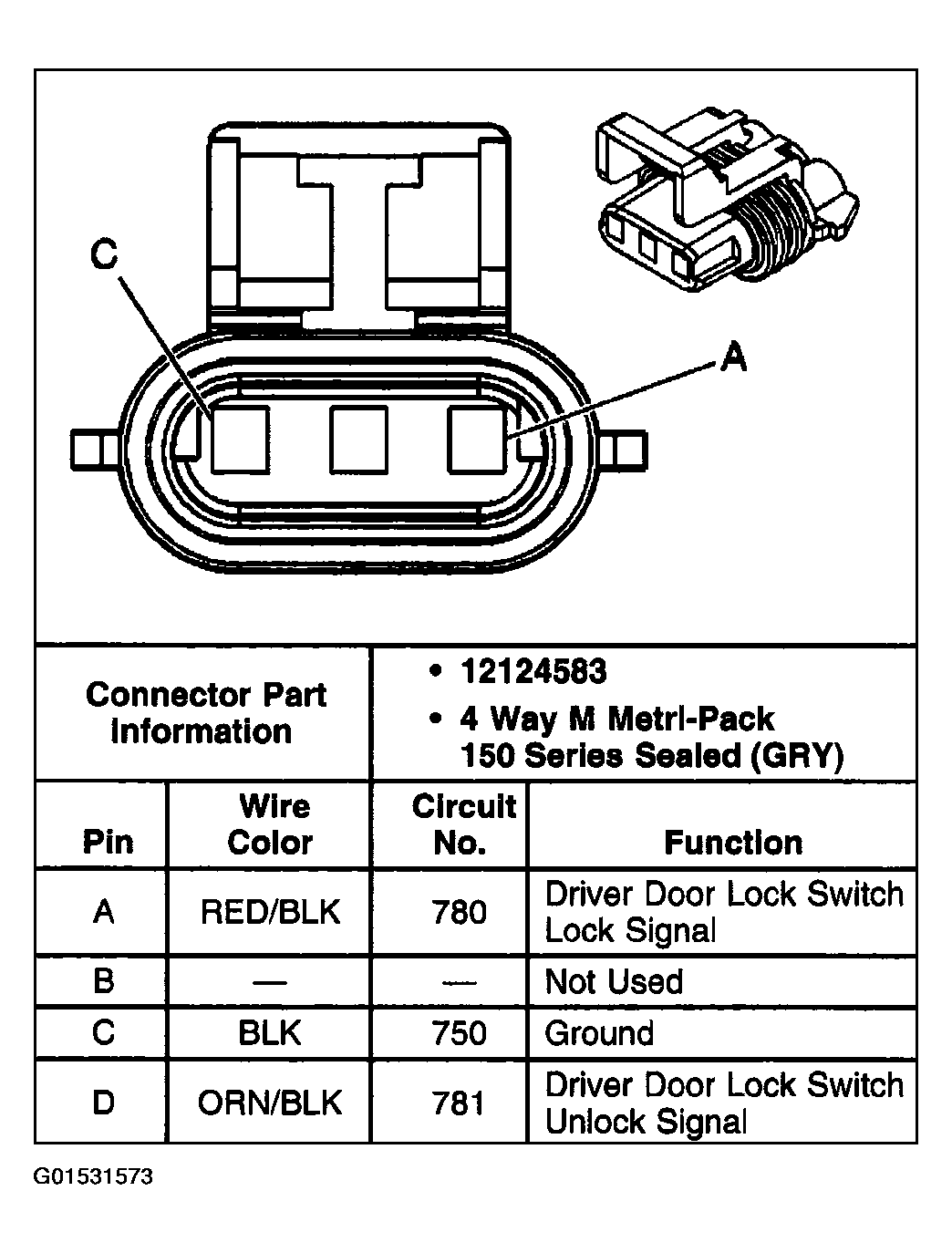

Fig 10: Door Lock Cylinder Switch - Driver Connector End View
G01531573Courtesy of GENERAL MOTORS CORP.
Fig 11: Door Lock Cylinder Switch - Front Passenger Connector End View
G01531574Courtesy of GENERAL MOTORS CORP.

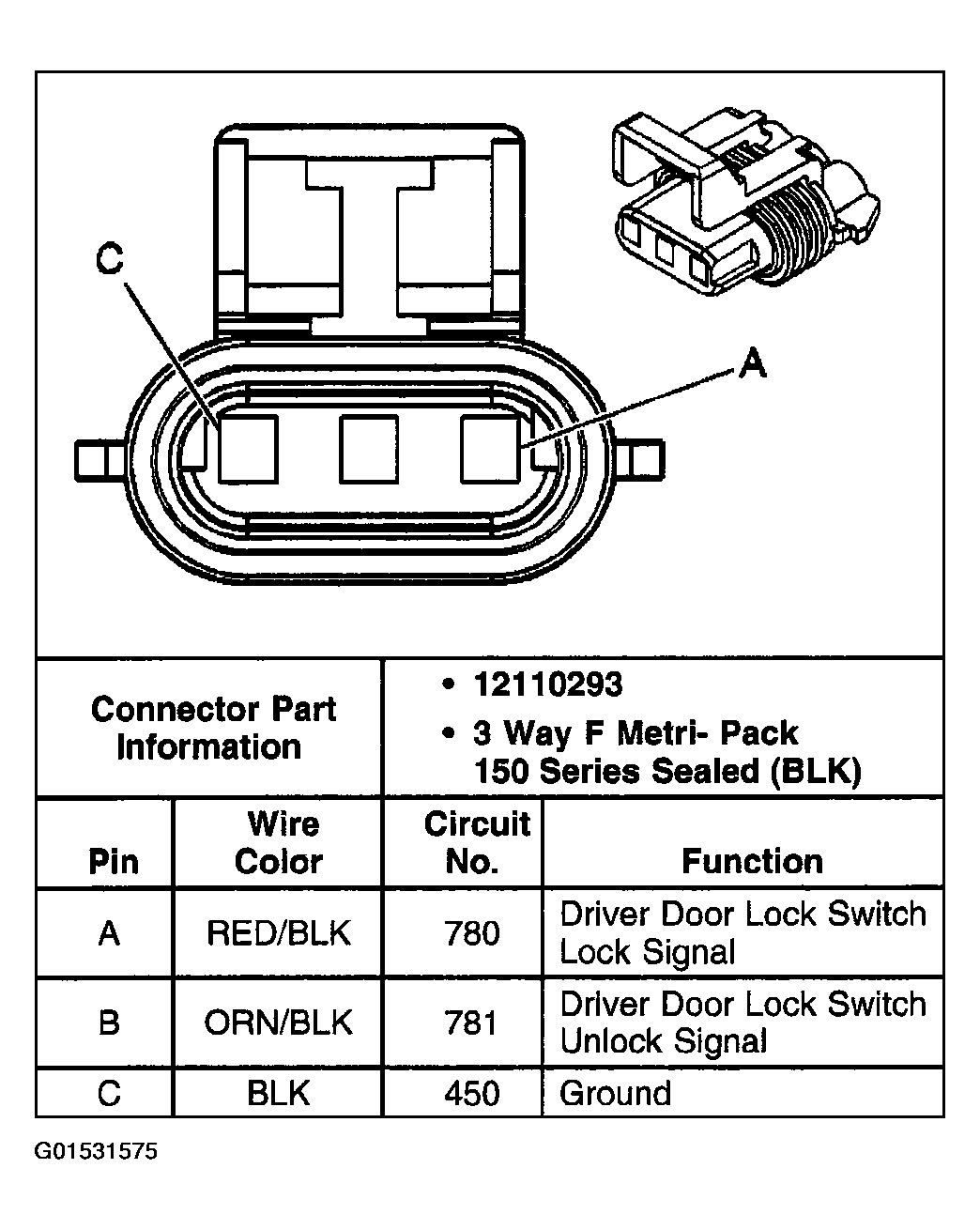

Fig 12: Door Lock Cylinder Switch - Liftgate Connector End View
G01531575Courtesy of GENERAL MOTORS CORP.

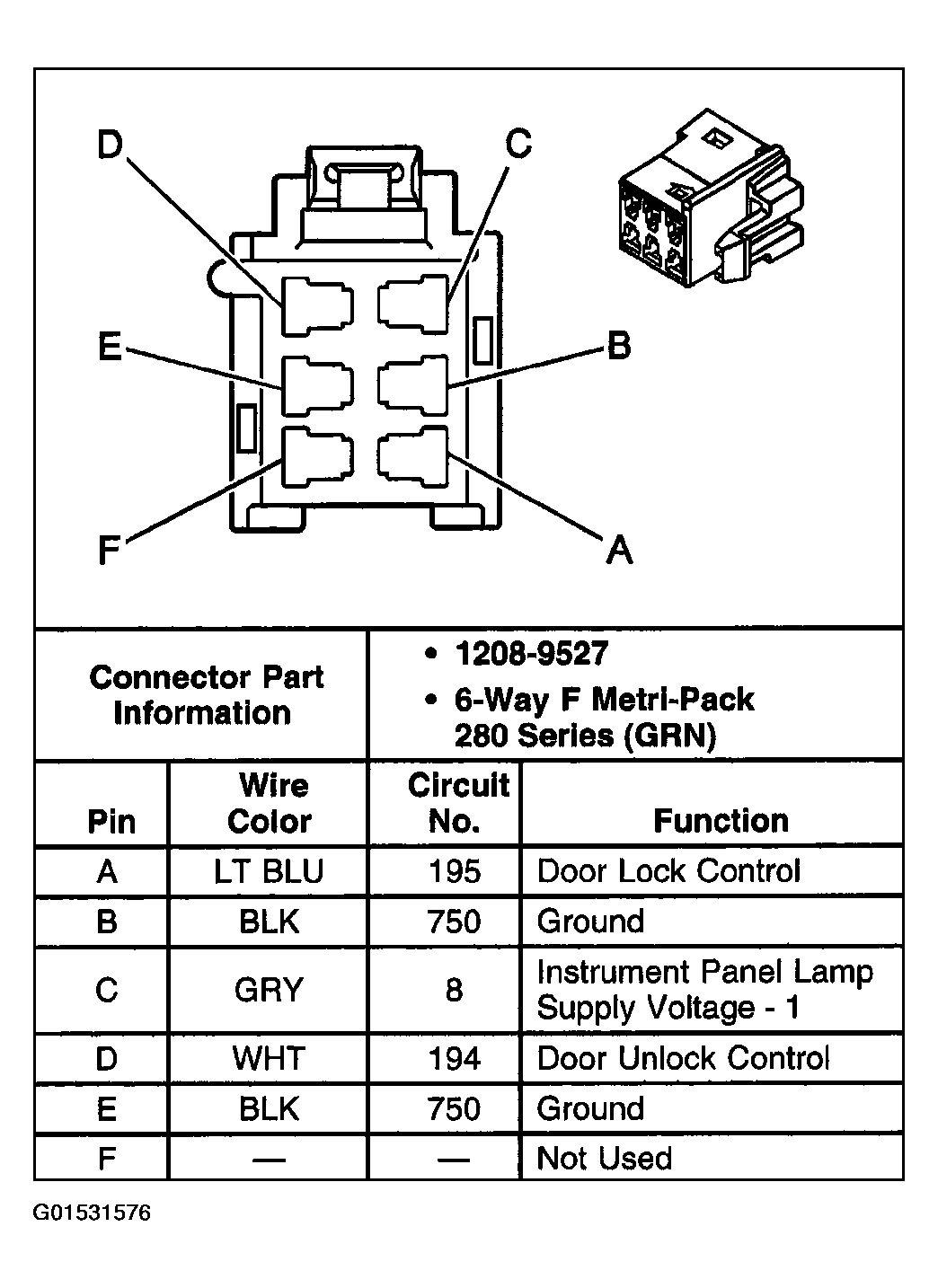

Fig 13: Door Lock Switch - Driver Connector End View
G01531576Courtesy of GENERAL MOTORS CORP.
Fig 14: Door Lock Switch - Front Passenger Connector End View
G01531577Courtesy of GENERAL MOTORS CORP.

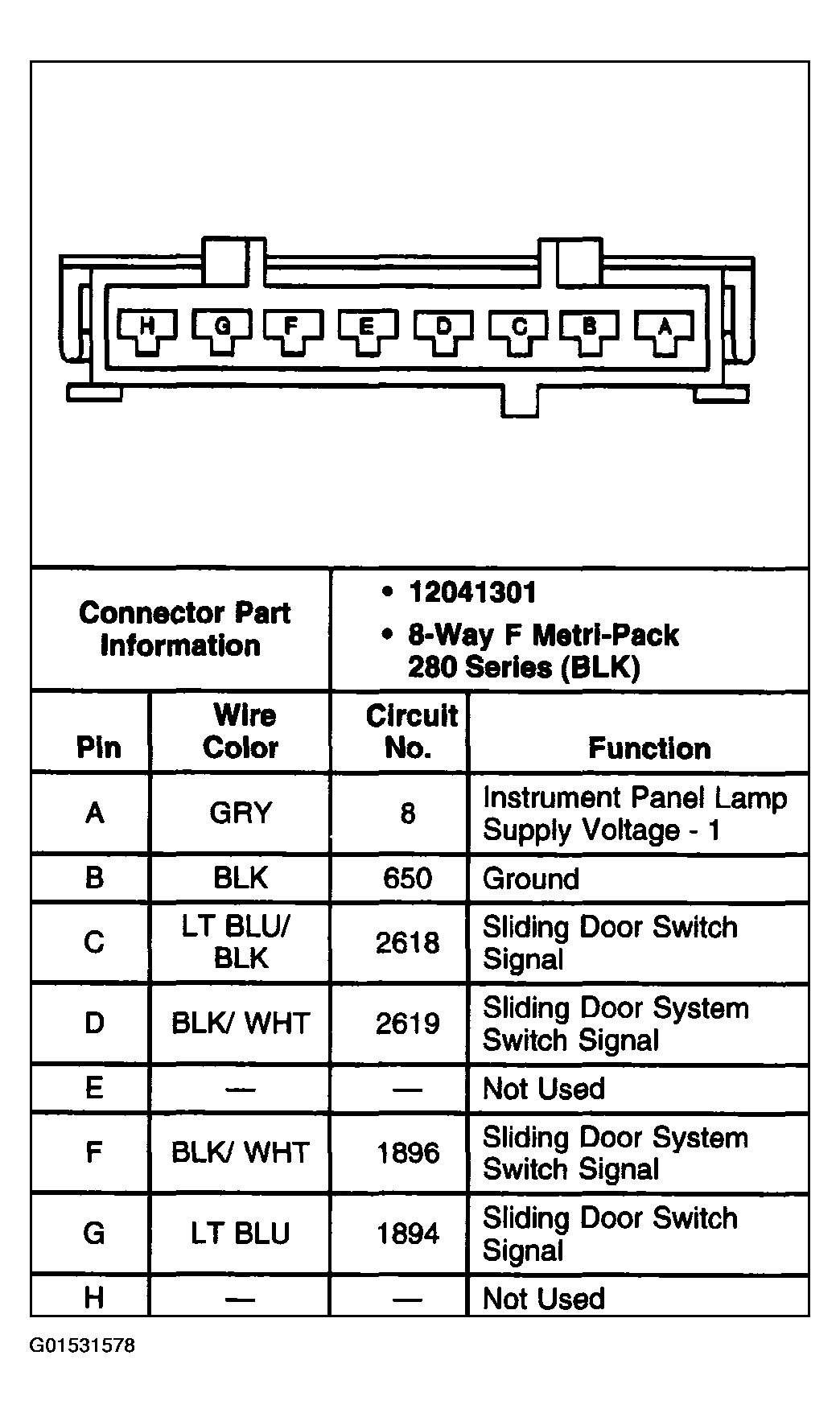

Fig 15: Interior Lamp and Multifunction Switch Assembly C3 - Power Sliding Door Open/Close Switch Connector End View
G01531578Courtesy of GENERAL MOTORS CORP.

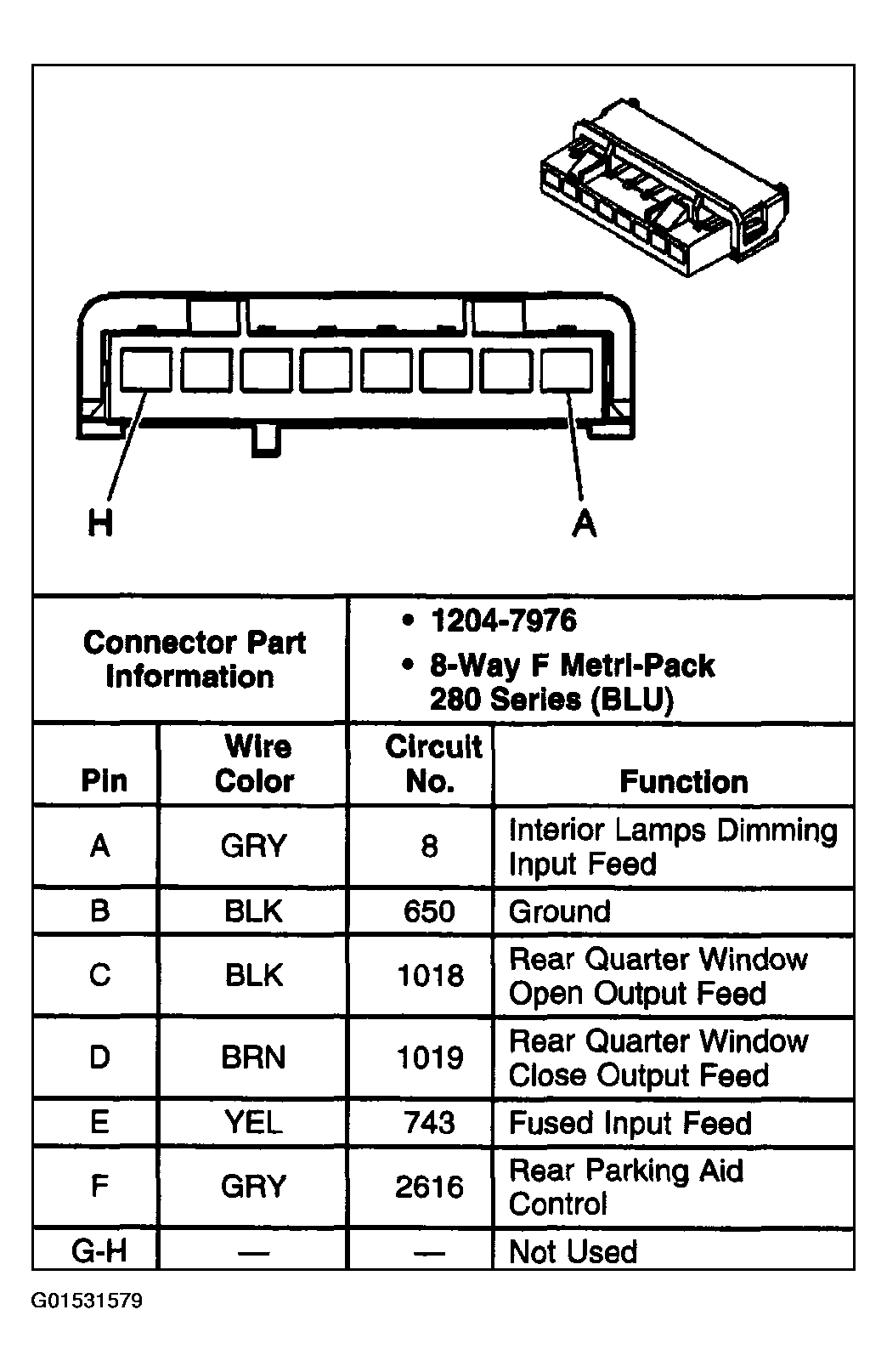

Fig 16: Interior Lamp & Multifunction Switch Assembly C4 - Rear Quarter Window Switch & Rear Parking Aid Override Switch Connector End View
G01531579Courtesy of GENERAL MOTORS CORP.

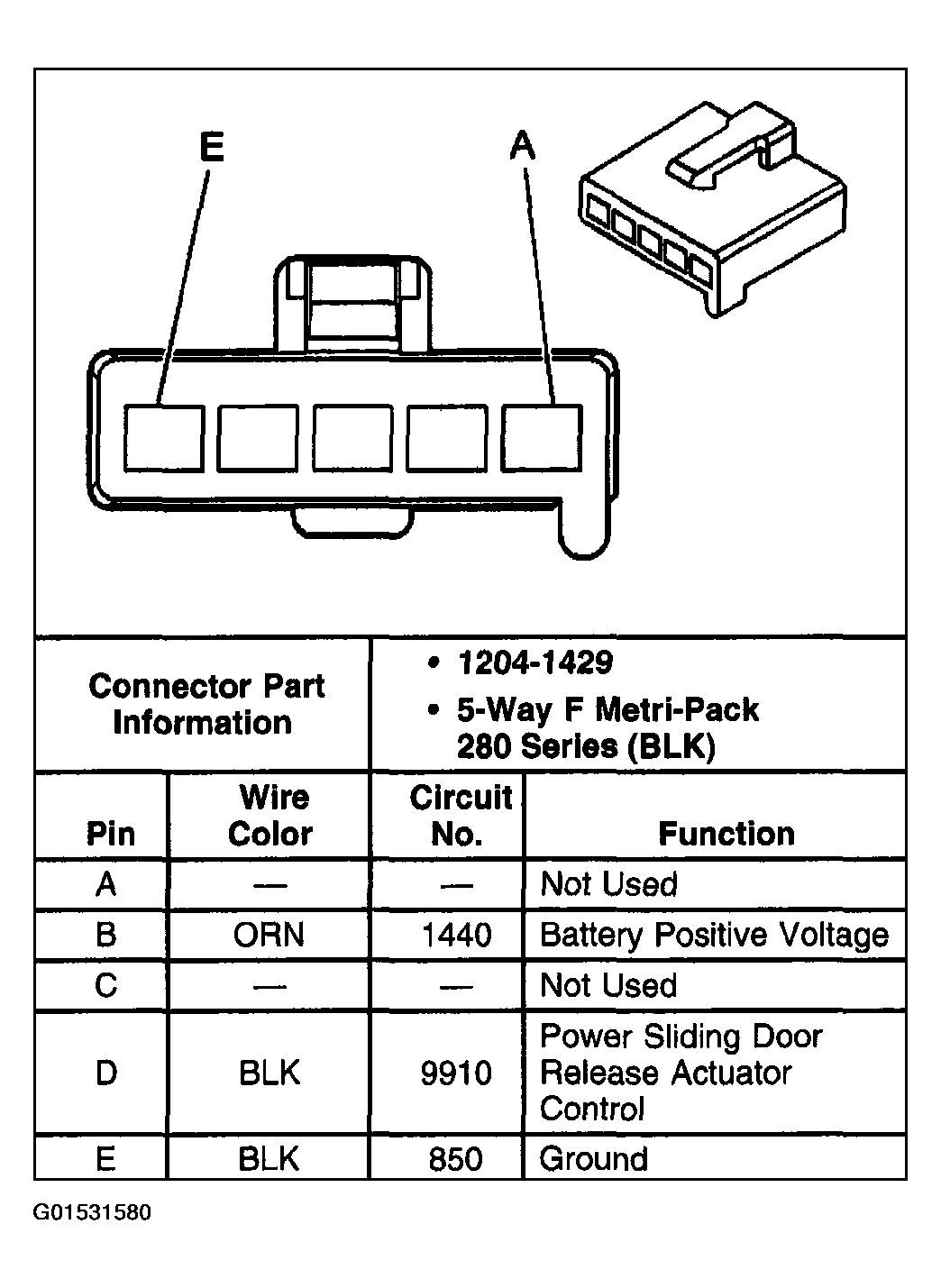

Fig 17: Left Rear Side Door Actuator Control Module Connector End View C1
G01531580Courtesy of GENERAL MOTORS CORP.

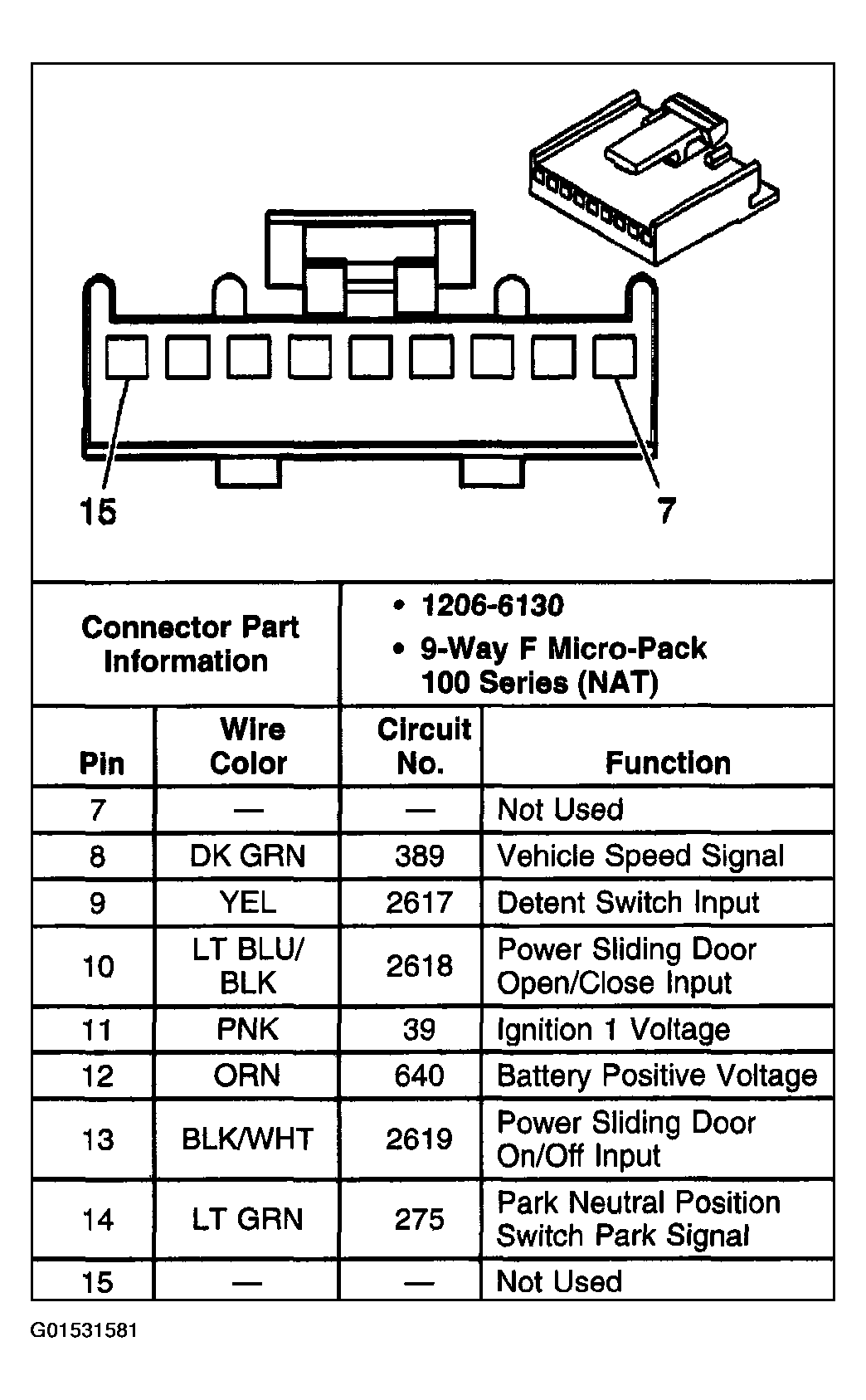

Fig 18: Left Rear Side Door Actuator Control Module Connector End View C2
G01531581Courtesy of GENERAL MOTORS CORP.

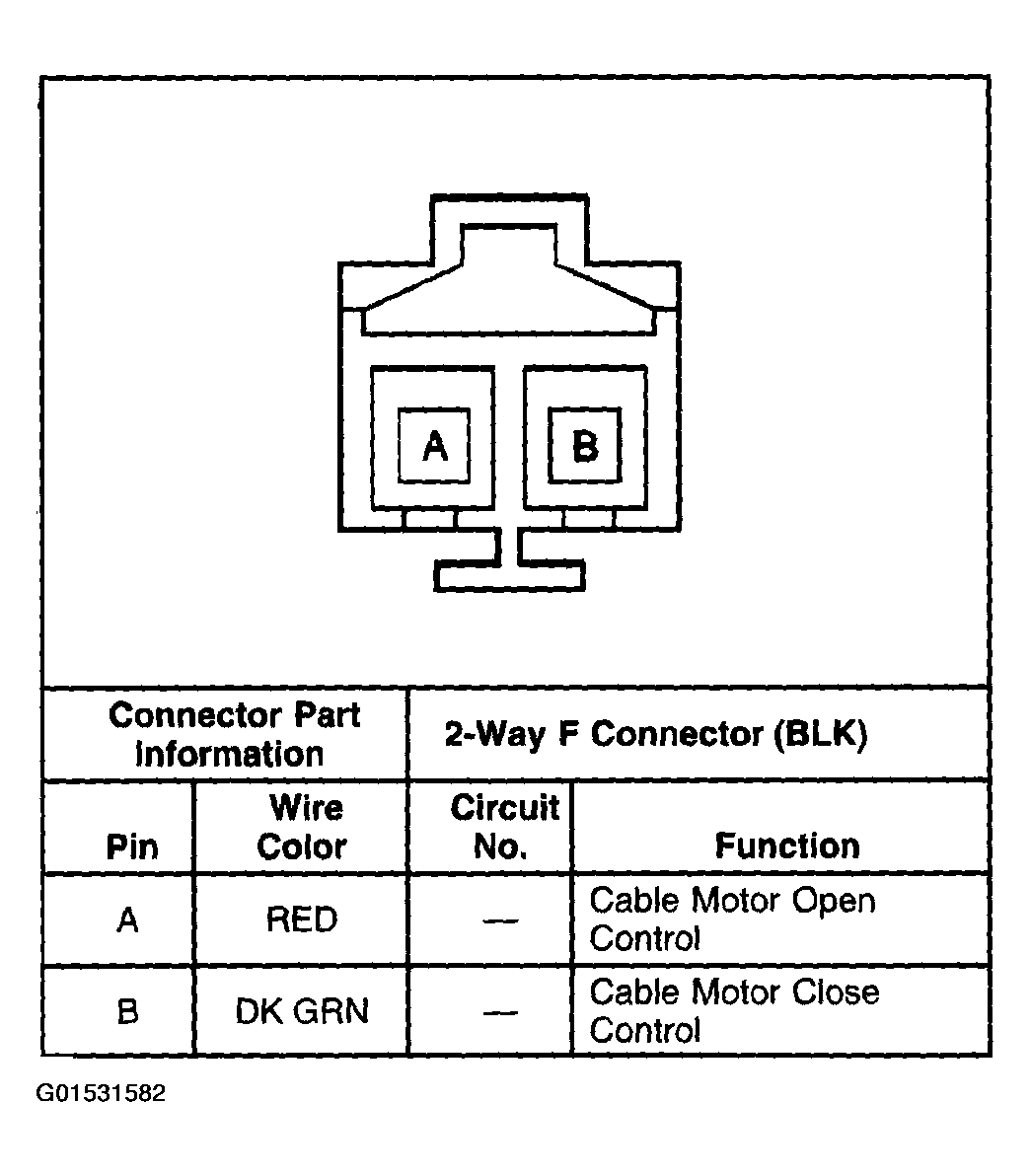

Fig 19: Left Rear Side Door Actuator Control Module Connector End View C3
G01531582Courtesy of GENERAL MOTORS CORP.

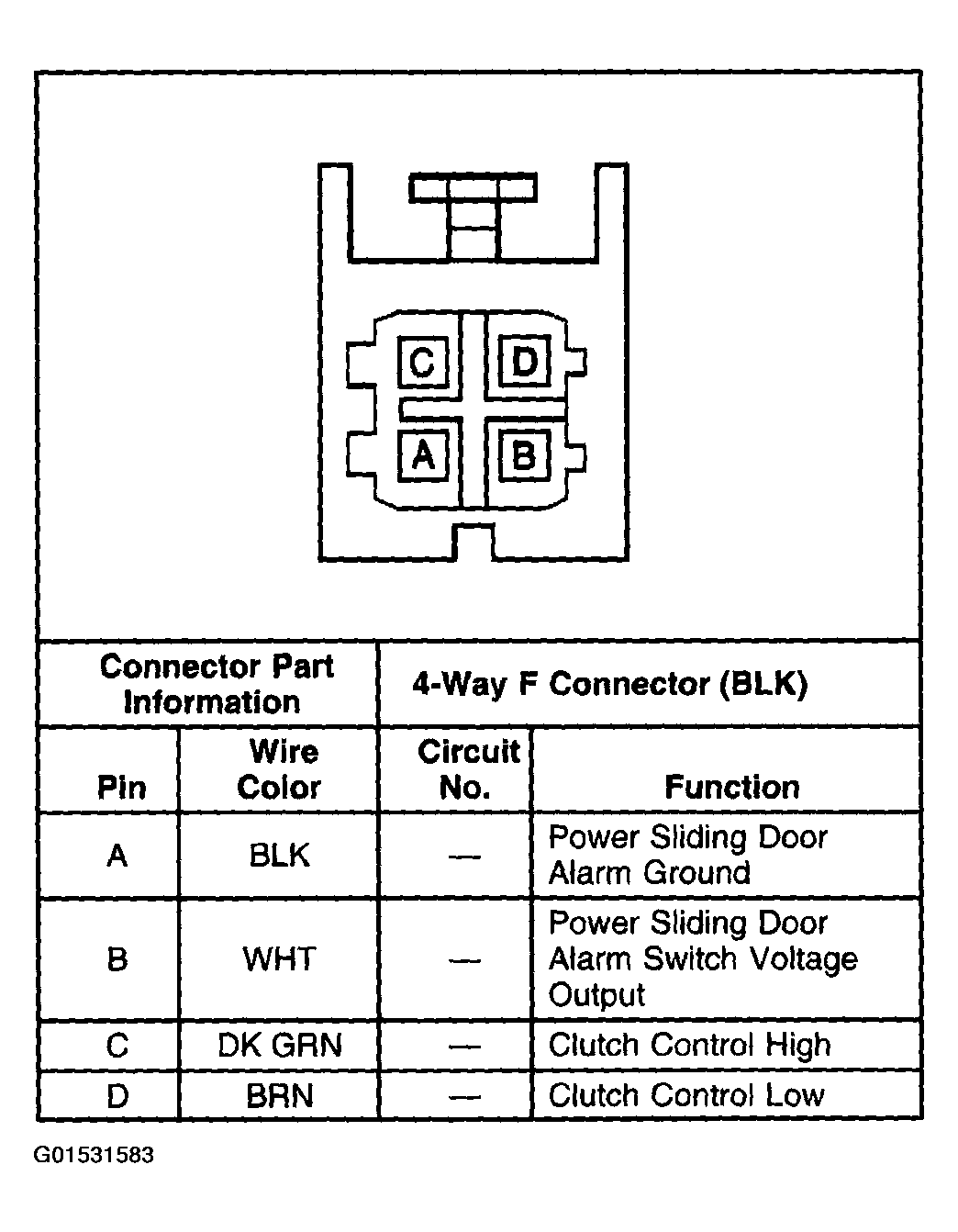

Fig 20: Left Rear Side Door Actuator Control Module Connector End View C4
G01531583Courtesy of GENERAL MOTORS CORP.

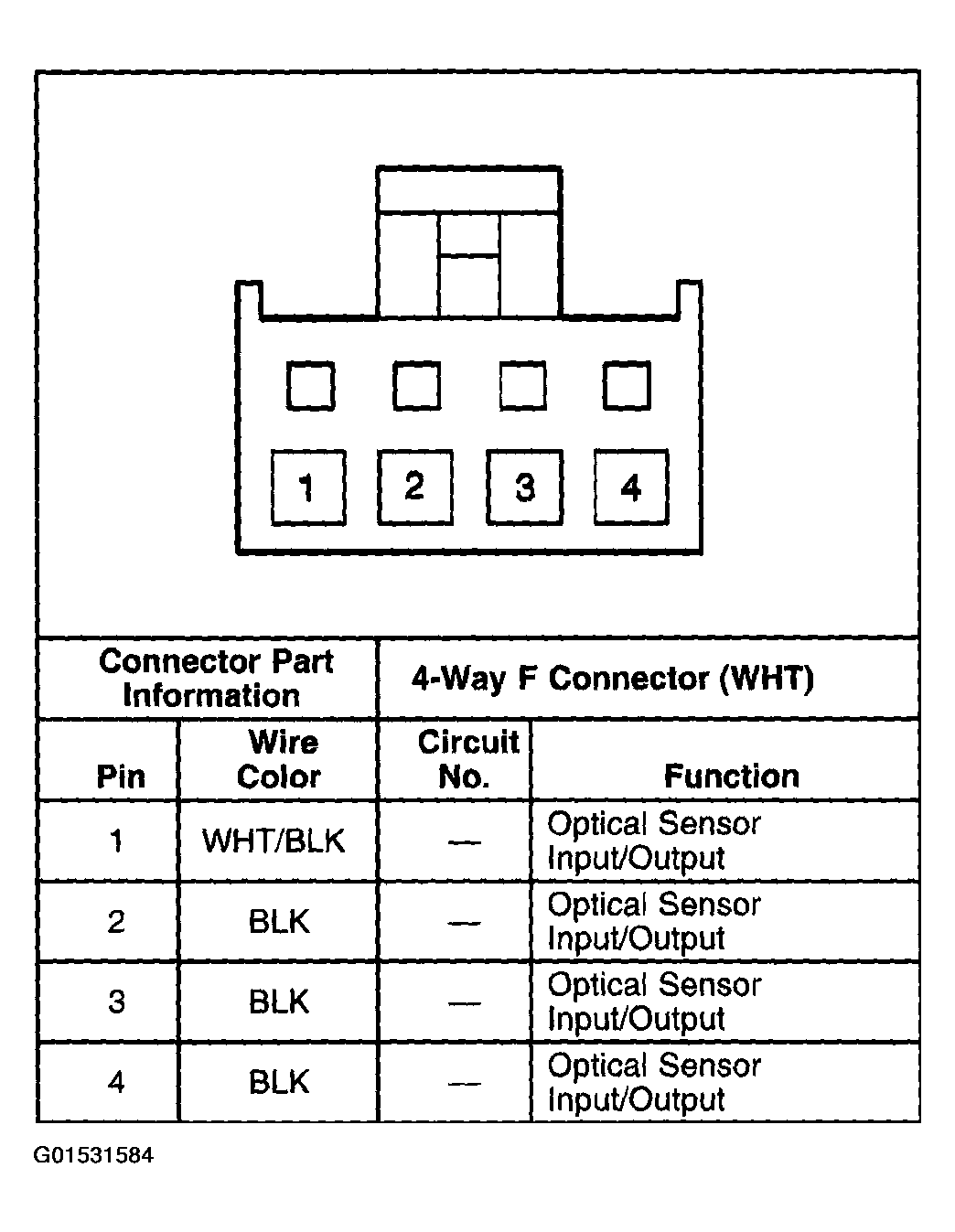

Fig 21: Left Rear Side Door Actuator Control Module Connector End View C5
G01531584Courtesy of GENERAL MOTORS CORP.

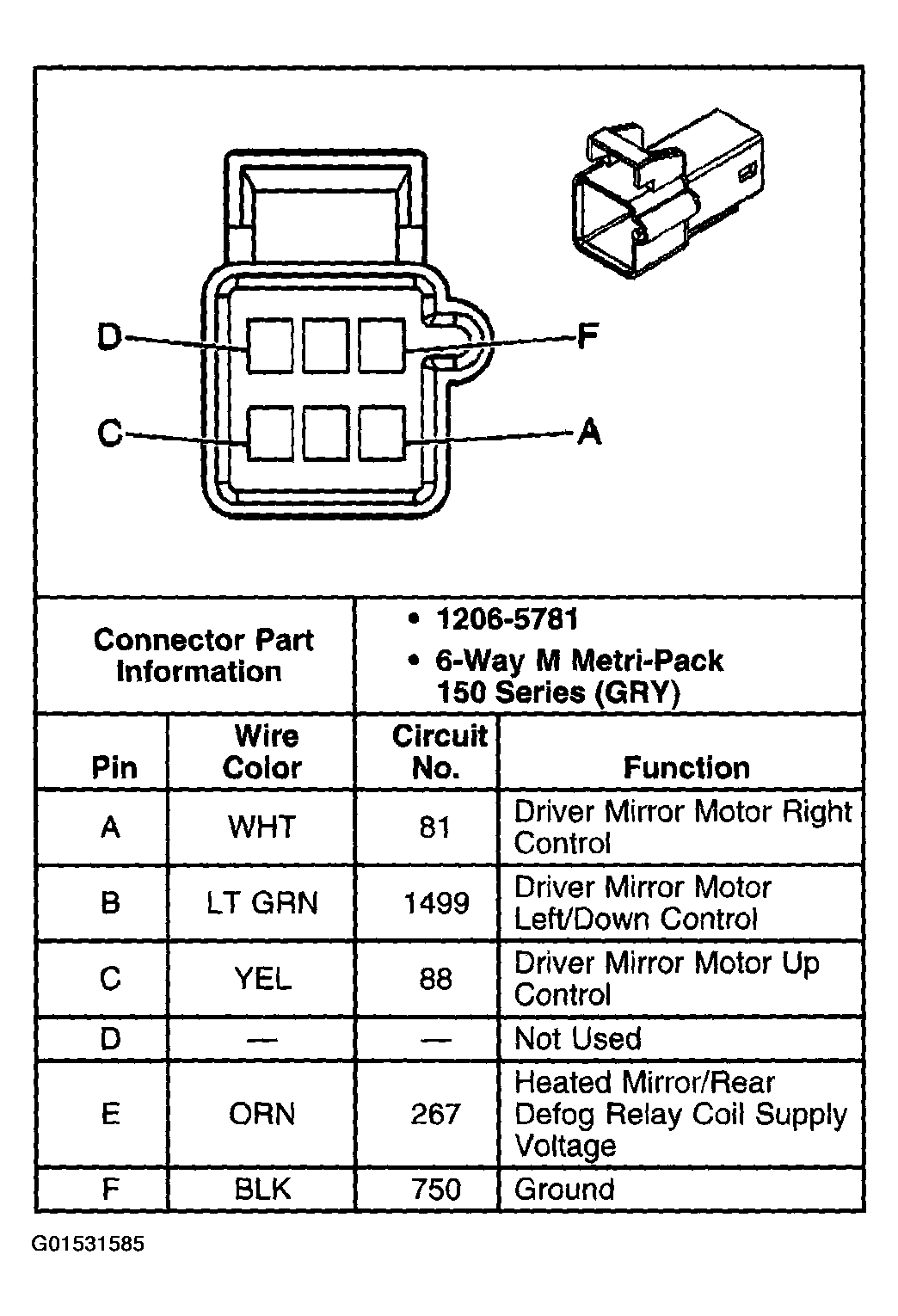

Fig 22: Outside Rearview Mirror - Driver Connector End View
G01531585Courtesy of GENERAL MOTORS CORP.

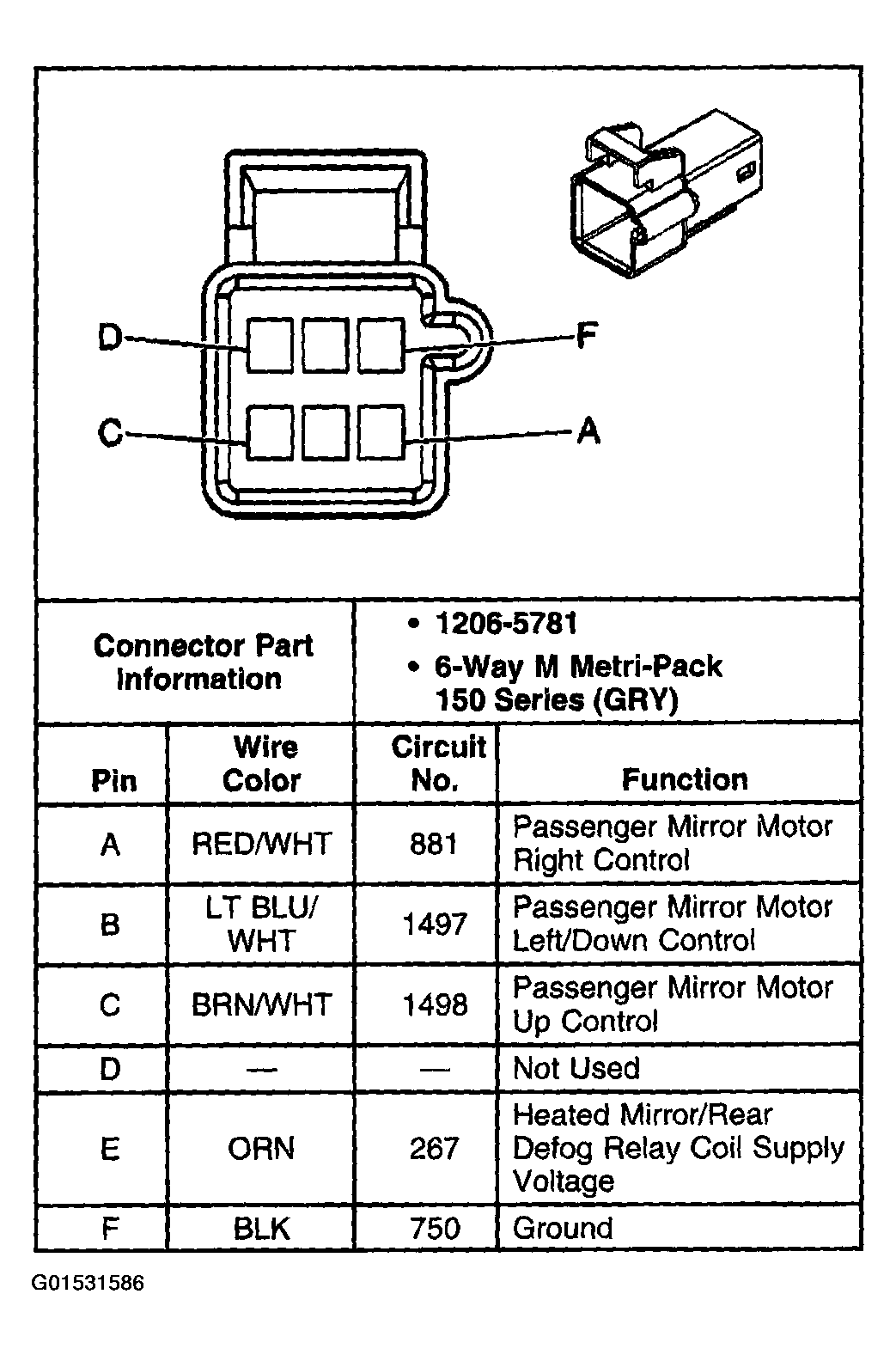

Fig 23: Outside Rearview Mirror - Passenger Connector End View
G01531586Courtesy of GENERAL MOTORS CORP.

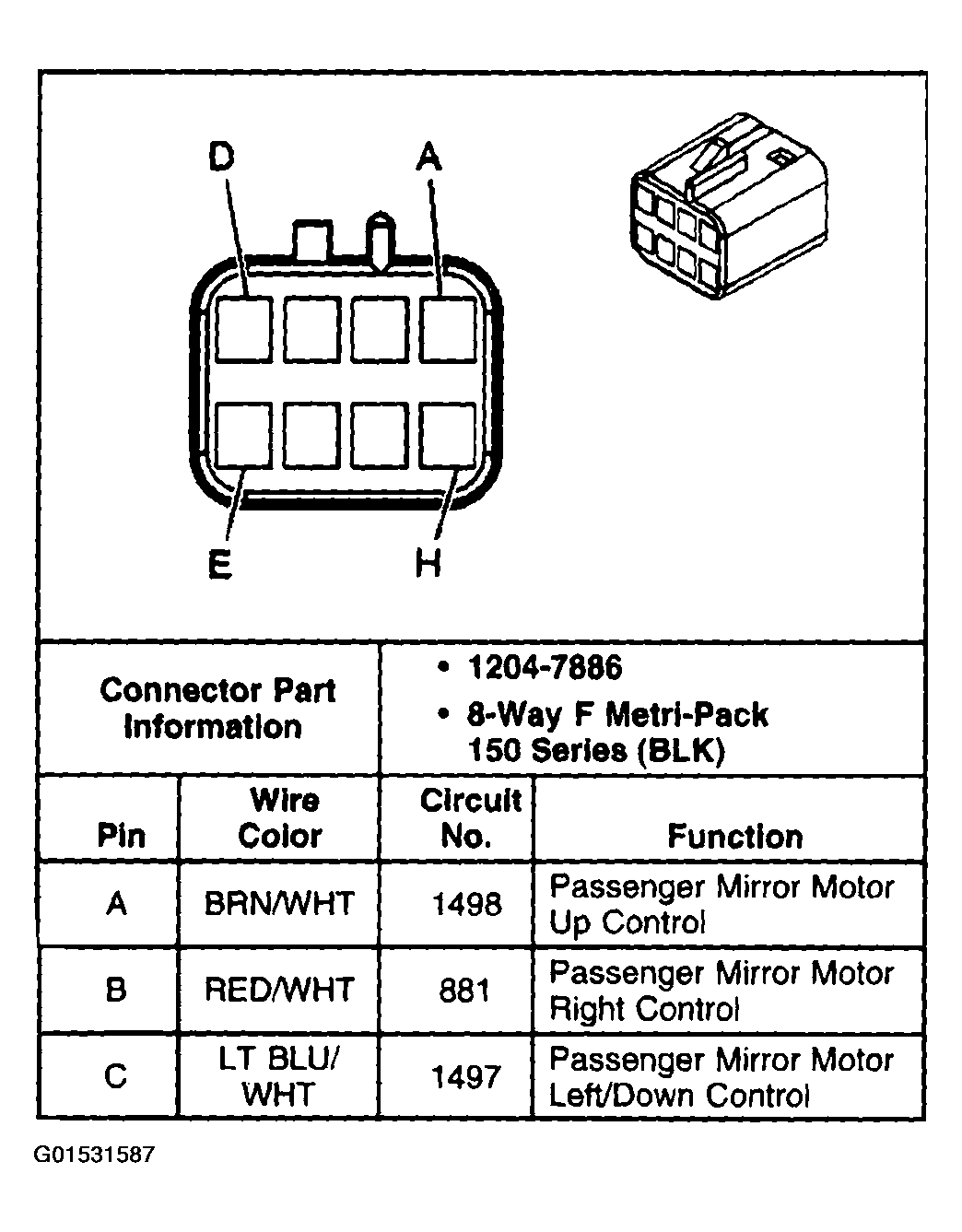

Fig 24: Outside Rearview Mirror Switch Connector End View (1 Of 2)
G01531587Courtesy of GENERAL MOTORS CORP.

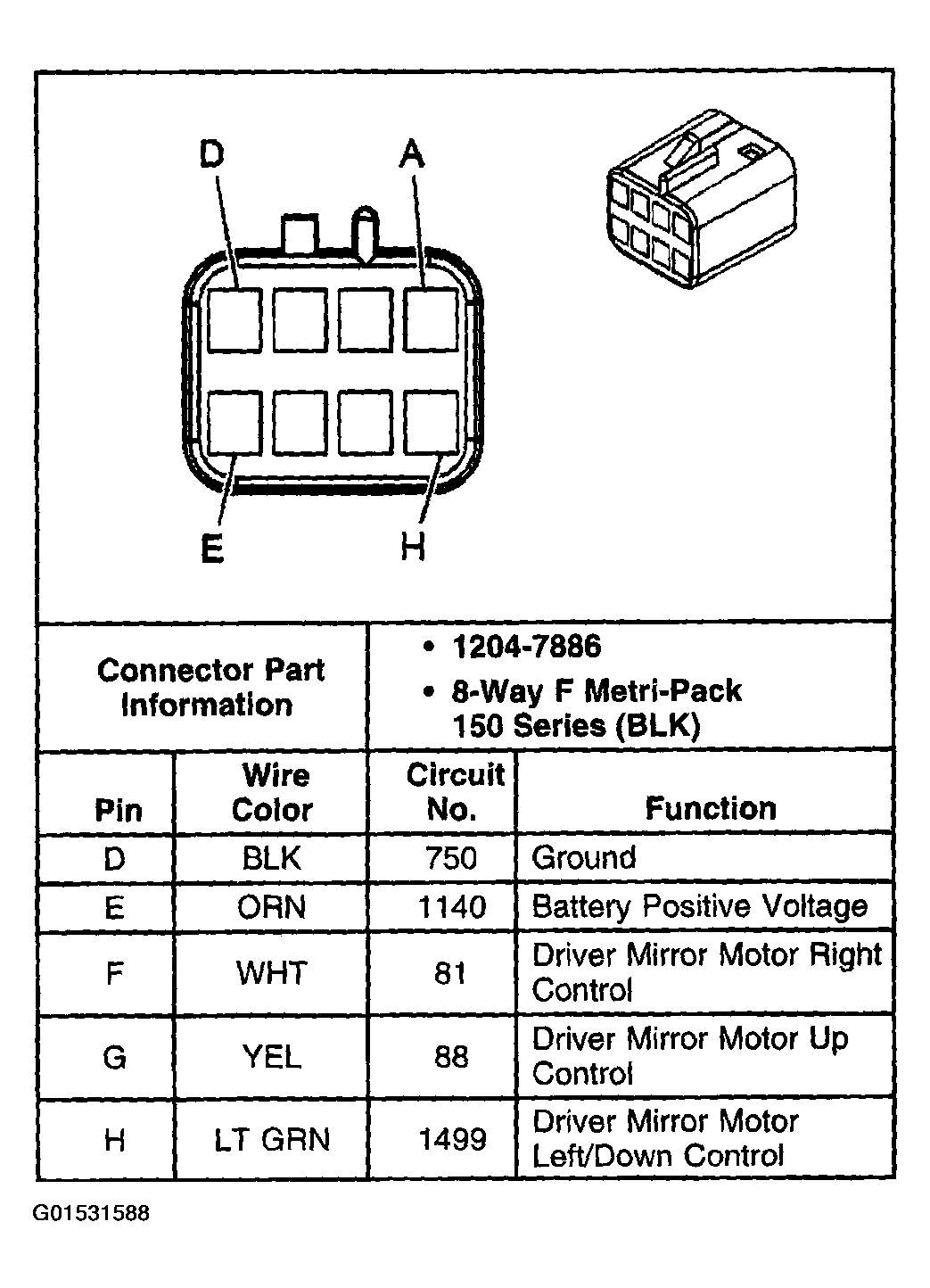

Fig 25: Outside Rearview Mirror Switch Connector End View (2 Of 2)
G01531588Courtesy of GENERAL MOTORS CORP.

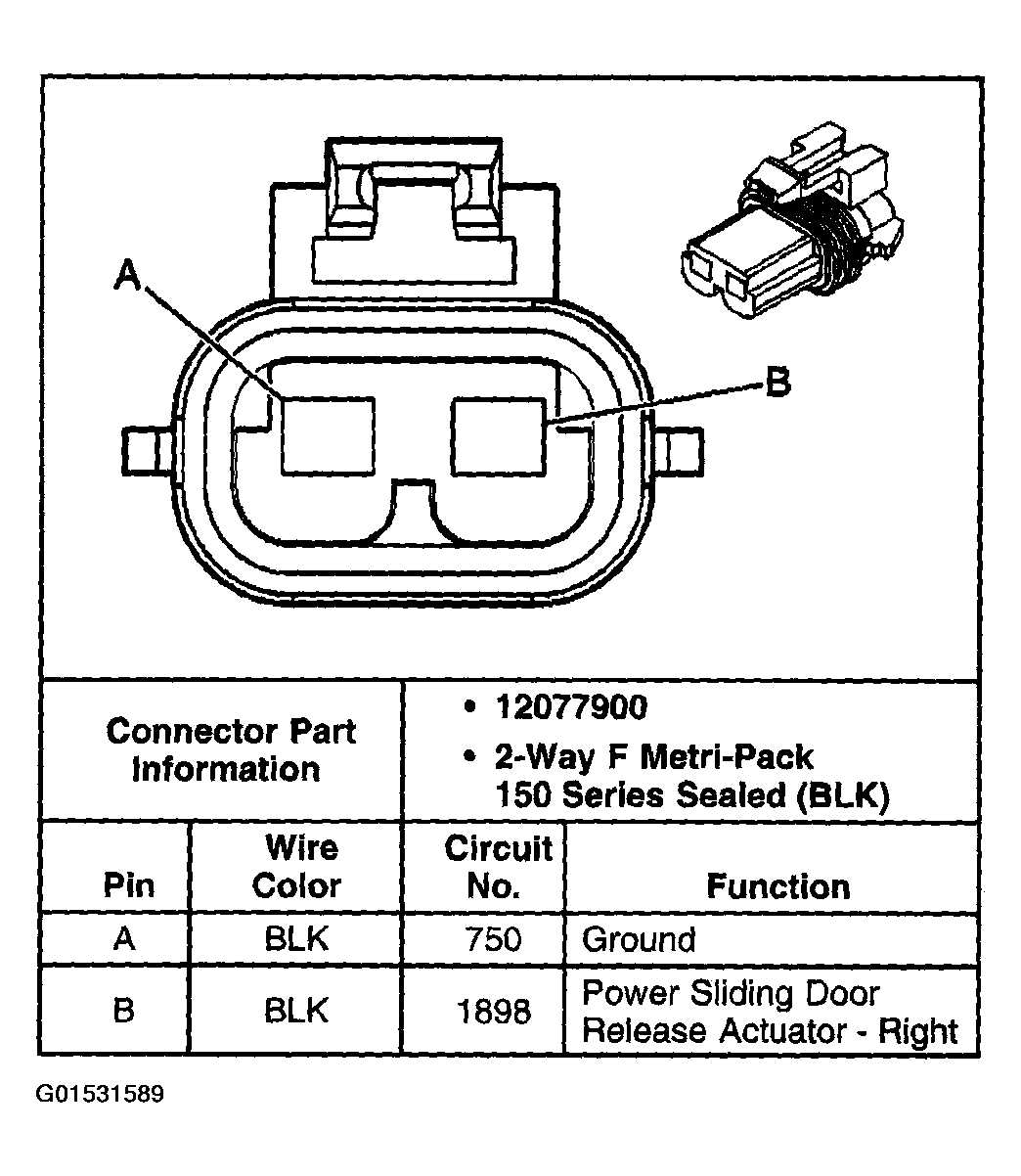

Fig 26: Power Sliding Door Unlatch Actuator - Left Connector End View
G01531589Courtesy of GENERAL MOTORS CORP.

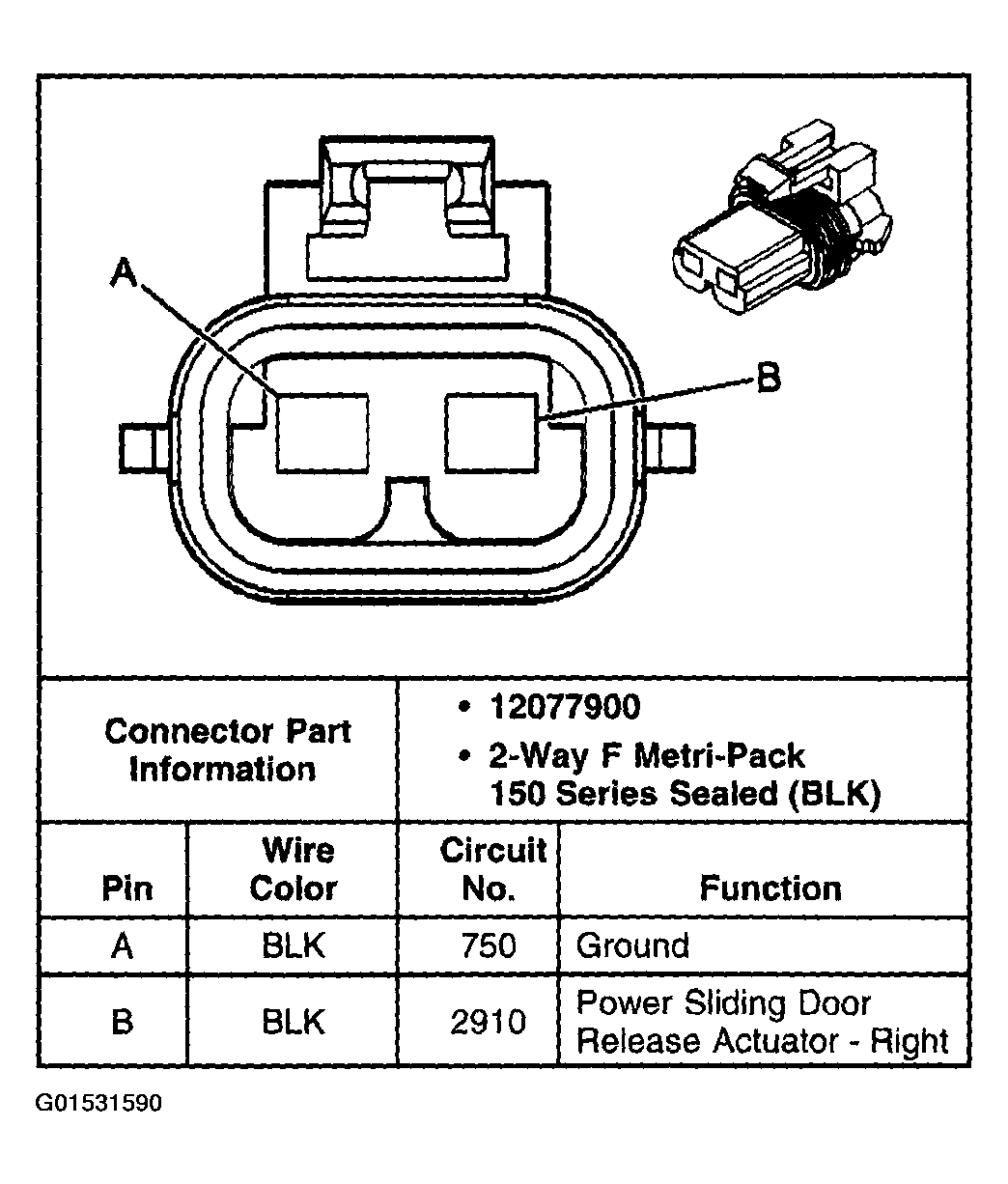

Fig 27: Power Sliding Door Unlatch Actuator - Right Connector End View
G01531590Courtesy of GENERAL MOTORS CORP.

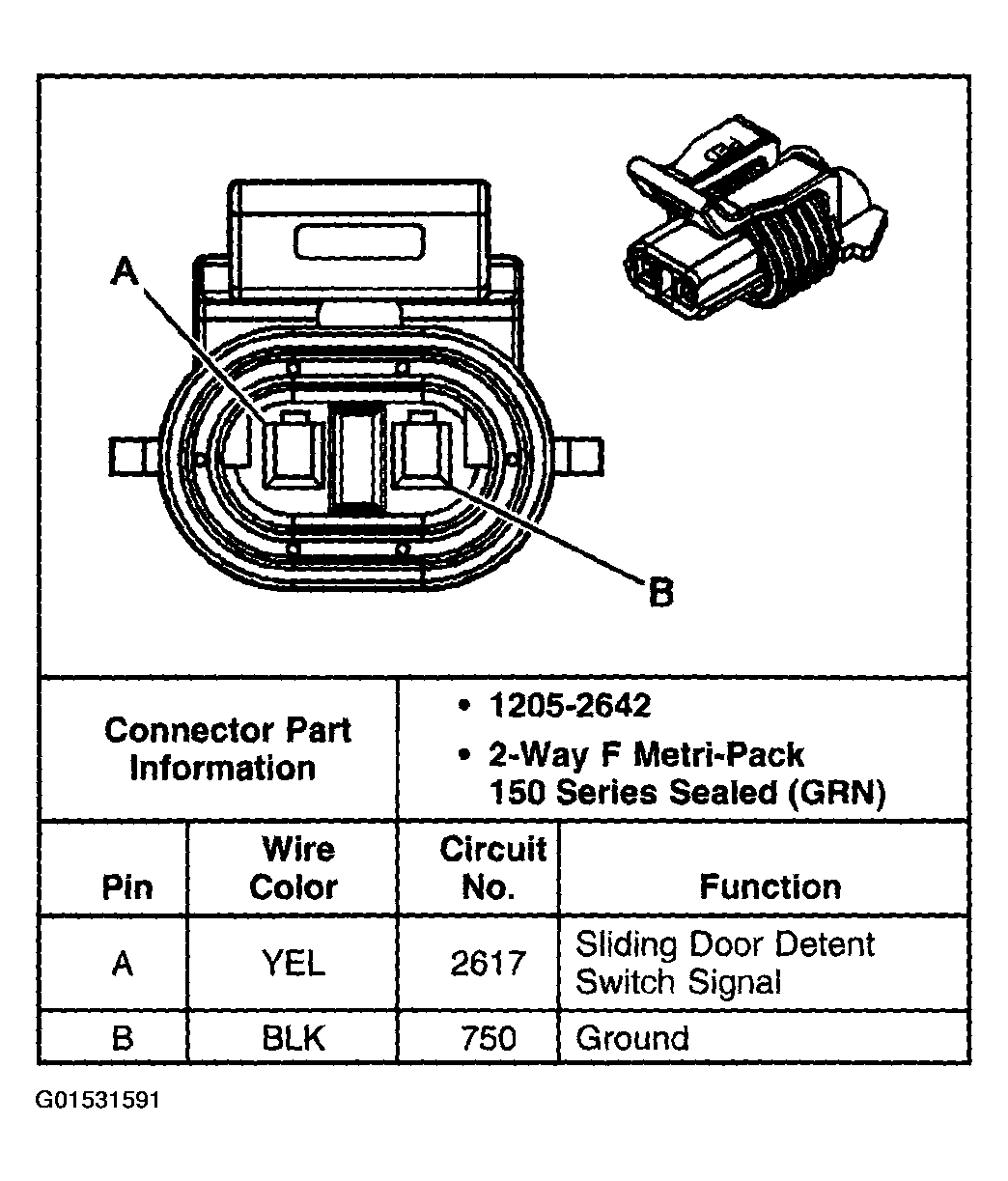

Fig 28: Power Sliding Door Detent Switch - Left Connector End View
G01531591Courtesy of GENERAL MOTORS CORP.
Fig 29: Power Sliding Door Detent Switch - Right Connector End View
G01531592Courtesy of GENERAL MOTORS CORP.

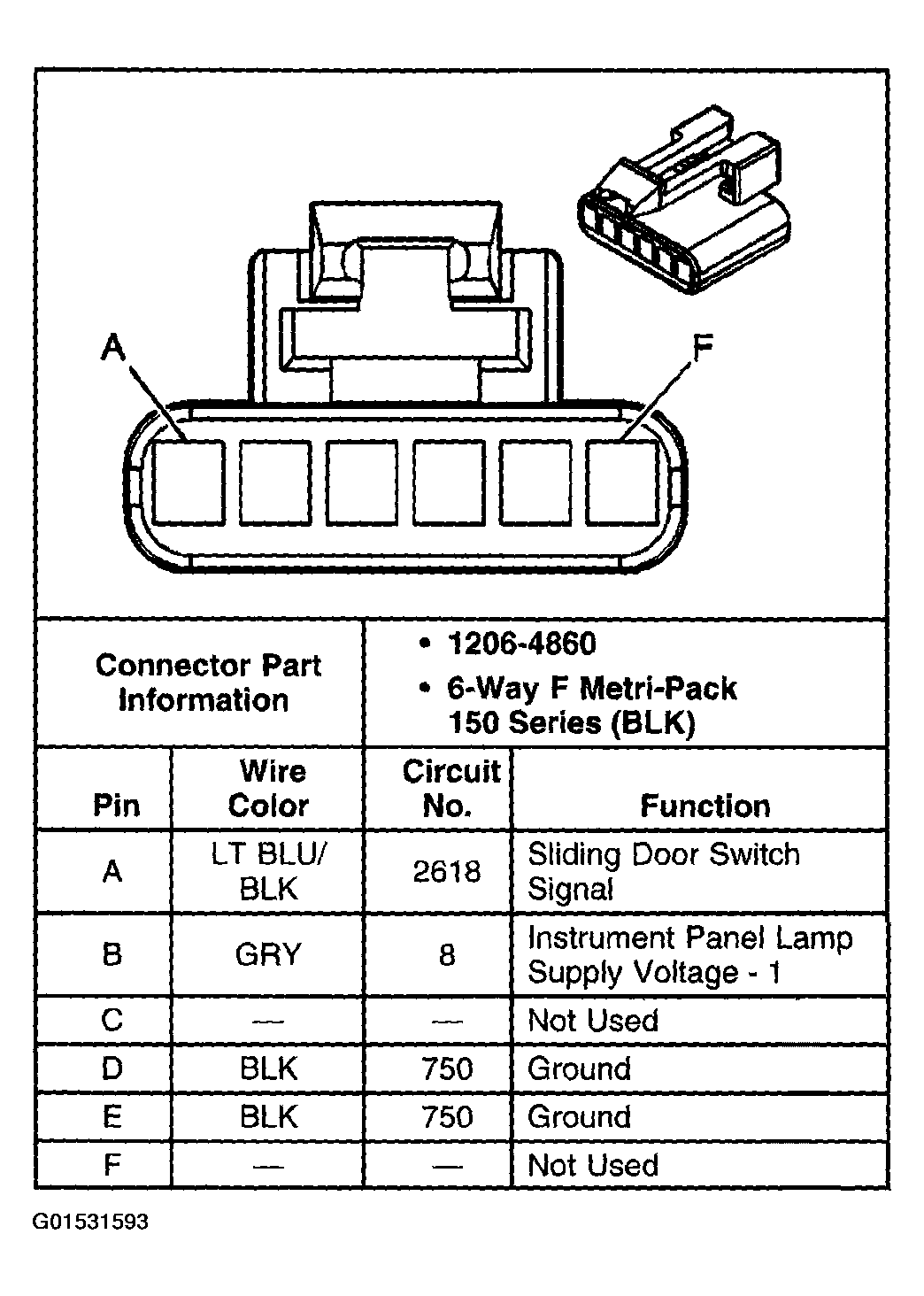

Fig 30: Power Sliding Door Open/Close Switch - Left B-Pillar Connector End View
G01531593Courtesy of GENERAL MOTORS CORP.

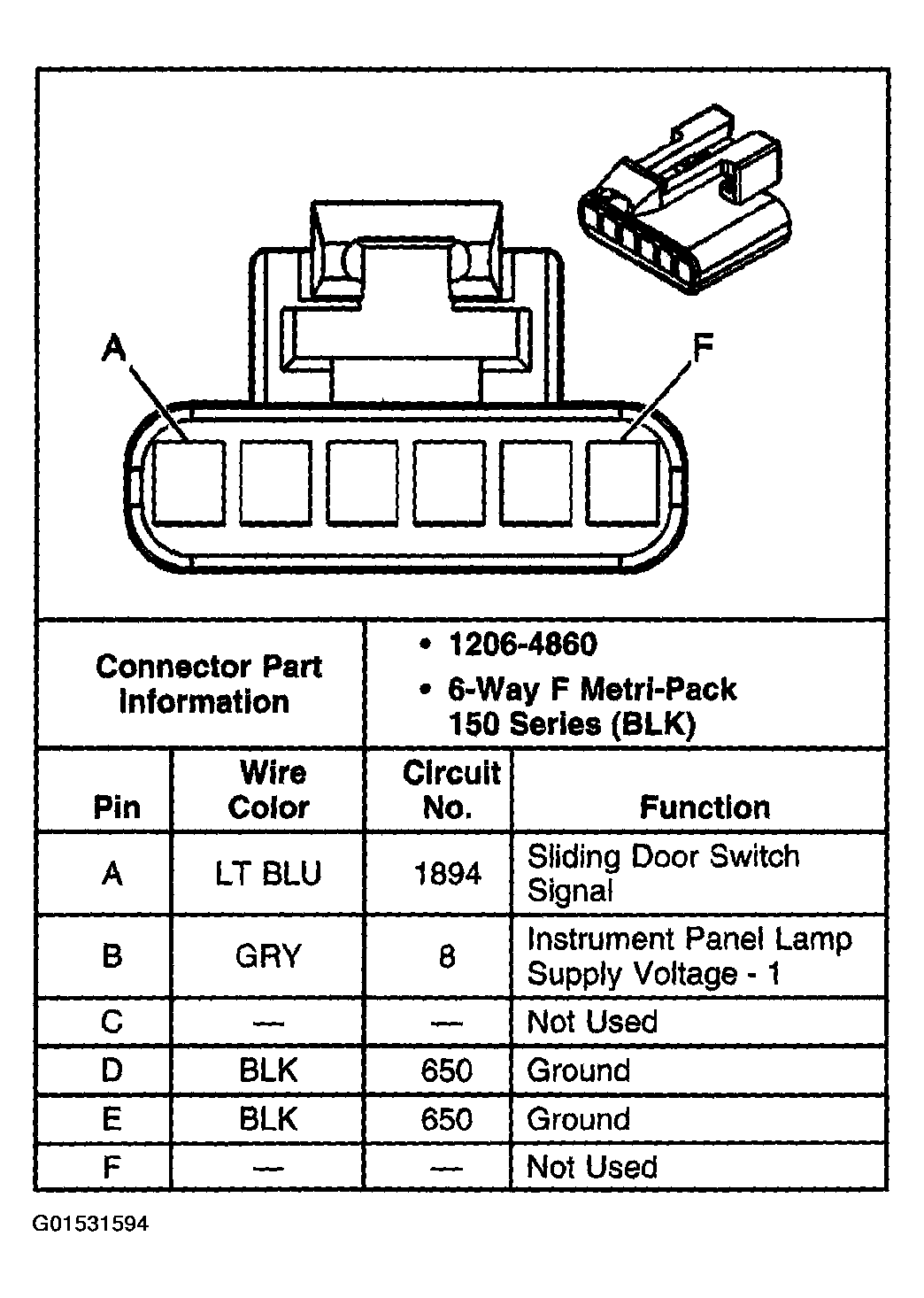

Fig 31: Power Sliding Door Open/Close Switch - Right B-Pillar Connector End View
G01531594Courtesy of GENERAL MOTORS CORP.

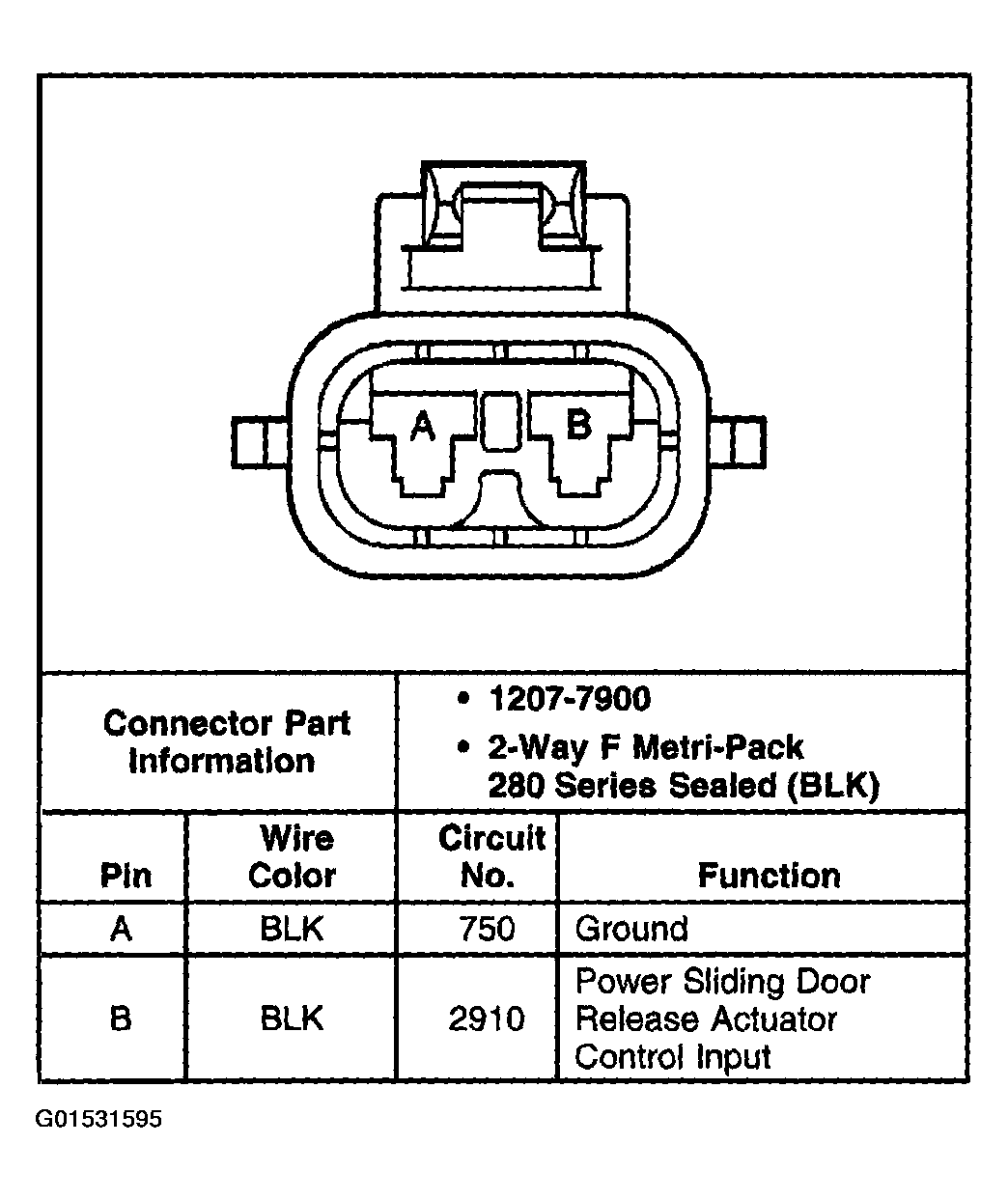

Fig 32: Power Sliding Door Unlatch Actuator Connector End View
G01531595Courtesy of GENERAL MOTORS CORP.

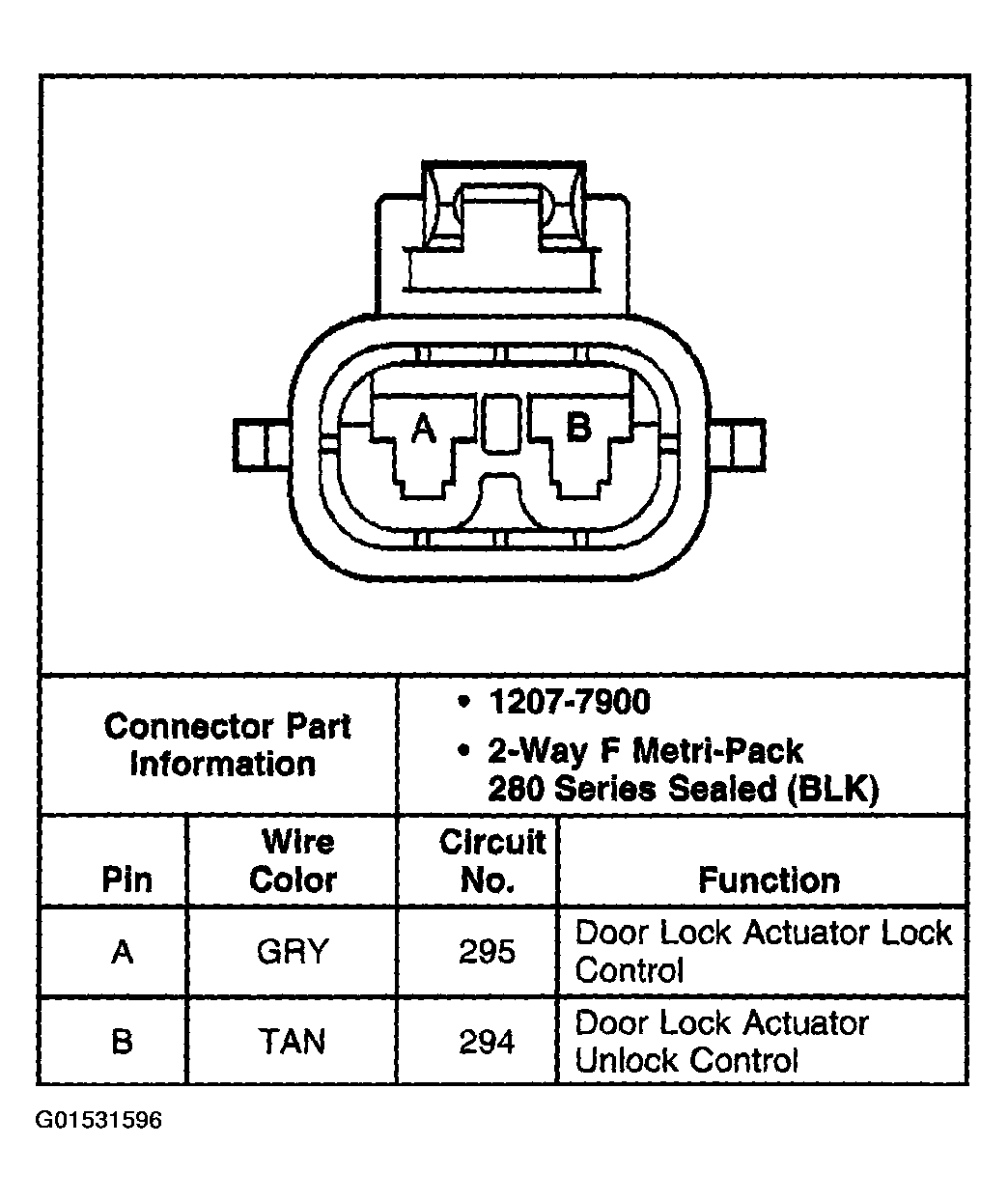

Fig 33: Rear Door Lock (Actuator) Connector End View
G01531596Courtesy of GENERAL MOTORS CORP.

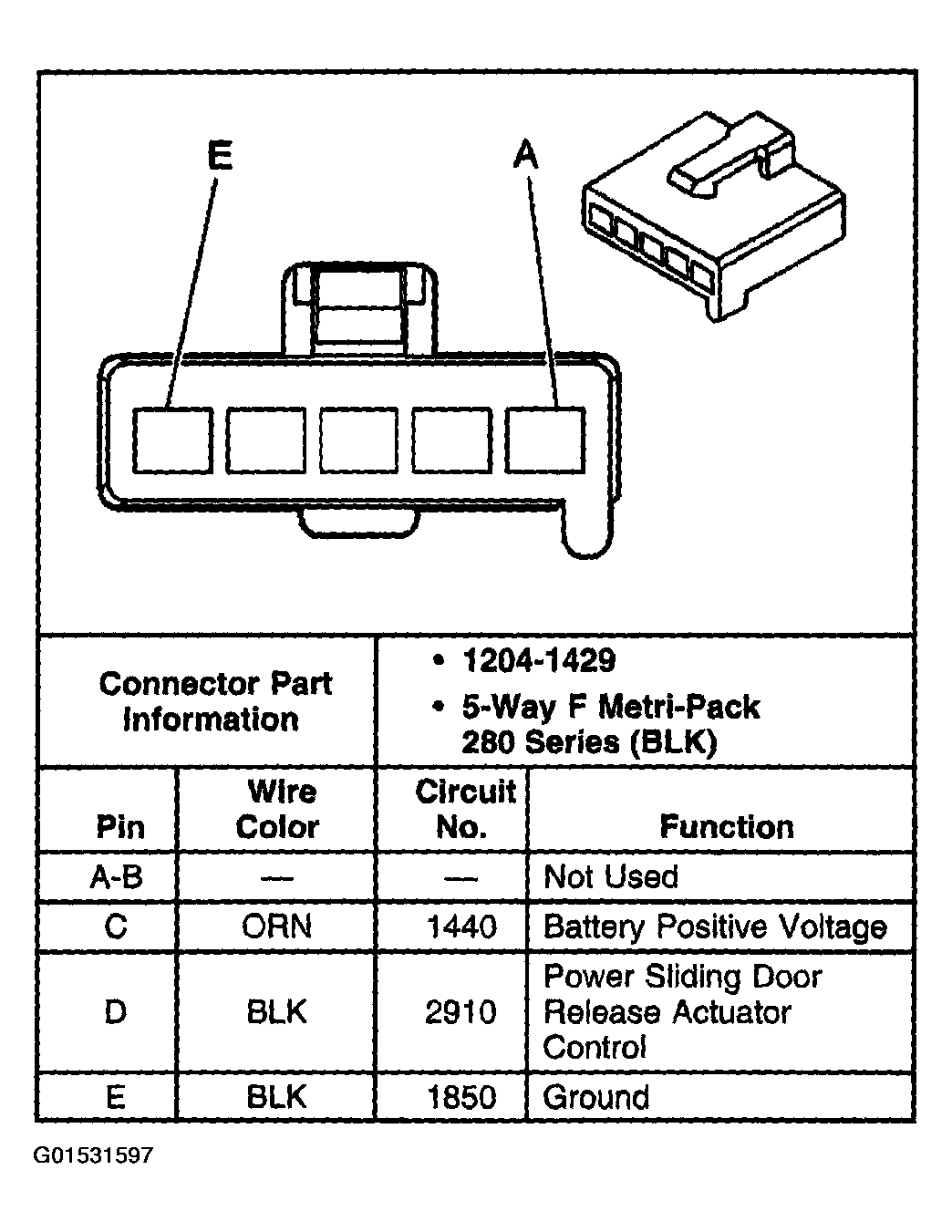

Fig 34: Right Rear Side Door Actuator Control Module Connector End View C1
G01531597Courtesy of GENERAL MOTORS CORP.

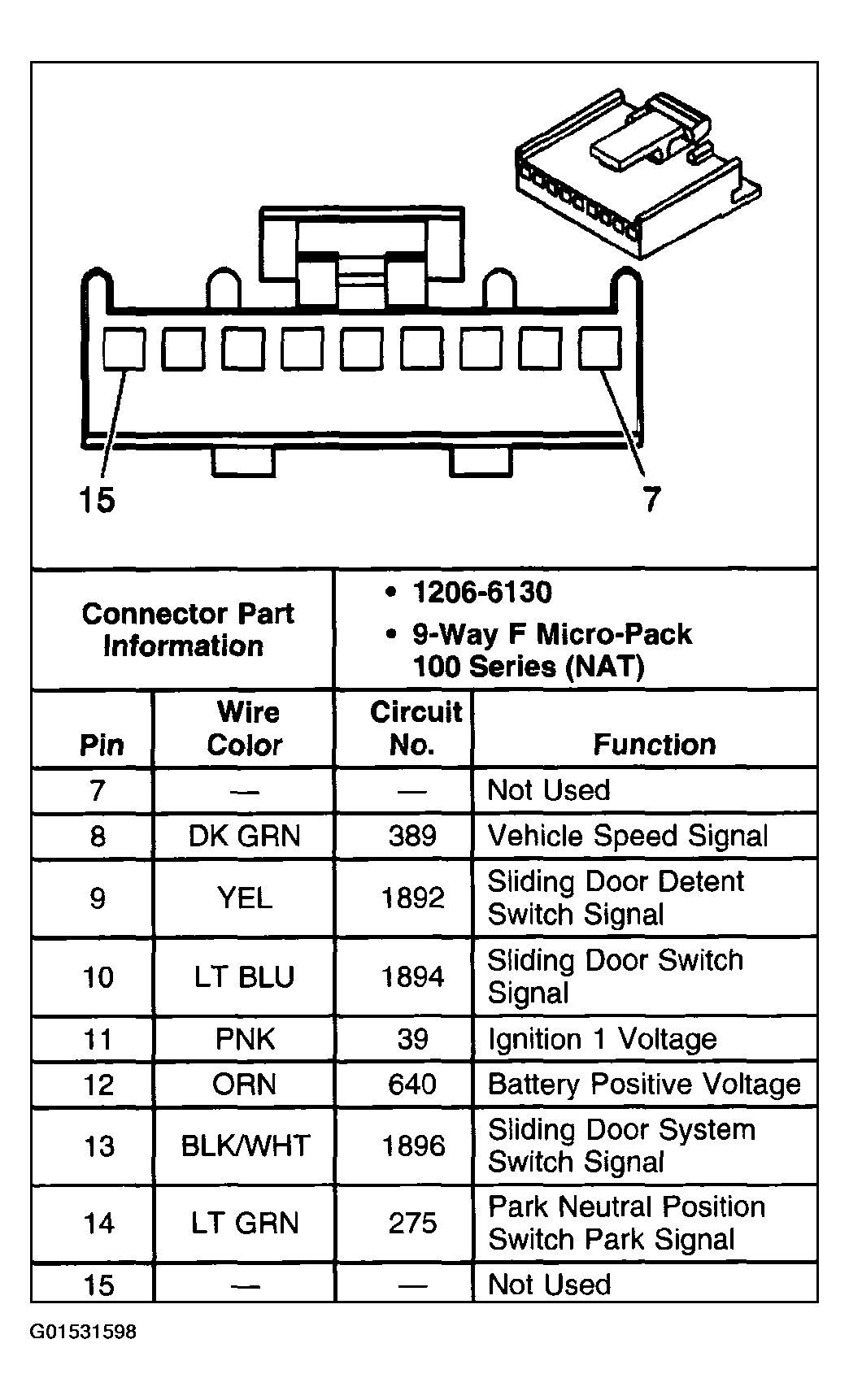

Fig 35: Right Rear Side Door Actuator Control Module Connector End View C2
G01531598Courtesy of GENERAL MOTORS CORP.

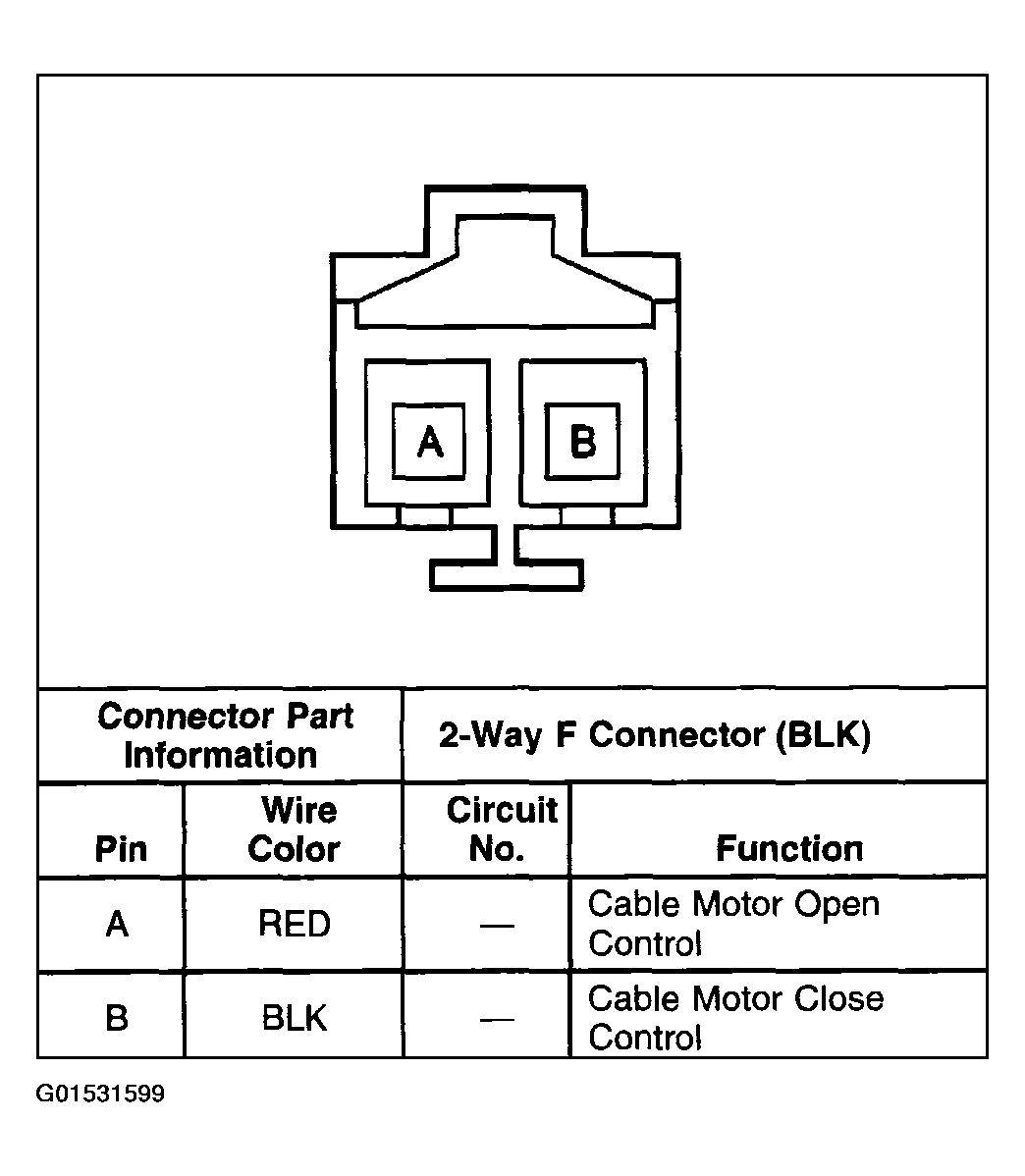

Fig 36: Right Rear Side Door Actuator Control Module Connector End View C3
G01531599Courtesy of GENERAL MOTORS CORP.

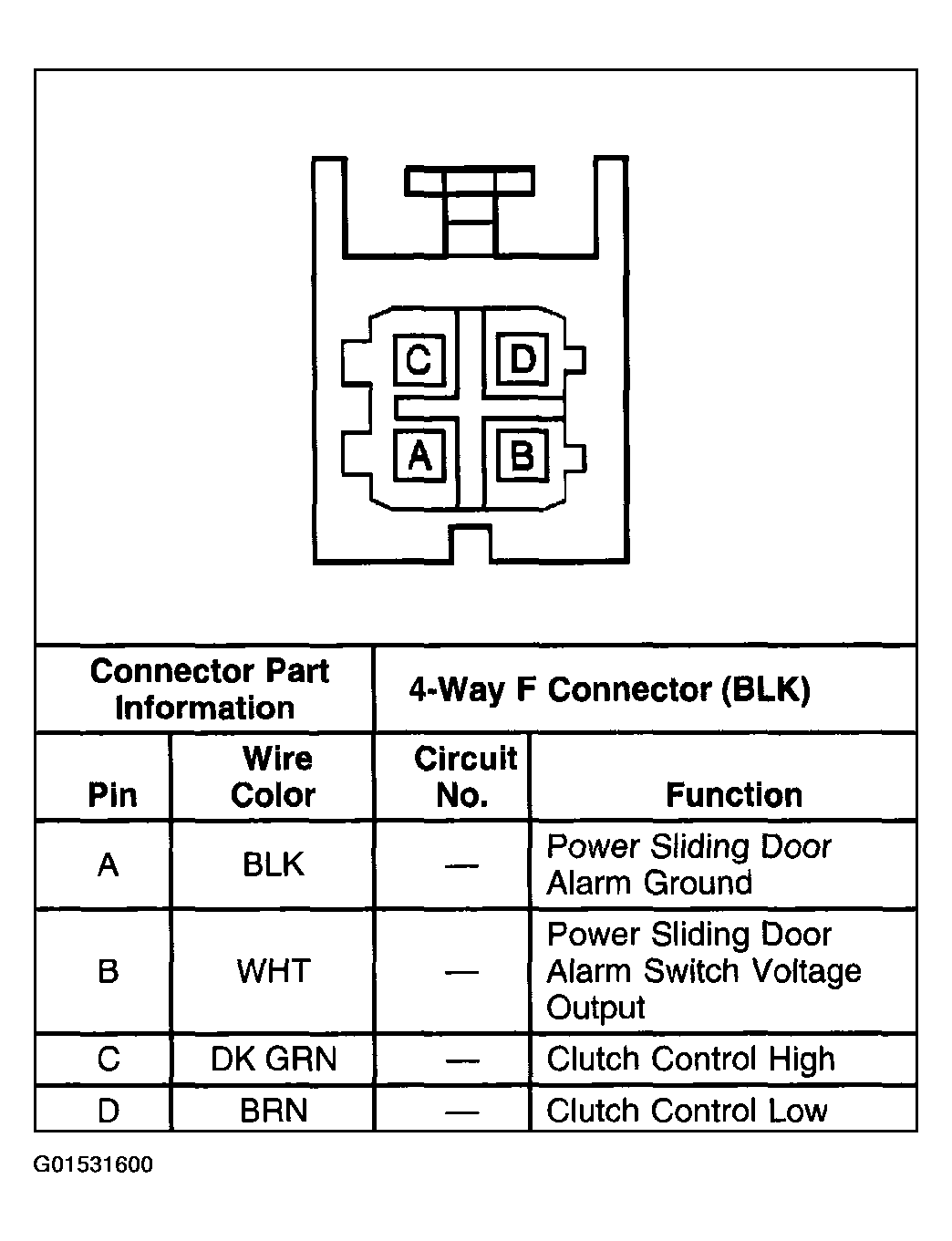

Fig 37: Right Rear Side Door Actuator Control Module Connector End View C4
G01531600Courtesy of GENERAL MOTORS CORP.

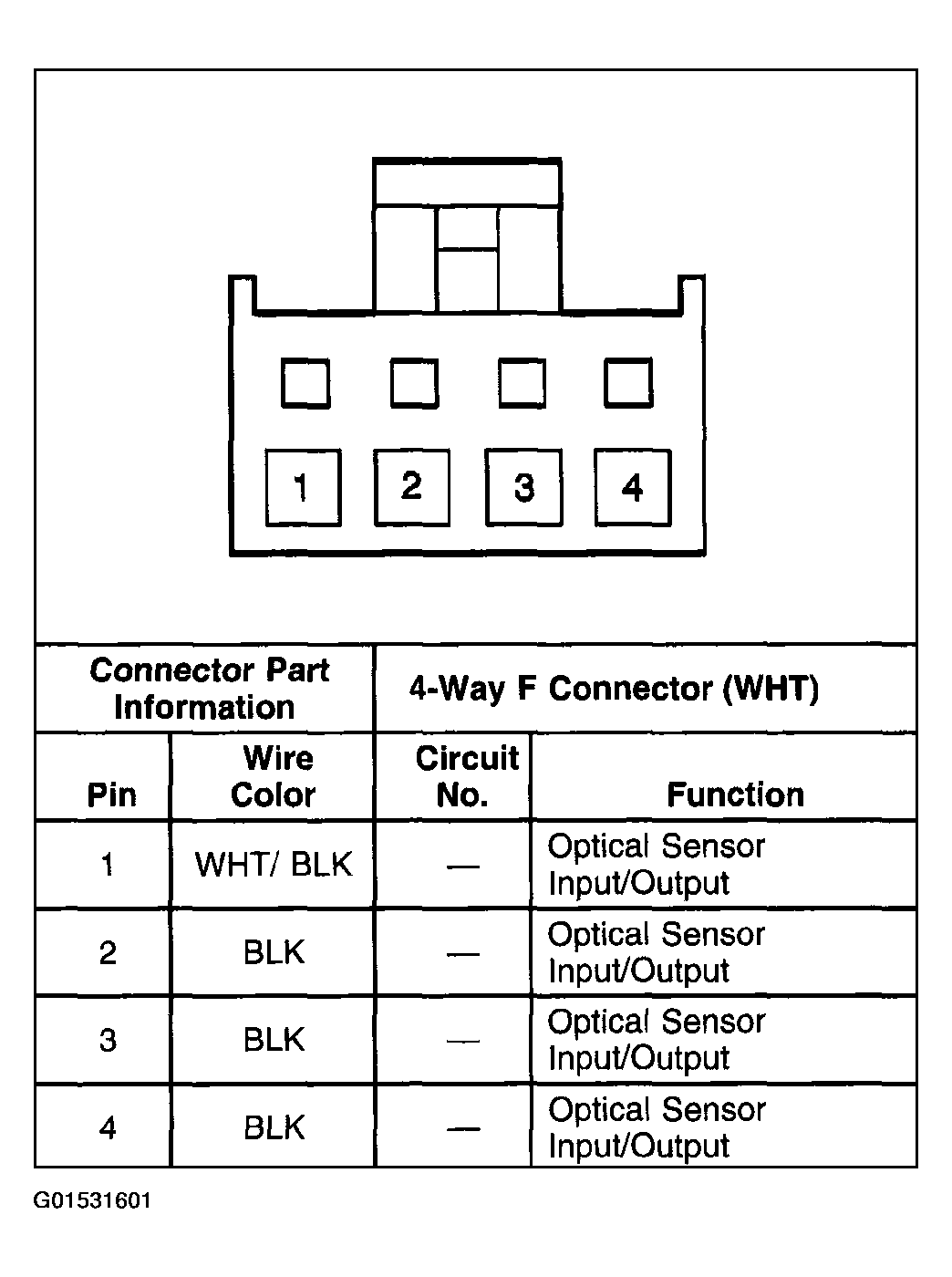

Fig 38: Right Rear Side Door Actuator Control Module C5 Connector End View
G01531601Courtesy of GENERAL MOTORS CORP.

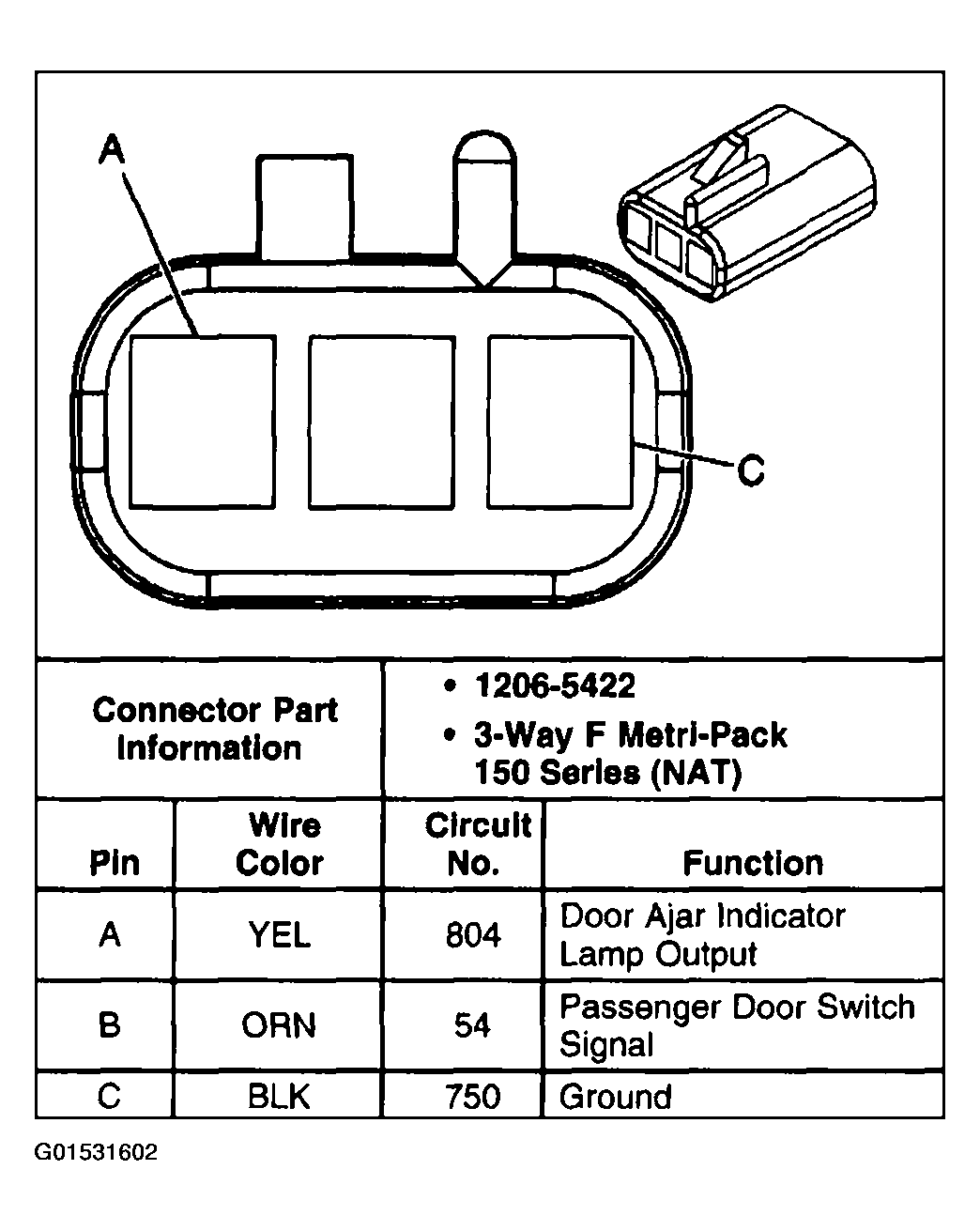

Fig 39: Sliding Door Jamb Switch - Left Connector End View
G01531602Courtesy of GENERAL MOTORS CORP.

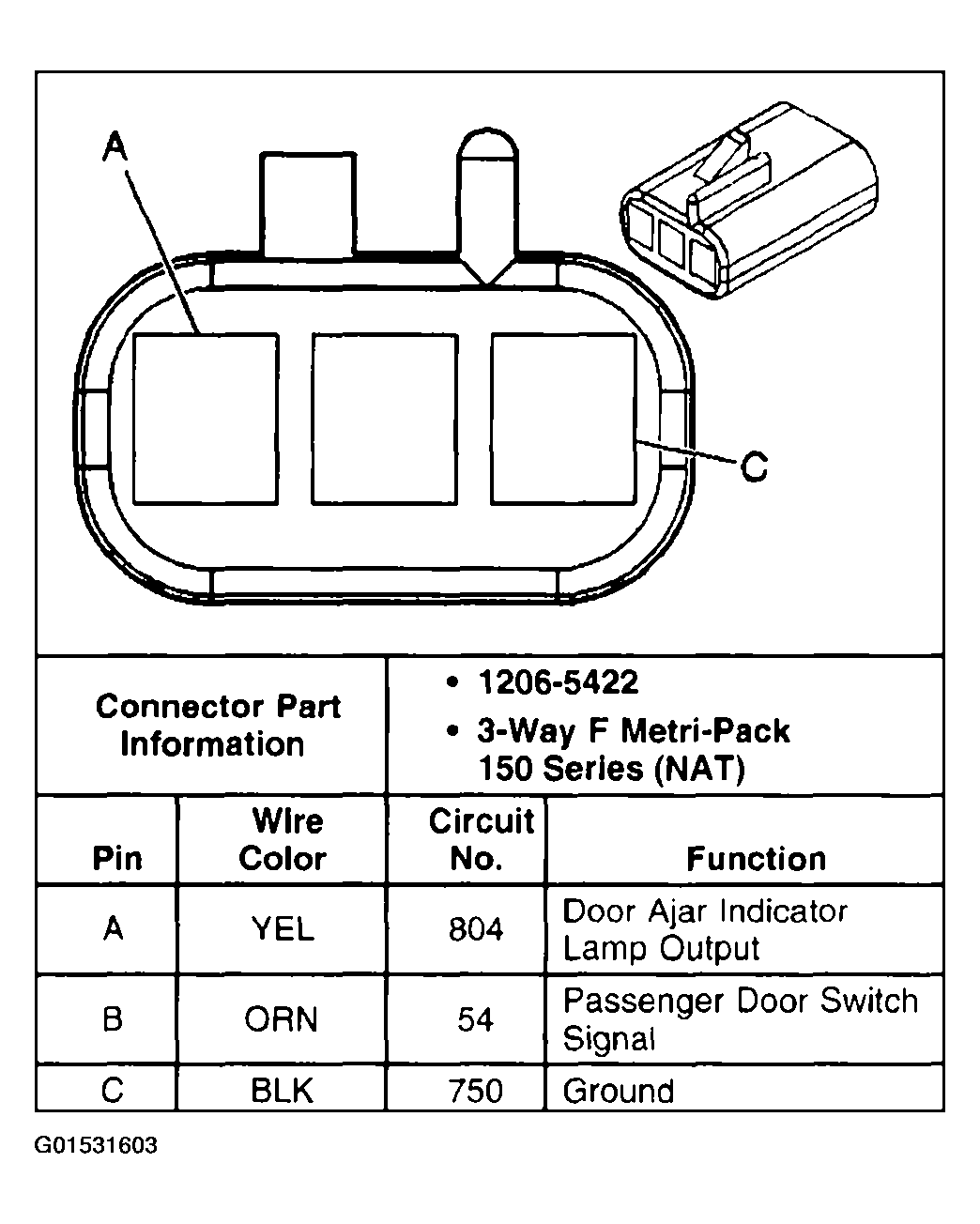

Fig 40: Sliding Door Jamb Switch - Right Connector End View
G01531603Courtesy of GENERAL MOTORS CORP.
Fig 41: Window Motor - Driver Connector End View
G01531604Courtesy of GENERAL MOTORS CORP.

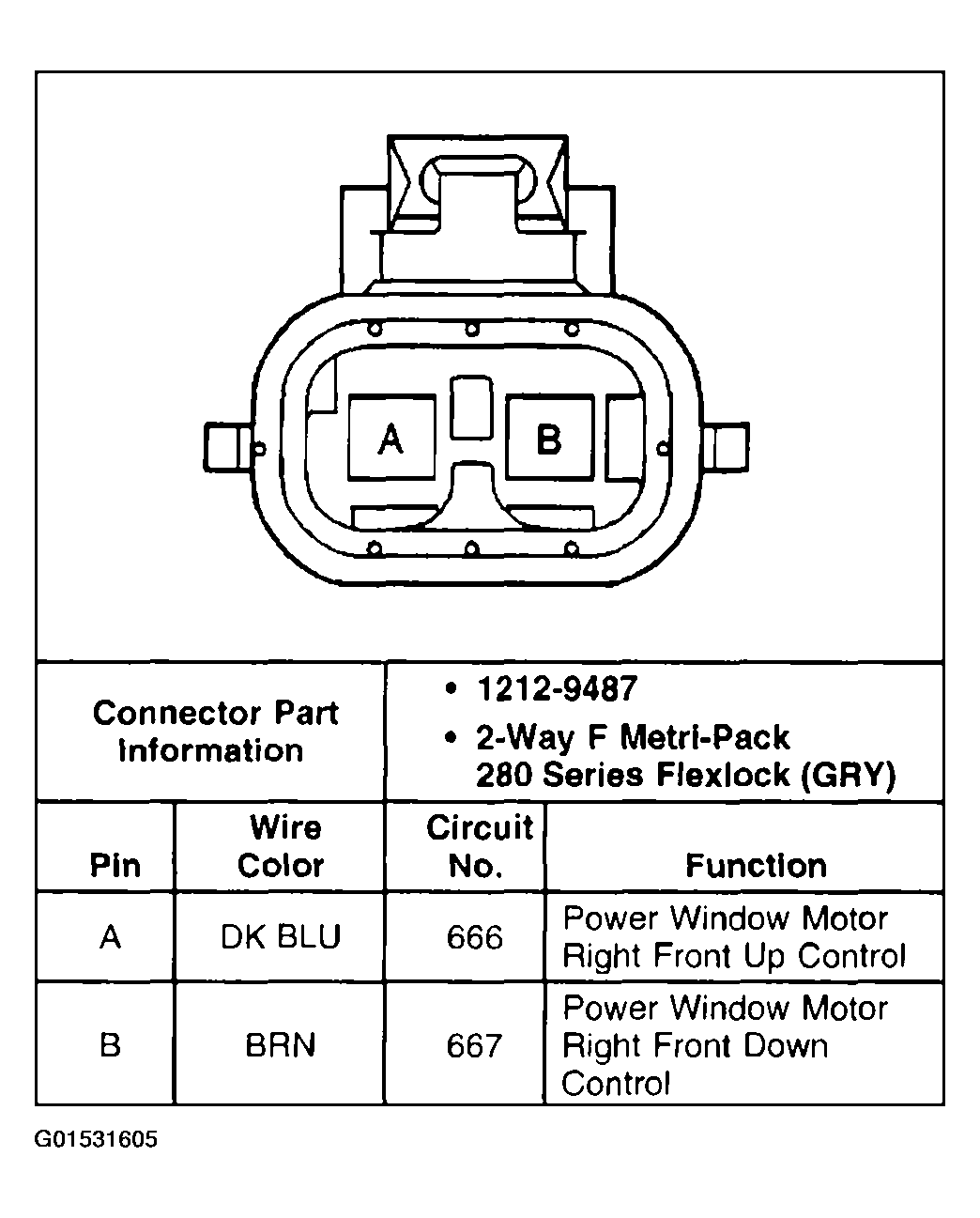

Fig 42: Window Motor - Front Passenger Connector End View
G01531605Courtesy of GENERAL MOTORS CORP.

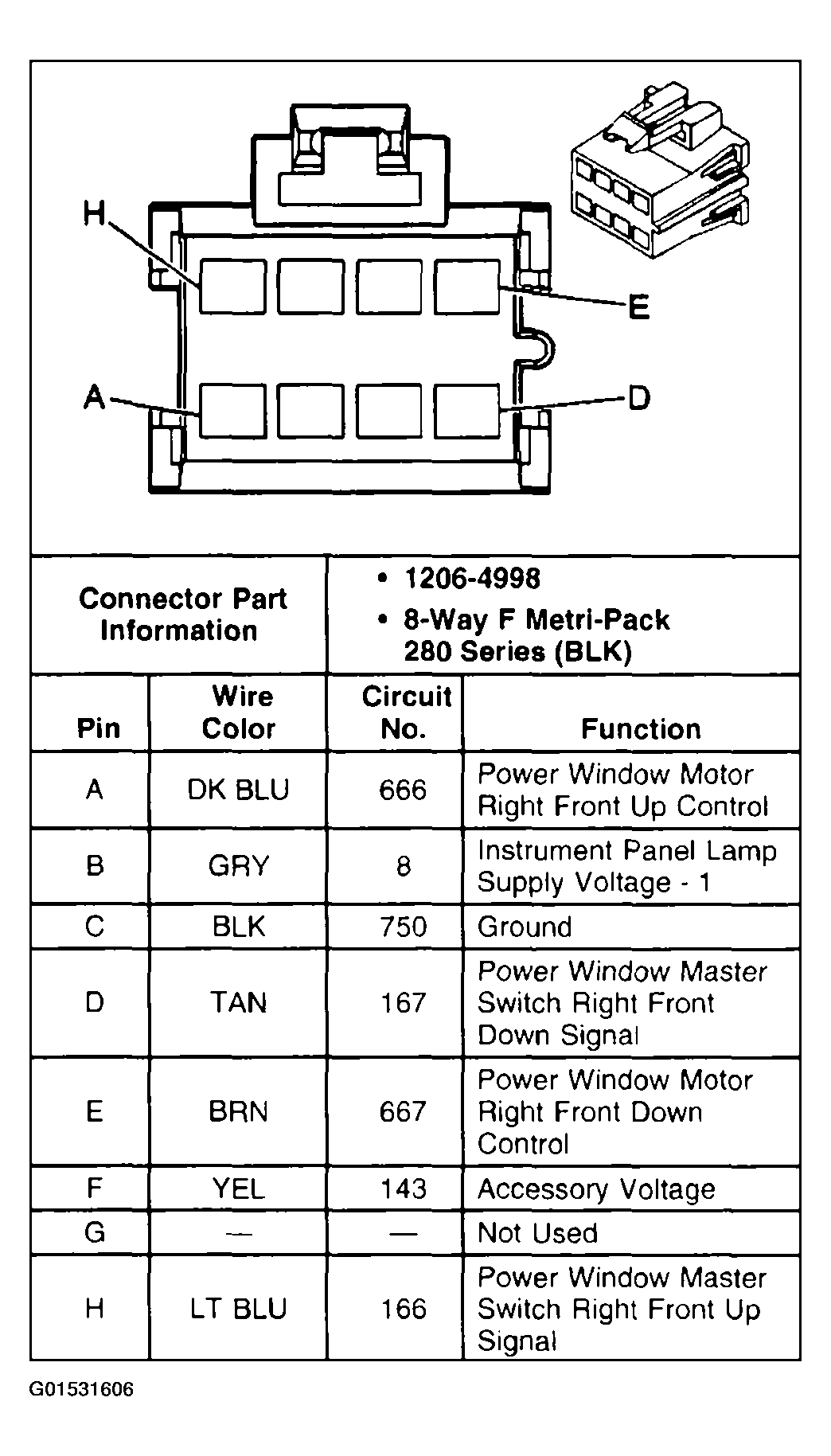

Fig 43: Window Switch - Front Passenger Connector End View
G01531606Courtesy of GENERAL MOTORS CORP.

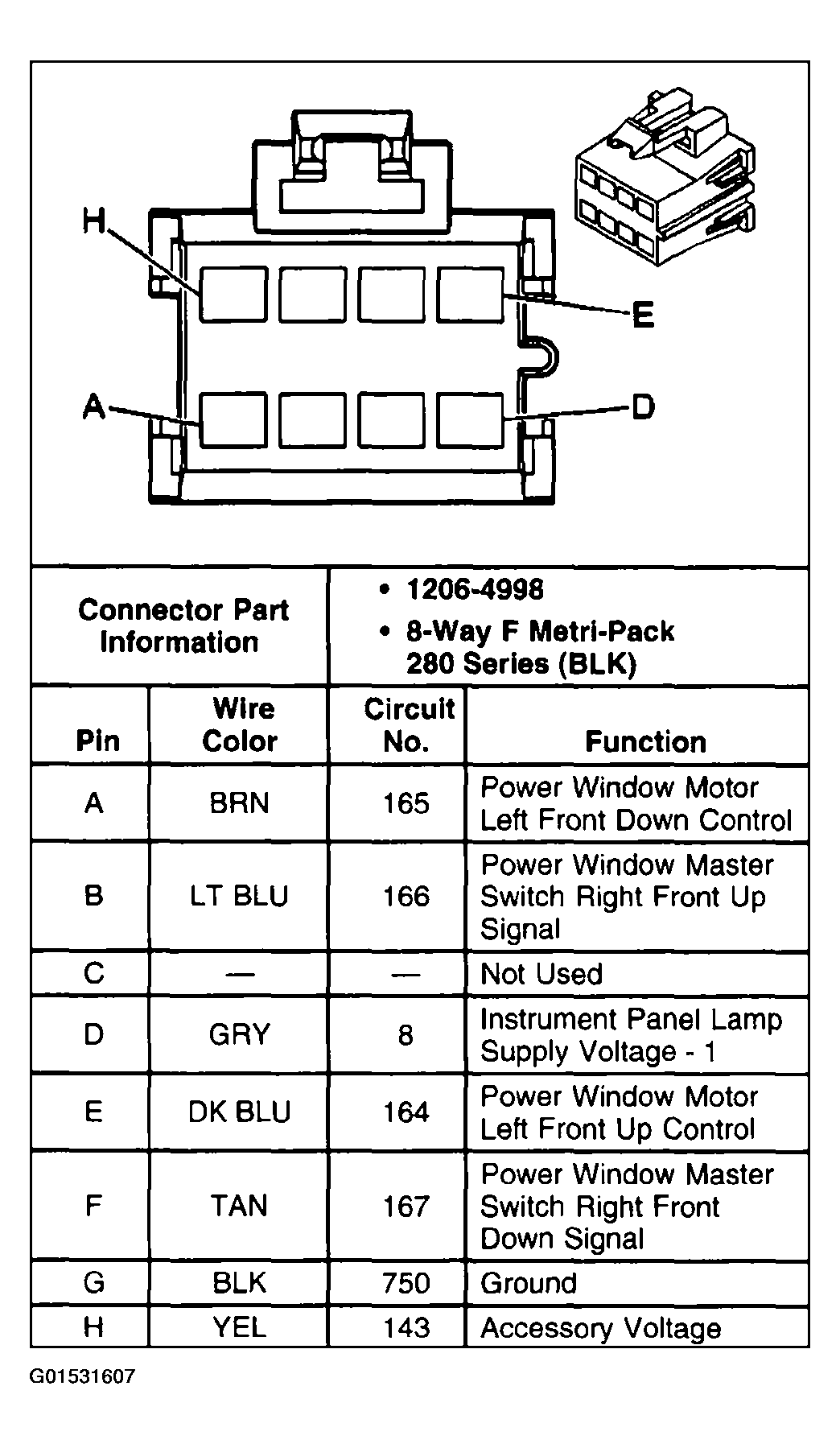

Fig 44: Window Switch - Master Connector End View
G01531607Courtesy of GENERAL MOTORS CORP.
