Stationary Windows Component Views

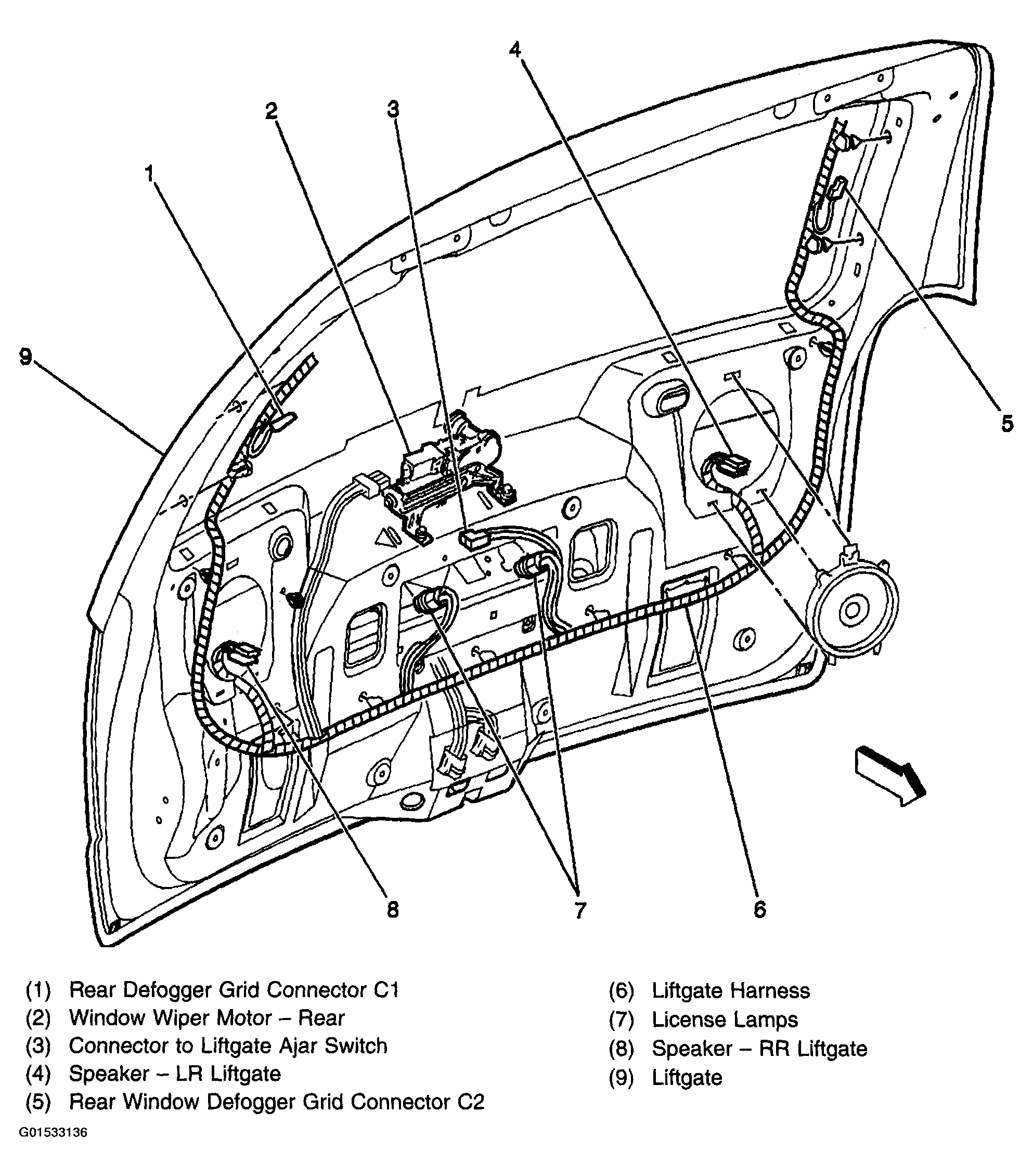

Fig 1: Liftgate Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
