HVAC Control Module - Auxiliary Connector End View C1

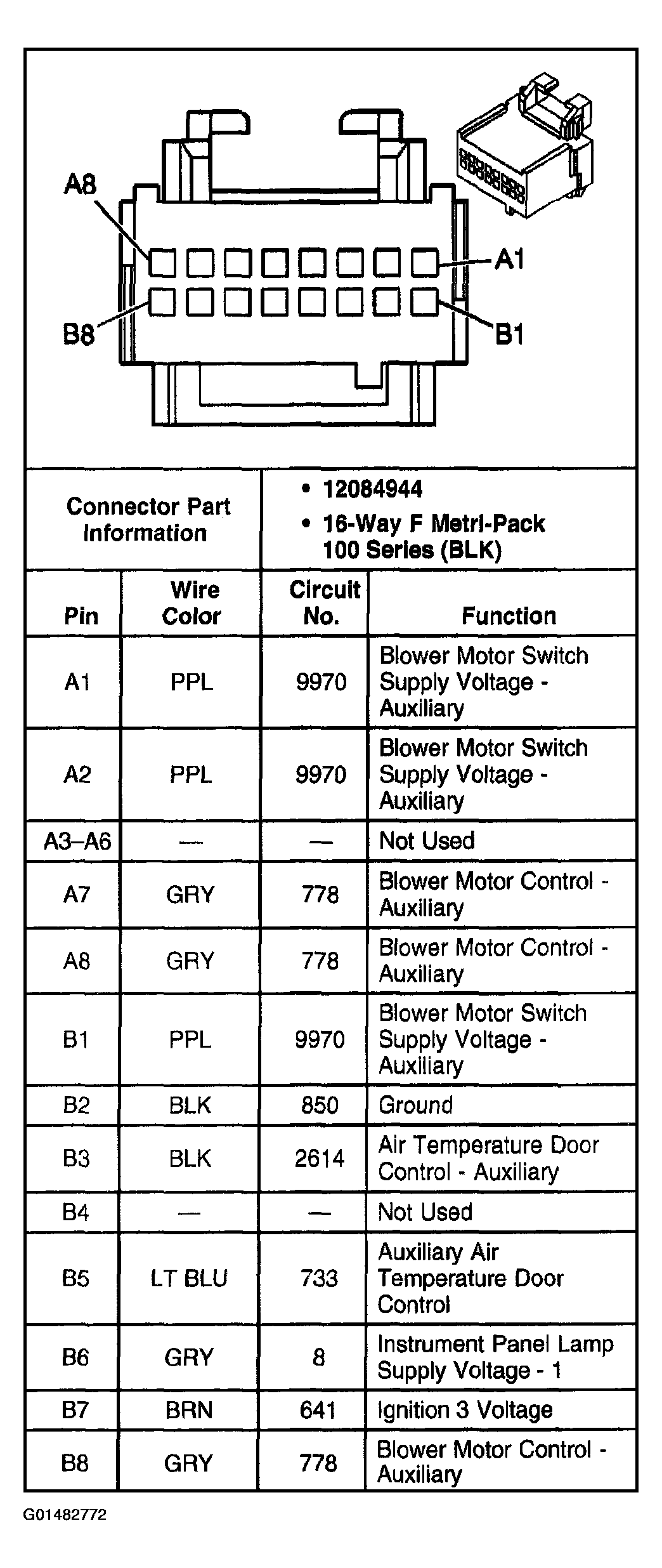

Fig 1: HVAC Control Module - Auxiliary Connector End View C1
G01482772Courtesy of GENERAL MOTORS CORP.
