Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Auxiliary Blower Motor Resistor | Part of auxiliary heater-A/C module, to rear of auxiliary blower motor. |
| Blower Motor Resistor Assembly | Behind right side of dash, part of HVAC assembly. |
| Data Link Connector | Below steering column, on knee bolster. |
| Fuel Injectors (6) | On top of engine, at each cylinder intake port. |
| Ignition Coils (3) | Mounted on top right side of engine. See Figure . |

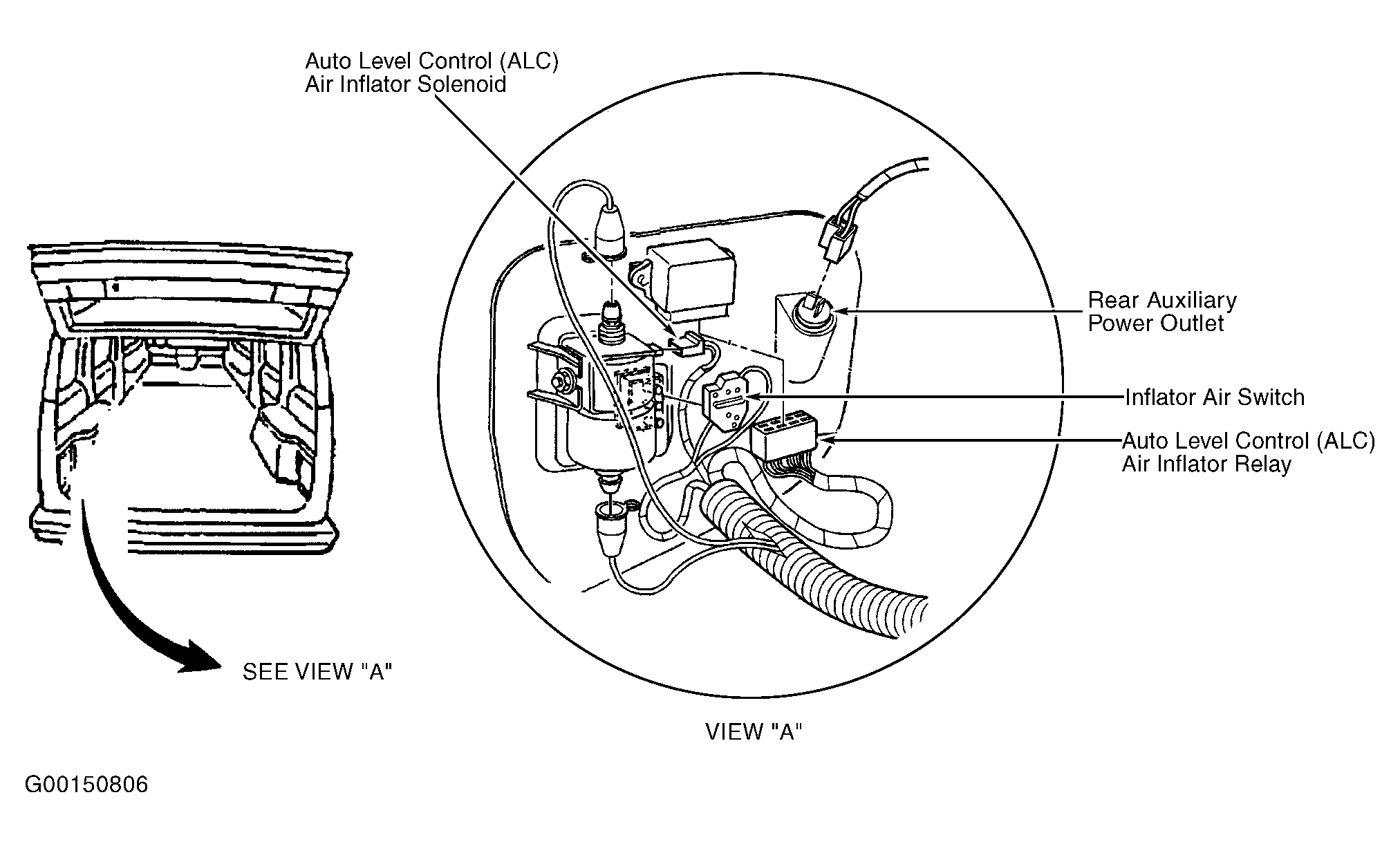

| Rear Auxiliary Power Outlet | In left rear of vehicle, behind wheelwell. See Figure . |
| Rear Parking Assist Display | In rear of vehicle, on right side of headliner. |
| Seat Belt Pretensioner (2) | On lower inward side of respective front seat. |
