Horns Connector End Views

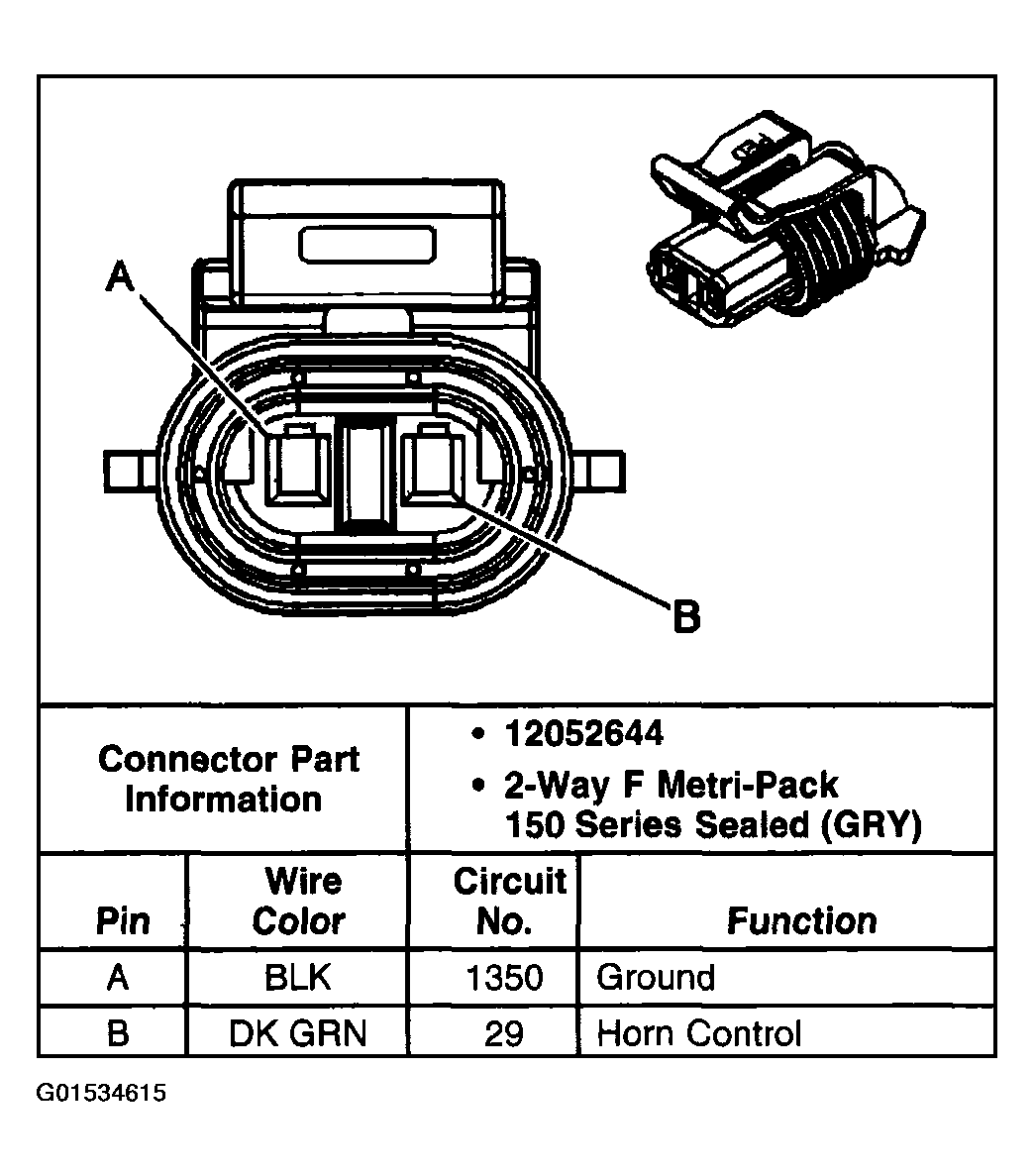

Fig 1: Horn (Left) Connector End View
G01534615Courtesy of GENERAL MOTORS CORP.
Fig 2: Horn (Right) Connector End View
G01534616Courtesy of GENERAL MOTORS CORP.
