Component Locations

COMPONENT LOCATIONS

Component Location
COOL FAN Relay In Underhood Fuse Block
COOL FAN 1 Fuse In Underhood Fuse Block
COOL FAN 1 Relay In Underhood Fuse Block
COOL FAN 2 Fuse In Underhood Fuse Block
COOL FAN 2 Relay In Underhood Fuse Block
Cooling Fans (1)
(1) See Fig 1 .

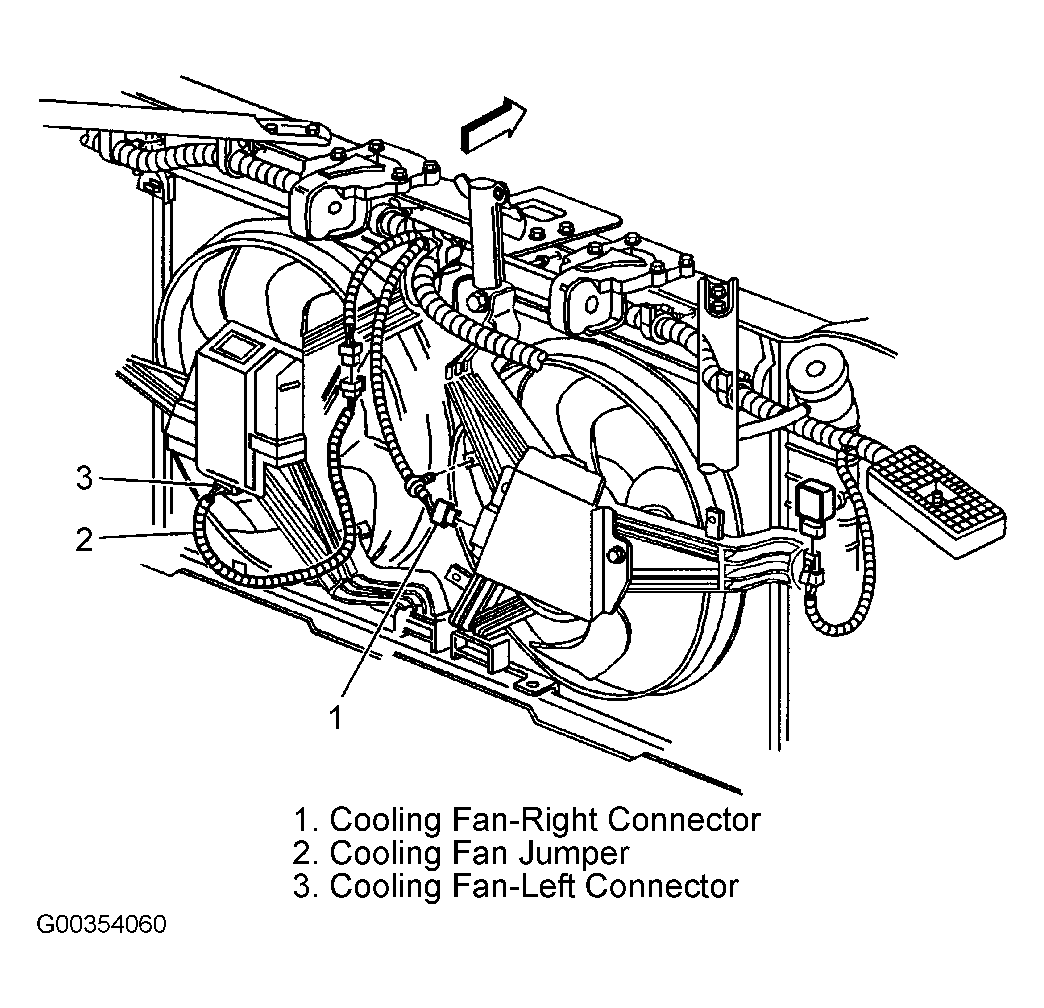

Fig 1: Locating Cooling Fan Components
G00354060Courtesy of GENERAL MOTORS CORP.
