Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

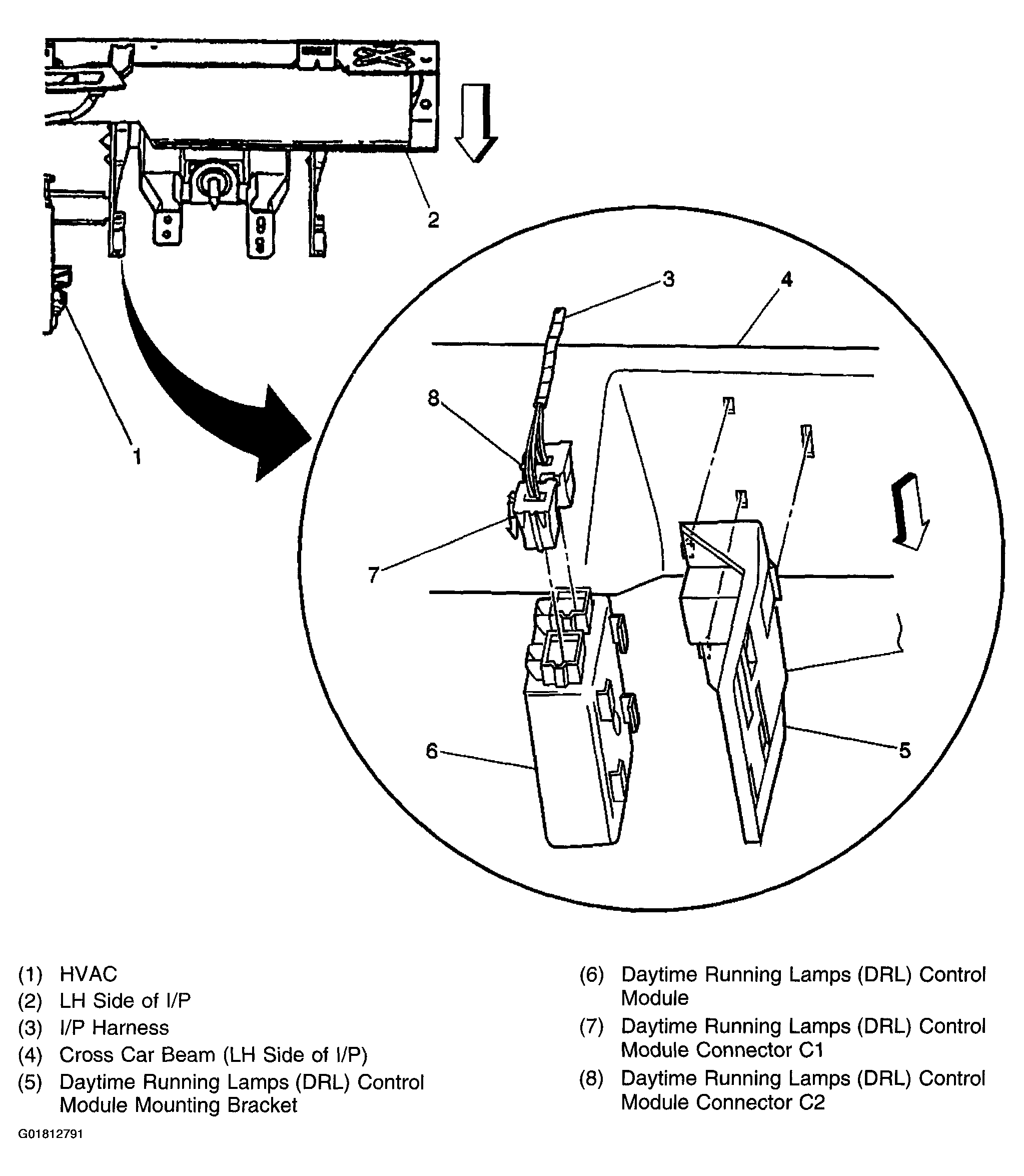

Fig 1: LH Side Of IP, Under IP, Left Of HVAC

Courtesy of GENERAL MOTORS CORP.

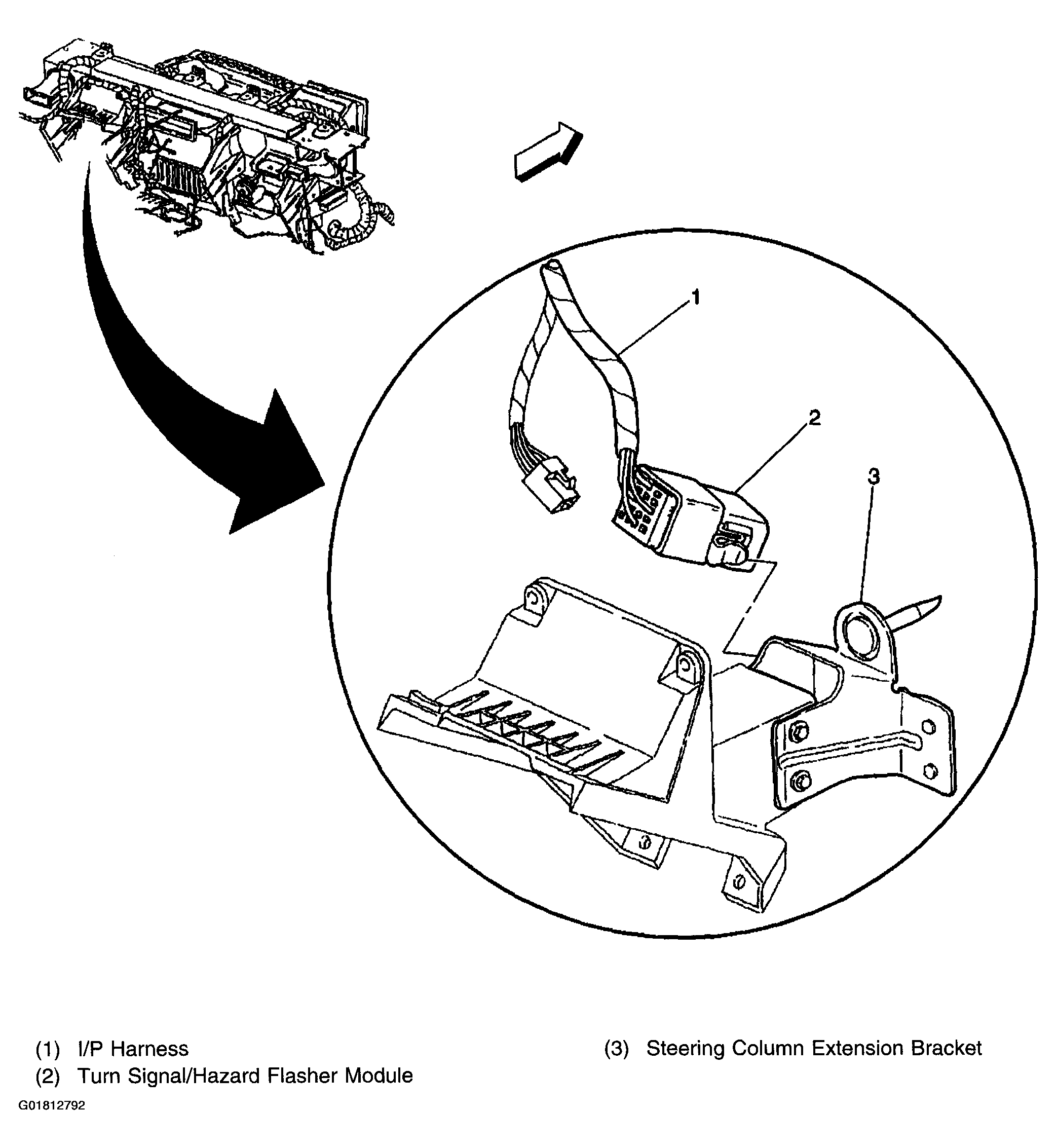

Fig 2: RH Side Of IP, Above Base Of Steering Column

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

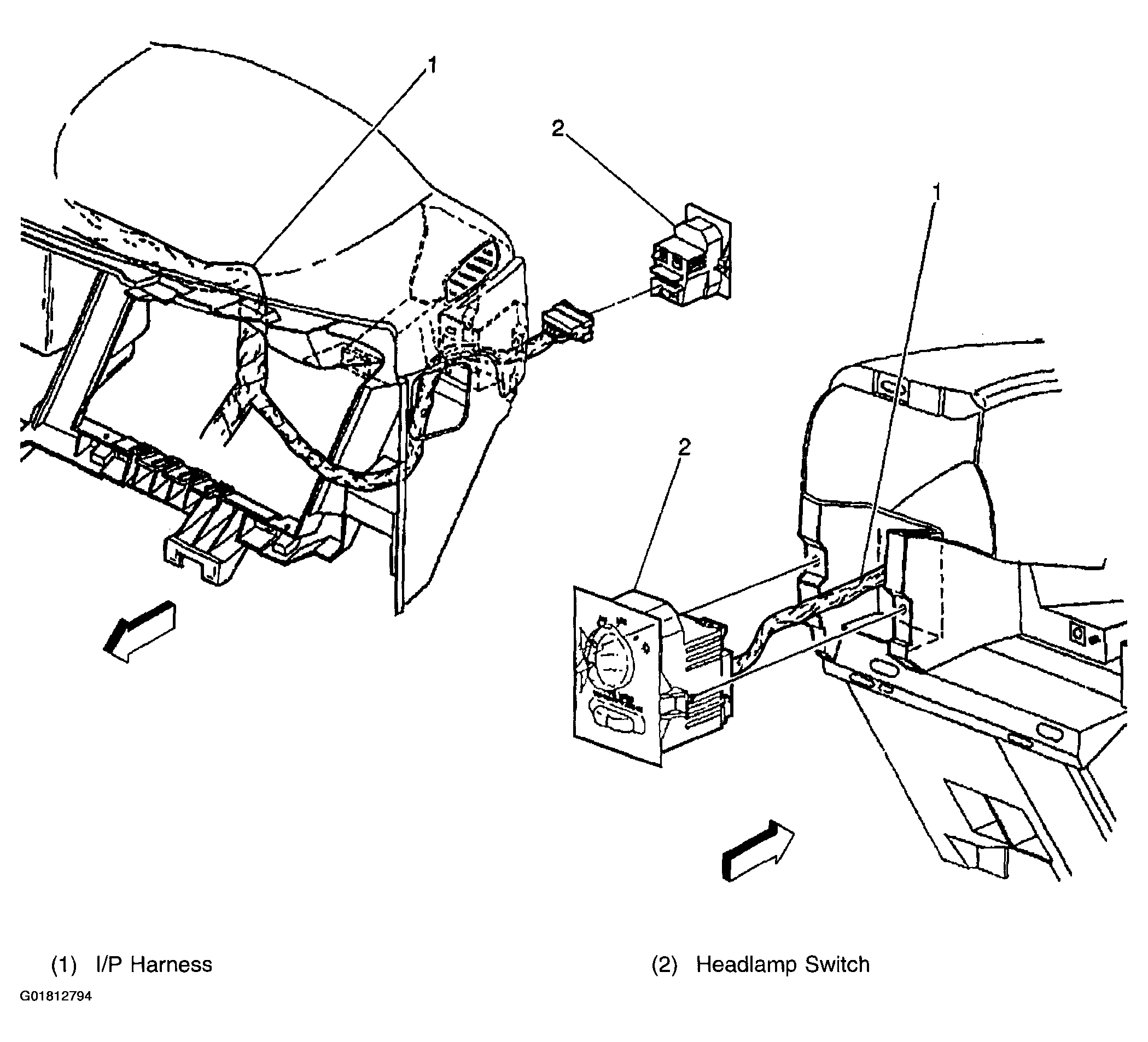

Fig 4: LH Side Of IP

Courtesy of GENERAL MOTORS CORP.

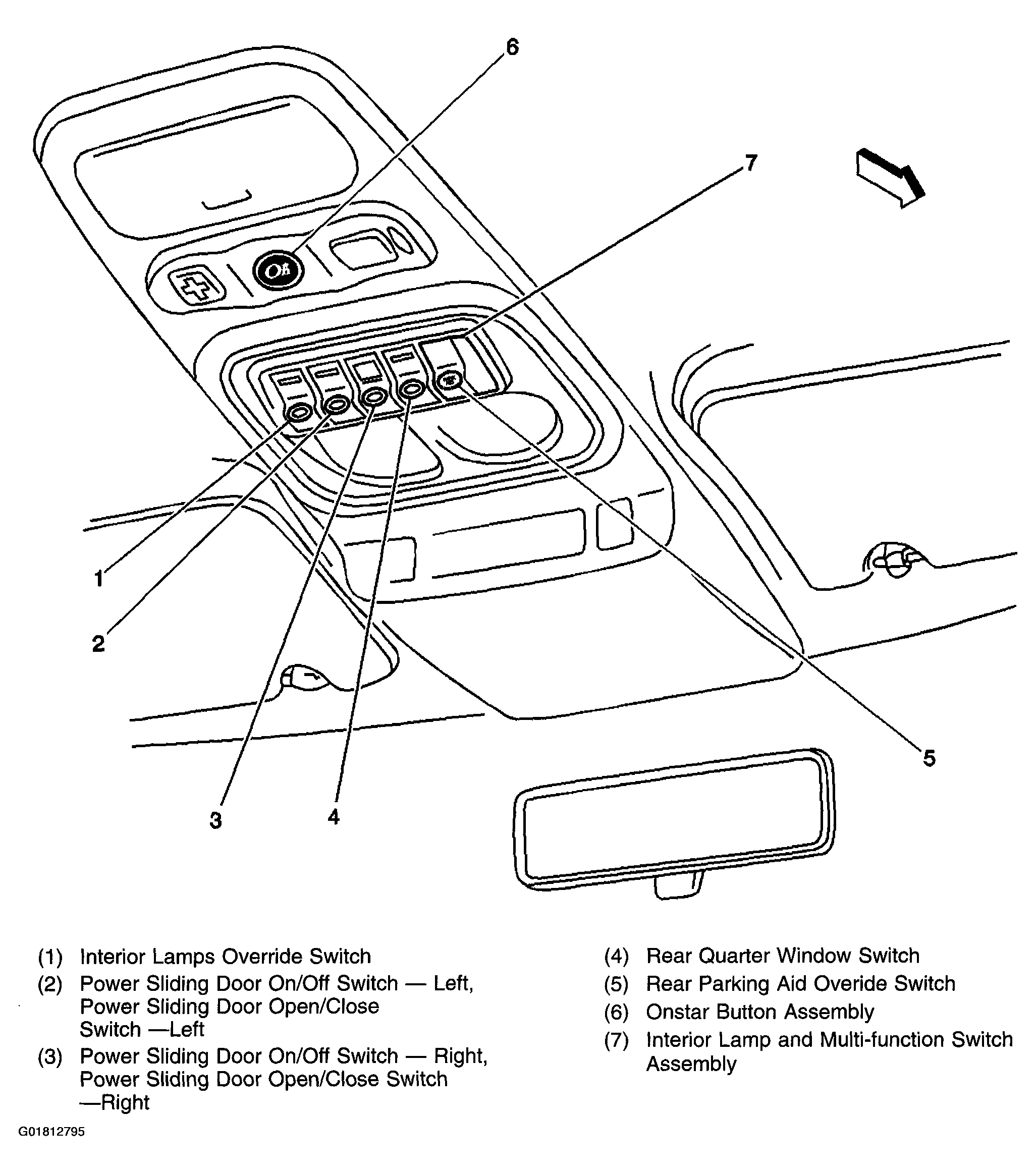

Fig 5: Front Of Roof Headliner (Interior Lamp & Multi-Function Switch Assembly)

Courtesy of GENERAL MOTORS CORP.

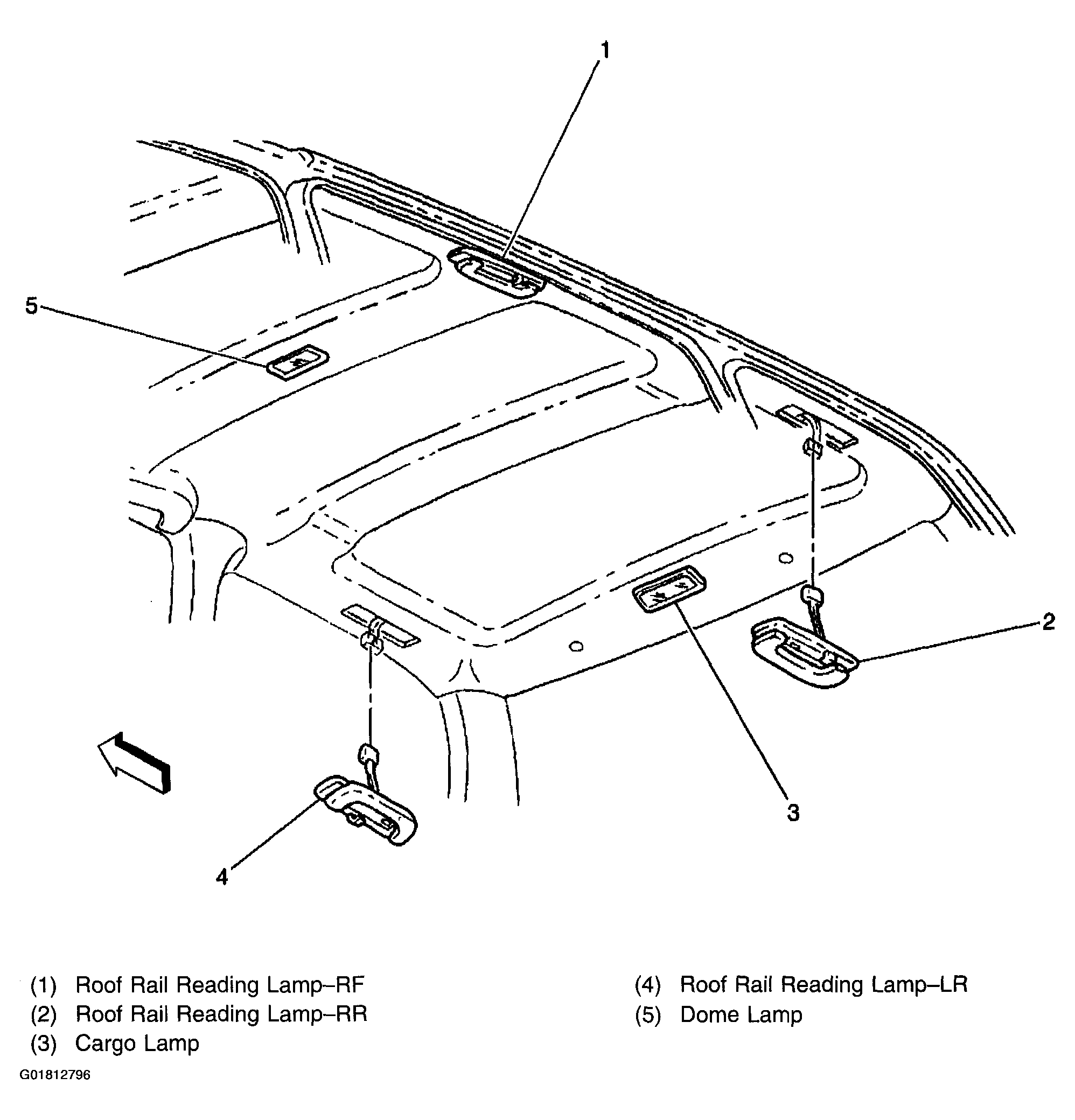

Fig 6: Rear Roof Headliner

Courtesy of GENERAL MOTORS CORP.

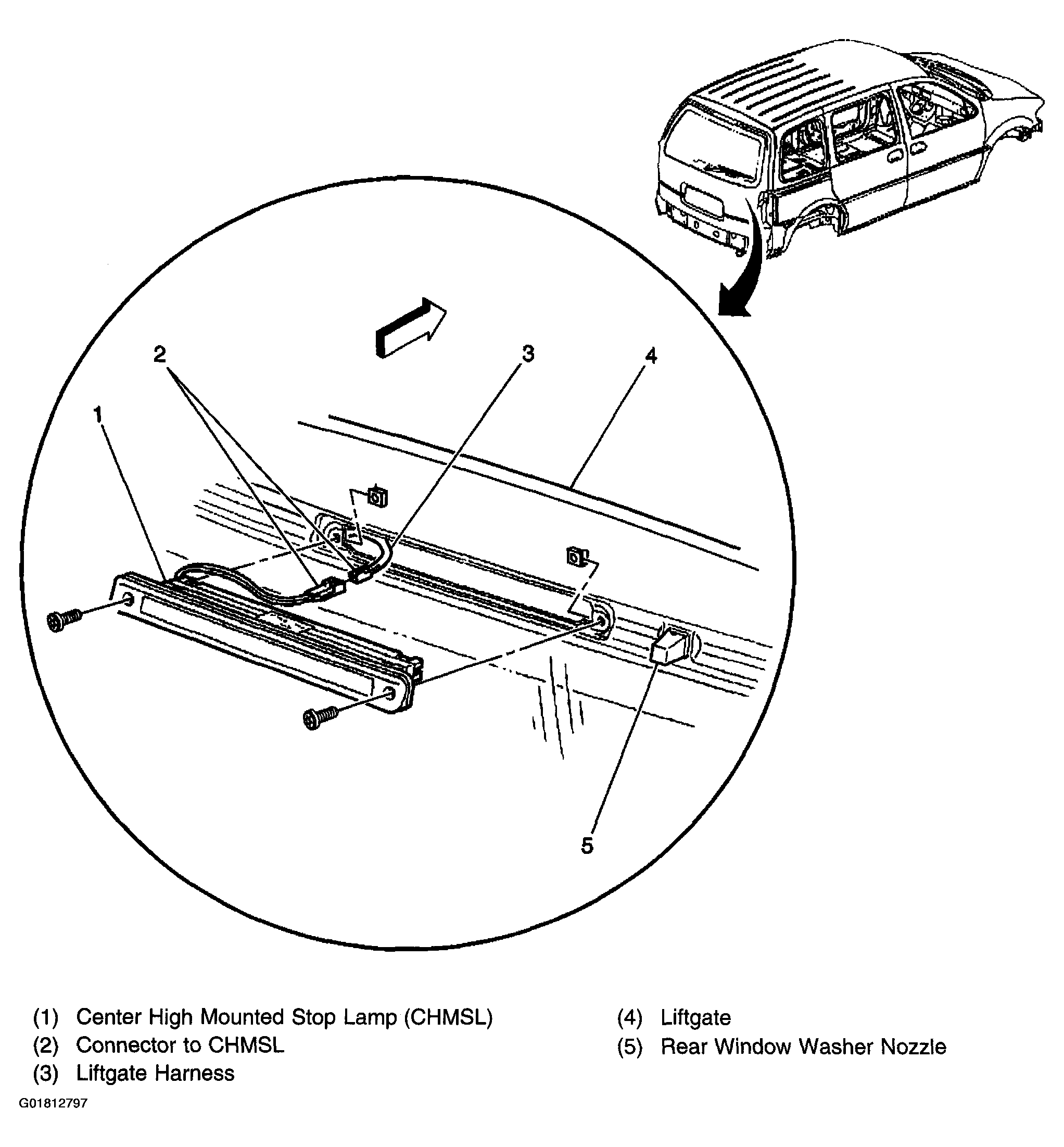

Fig 7: Top Of Liftgate

Courtesy of GENERAL MOTORS CORP.

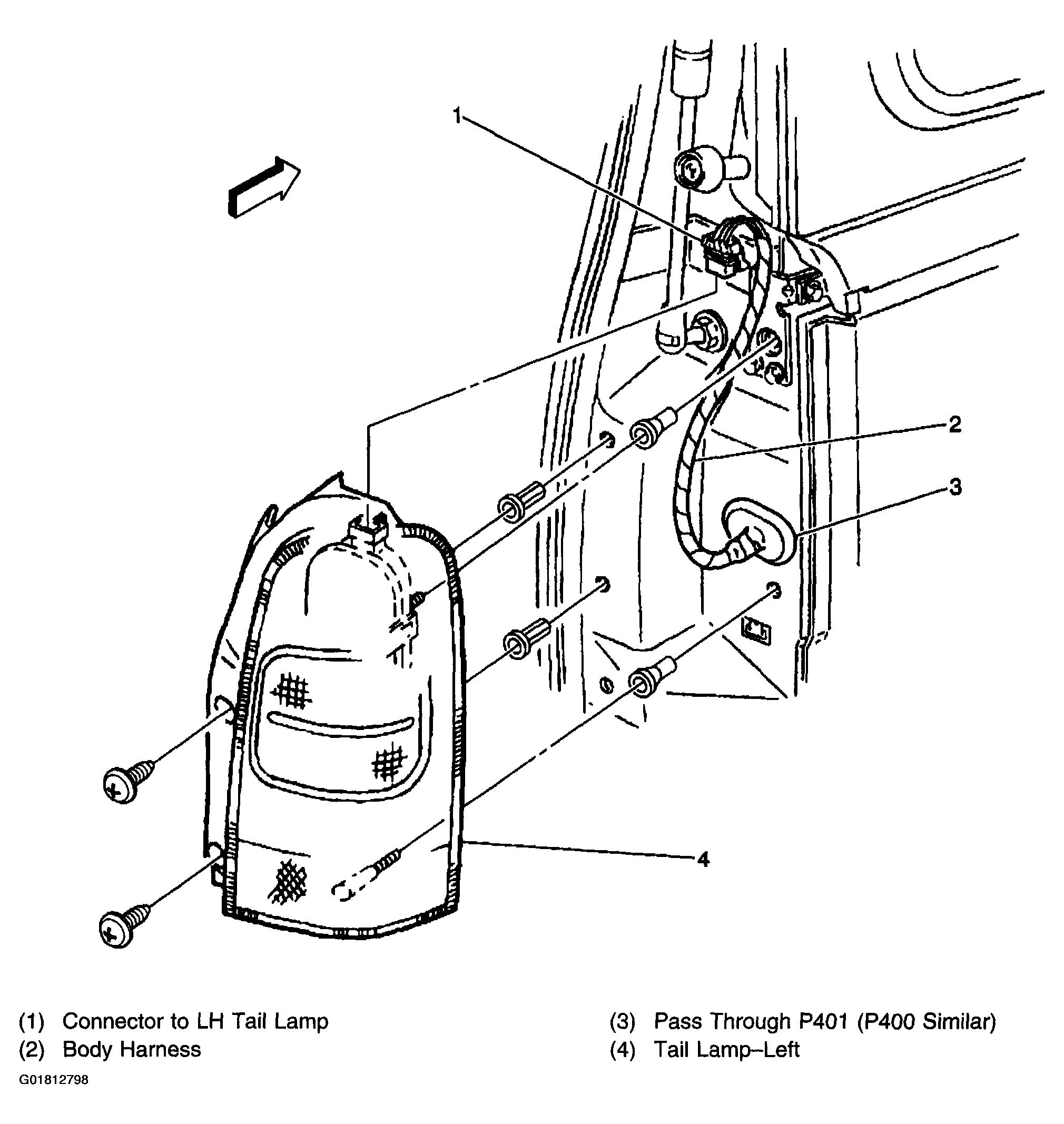

Fig 8: LH Tail Lamp (RH Similar)

Courtesy of GENERAL MOTORS CORP.

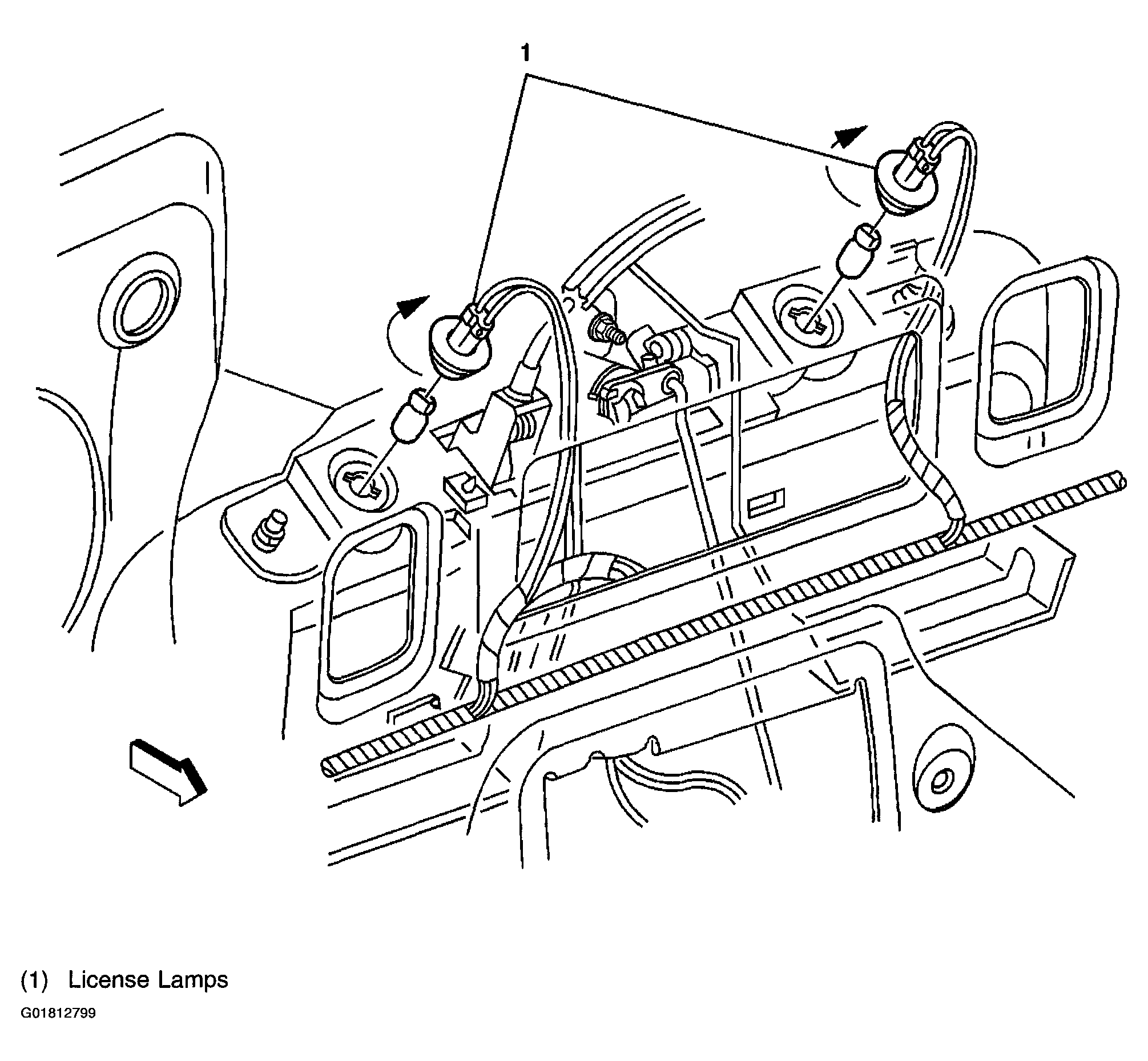

Fig 9: License Lamps

Courtesy of GENERAL MOTORS CORP.

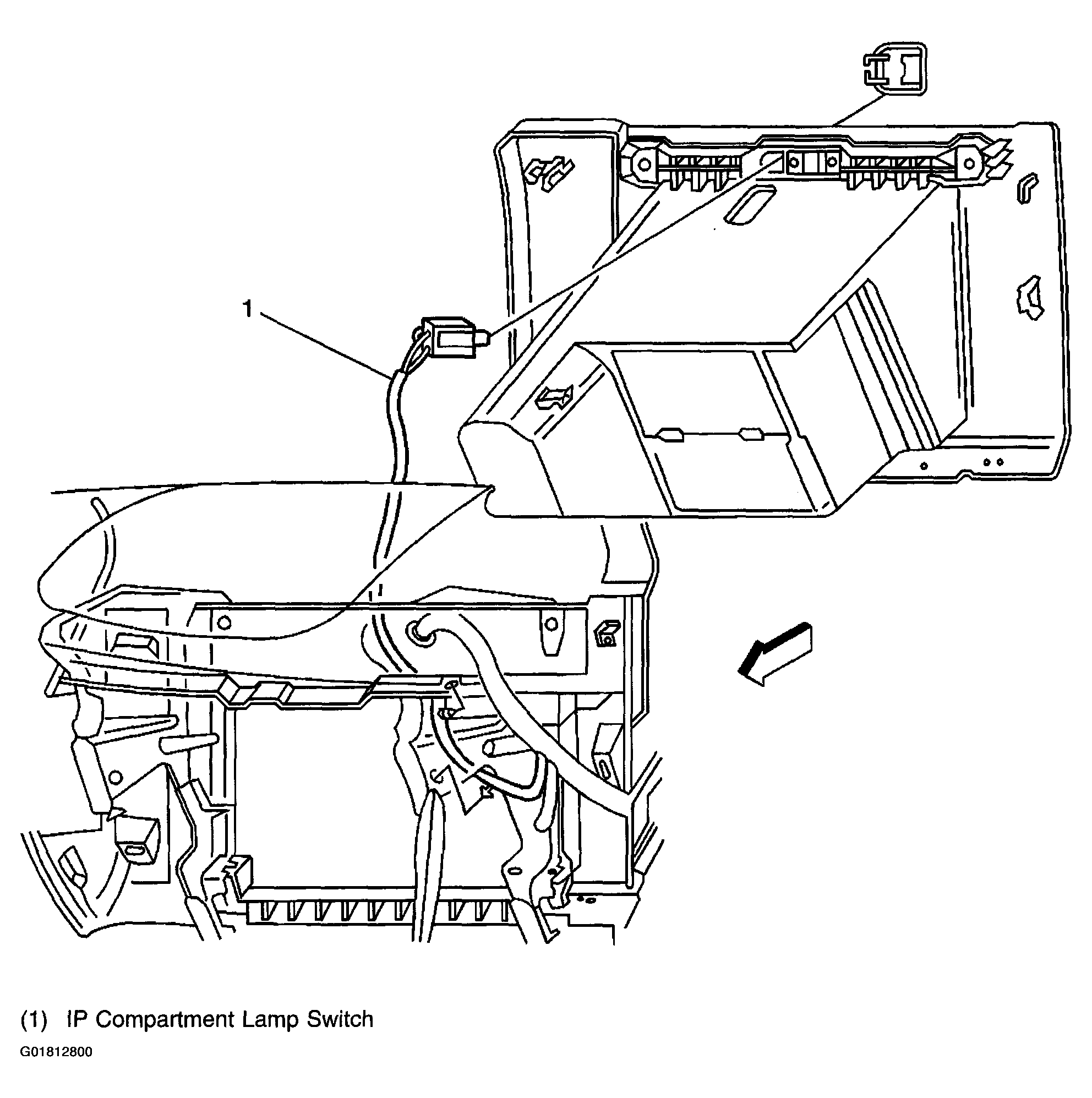

Fig 10: IP Compartment Lamp Switch

Courtesy of GENERAL MOTORS CORP.

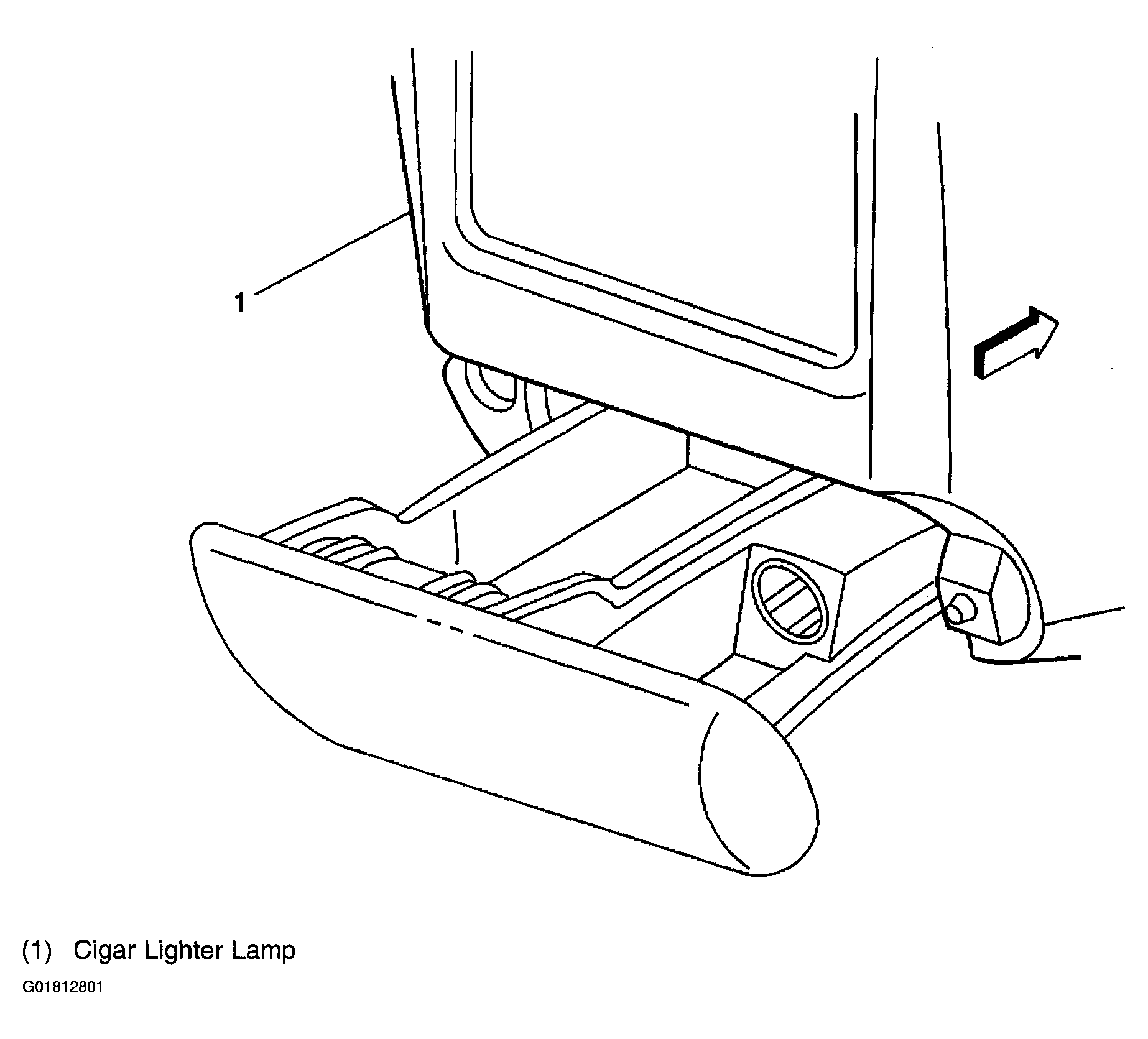

Fig 11: Cigar Lighter Lamp

Courtesy of GENERAL MOTORS CORP.

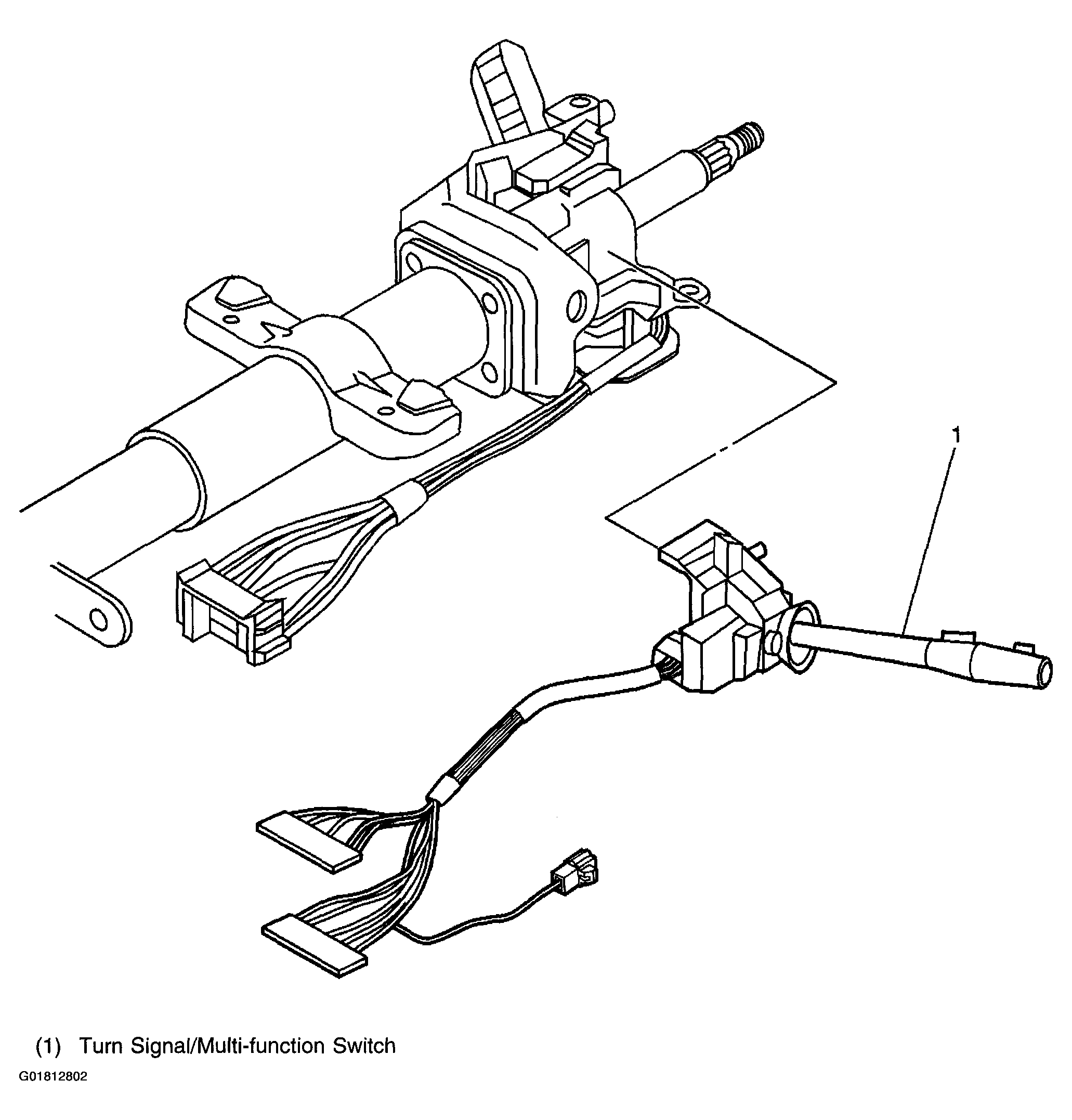

Fig 12: Turn Signal/Multi-Function Switch

Courtesy of GENERAL MOTORS CORP.

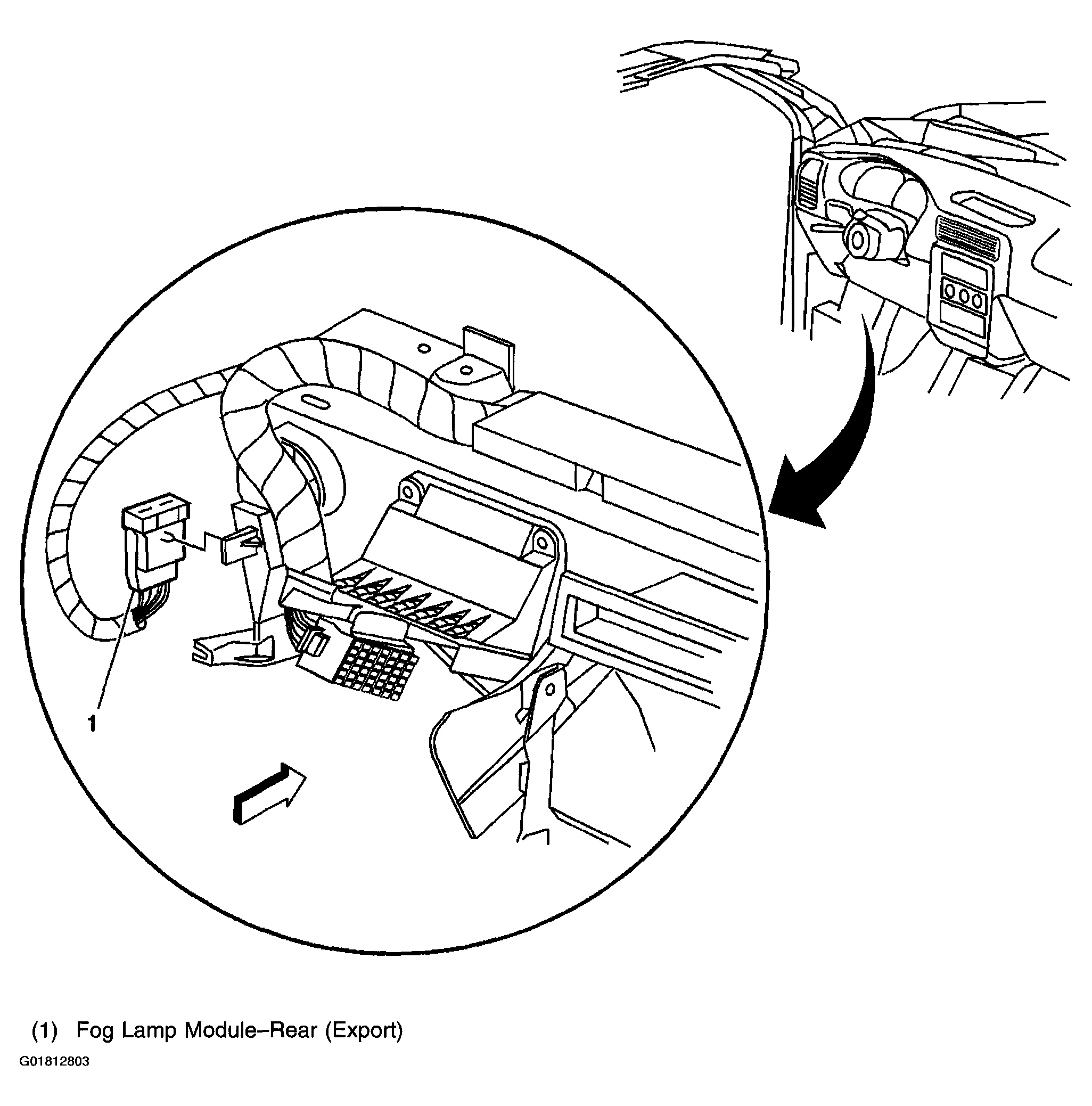

Fig 13: Fog Lamp Module-Rear (Export)

Courtesy of GENERAL MOTORS CORP.

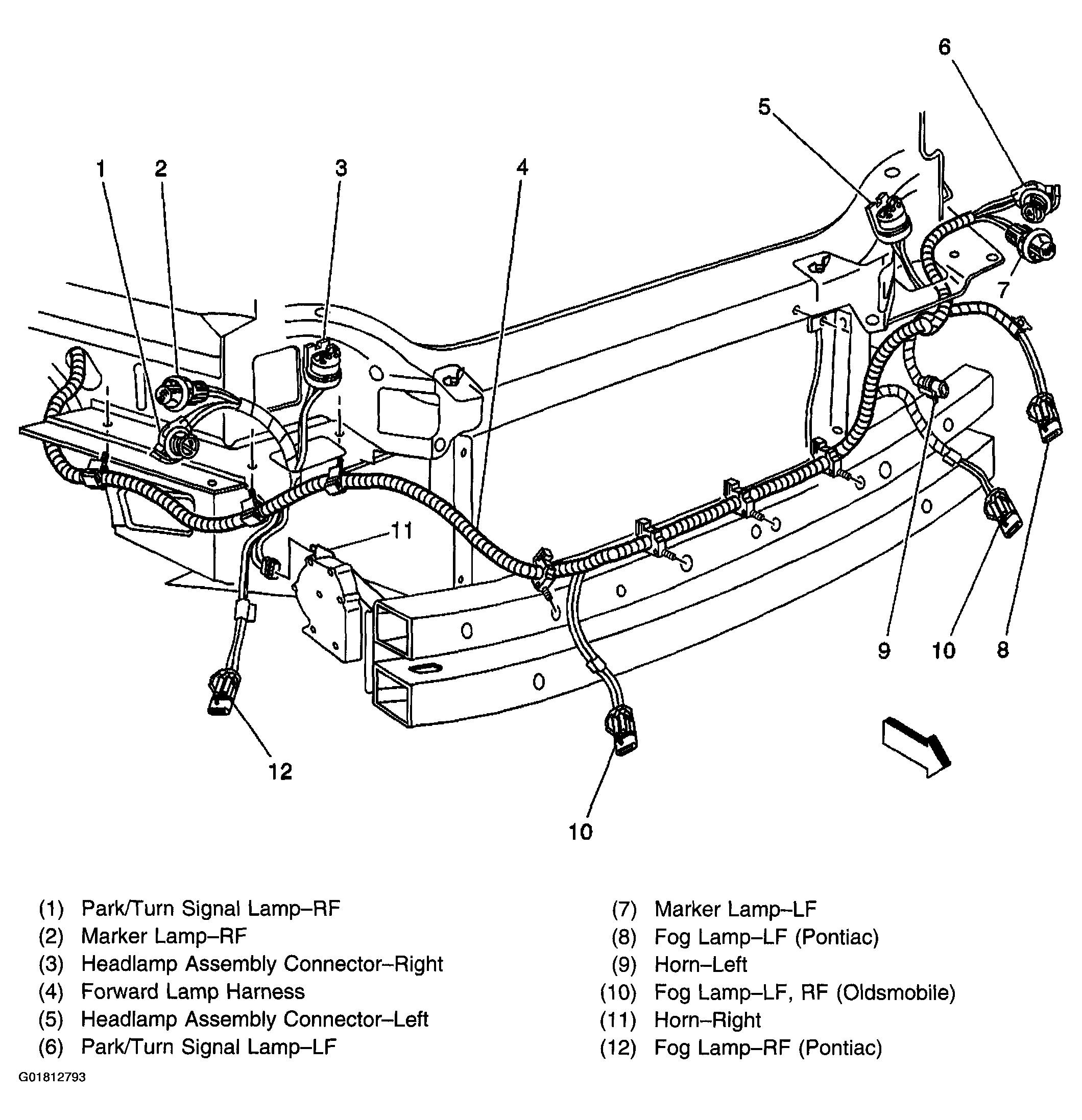

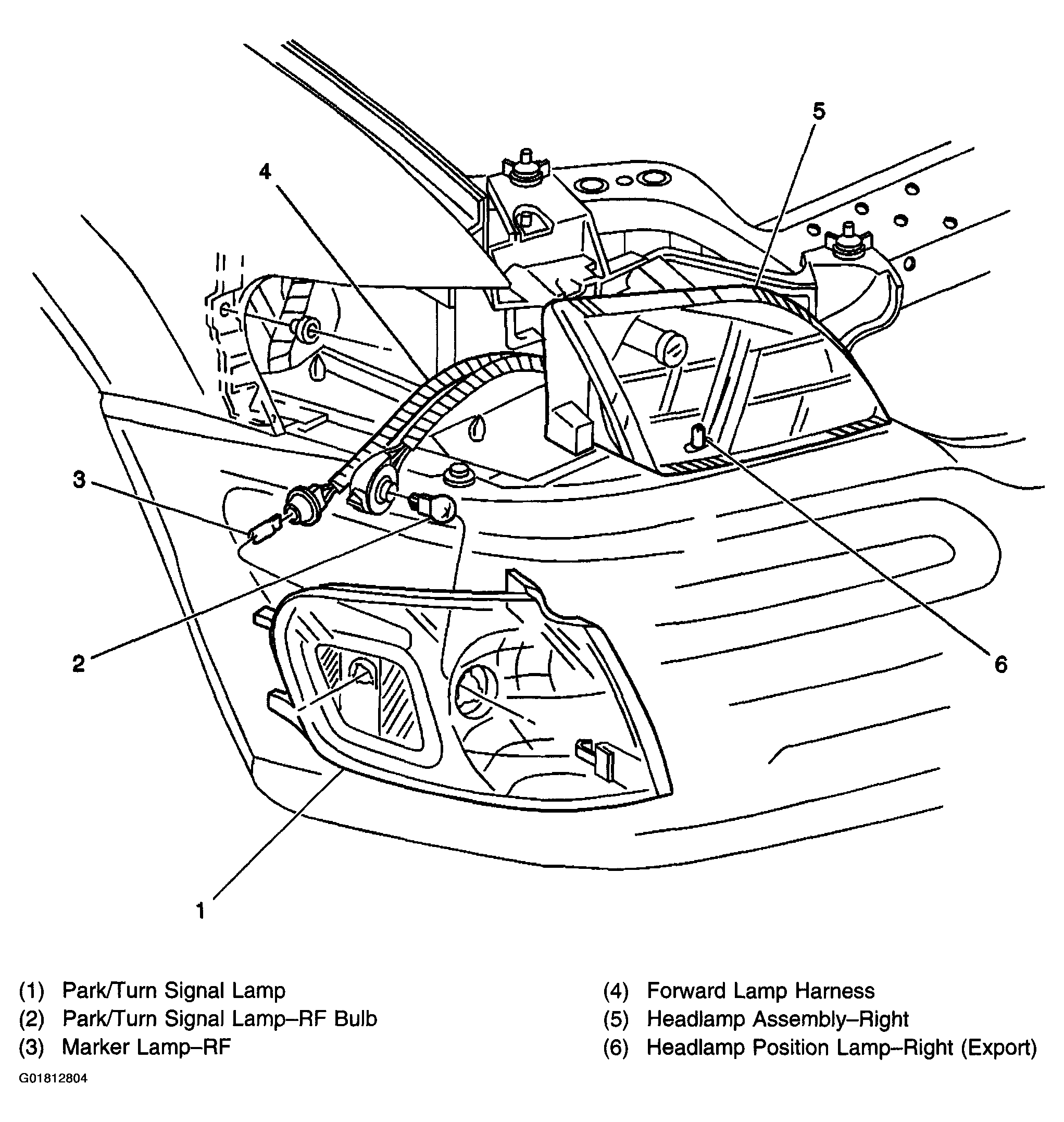

Fig 14: Forward Lamp Assembly

Courtesy of GENERAL MOTORS CORP.
