Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the daytime running lamp module in the bracket.
  2. Slide the daytime running lamp module into the bracket in order to secure the module.

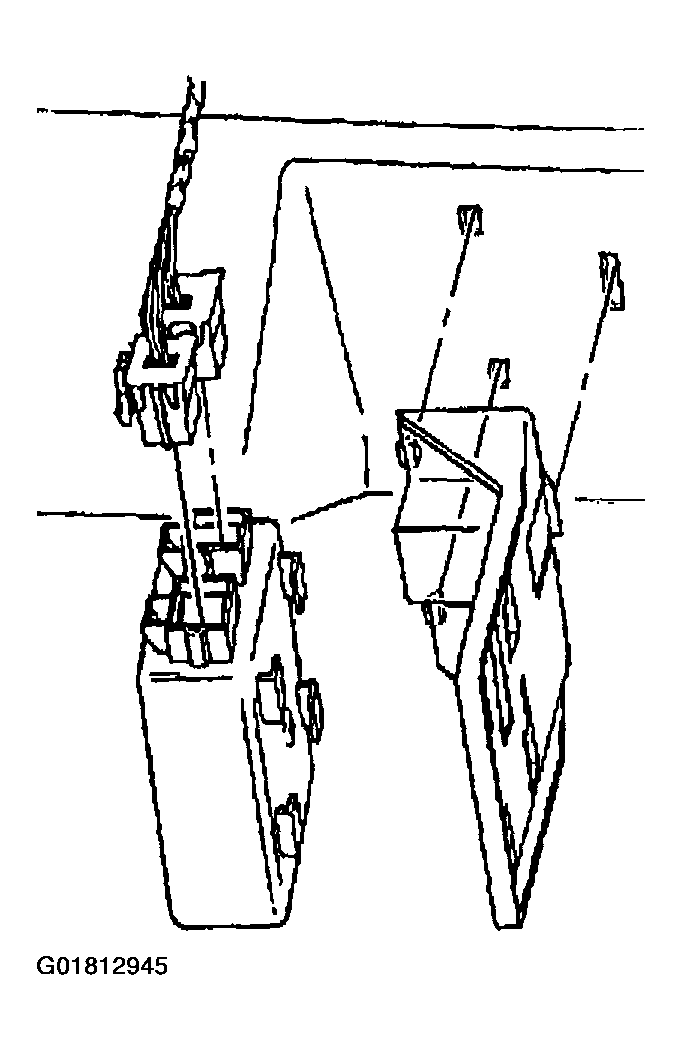

    Fig 1: Installing Instrument Panel Insulator
    G01812945Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors.
  4. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  5. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .

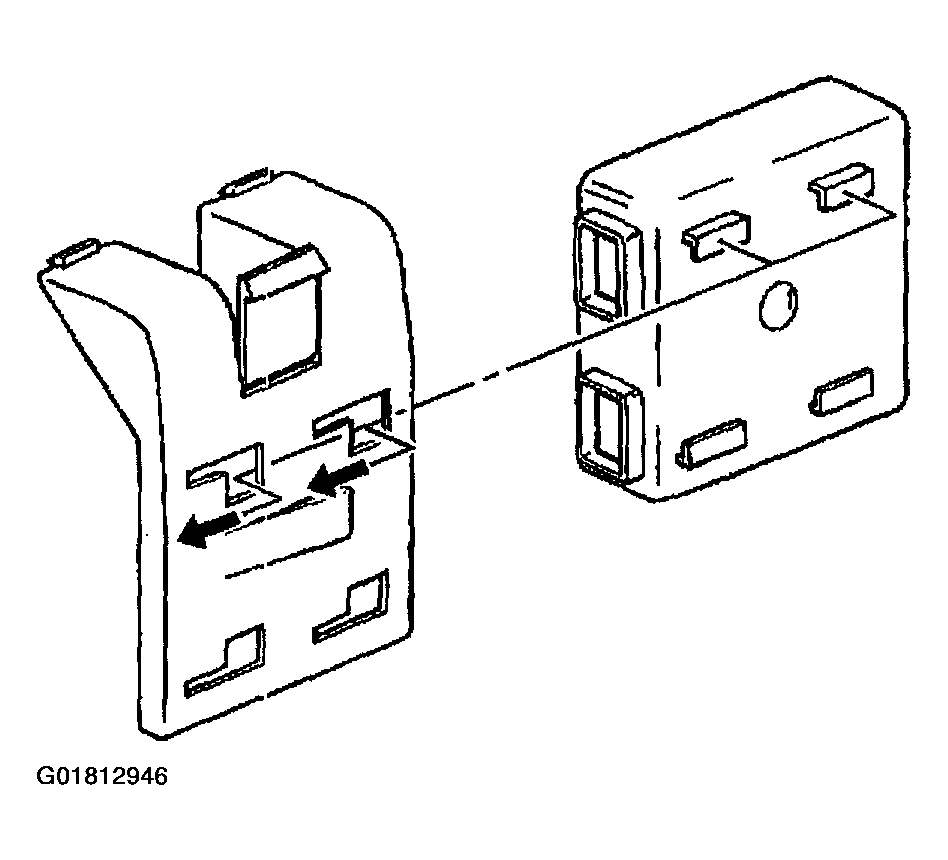

    Fig 2: Connecting Electrical Connectors (DRL)
    G01812946Courtesy of GENERAL MOTORS CORP.
