Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  2. Remove the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  3. Slide the daytime running lamp module from the bracket.

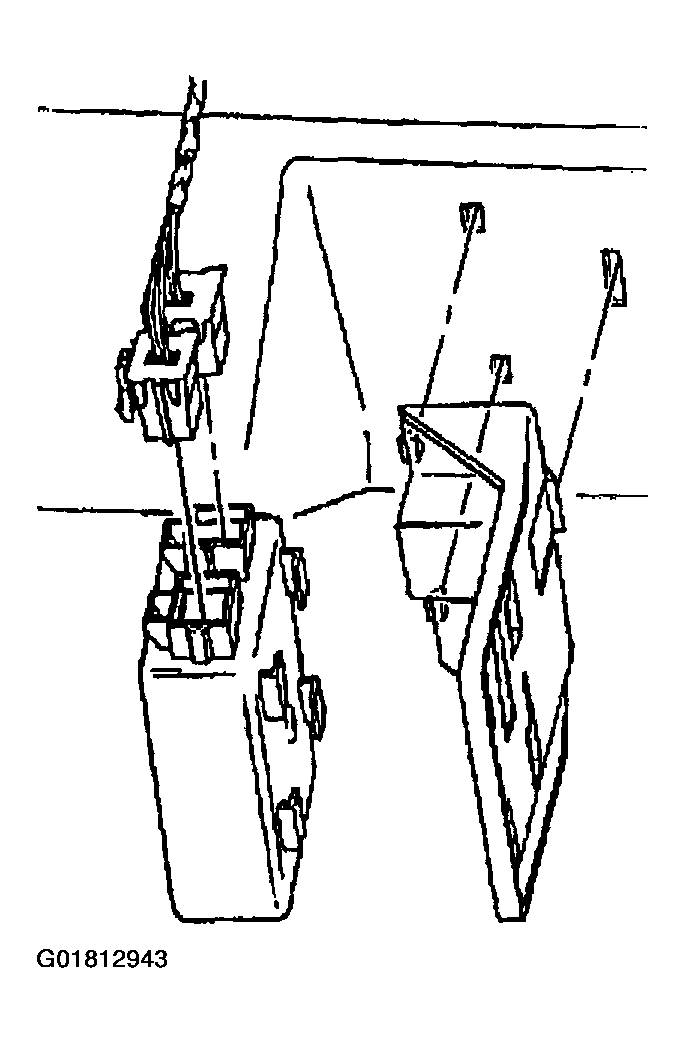

    Fig 1: Removing Instrument Panel Insulator
    G01812943Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

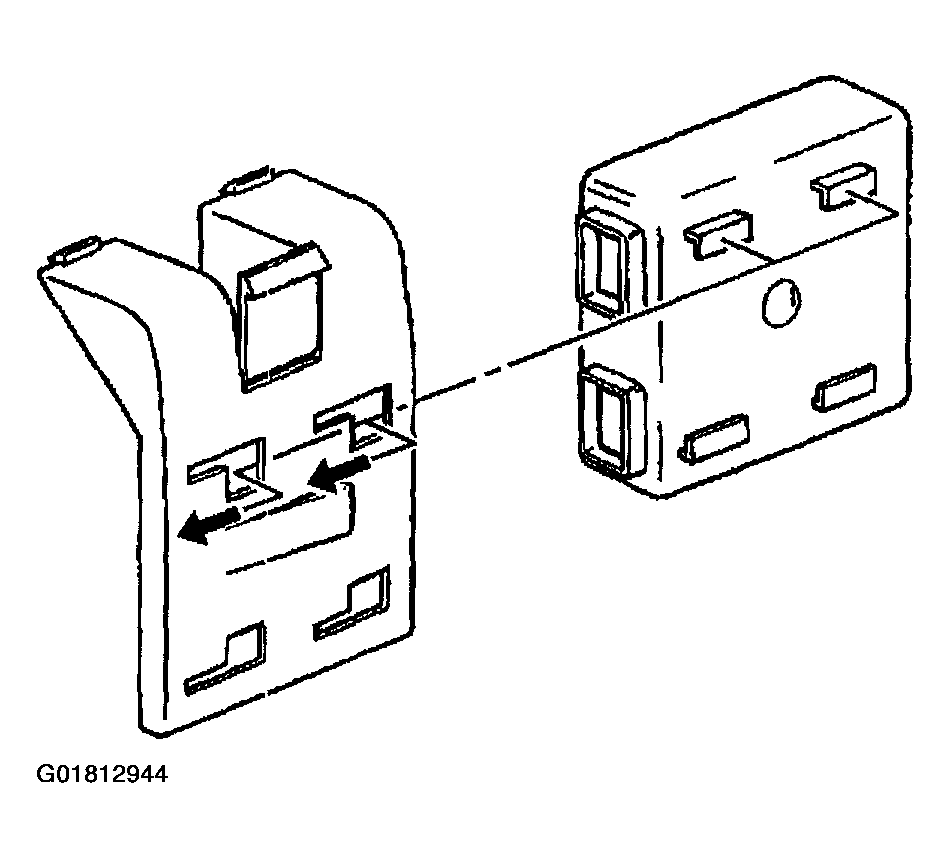

    Fig 2: Disconnecting Electrical Connectors (DRL)
    G01812944Courtesy of GENERAL MOTORS CORP.
