Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the interior lamp/multifunction switch into the interior lamp/multifunction switch/reading lamp housing.

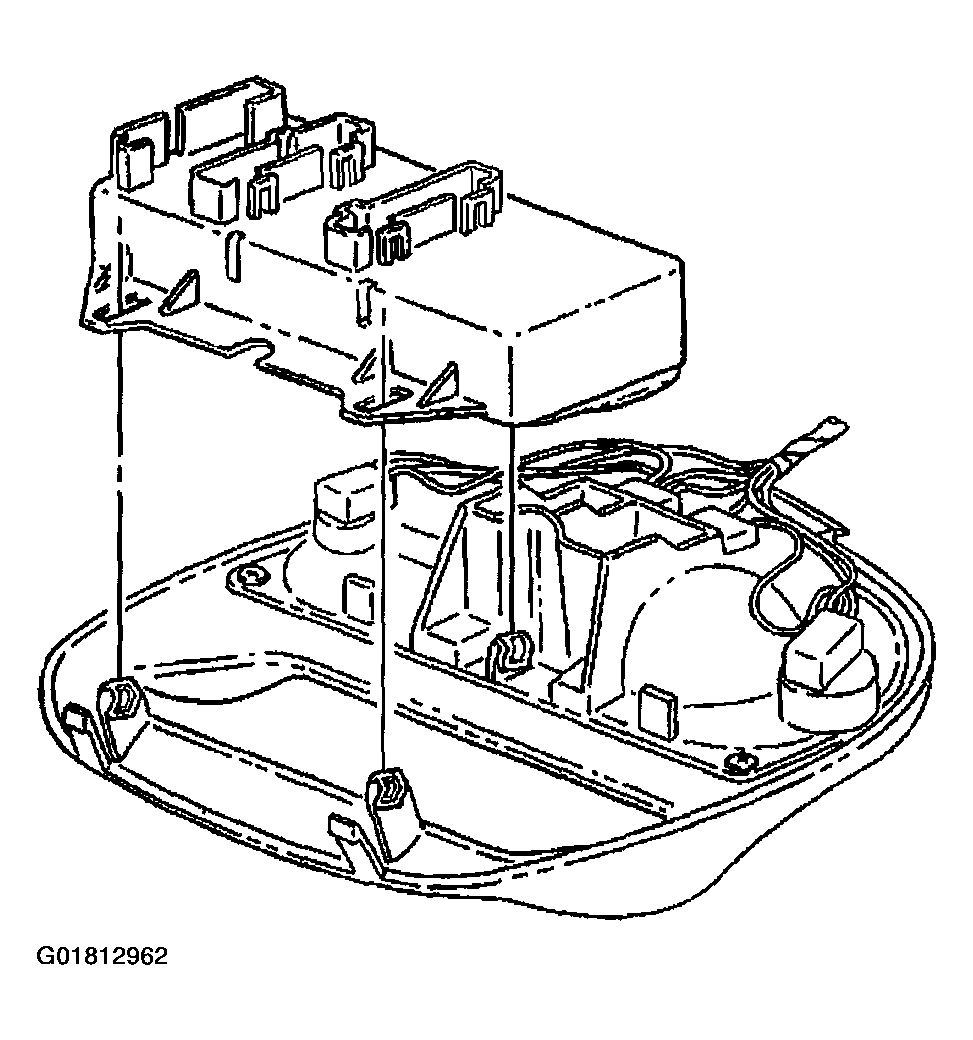

    Fig 1: Installing Interior Lamp/Multifunction Switch Using Pliers
    G01812962Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.

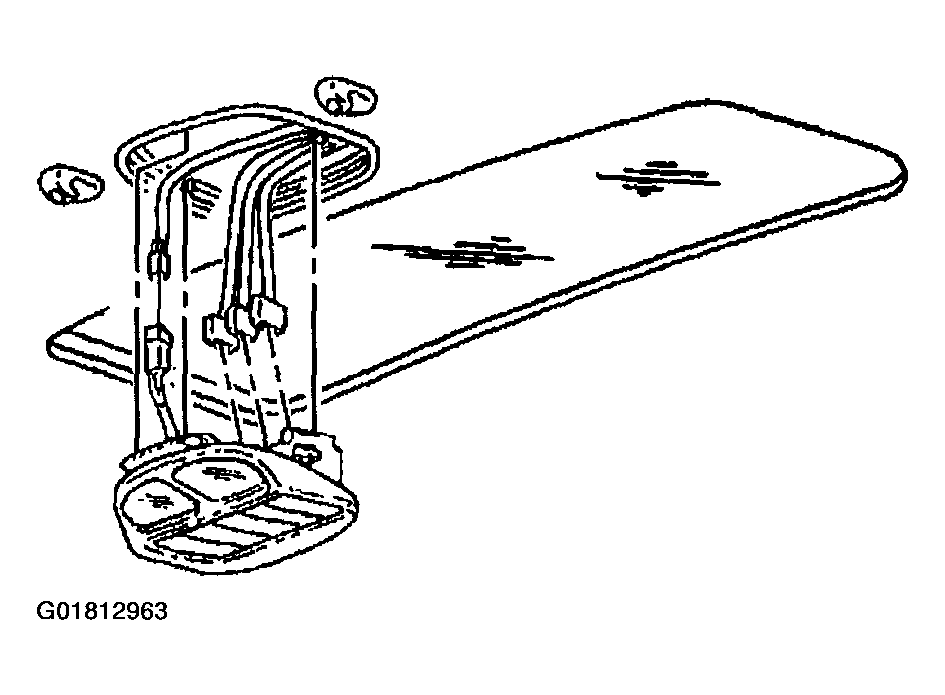

    Fig 2: Connecting Electrical Connectors & Interior Lamp/Multifunction Switch
    G01812963Courtesy of GENERAL MOTORS CORP.
  3. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
  4. Press up on the interior lamp/multifunction switch/reading lamp housing in order to snap the housing into the overhead console.
