Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflatable restraint I/P module (1) to the vehicle.
  2. Install the inflatable restraint I/P module bolts (5).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the inflatable restraint I/P module mounting fasteners (4).

    Tighten

    Tighten fasteners to 10 N.m (89 Ib. in).

  4. Install the pigtail harness clips on the module to the I/P carrier bracket.
  5. Install the electrical connector to the I/P compartment lamp and install the I/P compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  6. Enable the SIR system. Refer to Enabling the SIR System .

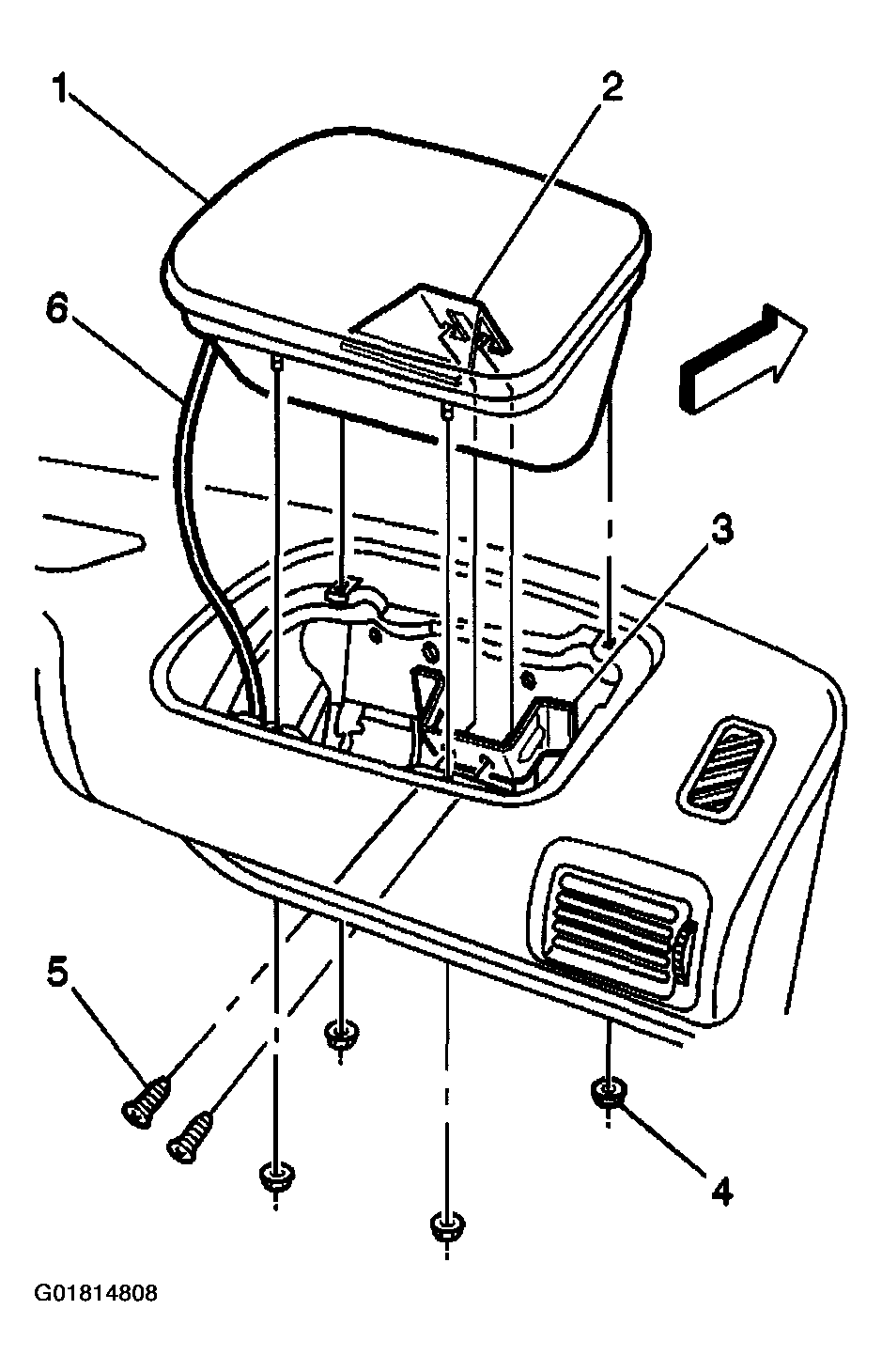

    Fig 1: Installing Inflatable Restraint I/P Module & Components
    G01814808Courtesy of GENERAL MOTORS CORP.
