Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflator module wiring harness (3) to the driver seat frame, while guiding the wiring harness through the appropriate spots on the driver seat frame.
  2. Install the wiring harness retaining clips to the driver seat frame.
    Fig 1: Installing Wiring Harness & Retaining Clips (LH)
    G01814811Courtesy of GENERAL MOTORS CORP.
  3. Install the plastic molding (2) that holds the air bag inflator module to the driver seat back frame.
  4. Install the air bag inflator module (1) to the driver seat back frame.
  5. Install the J-clips on the back of driver's seat.
  6. Install the driver seat. Refer to SEAT REPLACEMENT - BUCKET .
  7. Enable the SIR system. Refer to Enabling the SIR System .

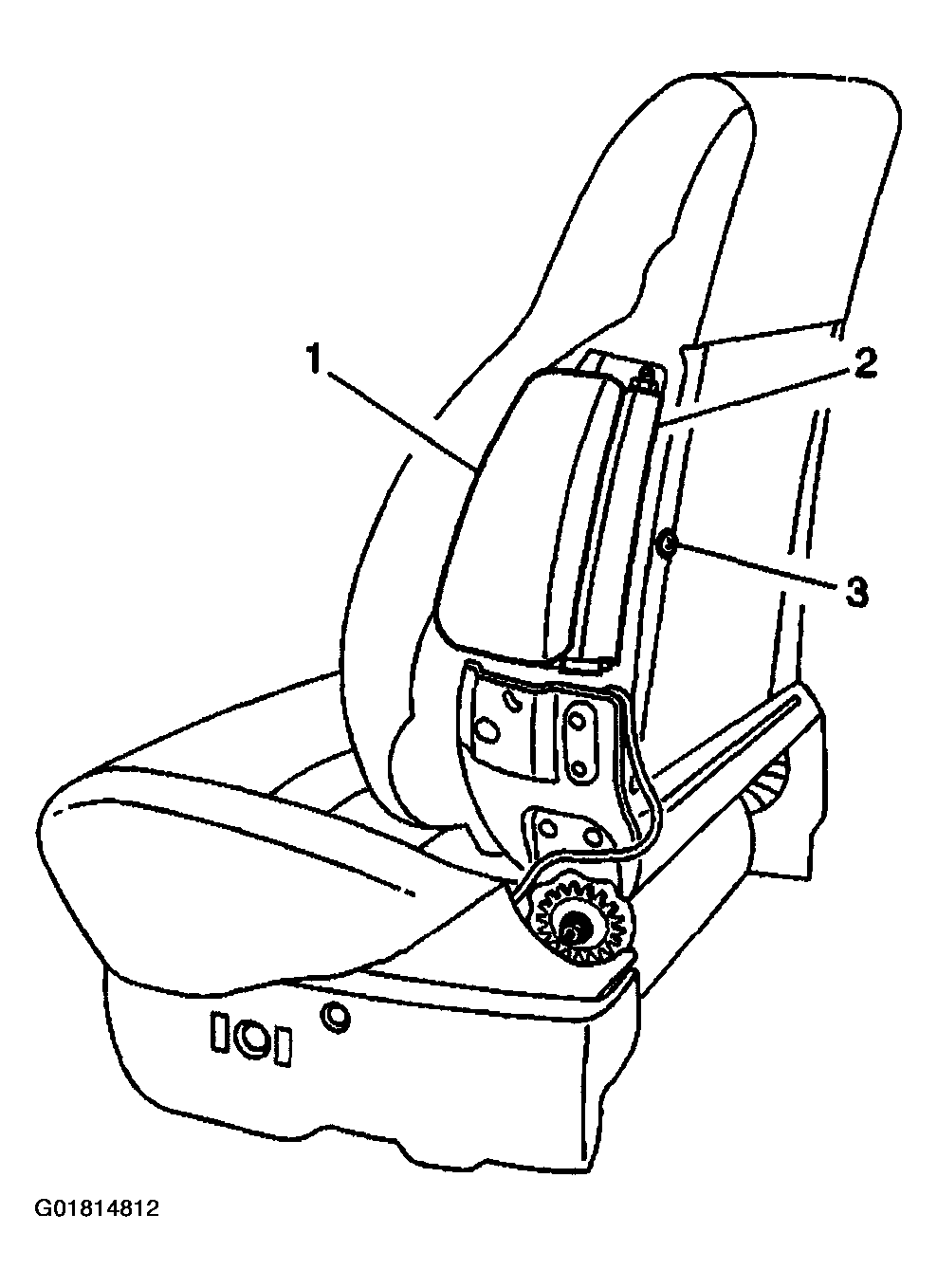

    Fig 2: Installing J-Clips, Plastic Molding & Air Bag Inflator Module (LH)
    G01814812Courtesy of GENERAL MOTORS CORP.
