Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflator module wiring harness (2) to the passenger seat frame, while guiding the wiring harness through the appropriate spots on the passenger seat frame.
  2. Install the wiring harness retaining clips to the passenger seat frame.

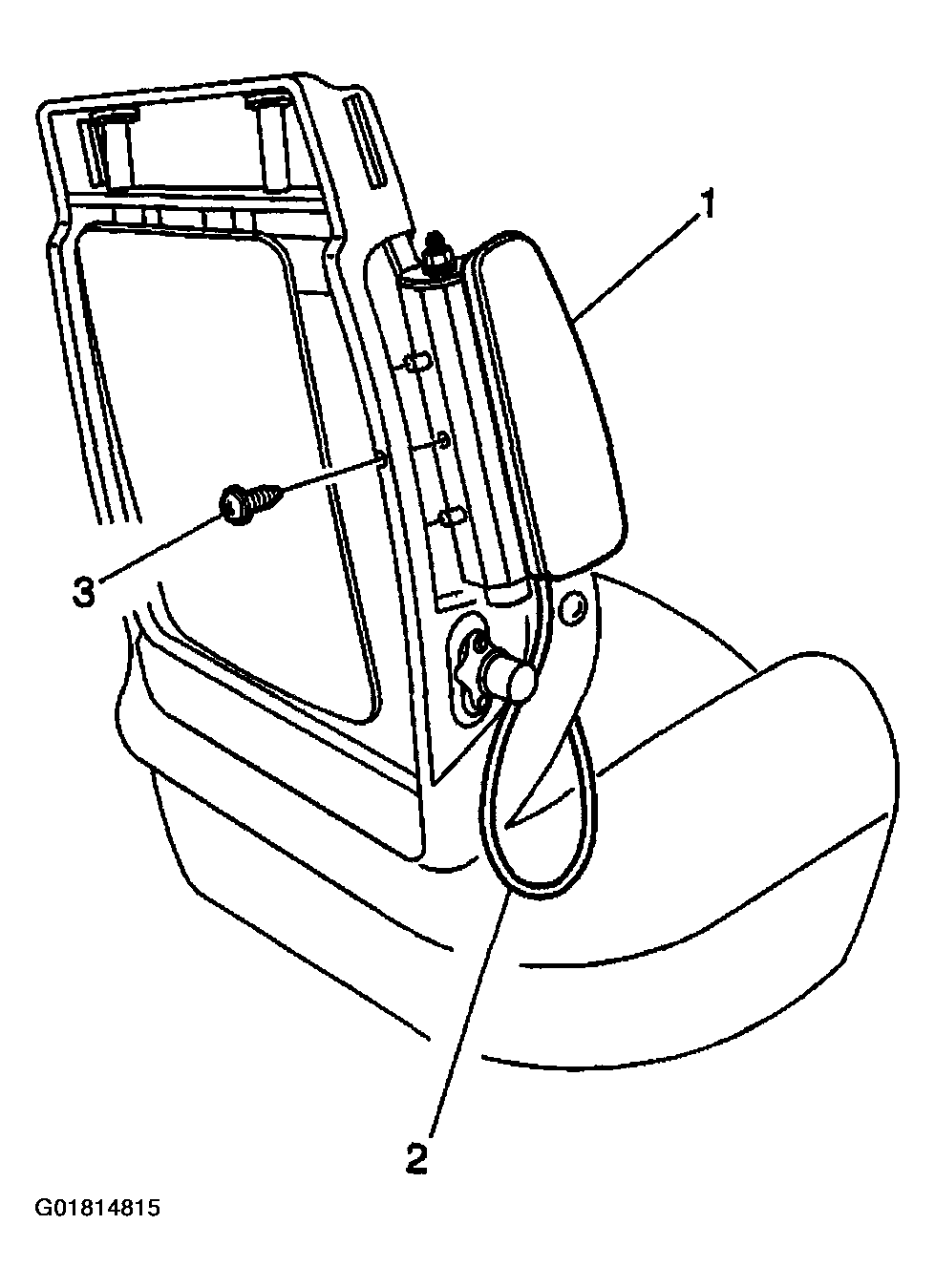

    Fig 1: Installing Wiring Harness & Retaining Clips (RH)
    G01814815Courtesy of GENERAL MOTORS CORP.
  3. Install the plastic molding (2) that holds the air bag inflator module (1) to the passenger seat back frame.
  4. Install the air bag inflator module (1) to the passenger seat back frame
  5. Install the J-clips on the back of the passenger's seat.
  6. Install the passenger front seat. Refer to SEAT REPLACEMENT - BUCKET .
  7. Enable the SIR system. Refer to Enabling the SIR System .

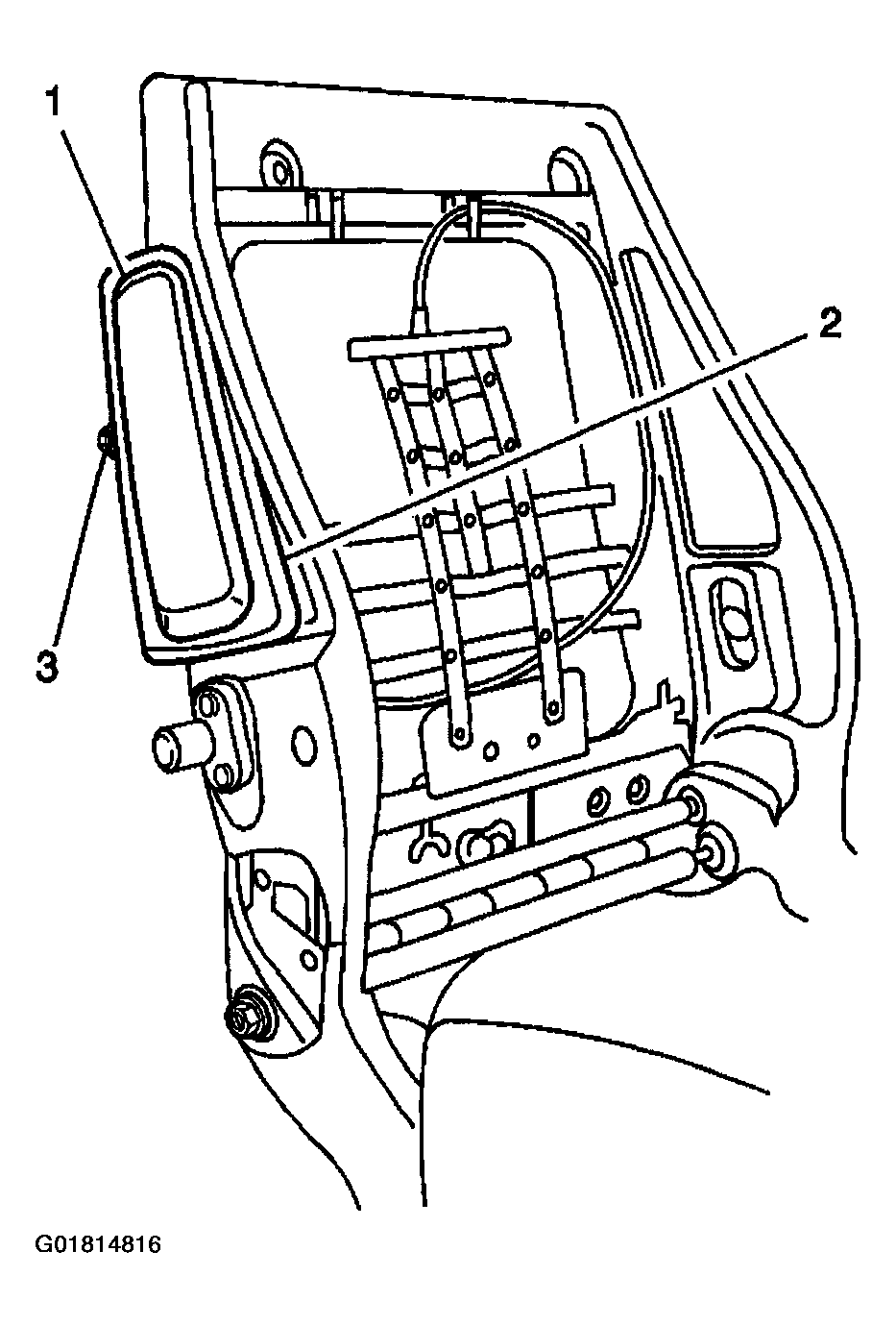

    Fig 2: Installing J-Clips, Plastic Molding & Air Bag Inflator Module (RH)
    G01814816Courtesy of GENERAL MOTORS CORP.
