Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflatable restraint steering wheel module coil to the steering shaft.
  2. Install the retaining ring.
  3. Route the lower coil wiring harness along steering column and install the necessary wiring harness straps.
  4. Connect the radio steering wheel controls inline connector C205.
  5. Install the upper and lower steering column shrouds.
  6. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT .
  7. Install the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
  8. Enable the SIR system. Refer to Enabling the SIR System .

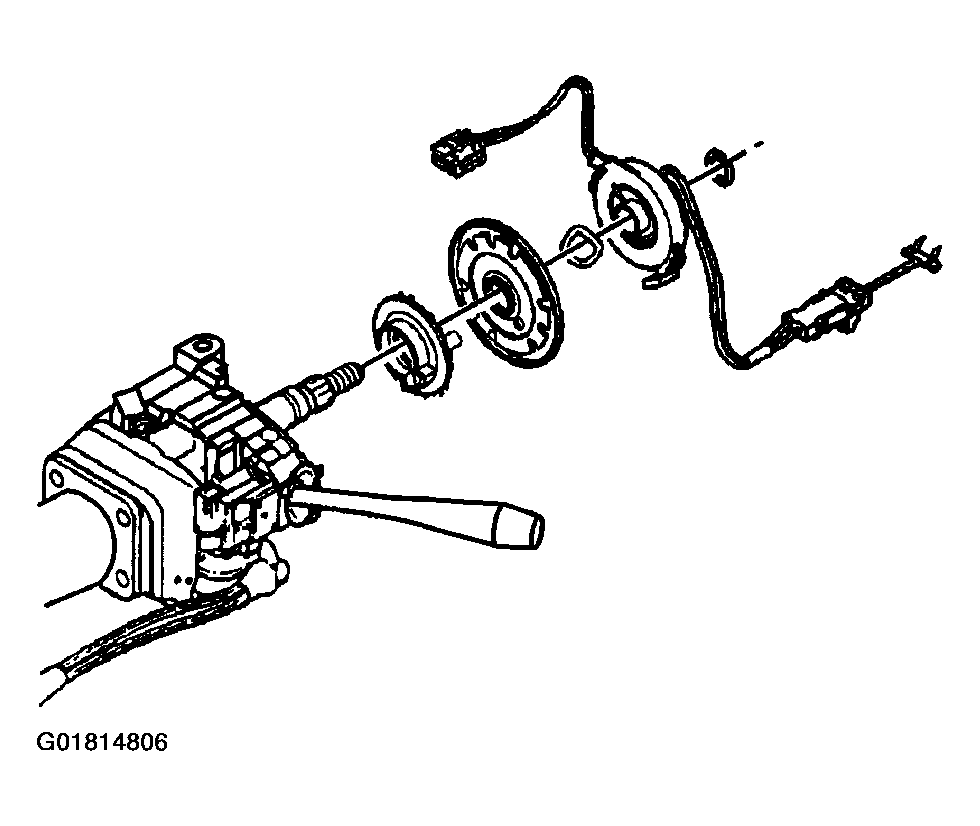

    Fig 1: Installing Upper/Lower Steering Column Shrouds & Radio Steering Wheel Controls Inline Connector
    G01814806Courtesy of GENERAL MOTORS CORP.
