Installation Procedure

Important:

• Ensure that the face of the pulley hub is flush with the end of the pump shaft.
• Do not use the arbor press to install the pulley.

1. Use J 25033-C  in order to install the power steering pump pulley.
2. Install the power steering pump to the engine. Refer to POWER STEERING PUMP REPLACEMENT   .
3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical - 3.4L.
4. Bleed the power steering system if the pump was removed. Refer to BLEEDING THE POWER STEERING SYSTEM   .
5. Inspect the system for leaks. Refer to POWER STEERING SYSTEM TEST PROCEDURE   .

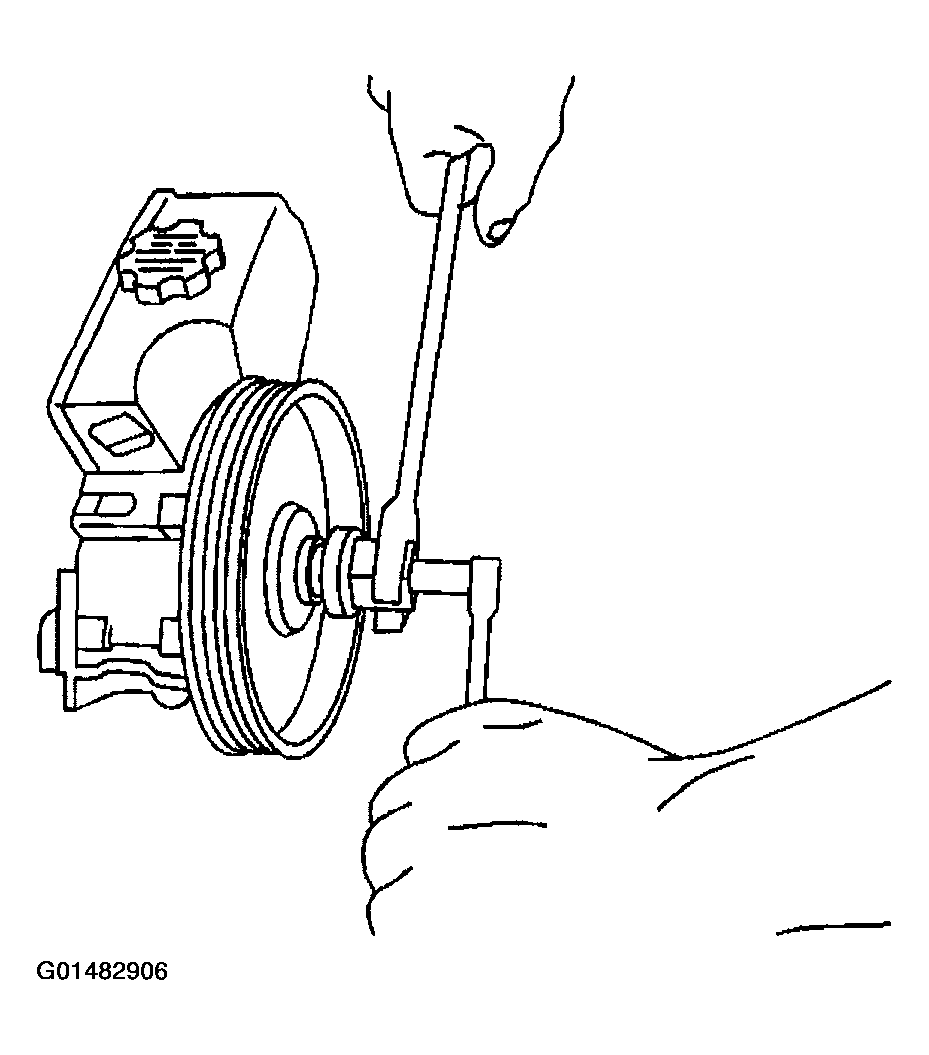

   Fig 1: Installing Power Steering Pump

   Courtesy of GENERAL MOTORS CORP.
