Removal Procedure

  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical - 3.4L.
  2. Remove the power steering hoses from the power steering hose retainers.

    Important:  Do NOT disconnect the power steering hoses from the power steering pump.

  3. Remove the power steering pump from the engine for clearance. Refer to POWER STEERING PUMP REPLACEMENT   .
  4. Use J 37609-A  in order to remove the pump pulley.

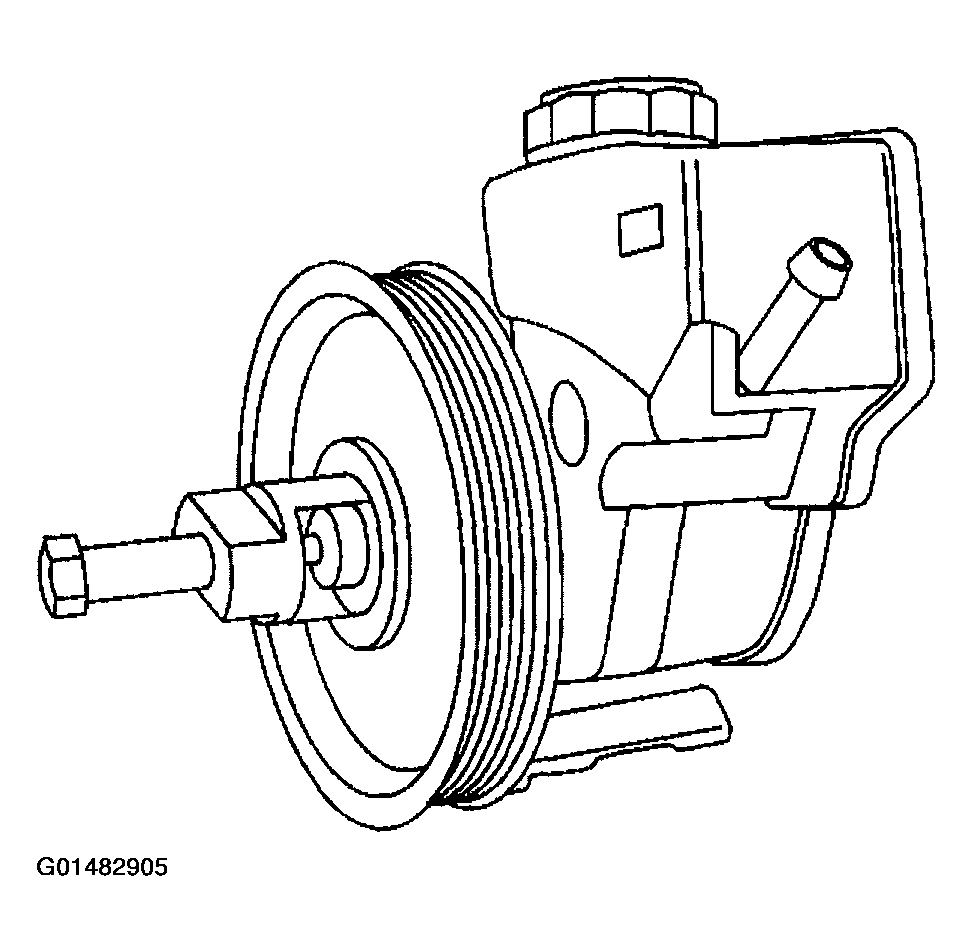

    Fig 1: Identifying Power Steering Pulley
    G01482905Courtesy of GENERAL MOTORS CORP.
