Cellular Communication Component Views

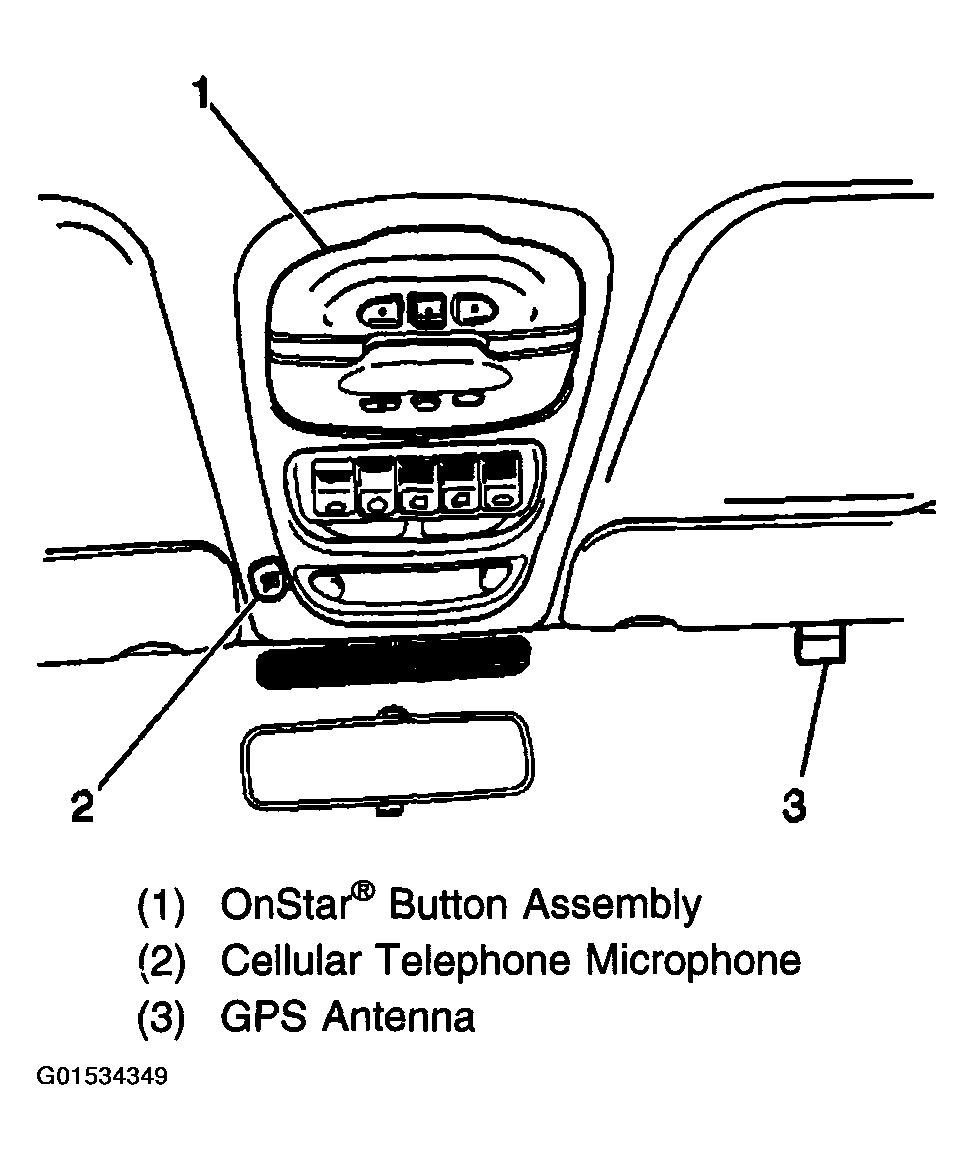

Fig 1: Front Center Of Roof In Overhead Console Component View
G01534349Courtesy of GENERAL MOTORS CORP.

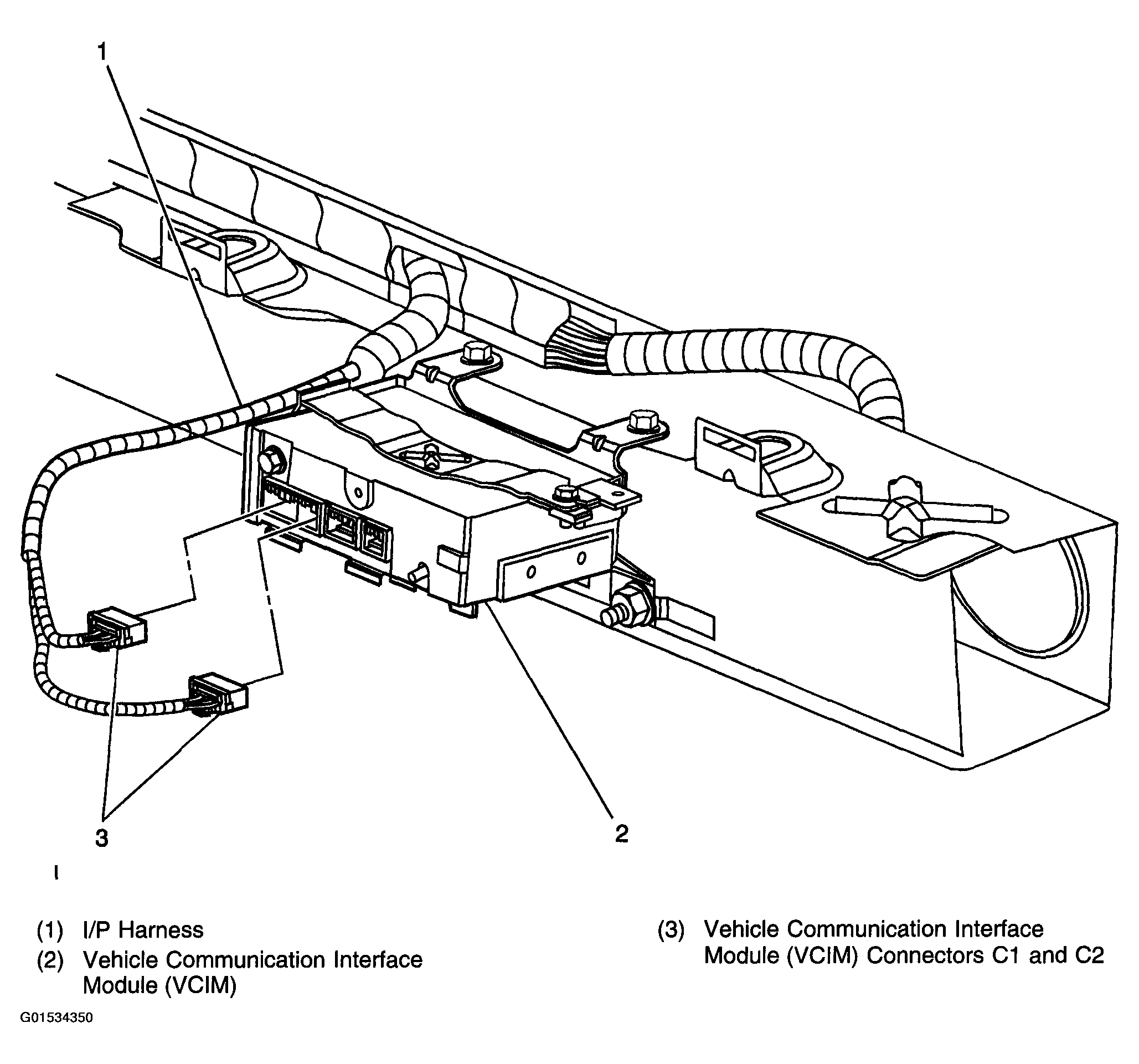

Fig 2: Behind Center Of I/P Component View
G01534350Courtesy of GENERAL MOTORS CORP.
