Installation Procedure

  1. Slide the module into the mounting bracket and push until the module is fully seated.

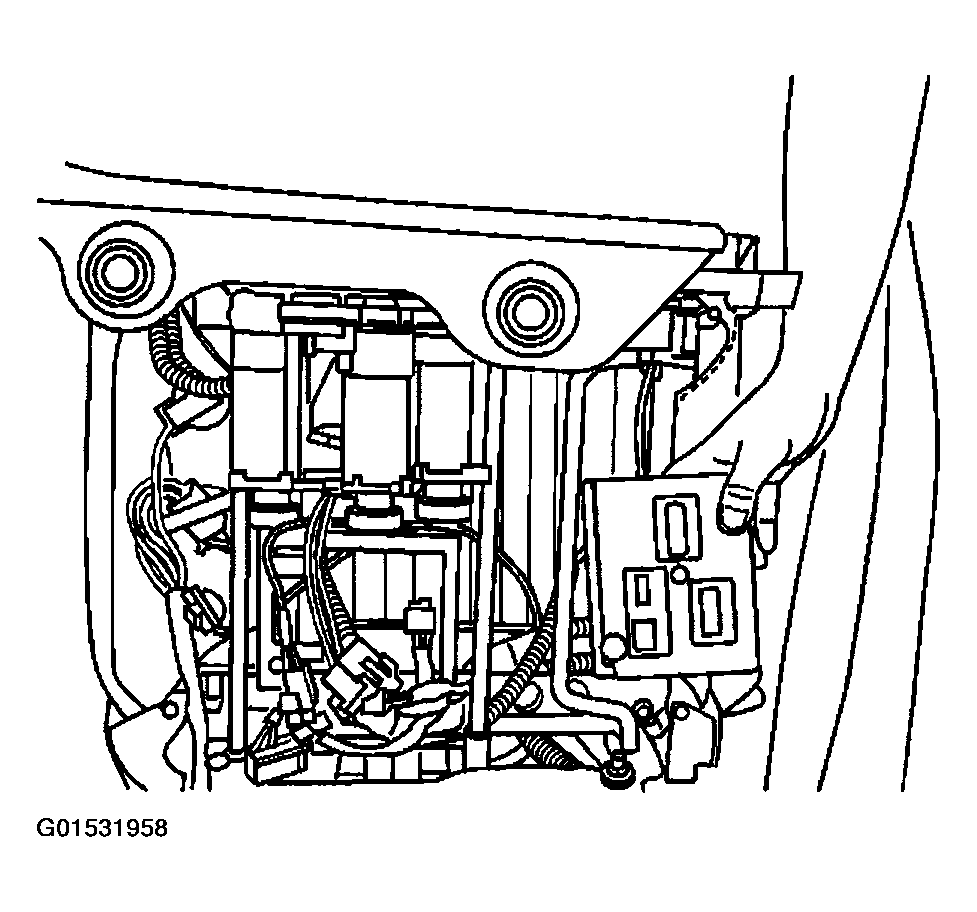

    Fig 1: Sliding Module Into Mounting Bracket And Pushing
    G01531958Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install the drivers seat.
  4. Enables the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag.

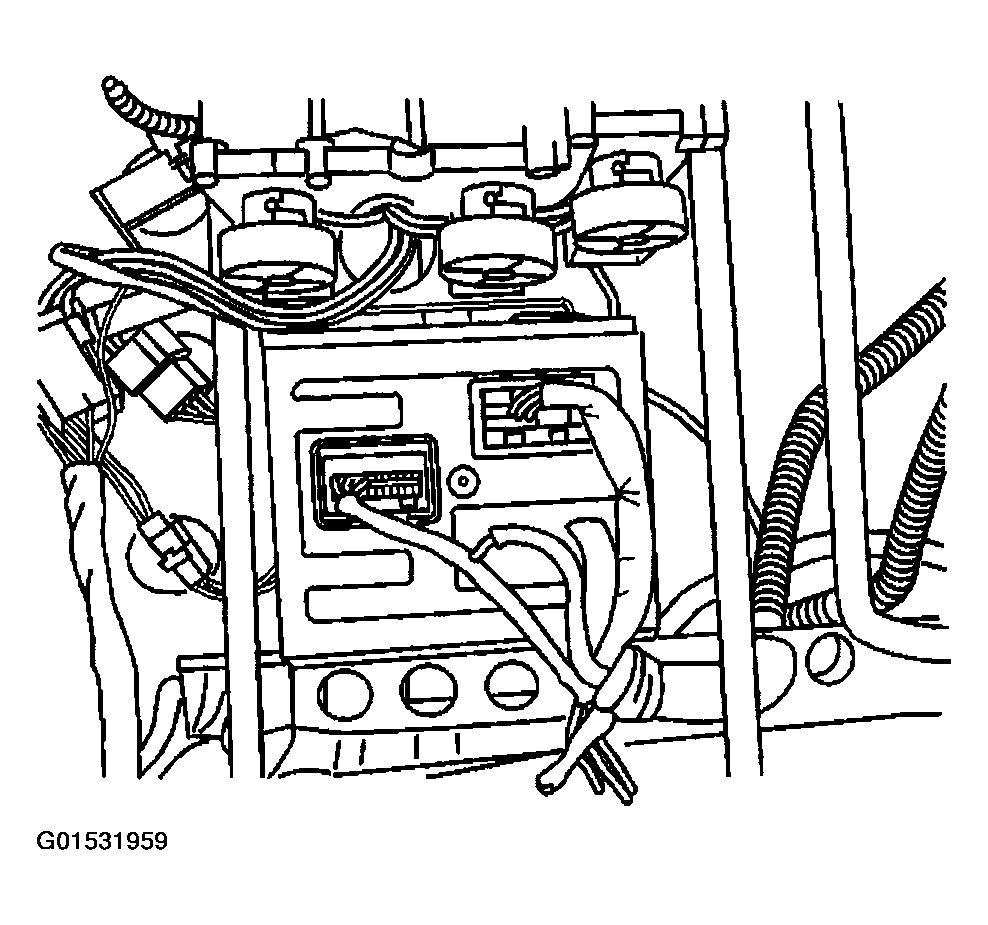

    Fig 2: Identifying Power Seat Adjuster Mechanism
    G01531959Courtesy of GENERAL MOTORS CORP.
