Memory Seat Module Connector End View C1

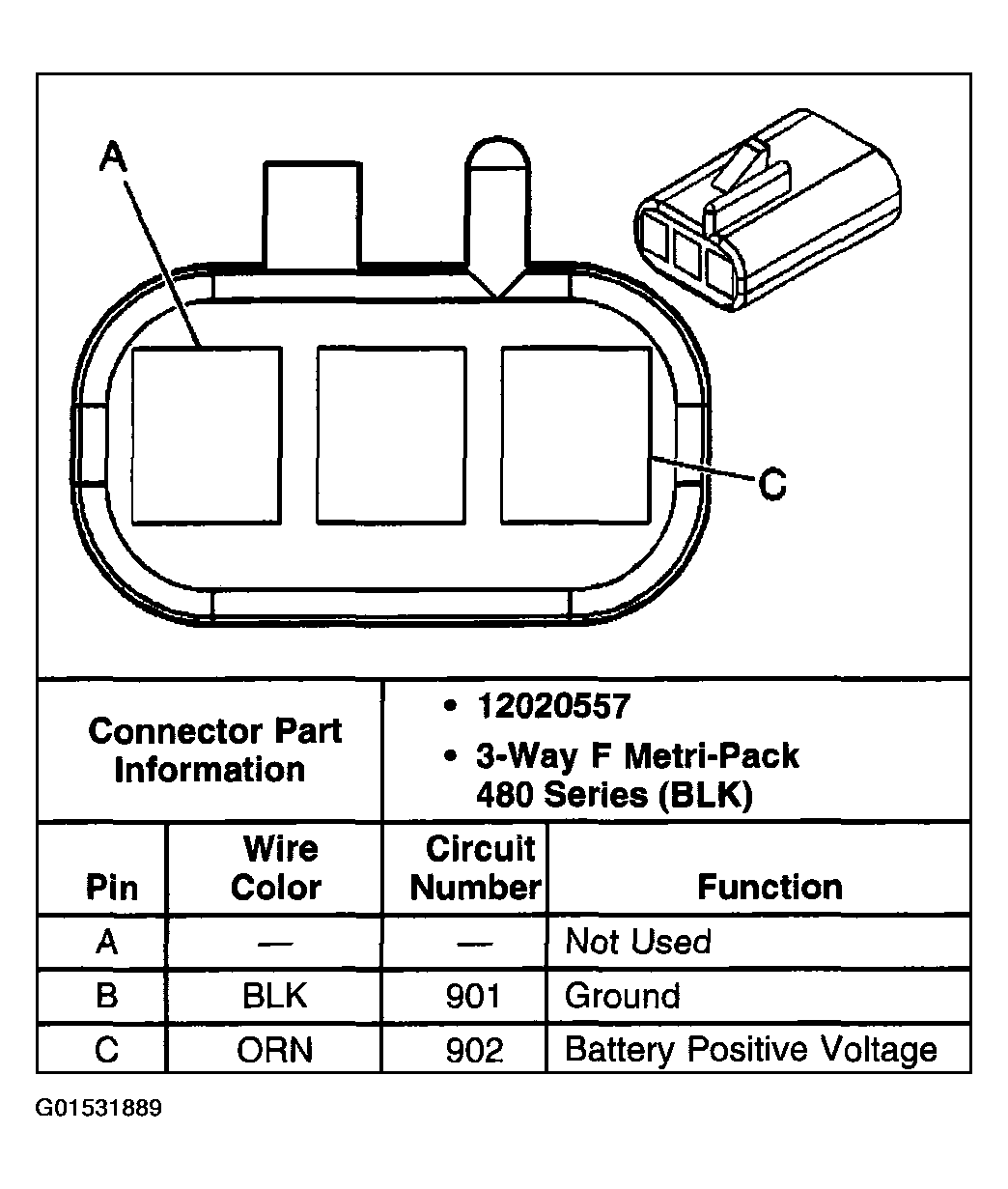

Fig 1: Memory Seat Module Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
