Removal Procedure

  1. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the front door rubber conduit. Refer to RUBBER CONDUIT REPLACEMENT - FRONT DOOR  .
  3. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the front door outside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE  .
  5. Remove the front door lock module screws.
  6. Remove the front door lock module from the front door.

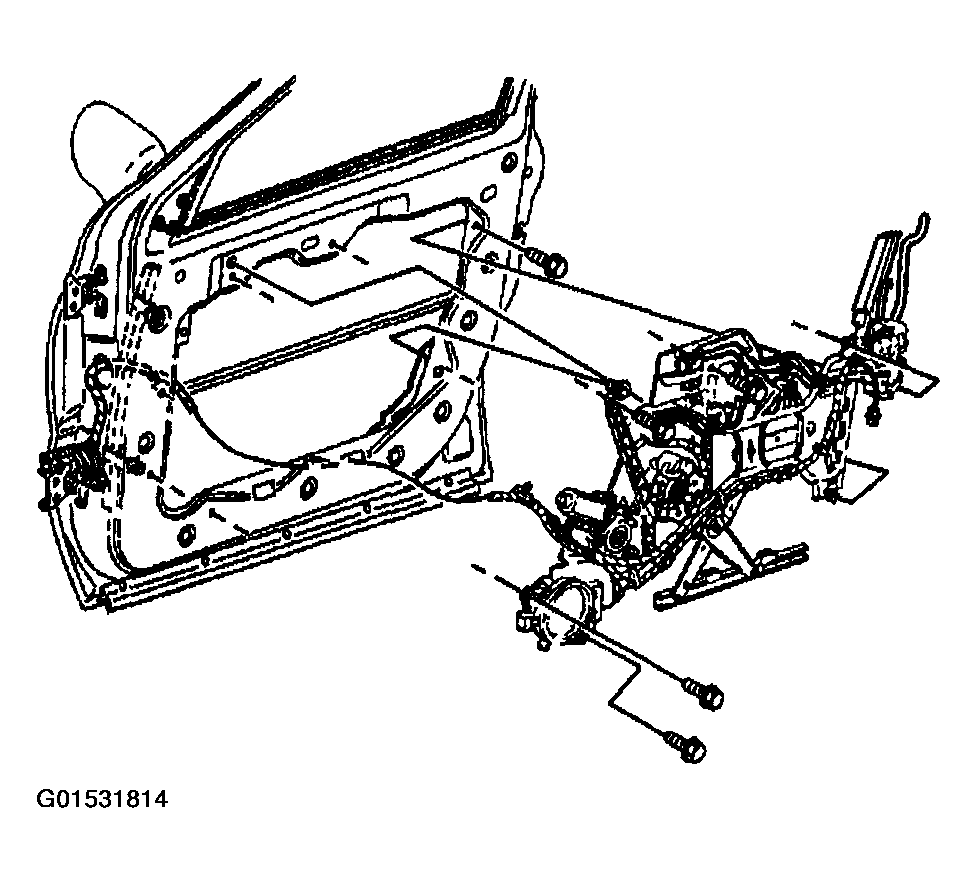

    Fig 1: Removing Front Door Lock Module
    G01531814Courtesy of GENERAL MOTORS CORP.
