ABS Connector End Views

Fig 1: Electronic Brake Control Module (EBCM) Connector End View (1 Of 2)
G01483676Courtesy of GENERAL MOTORS CORP.
Fig 2: Electronic Brake Control Module (EBCM) Connector End View (2 Of 2)
G01483677Courtesy of GENERAL MOTORS CORP.

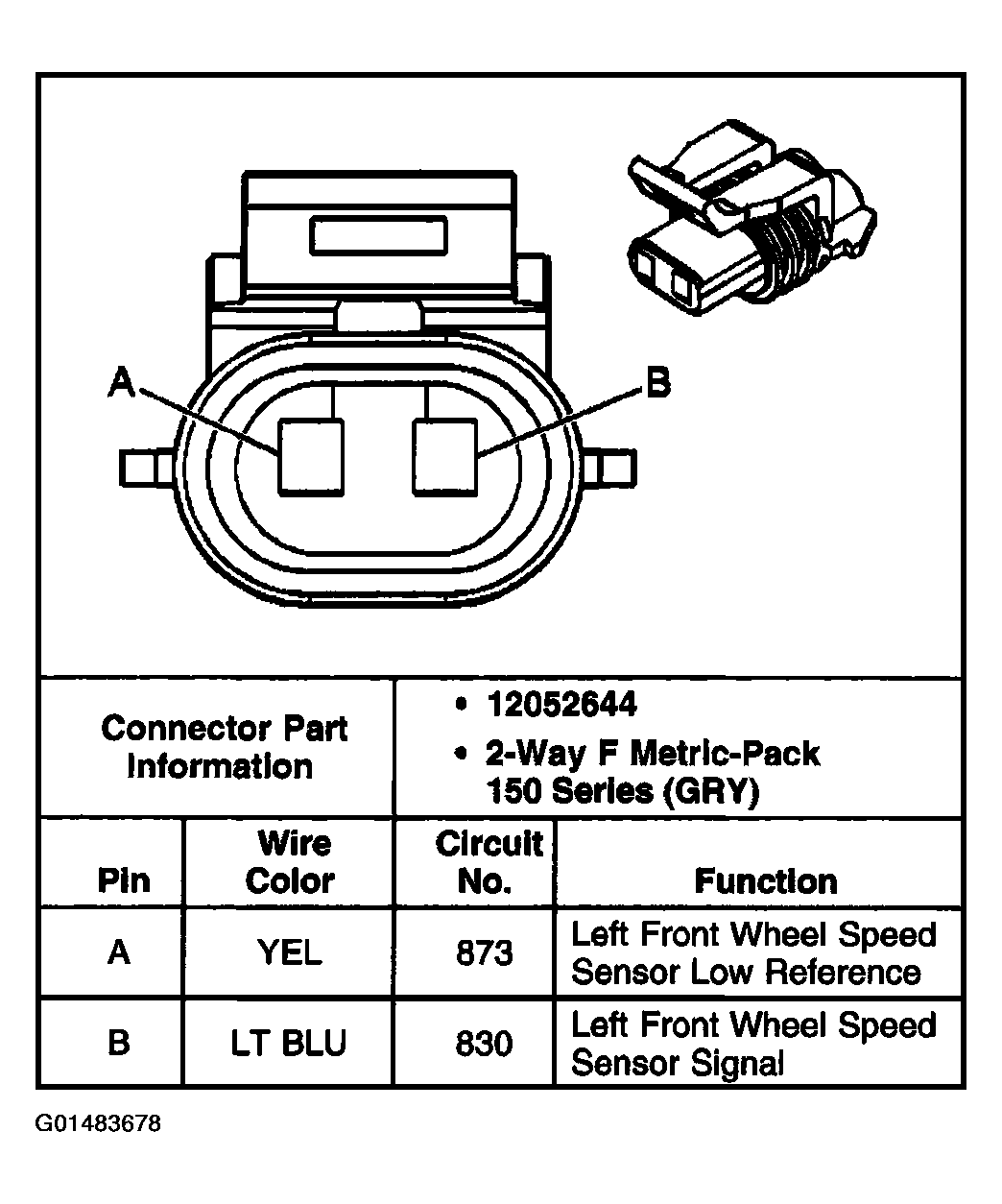

Fig 3: Wheel Speed Sensor (WSS)-LF Connector End View
G01483678Courtesy of GENERAL MOTORS CORP.

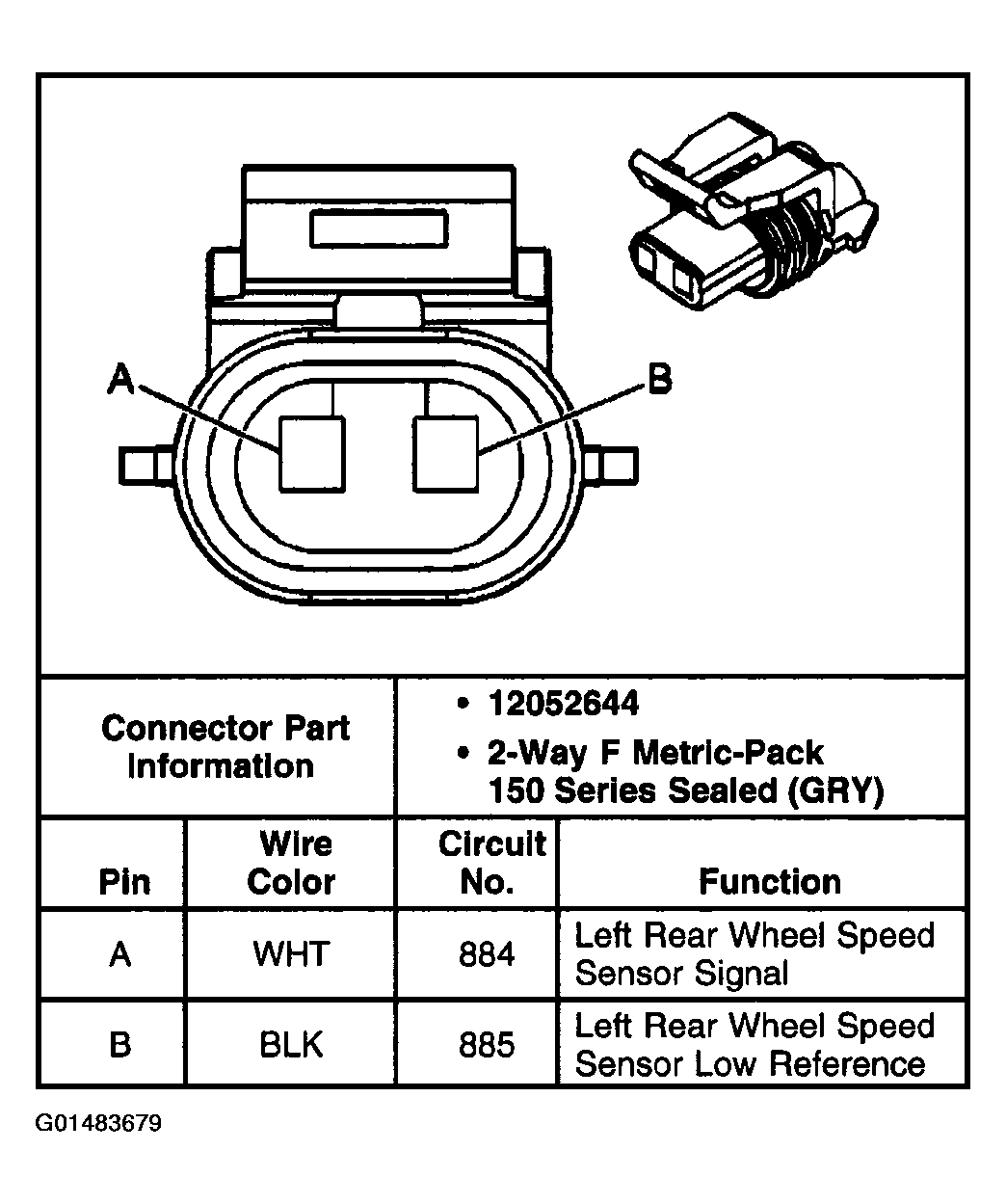

Fig 4: Wheel Speed Sensor (WSS)-LR Connector End View
G01483679Courtesy of GENERAL MOTORS CORP.

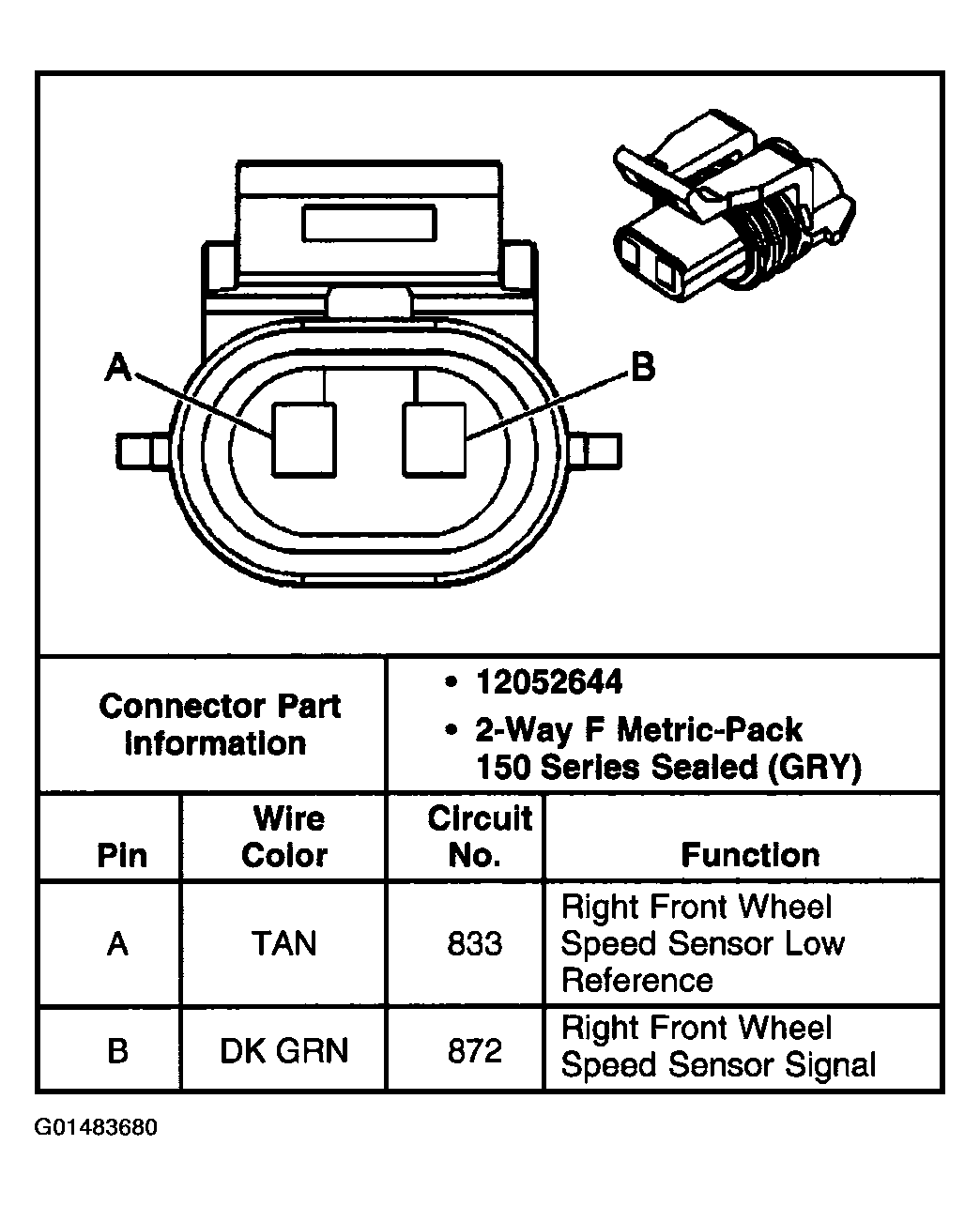

Fig 5: Wheel Speed Sensor (WSS)-RF Connector End View
G01483680Courtesy of GENERAL MOTORS CORP.

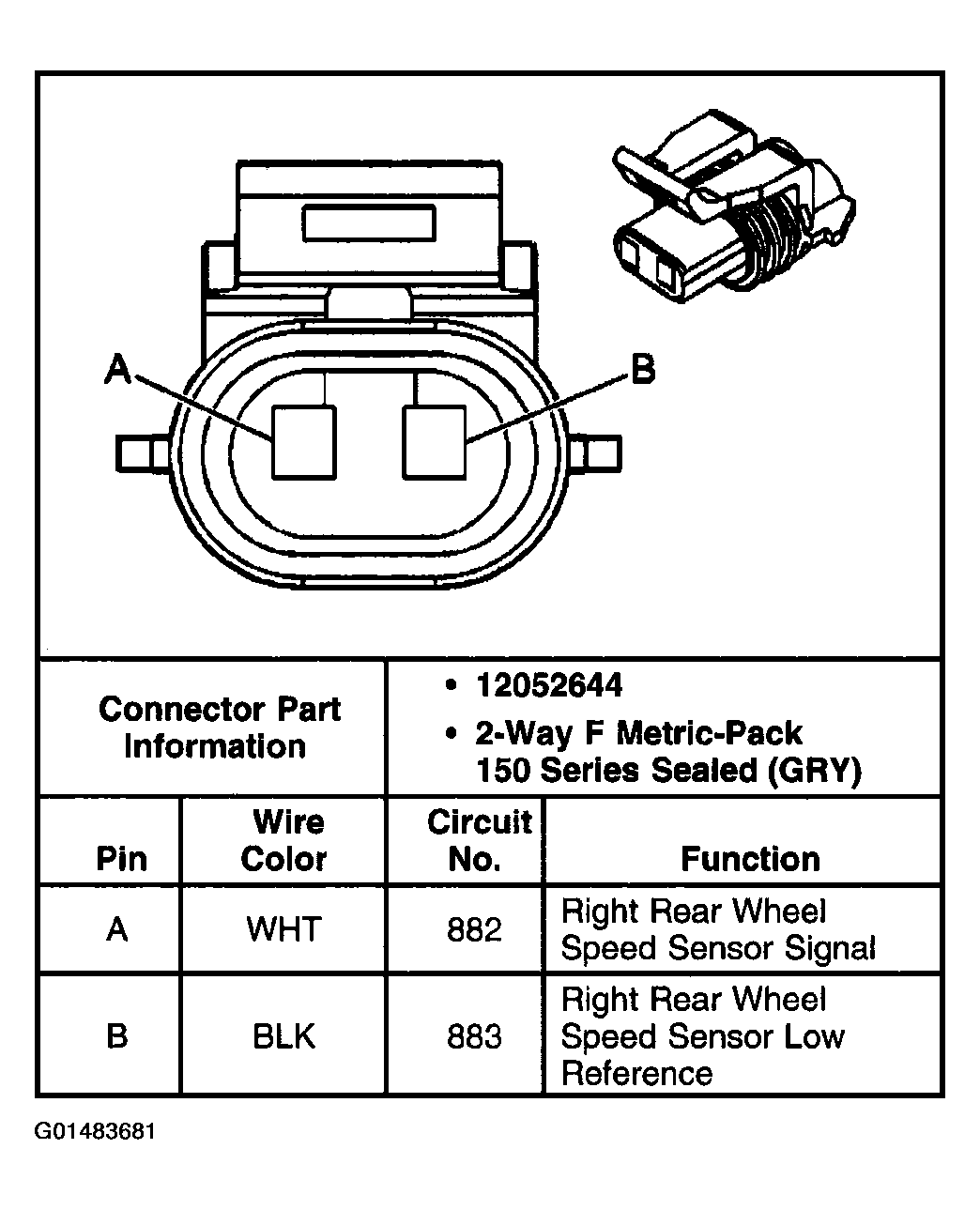

Fig 6: Wheel Speed Sensor (WSS)-RR Connector End View
G01483681Courtesy of GENERAL MOTORS CORP.
