Scan Tool Output Controls

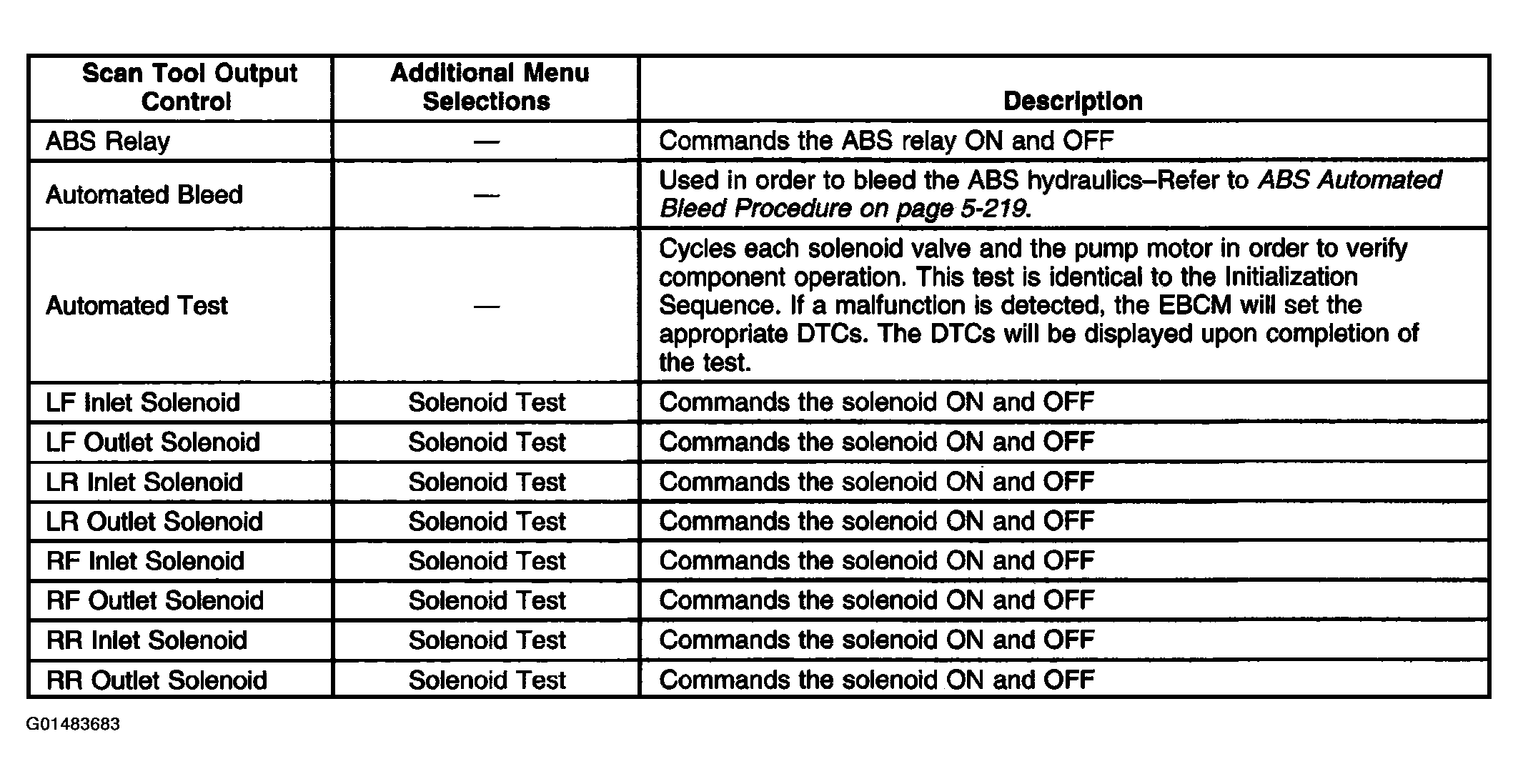

Fig 1: Scan Tool Output Controls - Electronic Brake Control Module (EBCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
