Removal Procedure

CAUTION: Refer to BRAKE FLUID IRRITANT CAUTION in Cautions and Notices.
NOTE: Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS NOTICE in Cautions and Notices.
NOTE: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

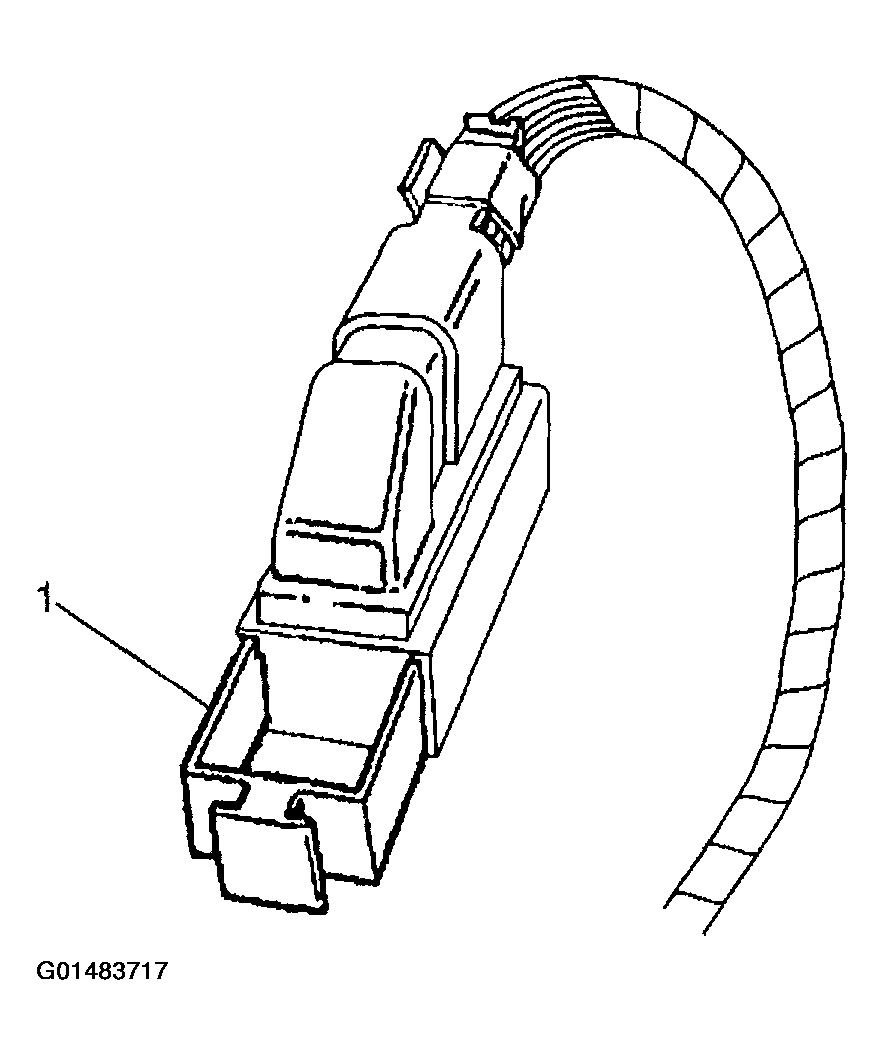

Fig 1: Disconnecting EBCM Harness Connector Locking Tab
G01483717Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition switch to the OFF position.
  2. Remove the air cleaner housing from the engine compartment. Refer to AIR CLEANER ASSEMBLY  in Removal and Installation in Engine Performance.
  3. Disconnect the EBCM harness connector.
  4. Brush off any dirt/debris that has accumulated on the assembly.
  5. Disconnect the pump motor connector (3) at the bottom of the EBCM.

    Important:

    • Do not damage the seal by prying the EBCM from the BPMV.
    • Do not damage the solenoid valves while removing the EBCM from the BPMV.
  6. Remove the six EBCM to BPMV screws (2).

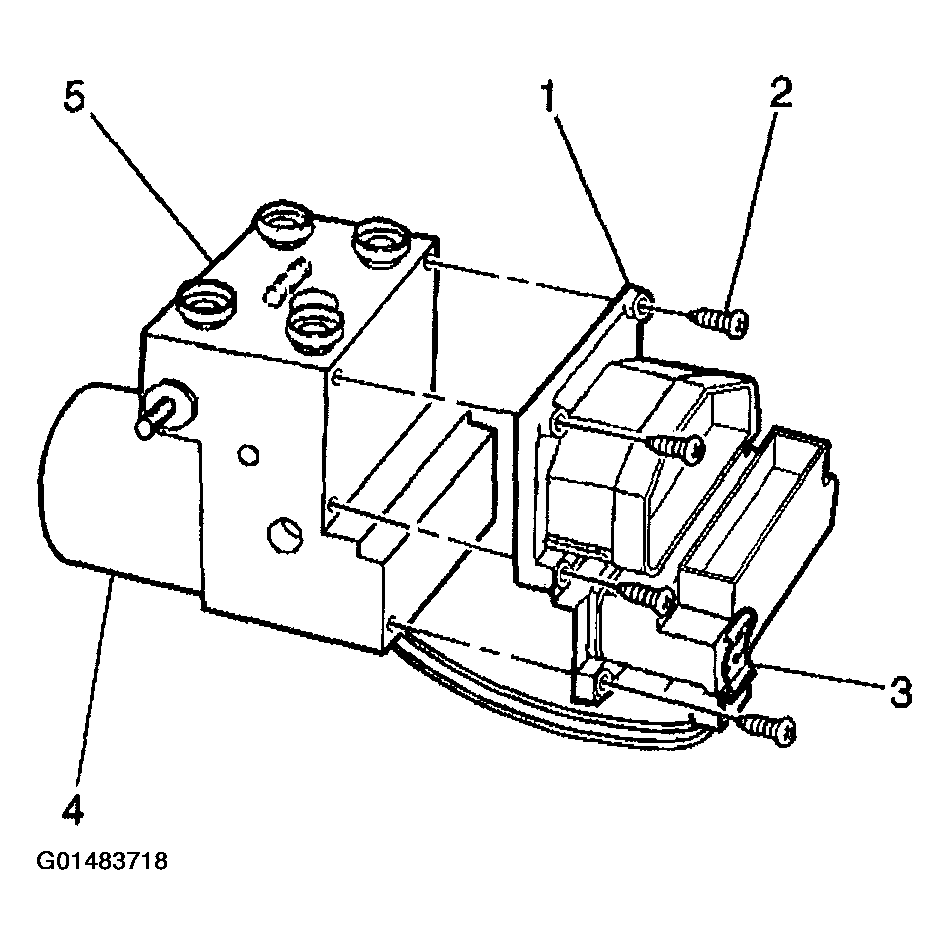

    Fig 2: Removing EBCM To BPMV Screws & Disconnecting Pump Motor Connector
    G01483718Courtesy of GENERAL MOTORS CORP.
  7. Separate the EBCM from the BPMV by gently pulling apart until separated (1).
    Fig 3: Separating EBCM From BPMV By Gently Pulling Apart
    G01483719Courtesy of GENERAL MOTORS CORP.
