Installation Procedure

  1. Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT  in Front Suspension.

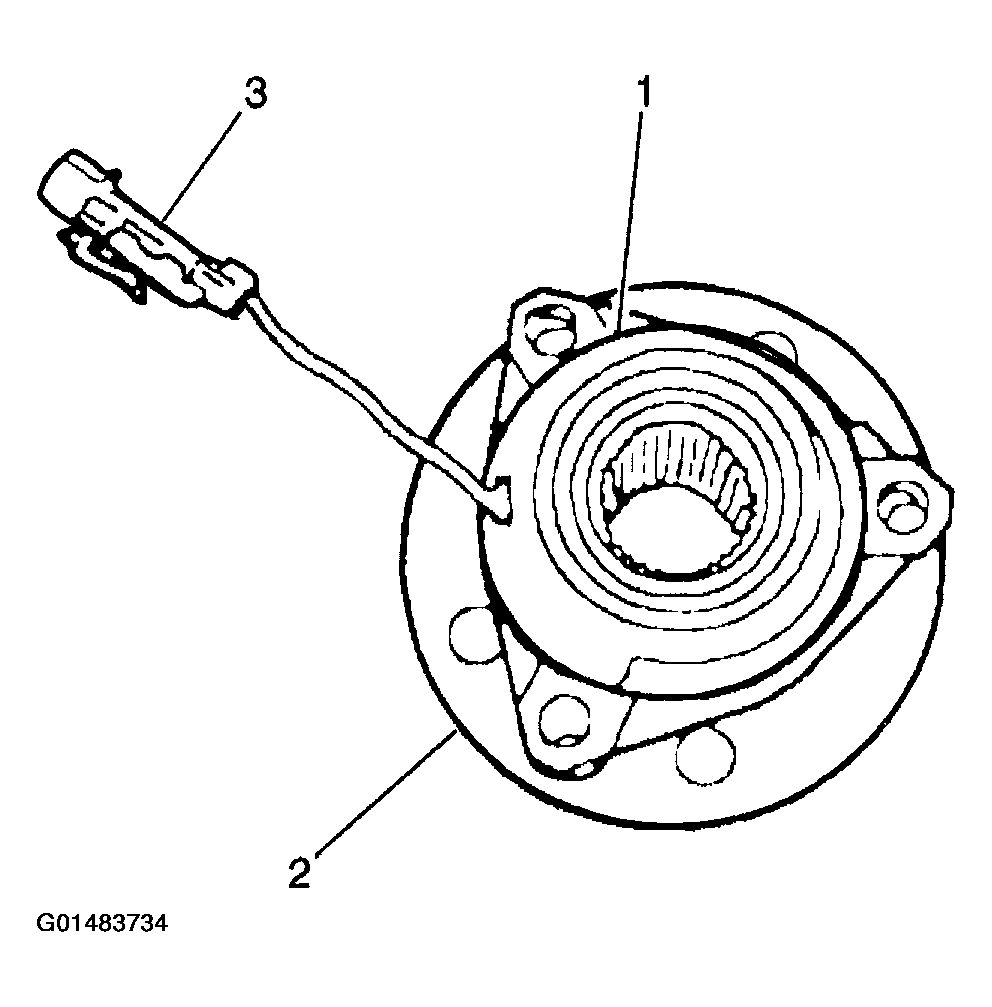

    Fig 1: Installing Hub And Bearing Assembly
    G01483734Courtesy of GENERAL MOTORS CORP.
  2. Install the front wheel speed sensor jumper harness electrical connector (1) to front wheel speed sensor connector (3).
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position with the engine off.
  6. Perform Diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS   .

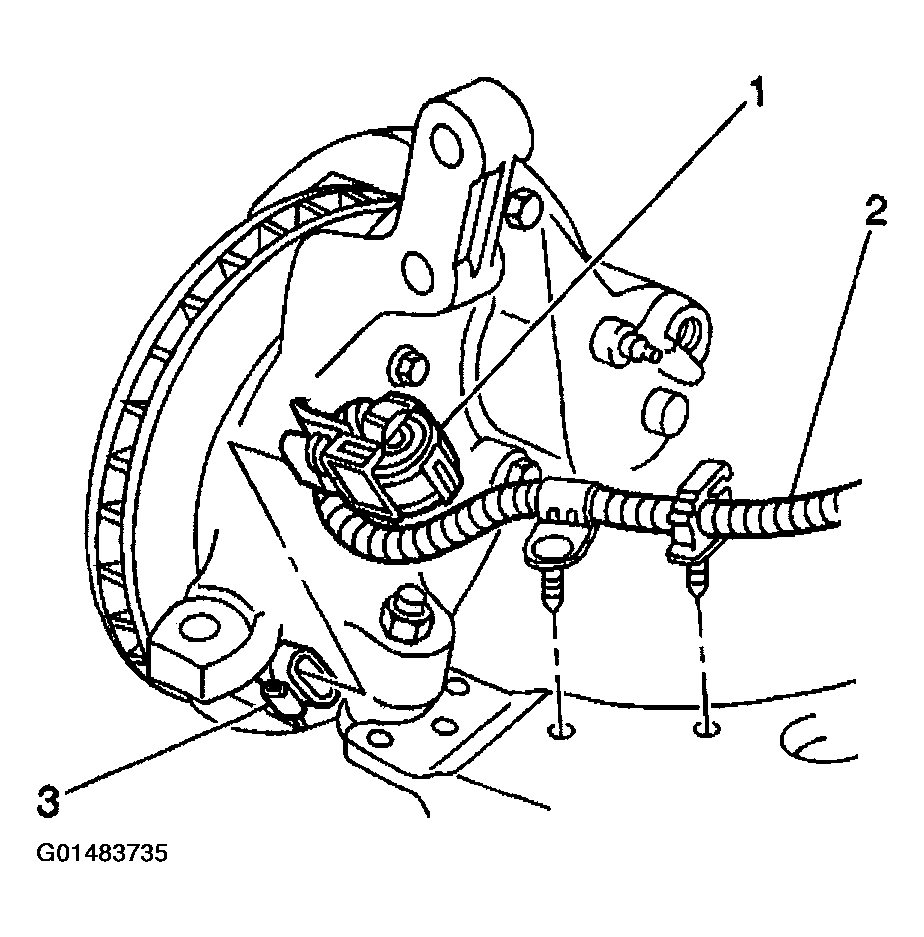

    Fig 2: Installing Front Wheel Speed Sensor Jumper Harness Electrical Connector To Front Wheel Speed Sensor Connector
    G01483735Courtesy of GENERAL MOTORS CORP.
