Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Airbag.
Remove the seat.
Disconnect the electrical connectors.
Using a flat-bladed tool, gently pry the memory seat control module from the bracket slots.

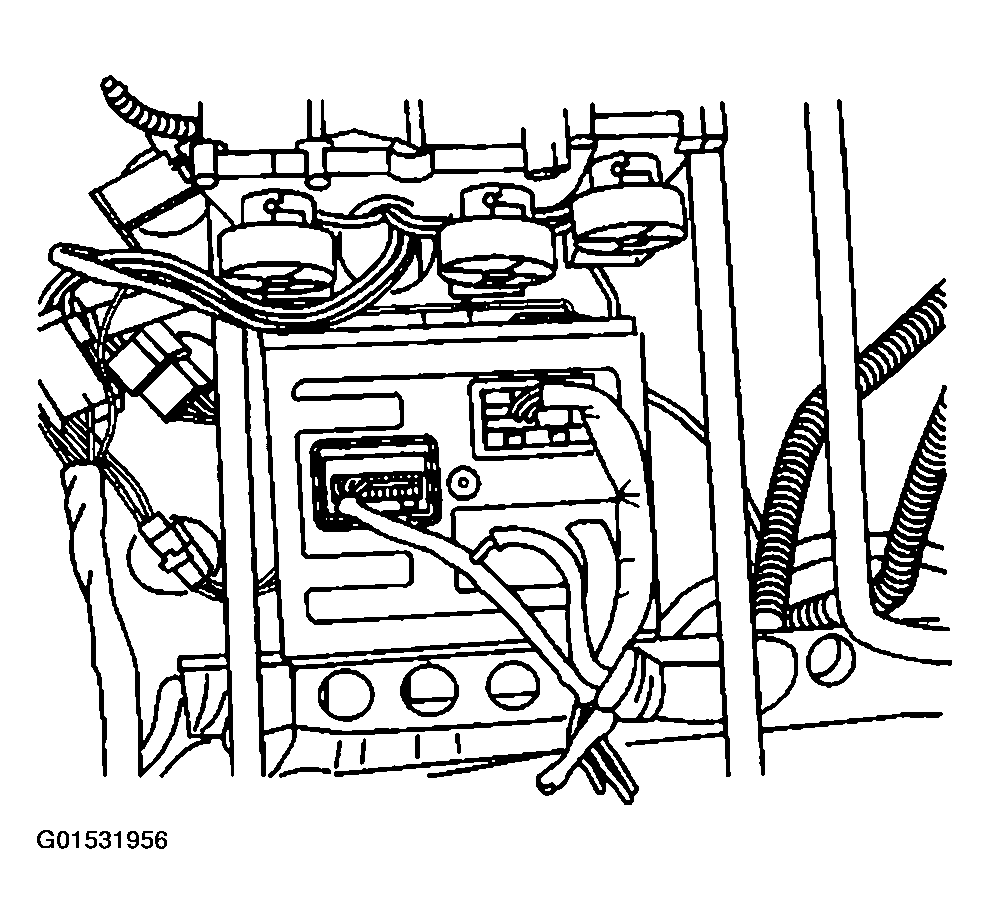

Fig 1: Identifying Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.
Slide the module toward the rear of the seat.

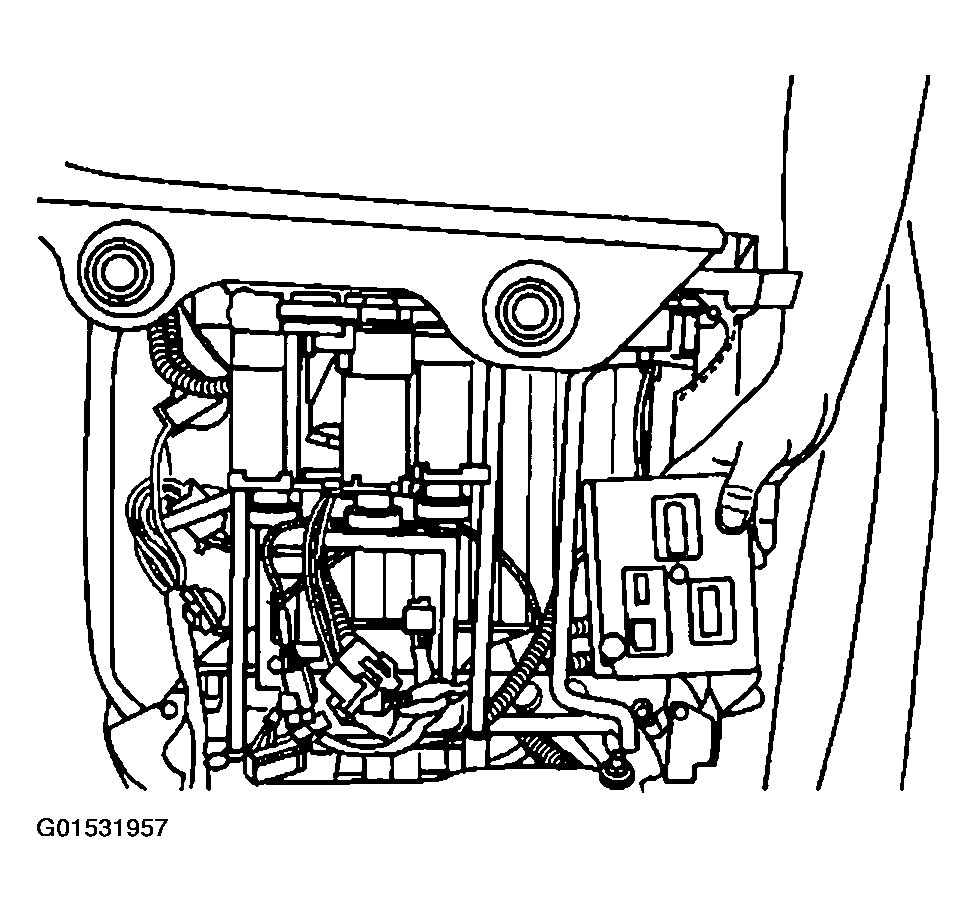

Fig 2: Sliding Module Toward Rear Of Seat
Courtesy of GENERAL MOTORS CORP.
