Steering Gear

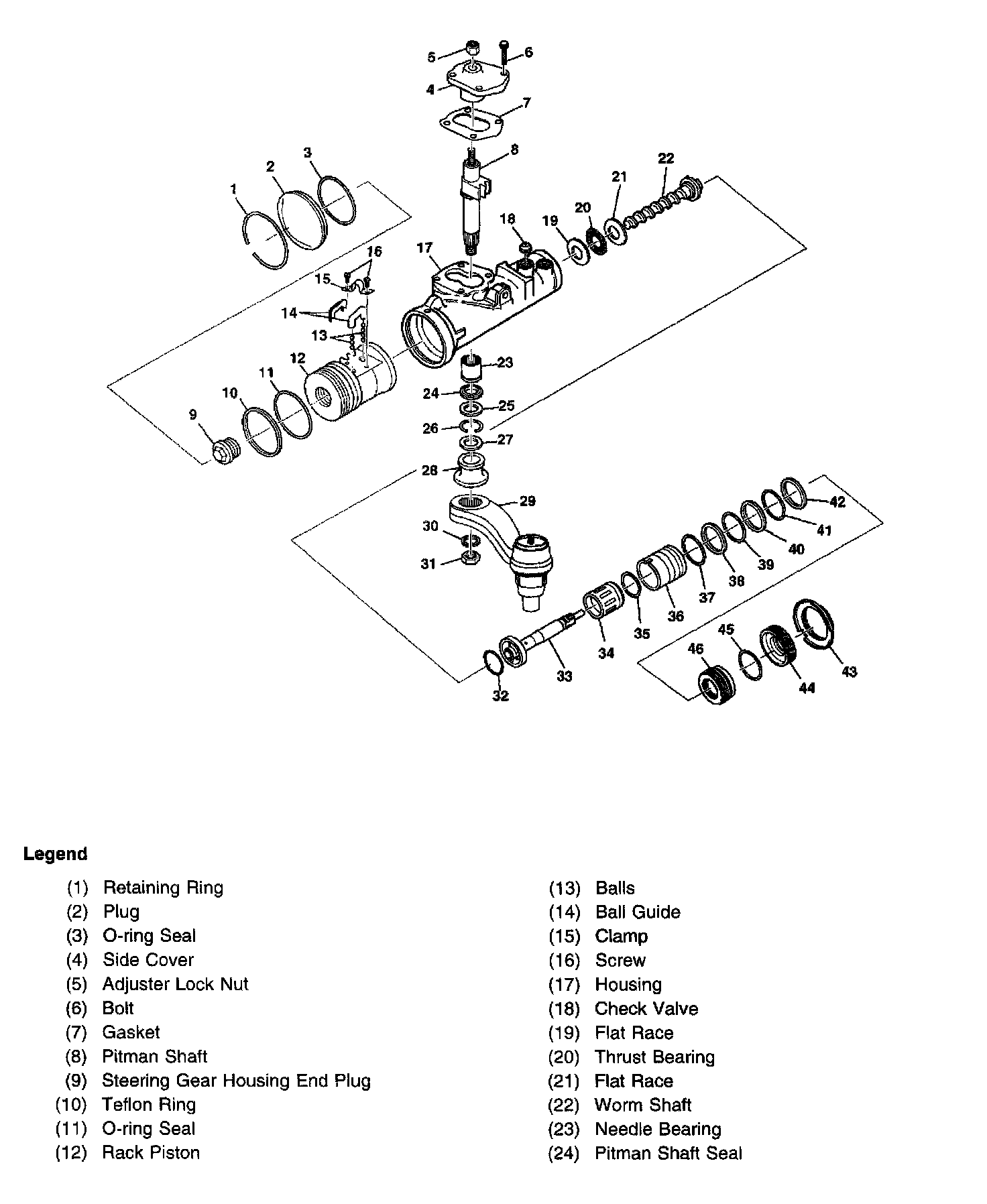

Power Steering Gear Disassembled View (700 Gear)





Part 1 of 2

Legend:





Part 2 of 2
