Control Assembly: Locations

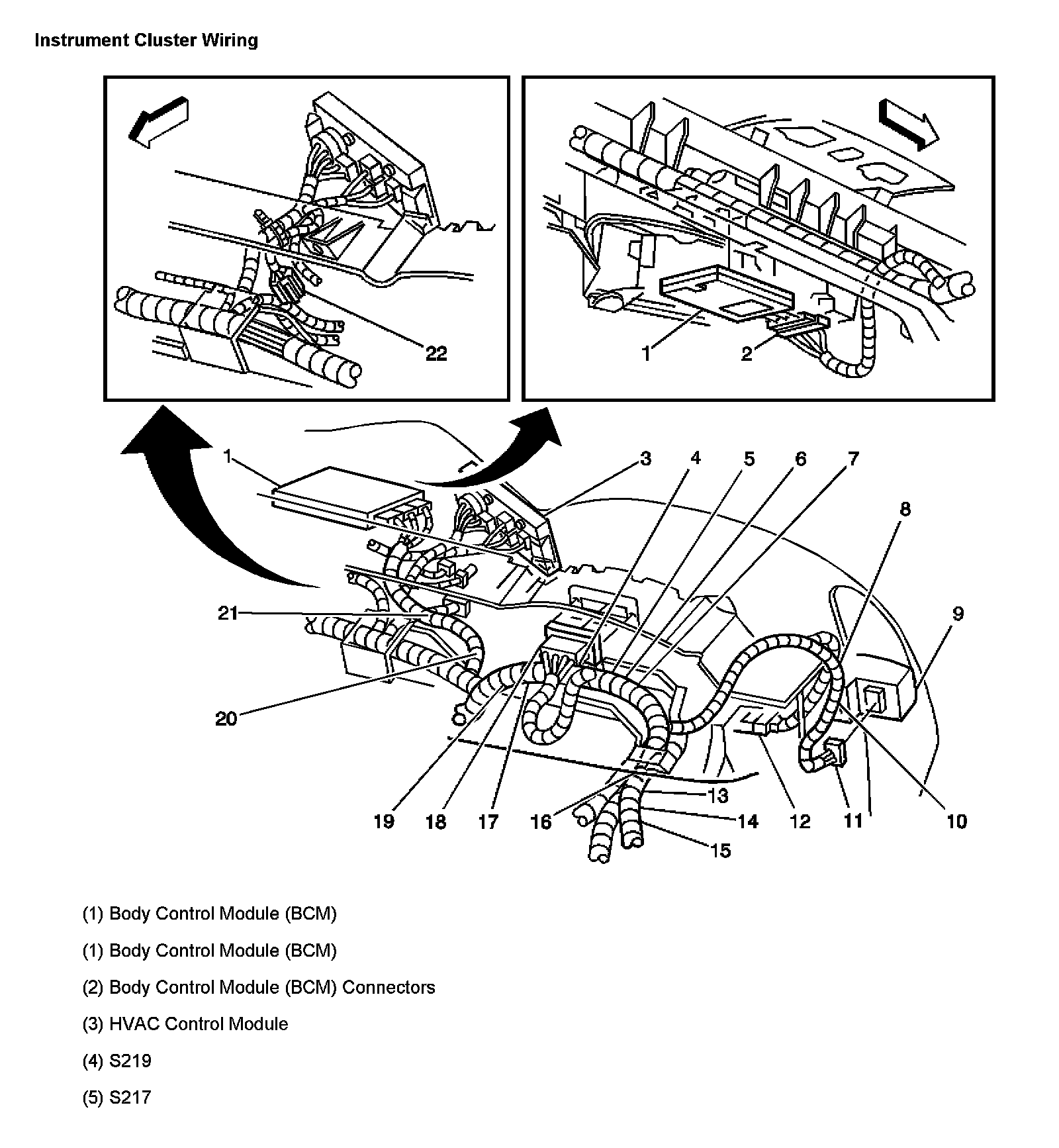

Instrument Cluster Wiring Part 1:



Instrument Cluster Wiring:



Instrument Cluster Wiring Part 2:

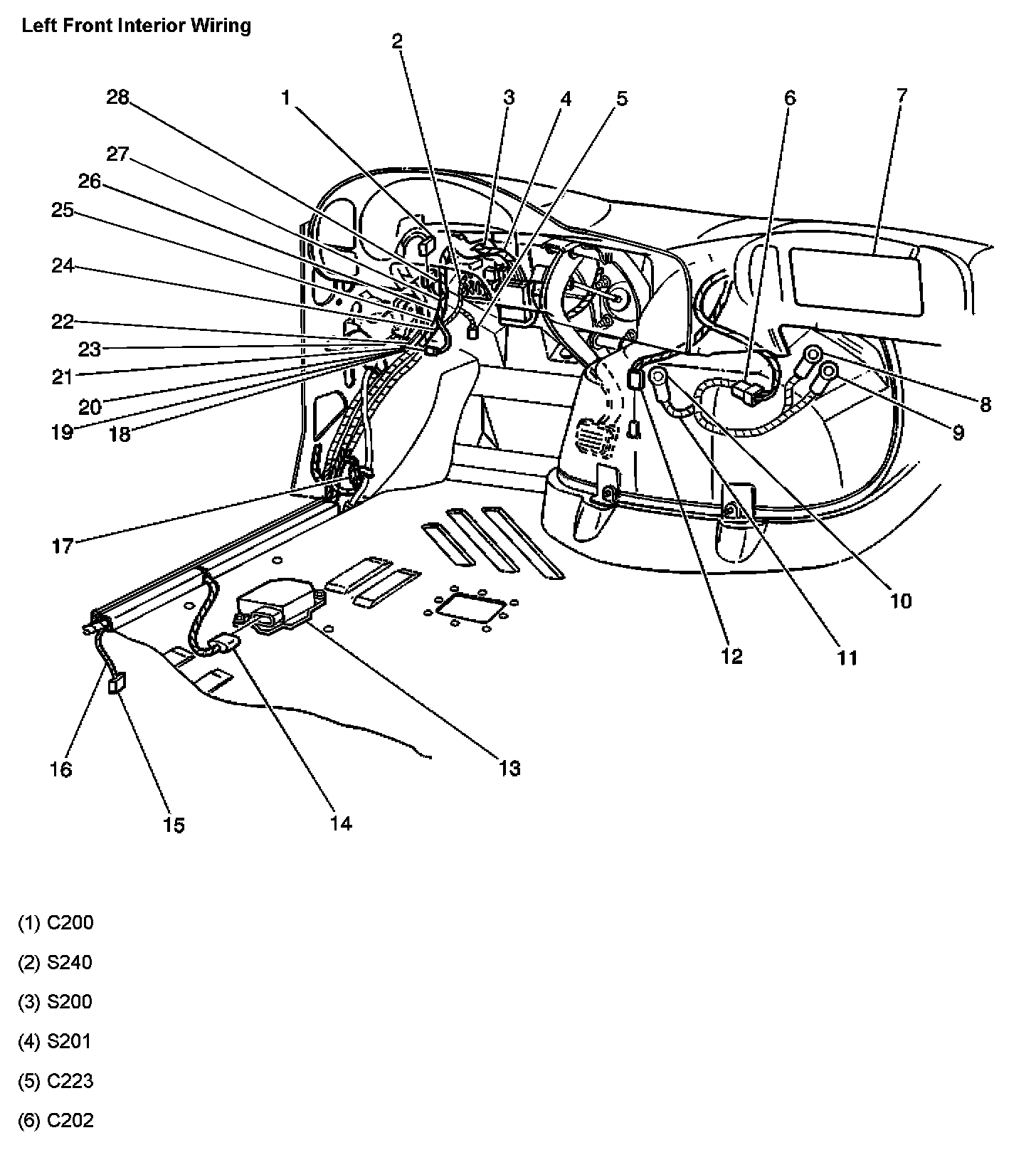

Left Front Interior Wiring Part 1:

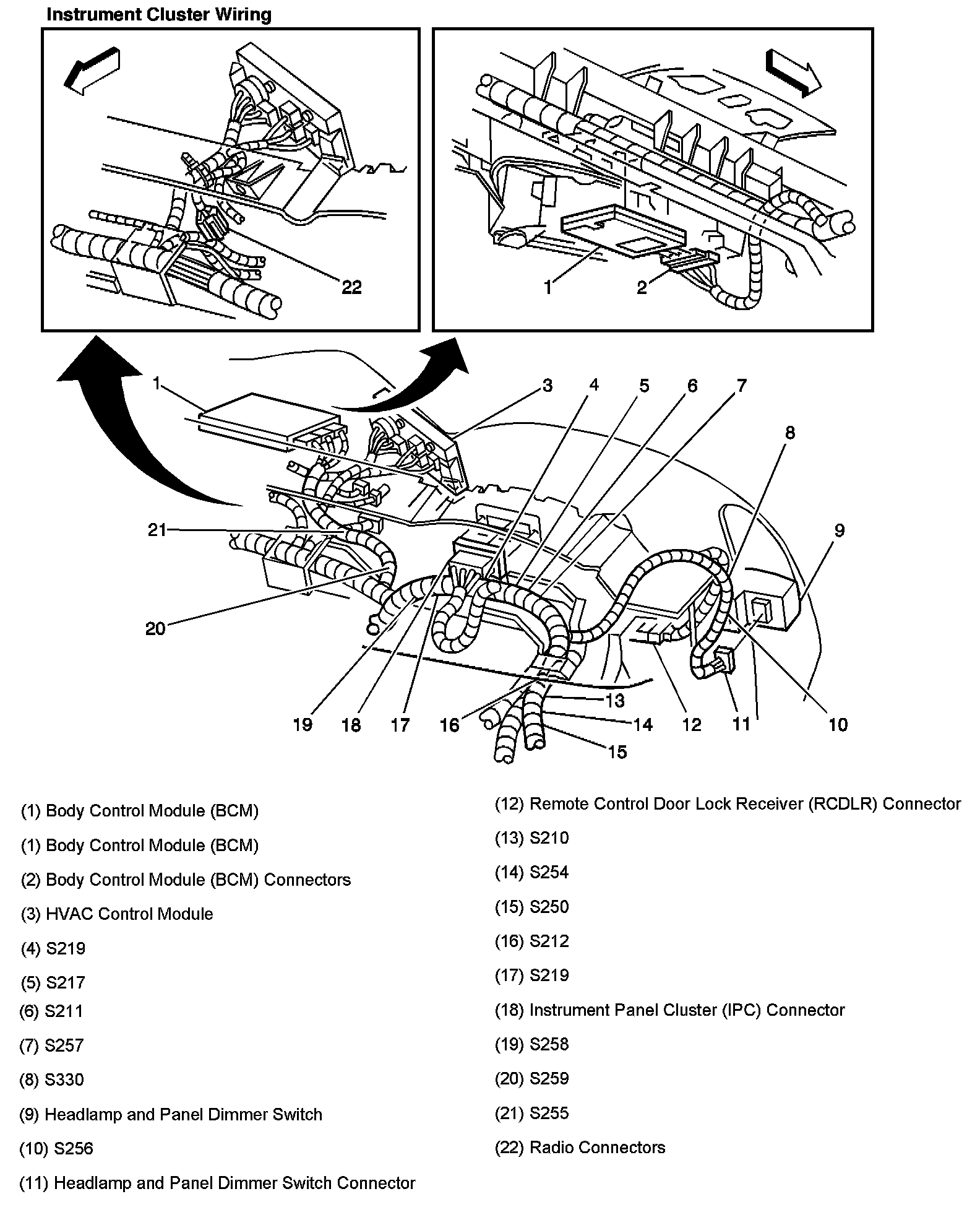

Instrument Cluster Wiring:



Left Front Interior Wiring Part 2:
