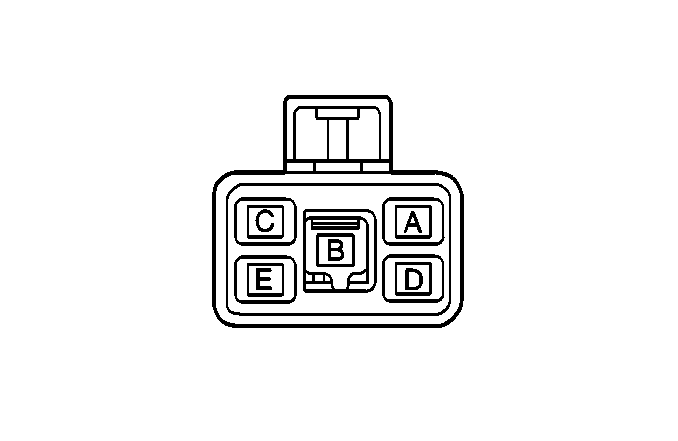

Windshield Wiper Motor and Module Connector End View
Windshield Wiper Motor and Module
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 94 | Windshield Washer Switch Signal |
| B | BLK | 750 | Ground |
| C | YEL | 143 | Accessory Voltage |
| D | PPL | 92 | Windshield Wiper Motor High Speed |
| E | BRN | 96 | Windshield Wiper Switch Pulse Delay Signal |
