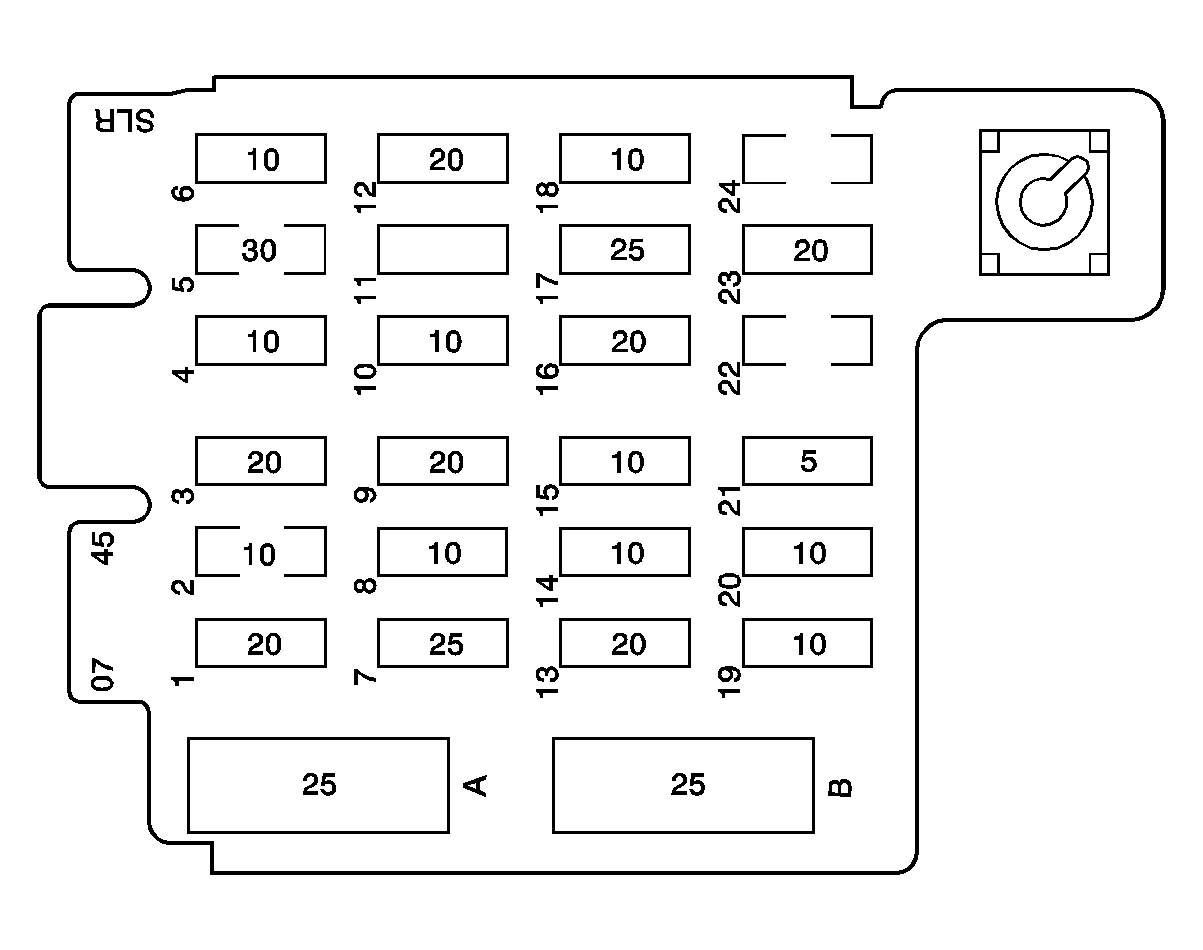

Fuse Block I/P (Front View, Fuse Identification)
Fuse Block I/P - Fuse Identification
| Fuse Number | Device | Rating | Description |
|---|---|---|---|
| 1 | STOP/HAZ | 20A | Stop Lamp Switch, Turn Signal Switch |
| 2 | RDO ACCY | 10A | Radio, Driver Information Center (DIC), Rear Seat Audio (RSA) Controller |
| 3 | CTSY | 20A | Inadvertant Power Relay |
| 4 | GAUGES | 10A | Instrument Panel Cluster (IPC), DRL Relay, Body Control Module (BCM) |
| 5 | RR DEFOG | 30A | Rear window Defogger Grid |
| 6 | CRUISE | 10A | Cruise Control Module (CCM), Cruise Control On/Off Switch, Instrument Panel Cluster (IPC), Body Control Module (BCM) |
| 7 | AUX PWR | 25A | Auxiliary Power Outlets, Audio Amplifier, Data Link Connector (DLC) |
| 8 | CRANK | 10A | Park/Neutral Position (PNP) Switch |
| 9 | PK LPS | 20A | Headlamp and Panel Dimmer Switch, Park Lamp Relay |
| 10 | AIR BAG | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 11 | Not Used | ||
| 12 | HTR-A/C | 20A | HVAC Control Assembly, A/C Relay, Air Temperature Actuator |
| 13 | CIG LTR | 20A | Lift Glass Lock/Unlock Release Switch, Door Lock Switch - Driver and Front Passenger, Cigar Lighter |
| 14 | ILLUM | 10A | HVAC Control Assembly, RR HVAC Controls, Radio, Instrument Panel Cluster (IPC), Rear Window Wiper/Washer Switch, Body Control Module (BCM), Driver Information Center (DIC) |
| 15 | TBC | 10A | Body Control Module (BCM), Outside Rearview Mirror Switch, Headlamp and Panel Dimmer Switch, Headlamp Dimmer Switch, Remote Control Door Lock Receiver (RCDLR) |
| 16 | TURN-B/U | 20A | Turn Signal Switch, Park/Neutral Position (PNP) Switch |
| 17 | WIPER | 25A | Upfitter ACCY Relay, Windshield Wiper Motor and Module, Windshield Wiper/Washer Switch Front |
| 18 | BRAKE | 10A | Stop Lamp Switch, Electronic Brake Control Module (EBCM), Transfer Case Shift Control Module |
| 19 | RADIO BATT | 10A | Radio, Instrument Panel Cluster (IPC) |
| 20 | TRANS | 10A | Instrument Panel Cluster (IPC), Automatic Transmission, Powertrain Control Module (PCM) |
| 21 | PWR ADJ MIR | 5A | Outside Rearview Mirror Switch |
| 22 | Not Used | - | - |
| 23 | RR WIPER | 20A | Rear Window Wiper/Washer Switch |
| 24 | - | - | Not Used |
| A | PWR ACCY | 25A C/B | Seat Adjuster Switch - Driver, Door Lock Relay, Rear Door Unlock Relay, Driver Door Unlock Relay |
| B | WINDOWS | 25A C/B | Window Master Switch - Driver, Window Switch - Front Passenger |
