Power Seat Systems Component Views

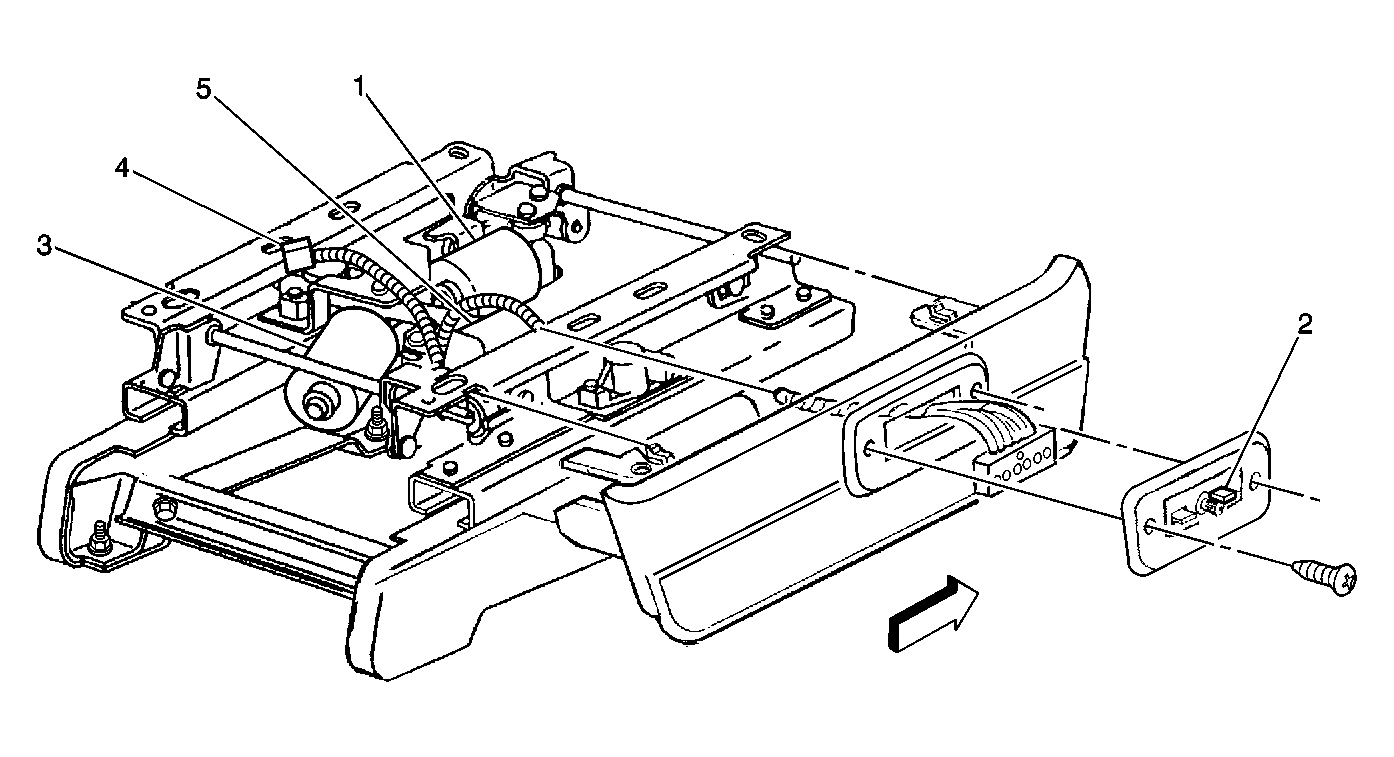

Fig 1: Seat - Driver Component View
GM298031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Vertical Motor
2 Seat Adjuster Switch - Driver
3 Seat Horizontal Motor
4 C306
5 Seat Rear Vertical Motor
