Horns Component Views

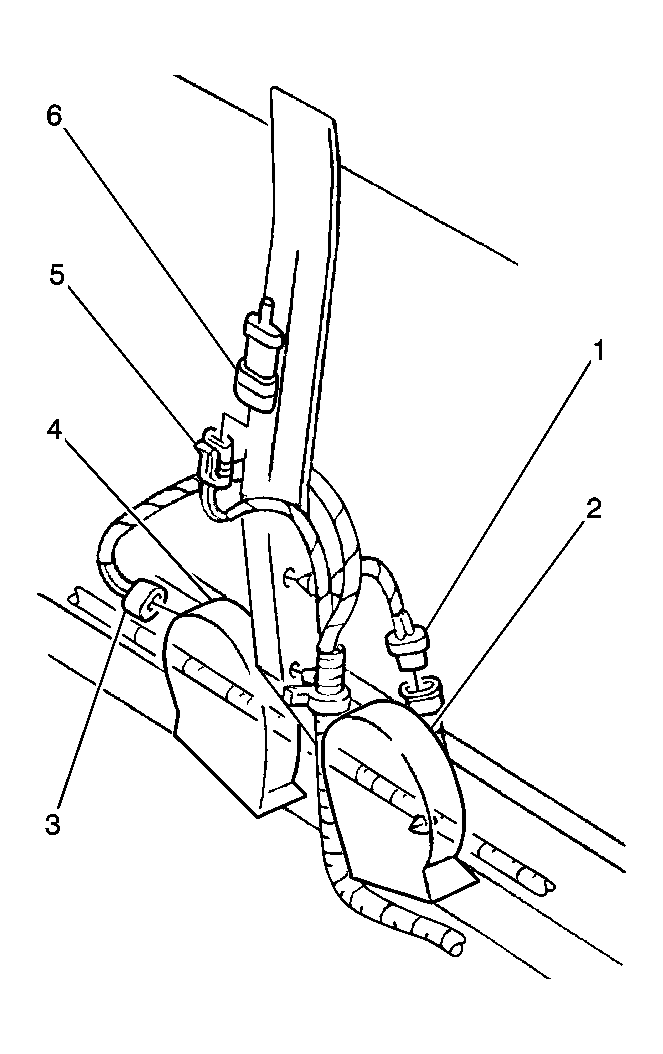

Fig 1: Front End Center Wiring Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn - Left Connector
2	Horn - Left
3	Horn - Right Connector
4	Horn - Right
5	Ambient Air Temperature Sensor Connector
6	Ambient Air Temperature Sensor

Fig 2: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Steering Wheel Module Coil
4	Windshield Wiper/Washer Switch
5	Cruise Control ON/OFF Switch
6	Turn Signal Switch
