Installation Procedure

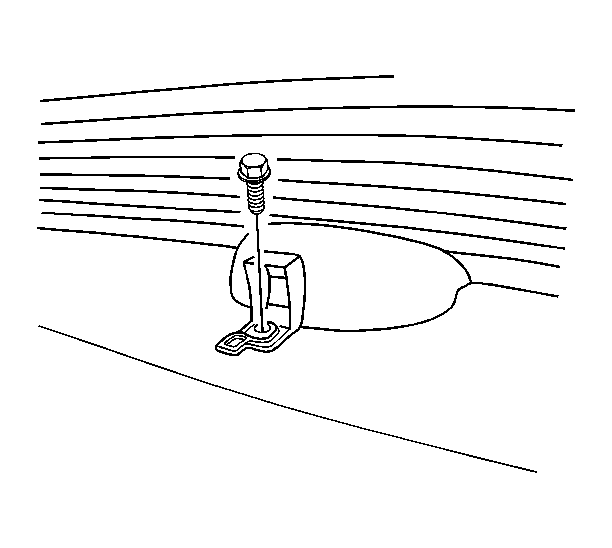

Fig 1: Tether Anchor & Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the tether anchor with the bolt.
Tighten: Tighten the child seat tether anchor bolt to 25 N.m (18 lb ft).
Close the tether anchor access cap.
