Component Locations

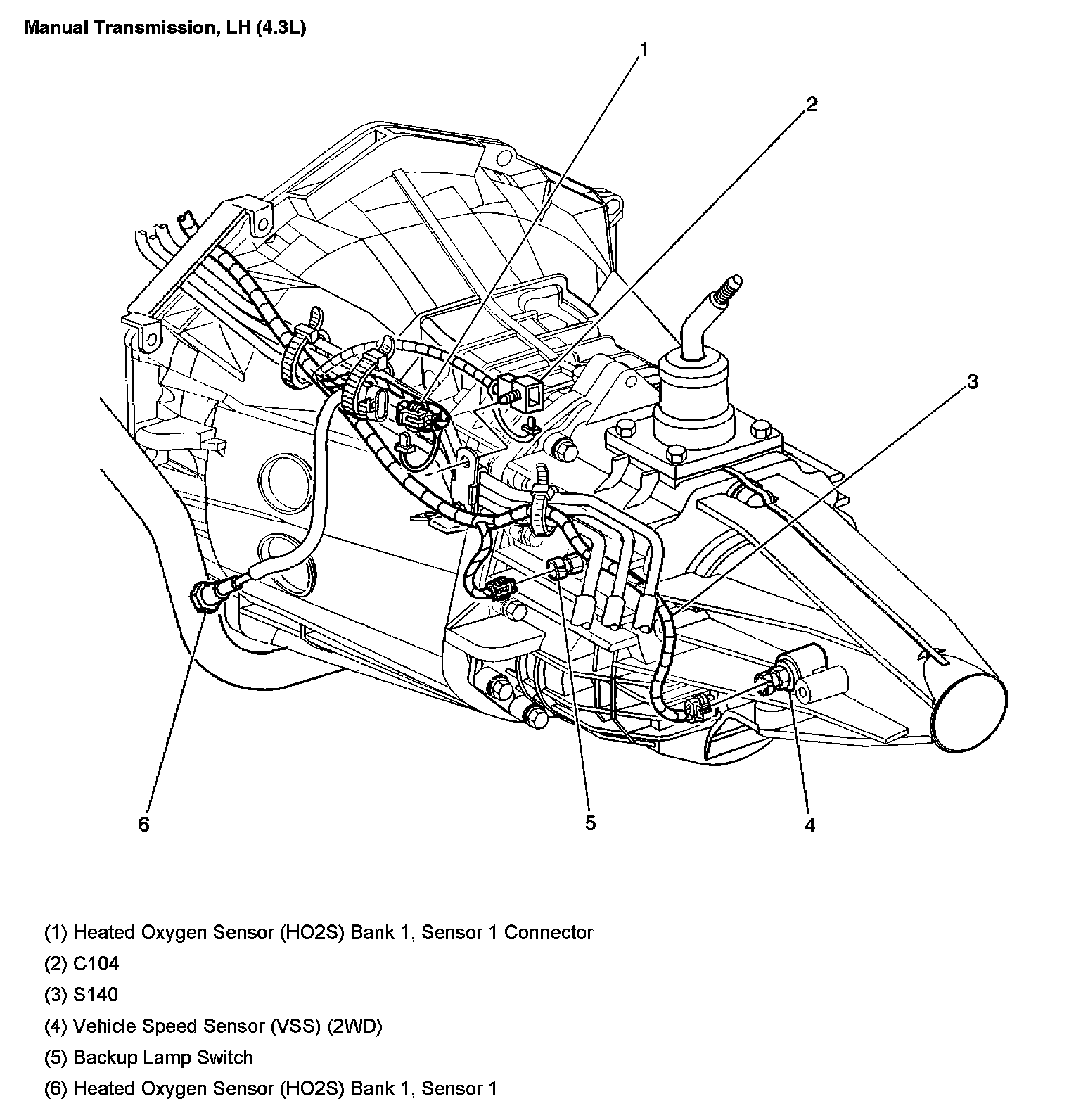

Manual Transmission, LH:

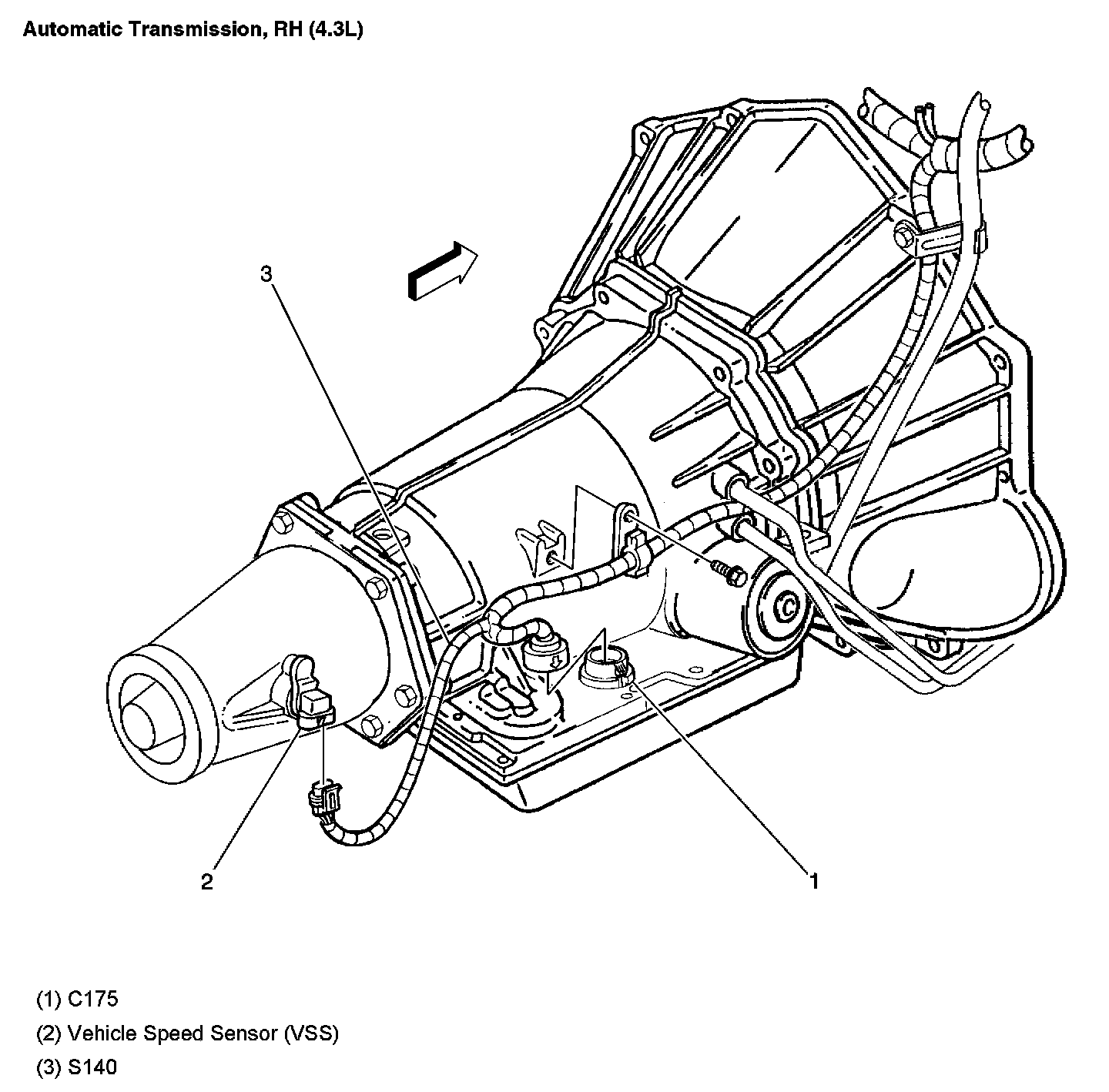

Automatic Transmission, RH:

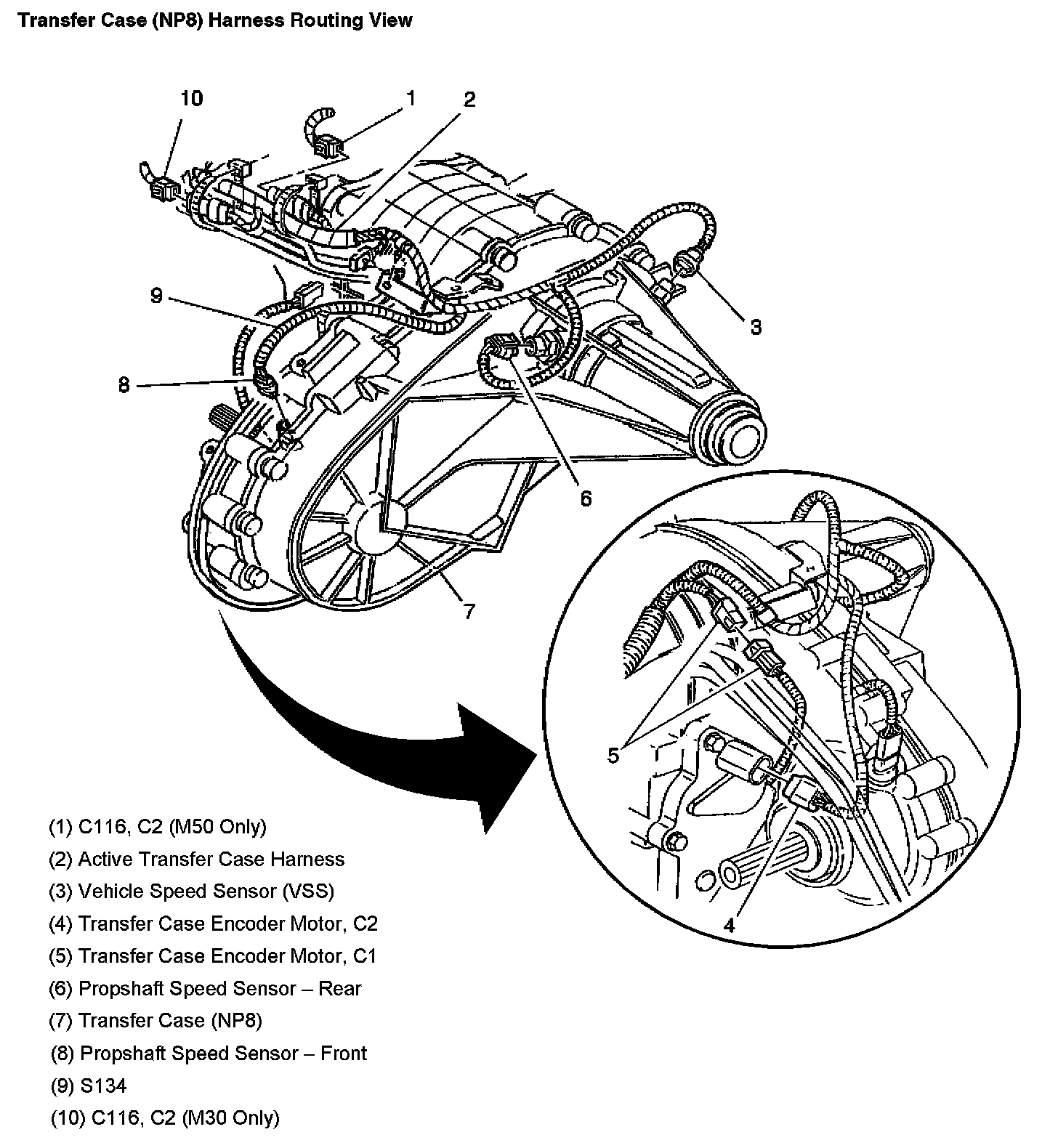

Transfer Case (With RPO Code NP8) Harness Routing View:
