Power Window Switch

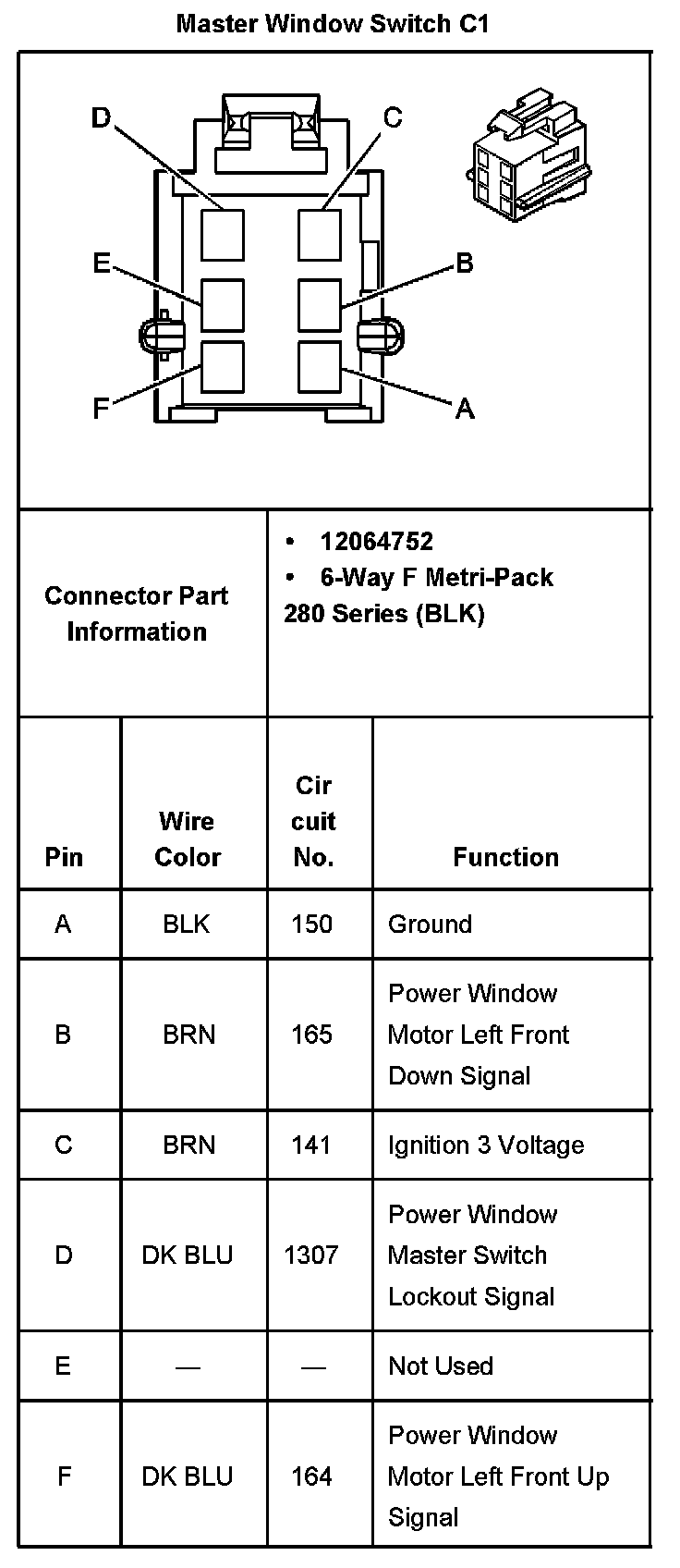

Master Window Switch C1:

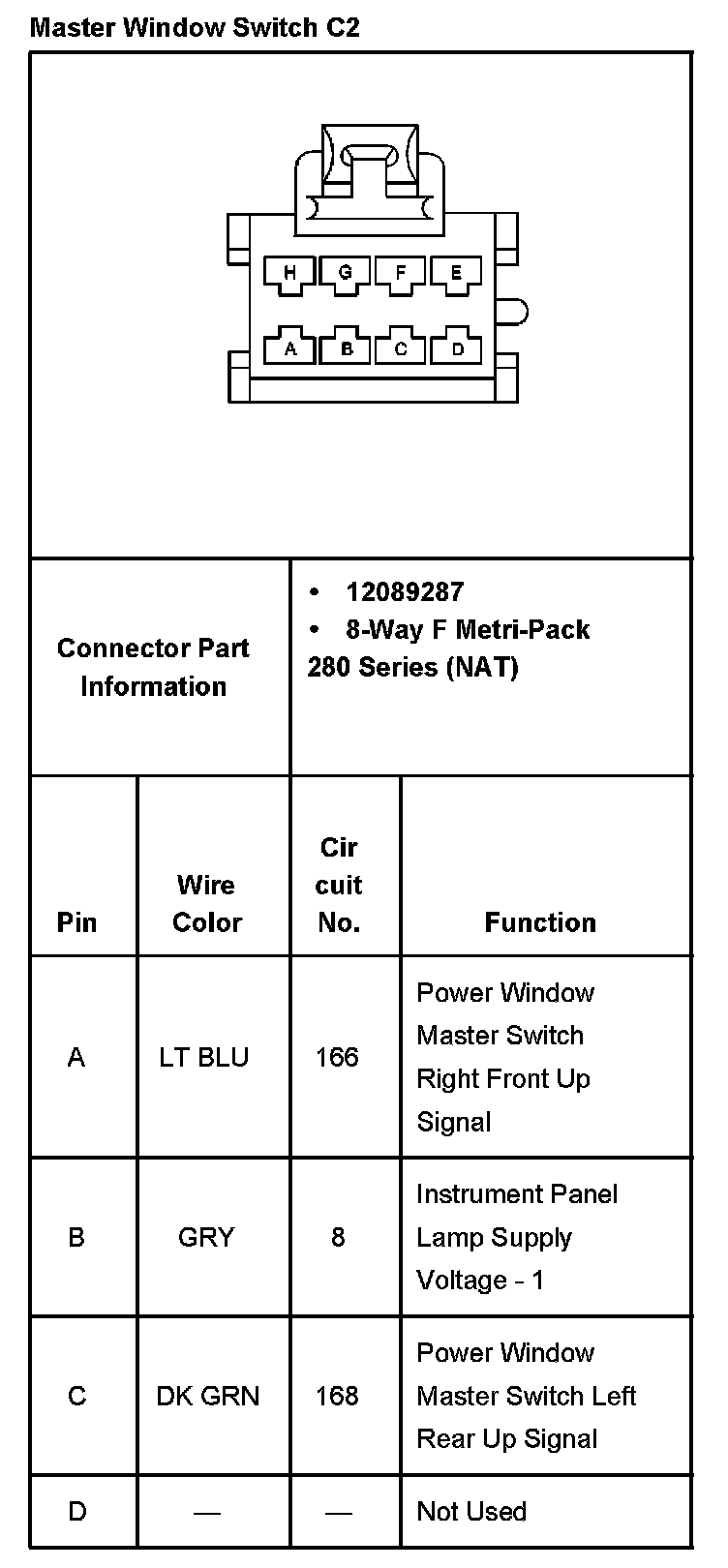

Master Window Switch C2 Part 1:

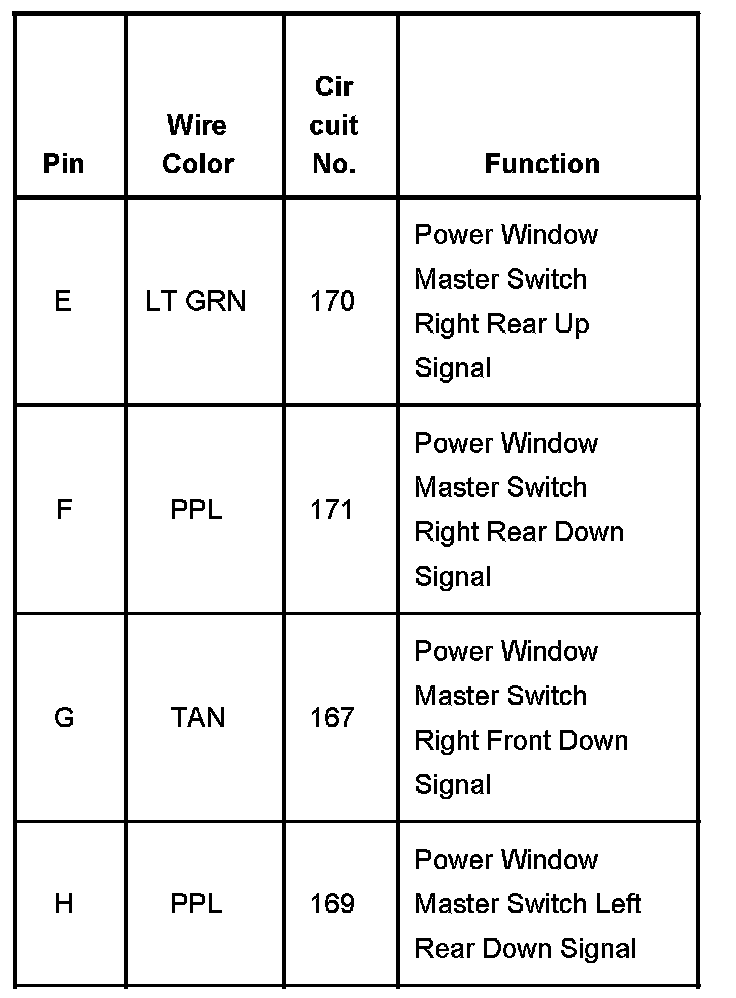

Master Window Switch C2 Part 2:

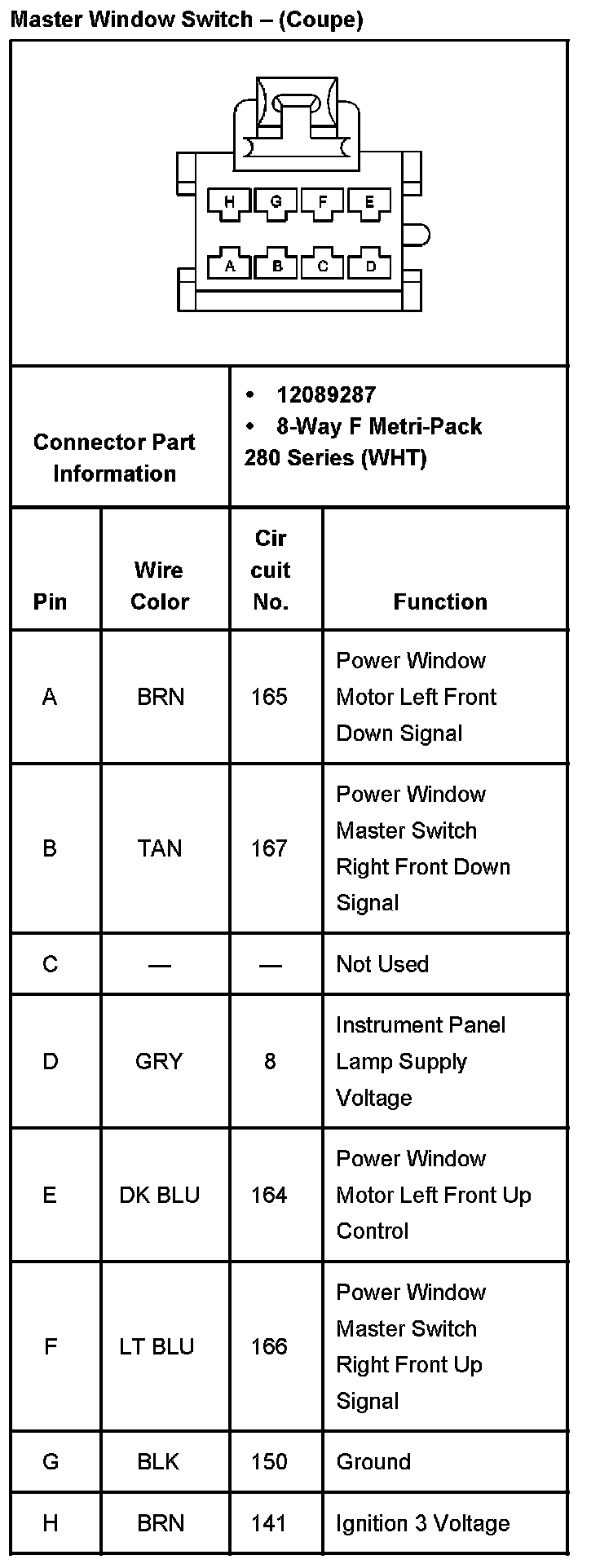

Master Window Switch - (Coupe):

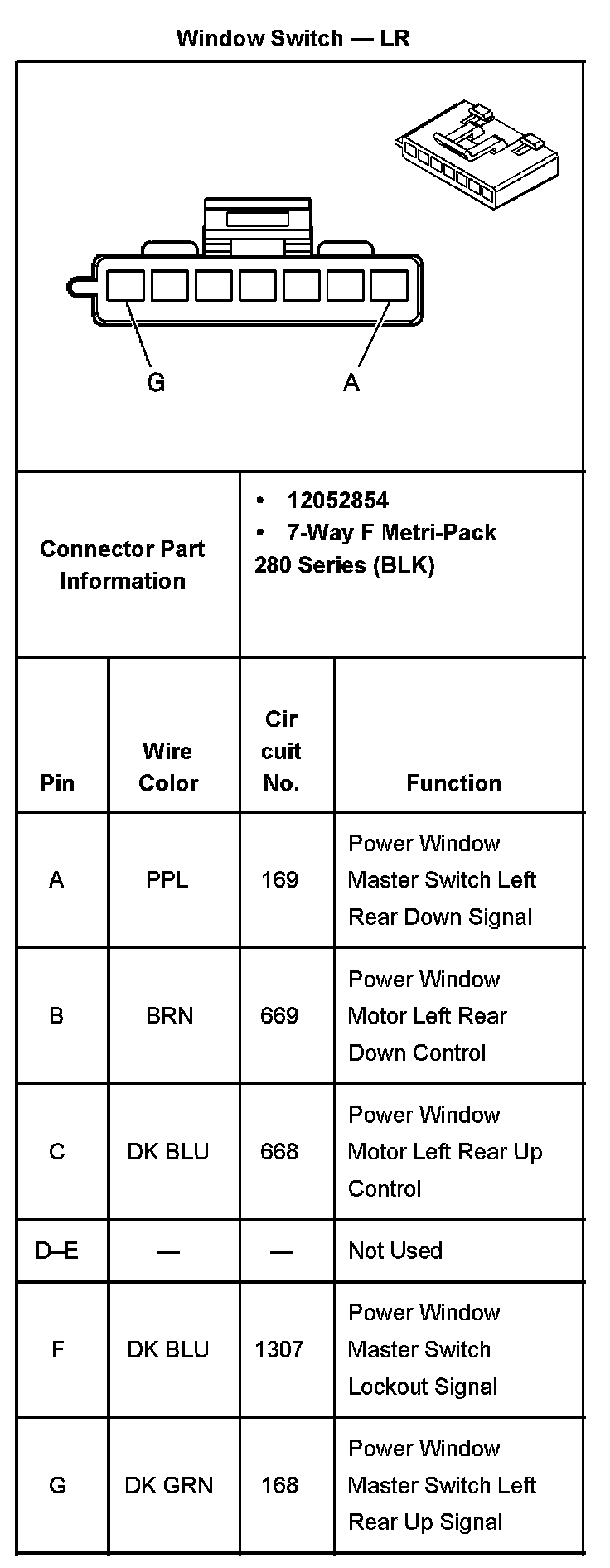

Window Switch - LR:

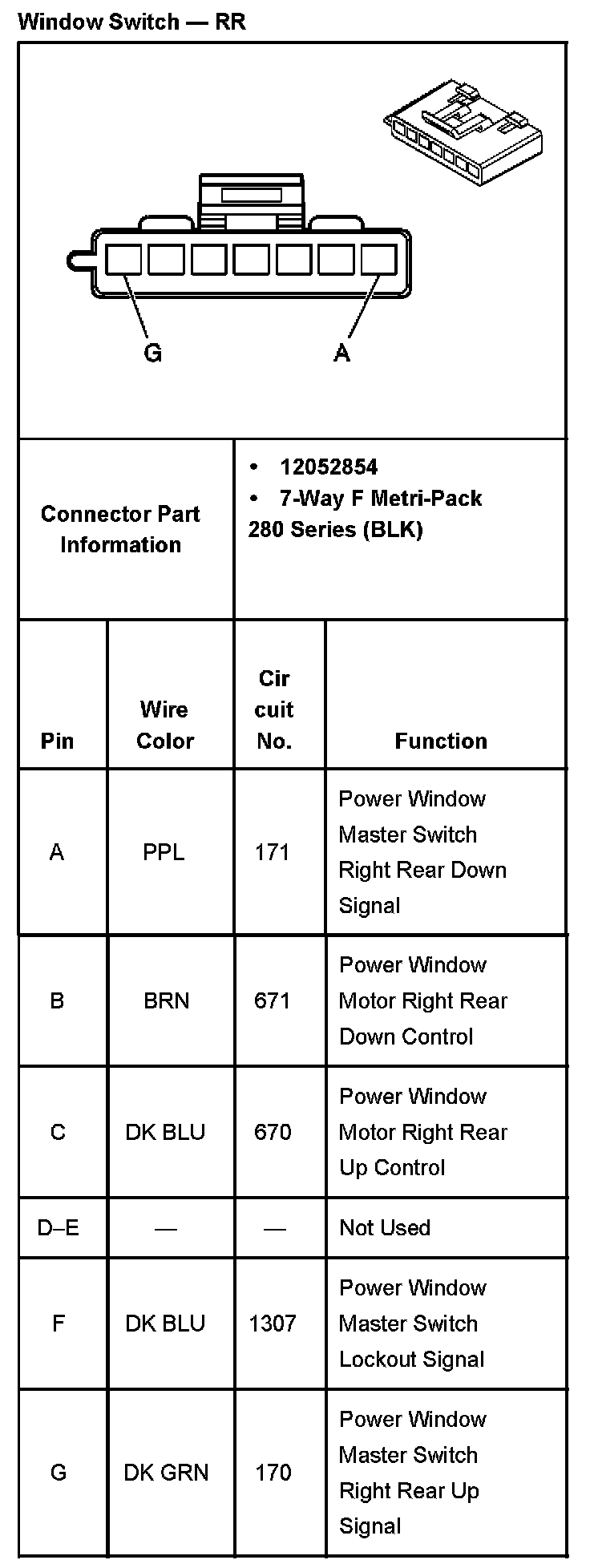

Window Switch - RR:
