Electrical Diagrams

Automatic Transmission Controls Schematics

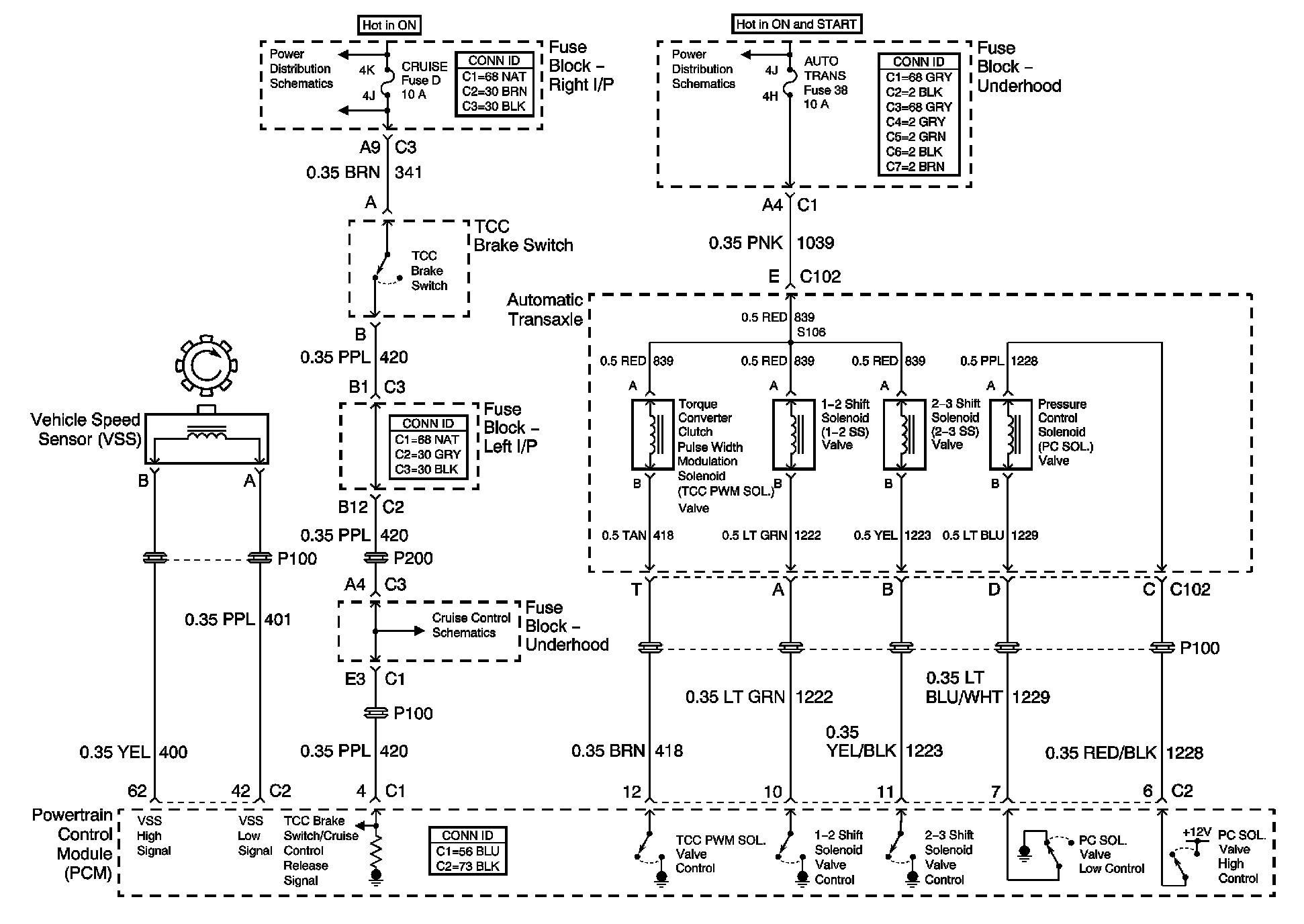

Shift Solenoids





Transmission Switches

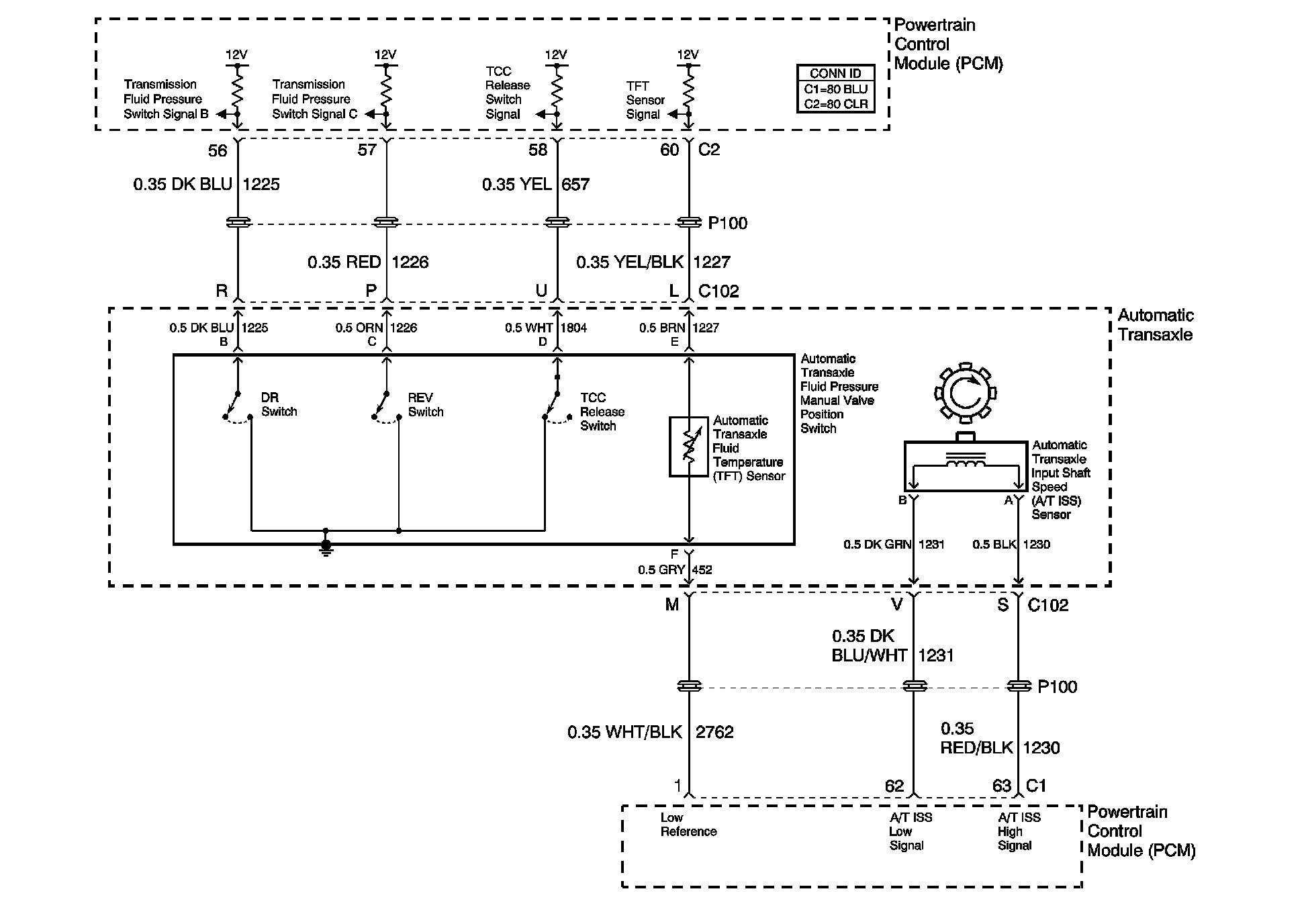

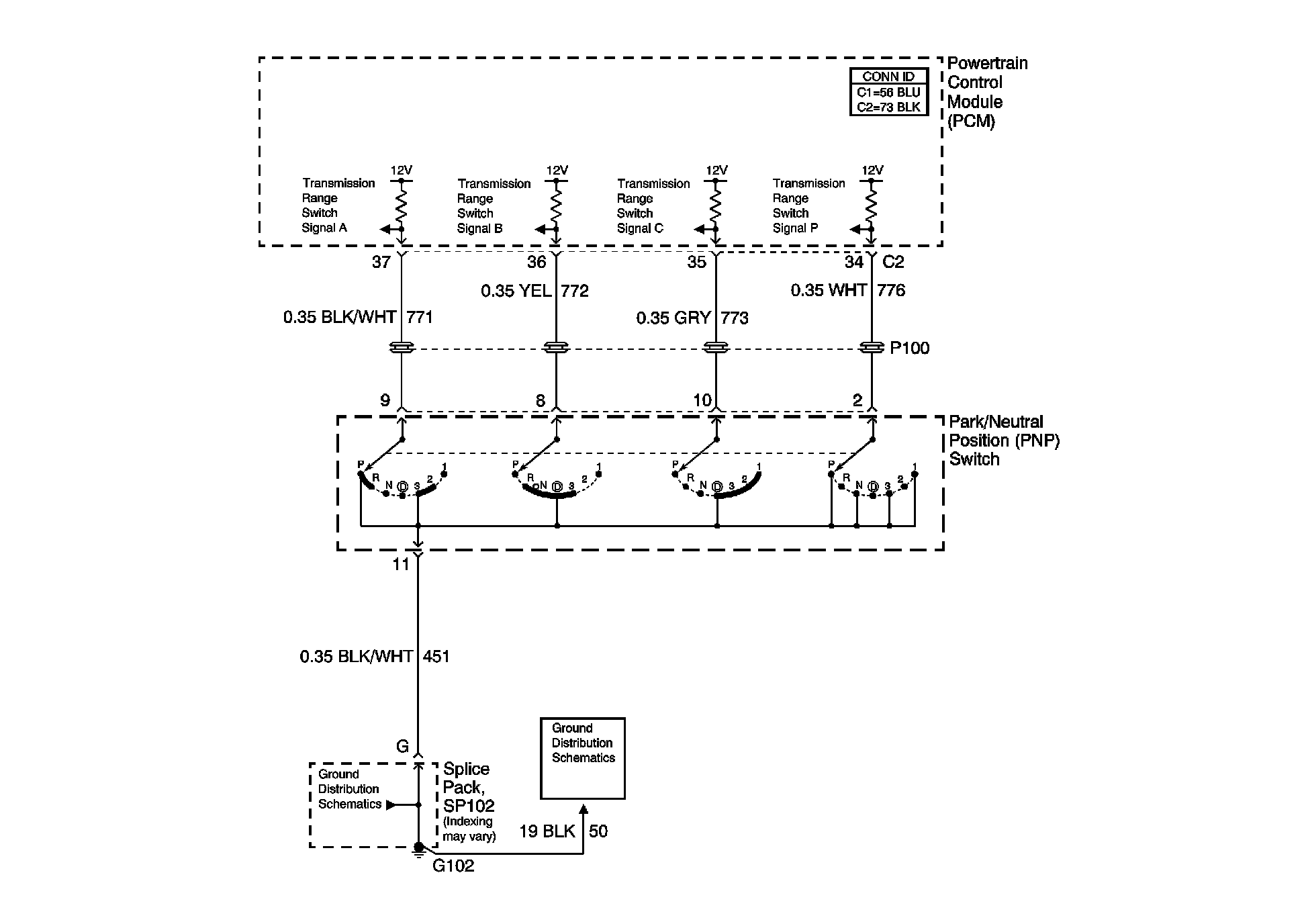

Park Neutral Position (PNP) Switch
