Body Control System Schematics

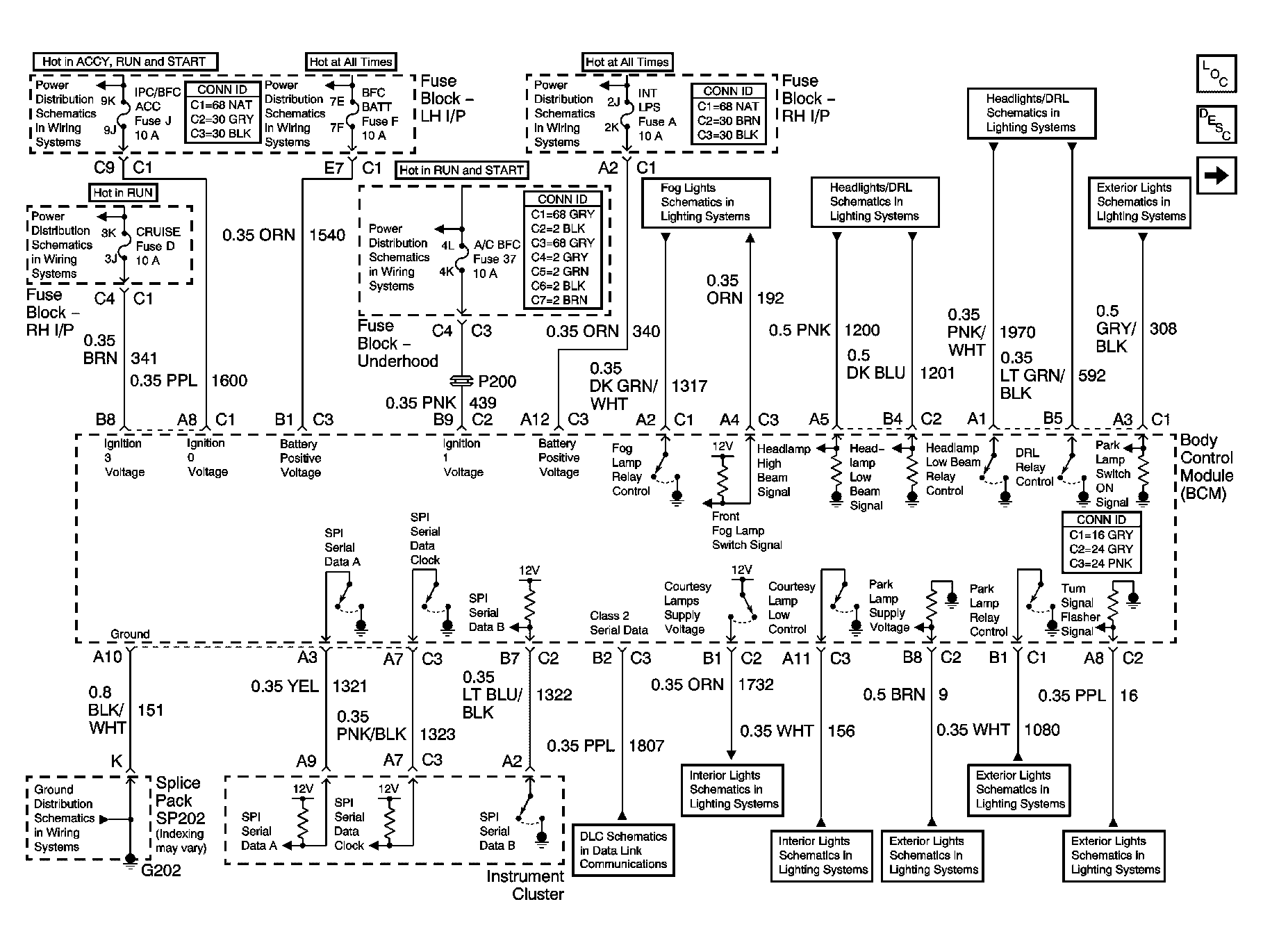

Fig 1: Powers, Grounds, and Communication Diagram
GM782687Courtesy of GENERAL MOTORS CORP.
Fig 2: Controls Diagram
GM782689Courtesy of GENERAL MOTORS CORP.
